GEAR PUMP GROUP - CK25M-T710A

Kioti TRACTOR | CK Series | CK25

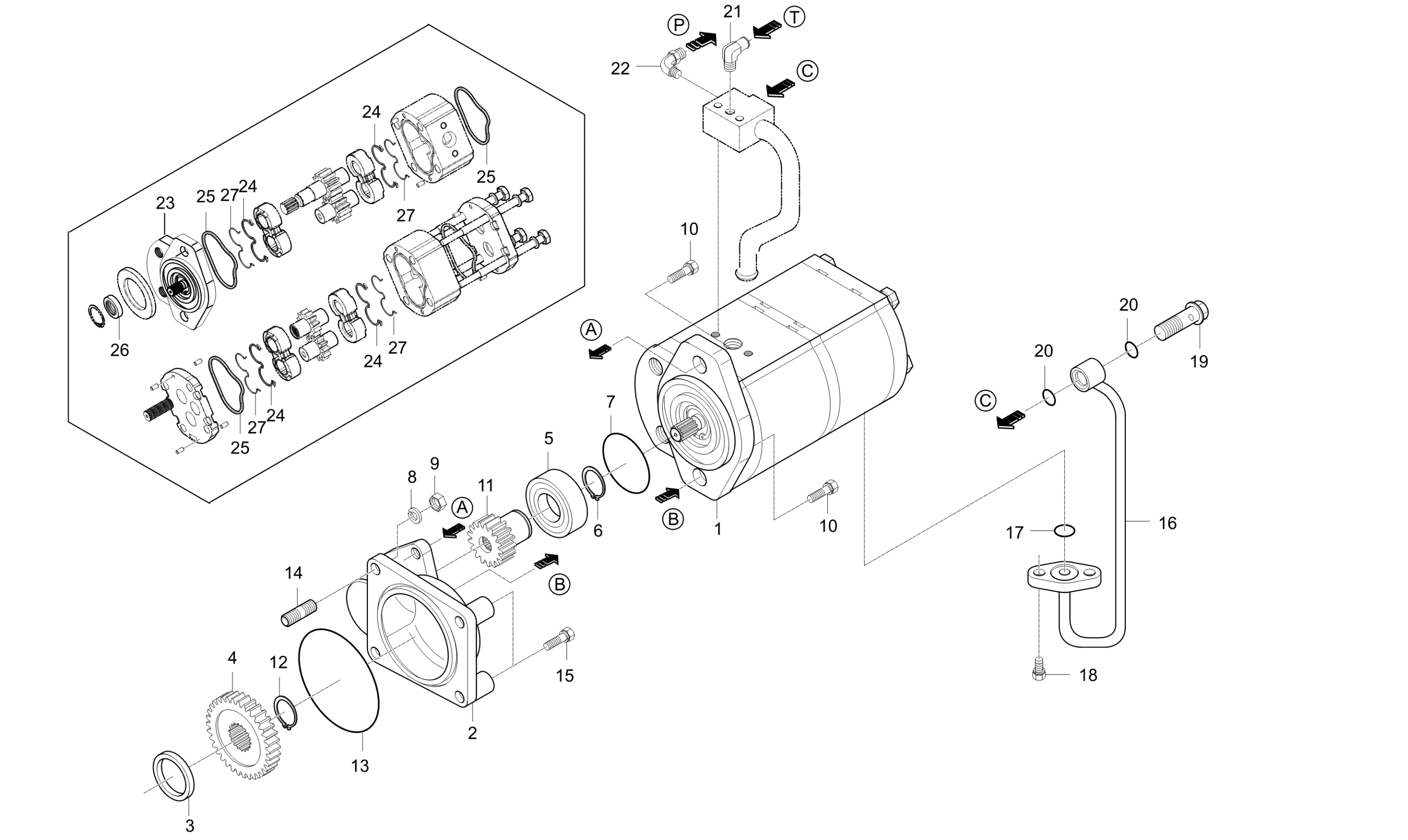

Diagram for GEAR PUMP GROUP - CK25M-T710A
  • 1

    ASS’Y,GEAR PUMP v

    • Part No. T2185-76101
    • Applied Dates Up to 2006-10-02
    • * multiple options for #1
    • 1 shown on diagram
    $1,924.99
  • 1

    ASS’Y PUMP, HYDRAULIC O/P v

    • Part No. T2185-76102
    • Compatibility Interchngable
    • Applied Dates 2006-10-03 to 2008-08-31
    • Serial No. G70100181 and up
    • * multiple options for #1
    • 1 shown on diagram
    $2,009.99
  • 1

    GEAR PUMP v

    • Part No. T2195-76001
    • Compatibility Interchngable
    • Applied Dates 2008-10-31 and up
    • Serial No. H70100001 and up
    • 12X6.5cc
    • * multiple options for #1
    • 1 shown on diagram
    $1,699.99

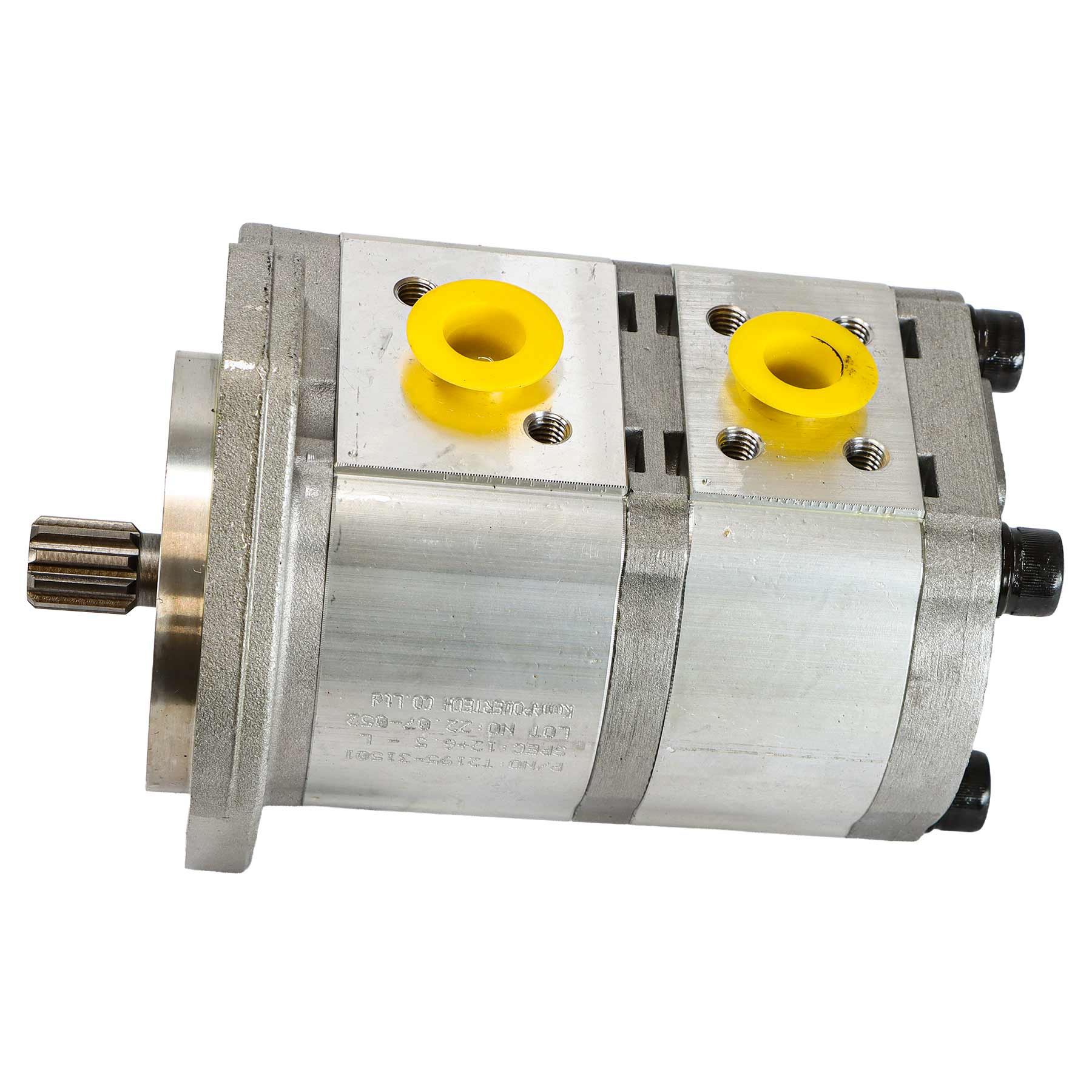

  • 1 ASS’Y PUMP, HDYDRAULIC

    ASS’Y PUMP, HDYDRAULIC

    • Part No. T2195-31501
    • Compatibility Interchngable
    • 12 x 6.5cc/rev
    • * multiple options for #1
    • 1 shown on diagram
    $1,669.99
  • 2

    HOLDER,GEAR PUMP v

    • Part No. T4620-76001
    • Applied Dates Up to 2005-05-11
    • * multiple options for #2
    • 1 shown on diagram
    $73.99
  • 2

    HOLDER, GEAR PUMP dnr v

    • Part No. T4620-76002
    • Compatibility Interchngable
    • Applied Dates 2005-05-12 and up
    • Serial No. E70100081 and up
    • * multiple options for #2
    • 1 shown on diagram
    $119.99
  • 3

    SPACER

    • Part No. 34150-3782-1
    • OD32*T3.2*26
    • 1 shown on diagram
    $3.99
  • 4

    GEAR, 34

    • Part No. 31391-3781-1
    • 1 shown on diagram
    $47.99

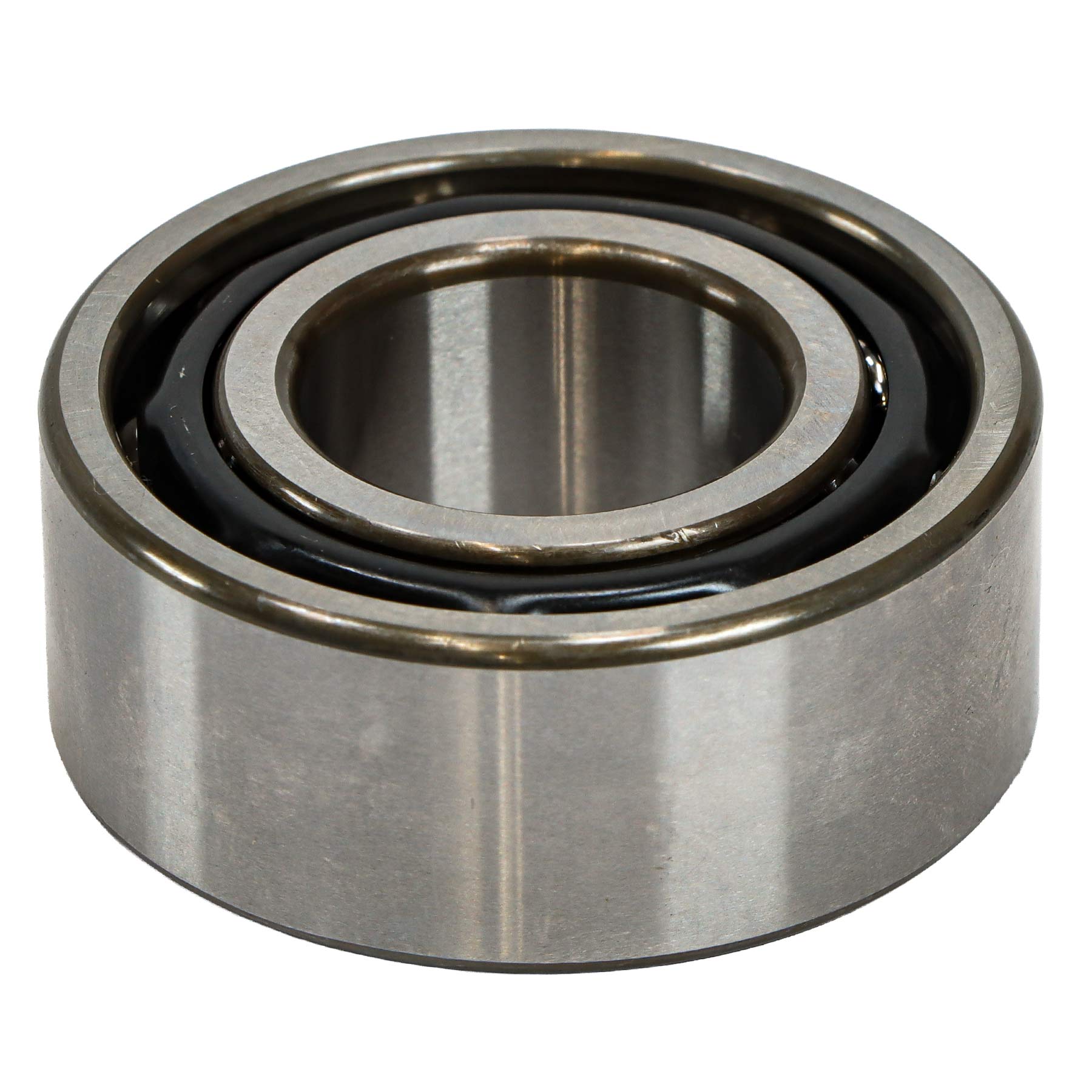

  • 5 BEARING 5205 25x52x20.5

    BEARING 5205 25x52x20.5

    • Part No. 08241-05205
    • 1 shown on diagram
    $87.99
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 7 O-RING

    O-RING

    • Part No. 04811-10800
    • DIA79.5
    • 1 shown on diagram
    $1.69
  • 8 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 9 NUT

    NUT

    • Part No. 02114-50080
    • Applied Dates Up to 2007-09-03
    • M8*P1.25
    • 2 shown on diagram
    $0.67
  • 10

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 2 shown on diagram
    $3.49

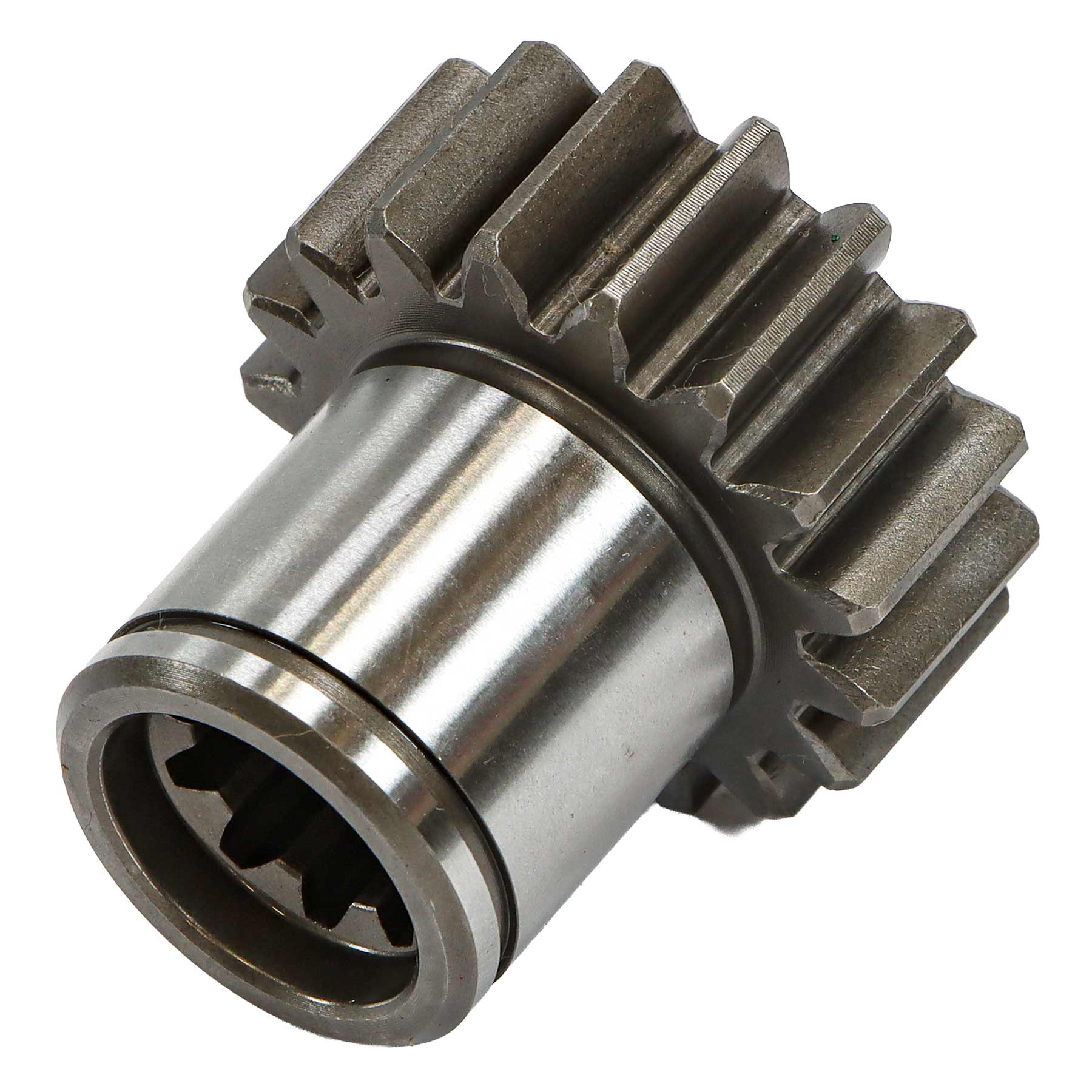

  • 11 GEAR 17

    GEAR 17

    • Part No. T4620-76031
    • 1 shown on diagram
    $69.99
  • 12 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09

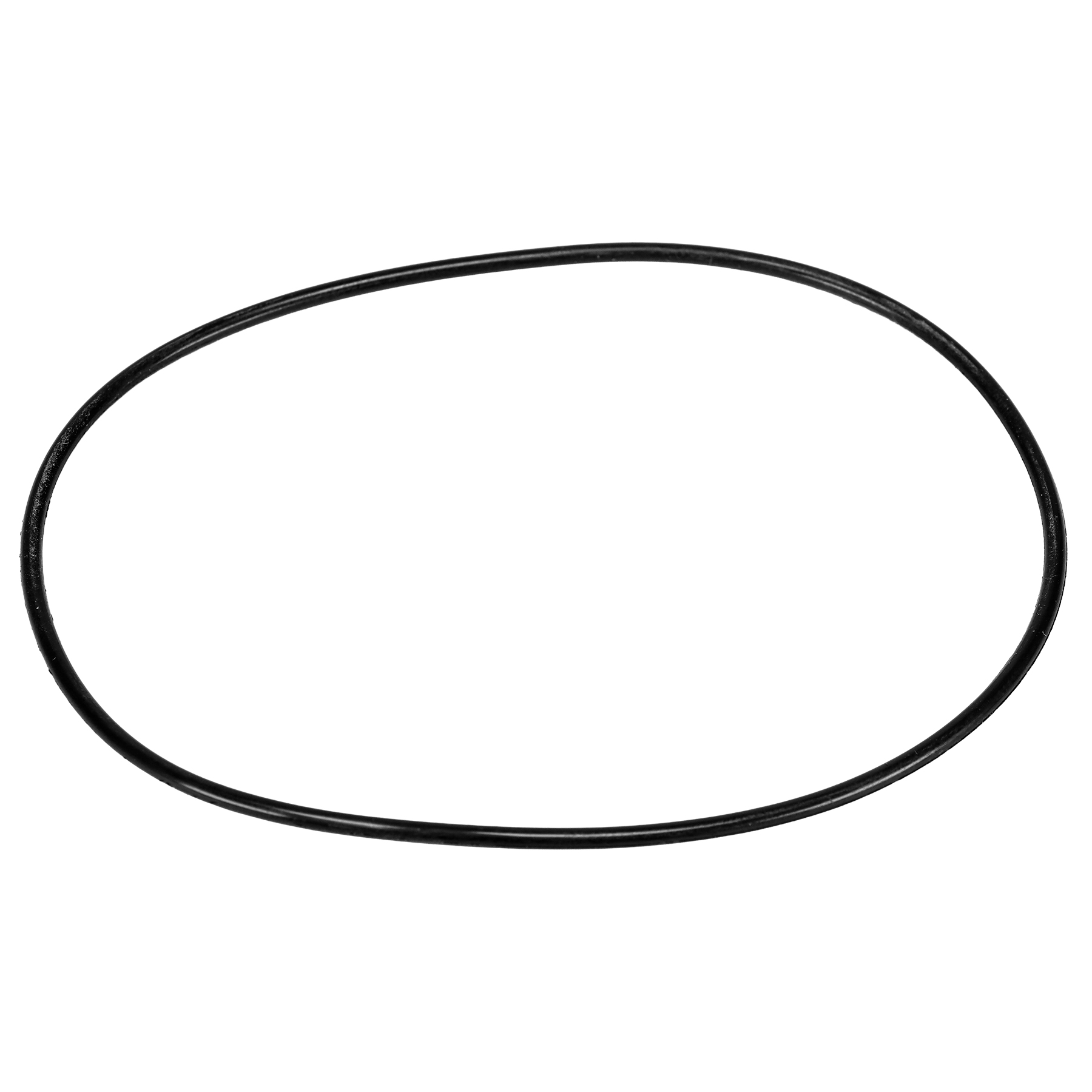

  • 13 O RING

    O RING

    • Part No. 04811-10850
    • 1 shown on diagram
    $1.99
  • 14 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 2 shown on diagram
    $3.99
  • 15 Bolt With Washer, M8 P1.25 x 45mm

    Bolt With Washer, M8 P1.25 x 45mm

    • Part No. 01123-50845
    • M8*P1.25
    • 2 shown on diagram
    $2.99
  • 16

    HOSE 1, STEERING

    • Part No. T2185-45041
    • Applied Dates Up to 2004-09-10
    • * multiple options for #16
    • 1 shown on diagram
    $84.99
  • 16

    Steering Tube 1, Replaced by T2185-45044BB

    • Part No. T2185-45042
    • Compatibility New repl old
    • Applied Dates 2004-09-11 to 2004-12-15
    • Serial No. E70100001 to E70100350
    • * multiple options for #16
    • 1 shown on diagram
    $49.99
  • 16

    Steering Tube 1, Replaced By T2185-45044BB

    • Part No. T2185-45043
    • Compatibility New repl old
    • Applied Dates 2004-12-16 to 2007-03-26
    • Serial No. E70100351 to G70100140
    • * multiple options for #16
    • 1 shown on diagram
    $53.99
  • 16

    PIPE, STEERING-1 dnr v

    • Part No. T2185-45044
    • Compatibility Interchngable
    • Applied Dates 2007-03-27 and up
    • Serial No. G70100141 and up
    • * multiple options for #16
    • 1 shown on diagram
    $89.99
  • 17 O RING

    O RING

    • Part No. 04810-00180
    • 1 shown on diagram
    $1.09
  • 18 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates Up to 2008-04-22
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 19

    JOINT BOLT

    • Part No. T2360-37151
    • 1 shown on diagram
    $19.99
  • 20 O RING

    O RING

    • Part No. 04810-00180
    • 2 shown on diagram
    $1.09
  • 21

    ELBOW

    • Part No. T2185-66151
    • 1 shown on diagram
    $17.99
  • 22

    CYLINDER ADAPTER 1

    • Part No. 56713-2813-1
    • PT1/4*PF1/4
    • 1 shown on diagram
    $18.99
  • 23

    COVER,FRONT v

    • Part No. 21911312
    • Applied Dates Up to 2006-10-02
    • Serial No. Up to G70100180
    • * multiple options for #23
    • 1 shown on diagram
    $354.99
  • 23

    COVER,FRONT

    • Part No. 21911313
    • Compatibility Call for compat
    • Applied Dates 2006-10-03 to 2008-08-31
    • Serial No. G70100181 and up
    • * multiple options for #23
    • 1 shown on diagram
    $354.99
  • 24

    SEAL dnr v

    • Part No. 39656100
    • Applied Dates Up to 2008-08-31
    • 4 shown on diagram
    $13.99

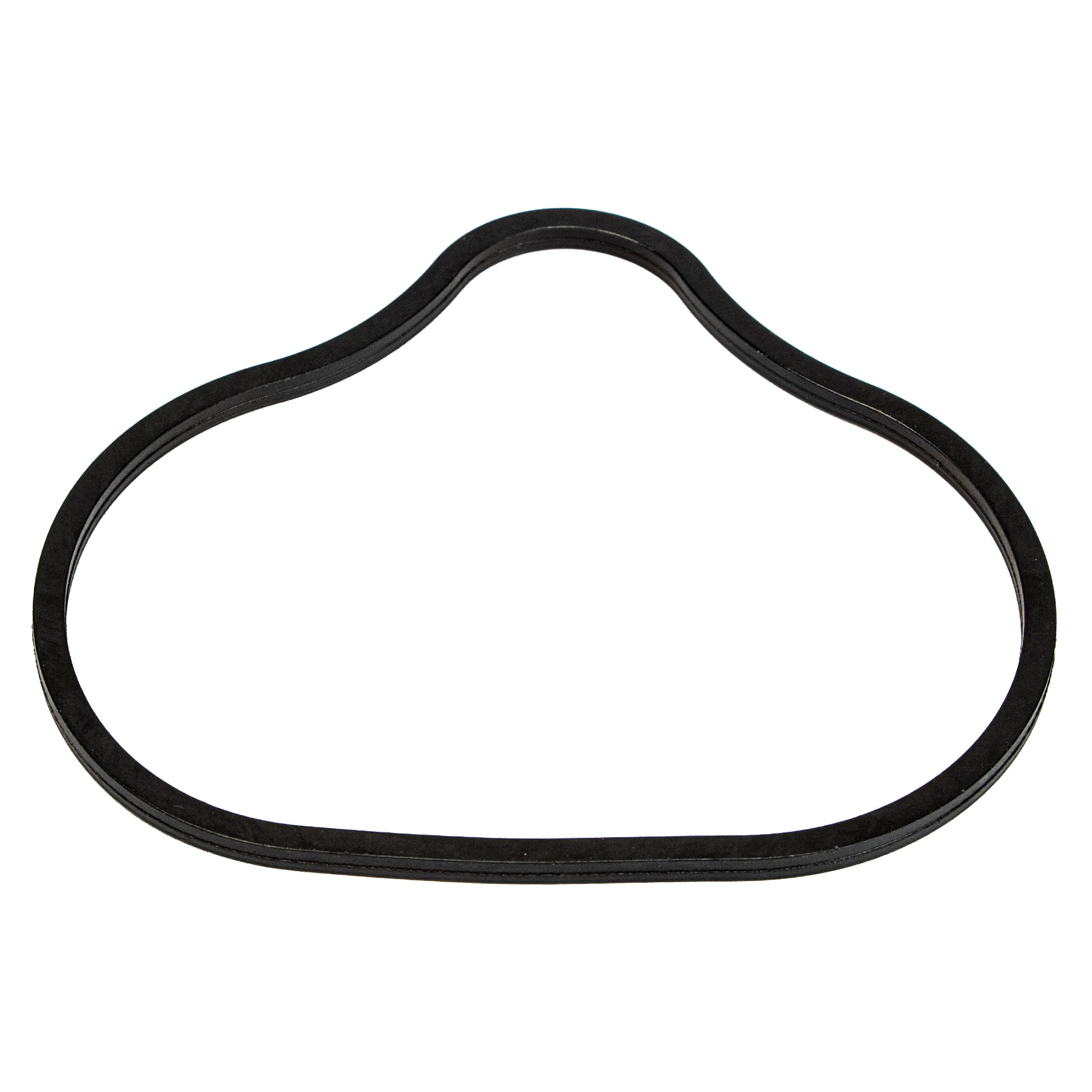

  • 25 SEAL

    SEAL

    • Part No. 39666200
    • Applied Dates Up to 2008-08-31
    • 4 shown on diagram
    $6.49
  • 26

    KIT SEAL v

    • Part No. 39700000
    • Applied Dates Up to 2006-10-02
    • Serial No. Up to G70100180
    • * multiple options for #26
    • 1 shown on diagram
    $29.99

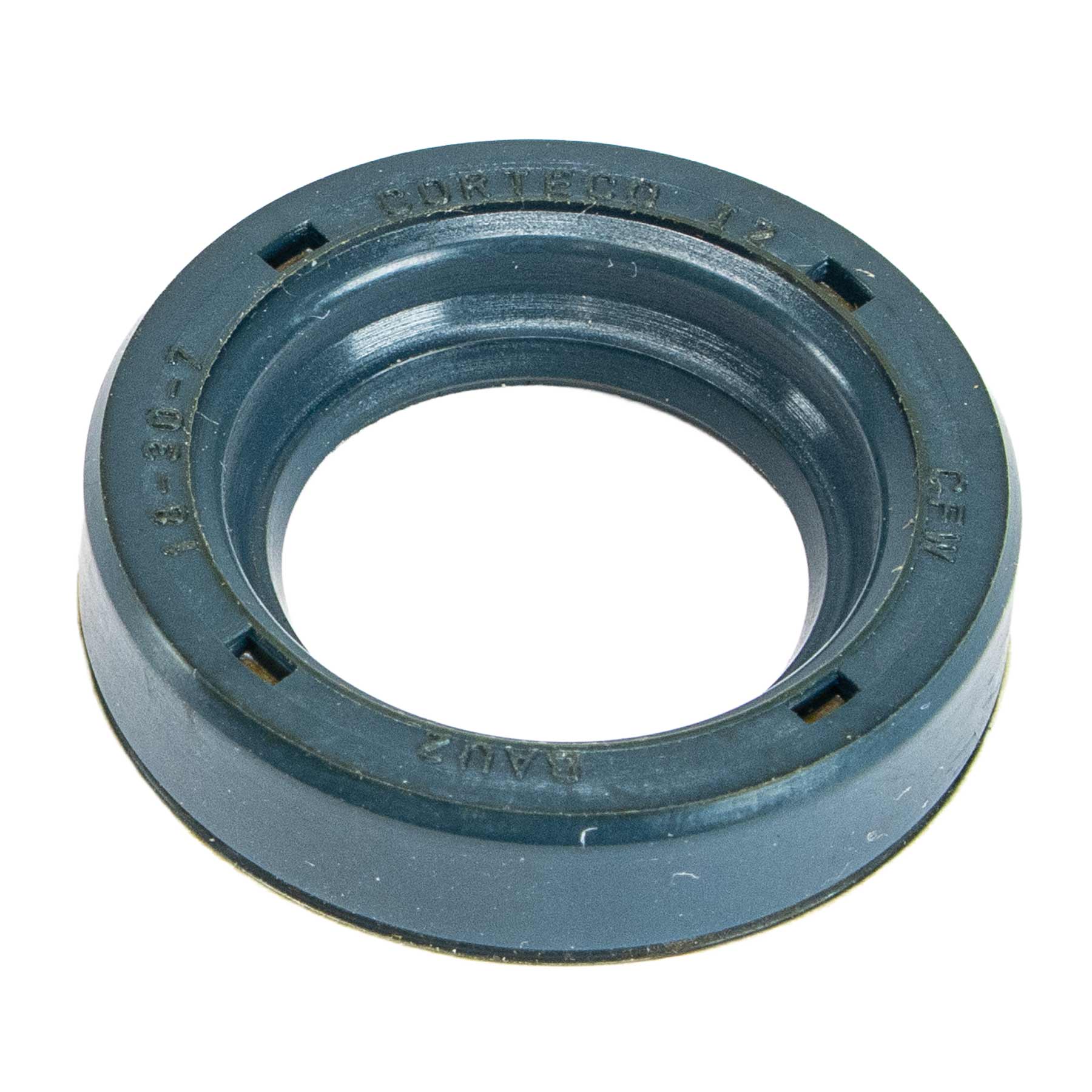

  • 26 SEAL SHAFT

    SEAL SHAFT

    • Part No. 39800000
    • Compatibility Call for compat
    • Applied Dates 2006-10-03 to 2008-08-31
    • Serial No. G70100181 and up
    • * multiple options for #26
    • 2 shown on diagram
    $45.99
  • 27

    BACK RING v

    • Part No. 41387100
    • Applied Dates 2006-10-03 to 2008-08-31
    • 4 shown on diagram
    $12.99
