SHUTTLE SYSTEM GROUP - CK30M-T200A

Kioti TRACTOR | CK Series | CK25

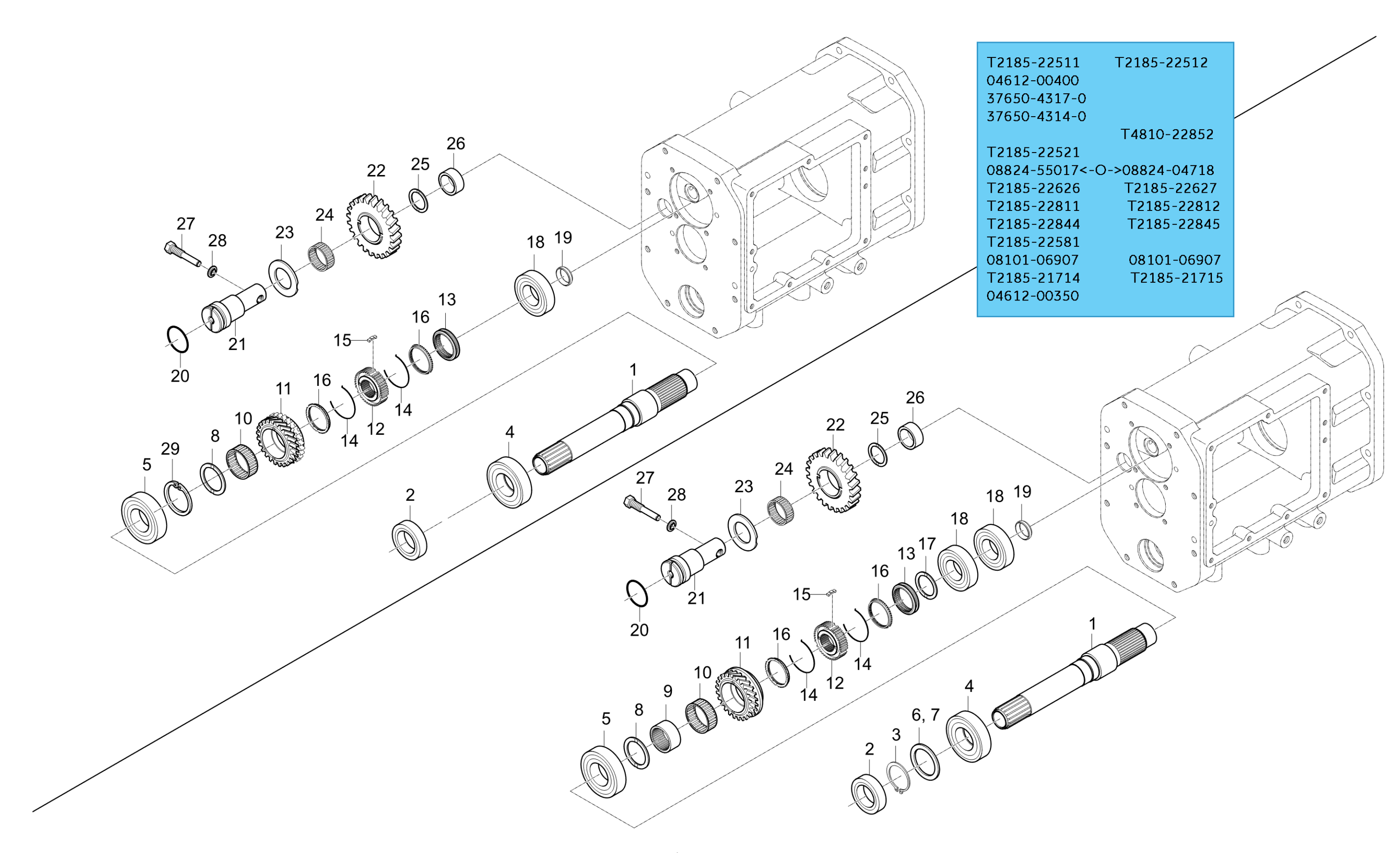

Diagram for SHUTTLE SYSTEM GROUP - CK30M-T200A
  • 1

    SHAFT, SHUTTLE V

    • Part No. T2185-22511
    • Applied Dates Up to 2009-11-30
    • * multiple options for #1
    • 1 shown on diagram
    $514.99
  • 1

    SHAFT SHUTTLE v

    • Part No. T2185-22512
    • Compatibility Call for compat
    • Applied Dates 2009-12-14 and up
    • * multiple options for #1
    • 1 shown on diagram
    $649.99

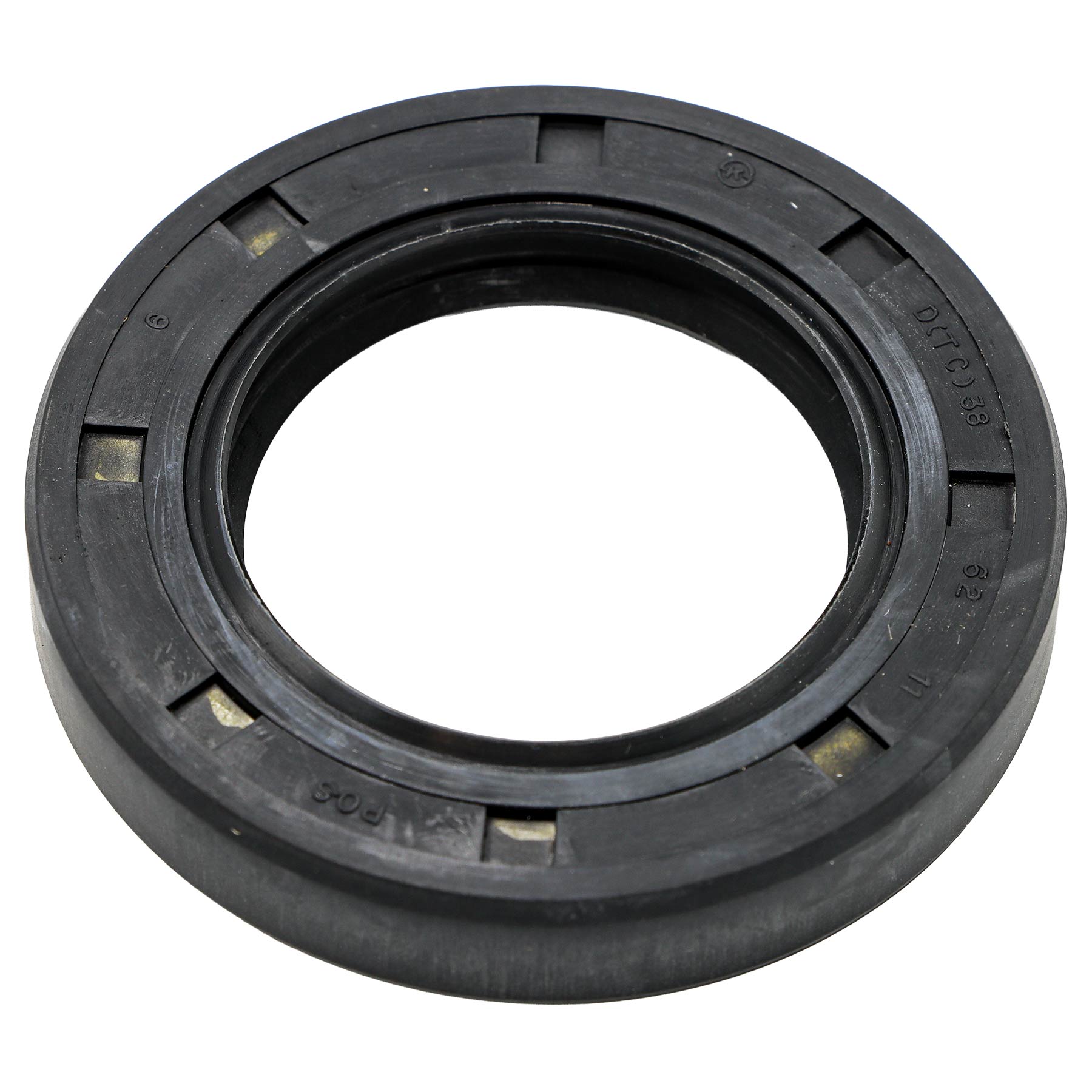

  • 2 SEAL,OIL 38x62x11

    SEAL,OIL 38x62x11

    • Part No. 09503-86211
    • 1 shown on diagram
    $5.49
  • 3

    CIR CLIP, EXTERNAL

    • Part No. 04612-00400
    • Applied Dates Up to 2009-11-30
    • 1 shown on diagram
    $2.49

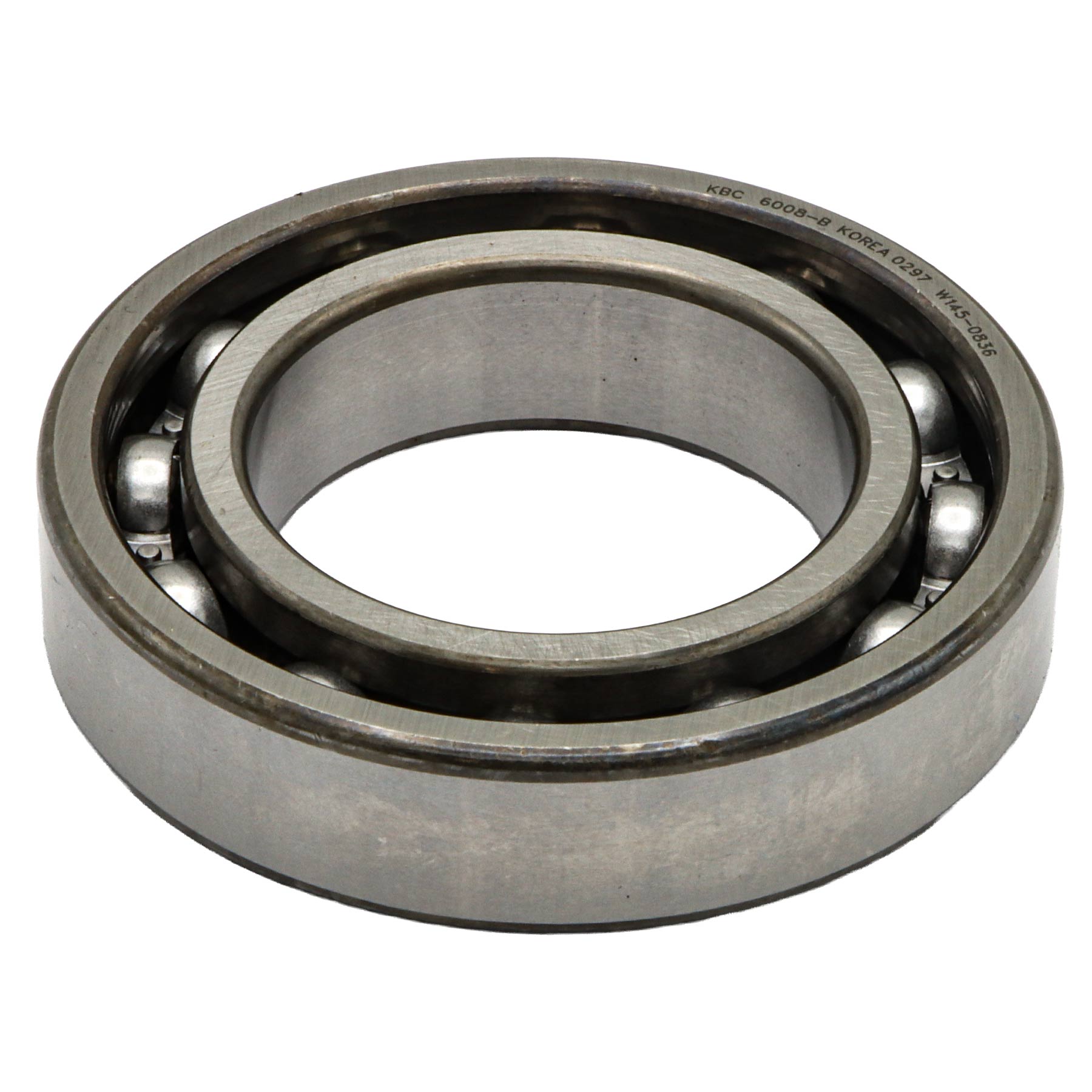

  • 4 BEARING,BALL 40x68x15

    BEARING,BALL 40x68x15

    • Part No. 08101-06008
    • #6008
    • 1 shown on diagram
    $35.99
  • 5 BEARING BALL v, Replaced by T4682-43731

    BEARING BALL v, Replaced by T4682-43731

    • Part No. 08101-06208
    • DIA40
    • 1 shown on diagram
    $0.00
  • 6

    SHIM 0.1

    • Part No. 37650-4317-0
    • Applied Dates Up to 2009-11-30
    • T0.1
    • 2 shown on diagram
    $3.49
  • 7

    SHIM, 0.2

    • Part No. 37650-4314-0
    • Applied Dates Up to 2009-11-30
    • T0.2
    • 2 shown on diagram
    $2.99

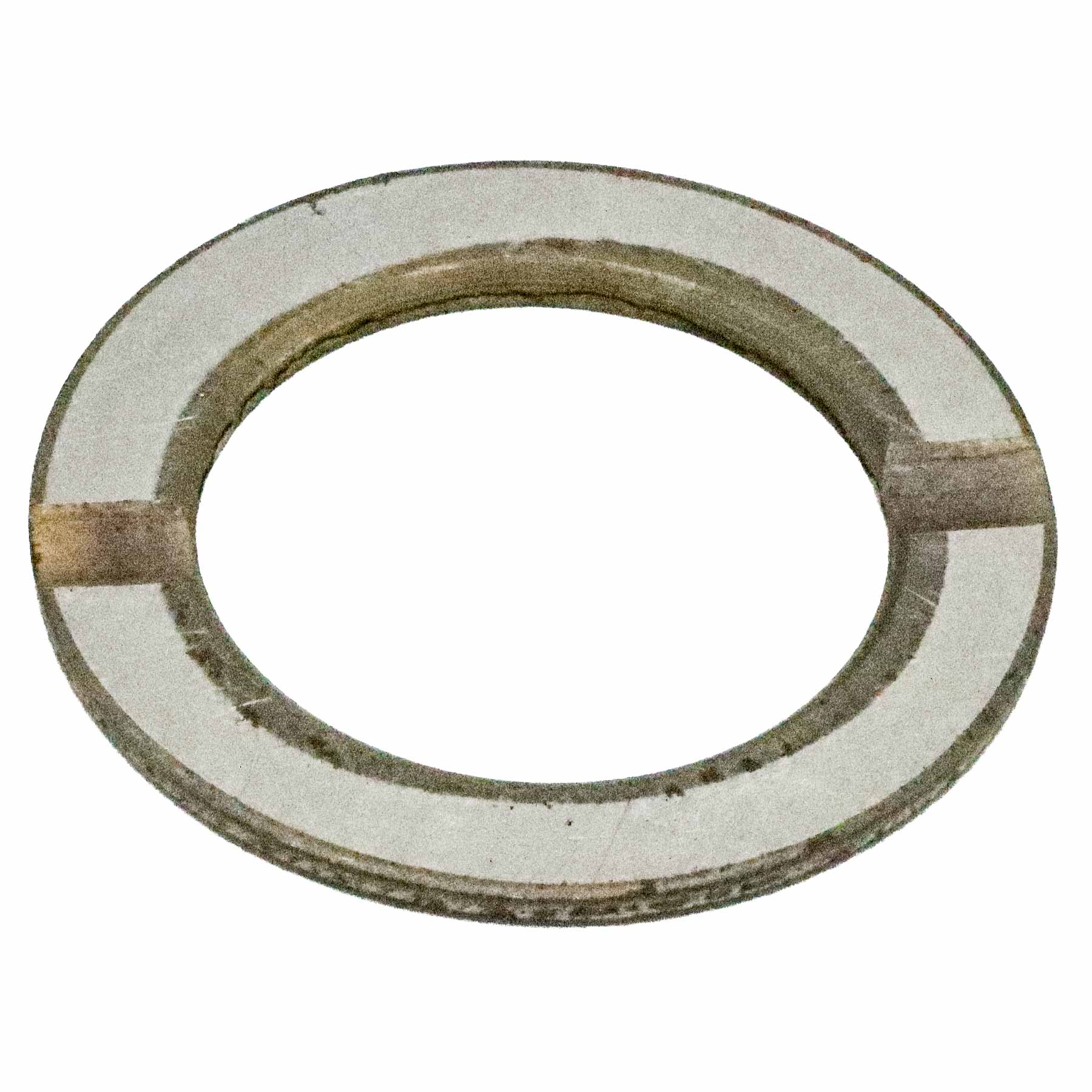

  • 8 COLLAR, THRUST

    COLLAR, THRUST

    • Part No. T2185-22531
    • 1 shown on diagram
    $24.99
  • 9

    ARM, DRAG LINK-RH obs v

    • Part No. T2185-22521
    • Applied Dates Up to 2009-11-30
    • 1 shown on diagram
    $73.99
  • 10

    BEARING NEEDLE v

    • Part No. 08824-55017
    • Applied Dates Up to 2009-11-30
    • K45X50X17
    • 1 shown on diagram
    $44.99
  • 11

    GEAR, 28 v

    • Part No. T2185-22622
    • Applied Dates Up to 2004-07-05
    • * multiple options for #11
    • 1 shown on diagram
    $99.99
  • 11

    GEAR, 28 v

    • Part No. T2185-22623
    • Compatibility New repl old
    • Applied Dates Up to 2005-03-14
    • Serial No. Up to E70100080
    • * multiple options for #11
    • 1 shown on diagram
    $189.99
  • 11

    GEAR,28 obs v

    • Part No. T2185-22626
    • Compatibility No interchange
    • Applied Dates Up to 2009-11-30
    • Serial No. E70100081 and up
    • * multiple options for #11
    • 1 shown on diagram
    $239.99
  • 12

    HUB, SPLINE v

    • Part No. T2185-22811
    • Applied Dates Up to 2009-11-30
    • 1 shown on diagram
    $154.99
  • 13

    SHIFTER v

    • Part No. T2185-22843
    • Applied Dates Up to 2005-03-14
    • Serial No. Up to E70100080
    • * multiple options for #13
    • 1 shown on diagram
    $144.99
  • 13

    SHIFTER V, Replaced by T2185-22845

    • Part No. T2185-22844
    • Compatibility No interchange
    • Applied Dates Up to 2009-11-30
    • Serial No. E70100081 and up
    • * multiple options for #13
    • 1 shown on diagram
    $0.00
  • 13

    SHIFTER v

    • Part No. T2185-22845
    • Compatibility Call for compat
    • Applied Dates 2009-12-14 and up
    • * multiple options for #13
    • 1 shown on diagram
    $164.99
  • 13

    SHIFTER dnr v

    • Part No. T2185-22846
    • Compatibility New repl old
    • * multiple options for #13
    • 1 shown on diagram
    $99.99
  • 14

    SPRING,SYNCHRONIZER v

    • Part No. T2185-22822
    • Applied Dates Up to 2003-12-31
    • DIA1.2
    • * multiple options for #14
    • 2 shown on diagram
    $8.49

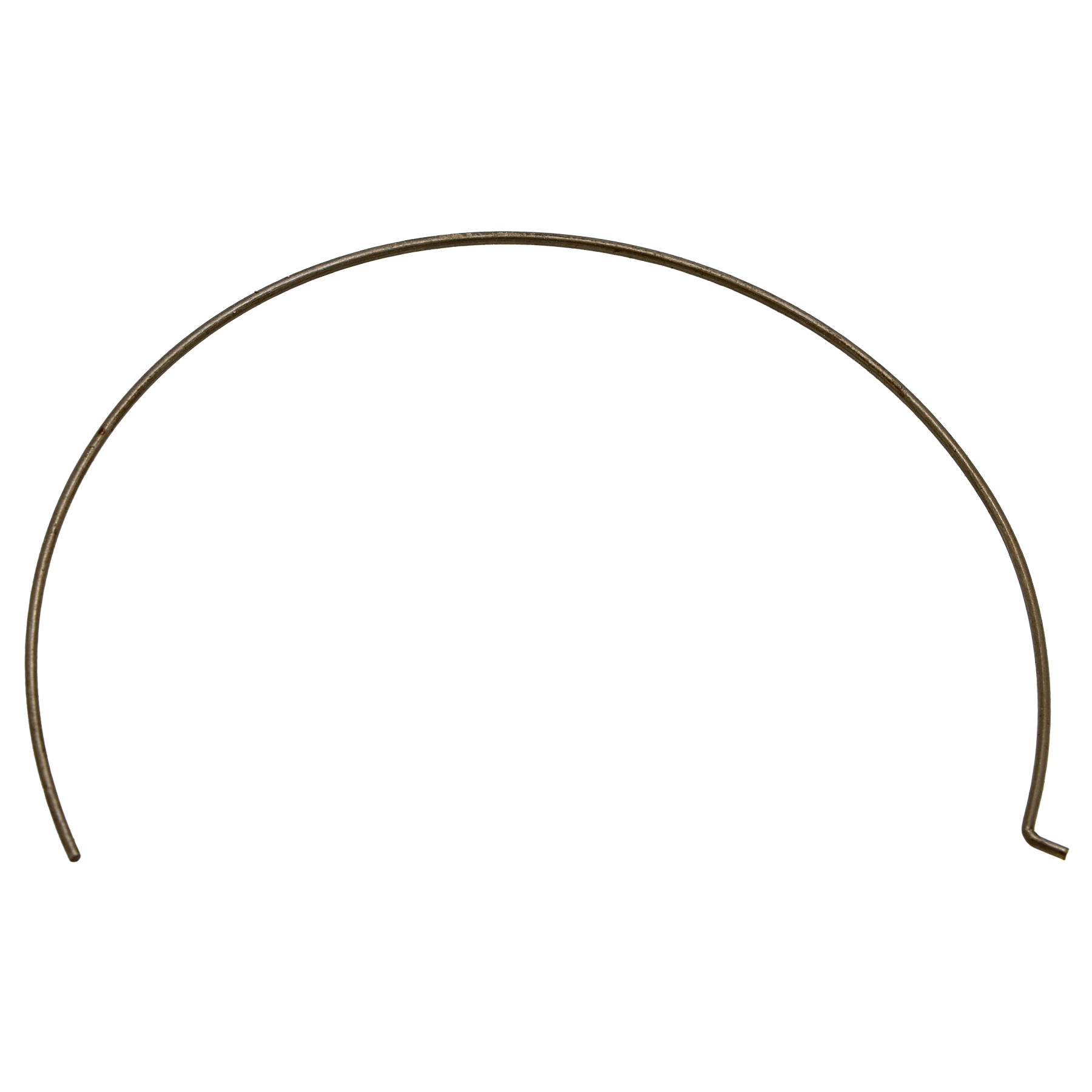

  • 14 SPRING, SYNCHRONIZER

    SPRING, SYNCHRONIZER

    • Part No. T2185-22823
    • Compatibility New repl old
    • Applied Dates 2004-05-31 and up
    • PI1.2
    • * multiple options for #14
    • 2 shown on diagram
    $32.99
  • 14

    SPRING, SYNCHRONIZER dnr v

    • Part No. T2185-22824
    • Compatibility New repl old
    • PI1.2
    • * multiple options for #14
    • 2 shown on diagram
    $8.49
  • 15 SYNCHRONIZER KEY

    SYNCHRONIZER KEY

    • Part No. T2610-21812
    • 3 shown on diagram
    $6.99
  • 16 RING,SYNCHRONIER V

    RING,SYNCHRONIER V

    • Part No. T2185-22852
    • Applied Dates 2004-04-26 and up
    • 2 shown on diagram
    $47.99

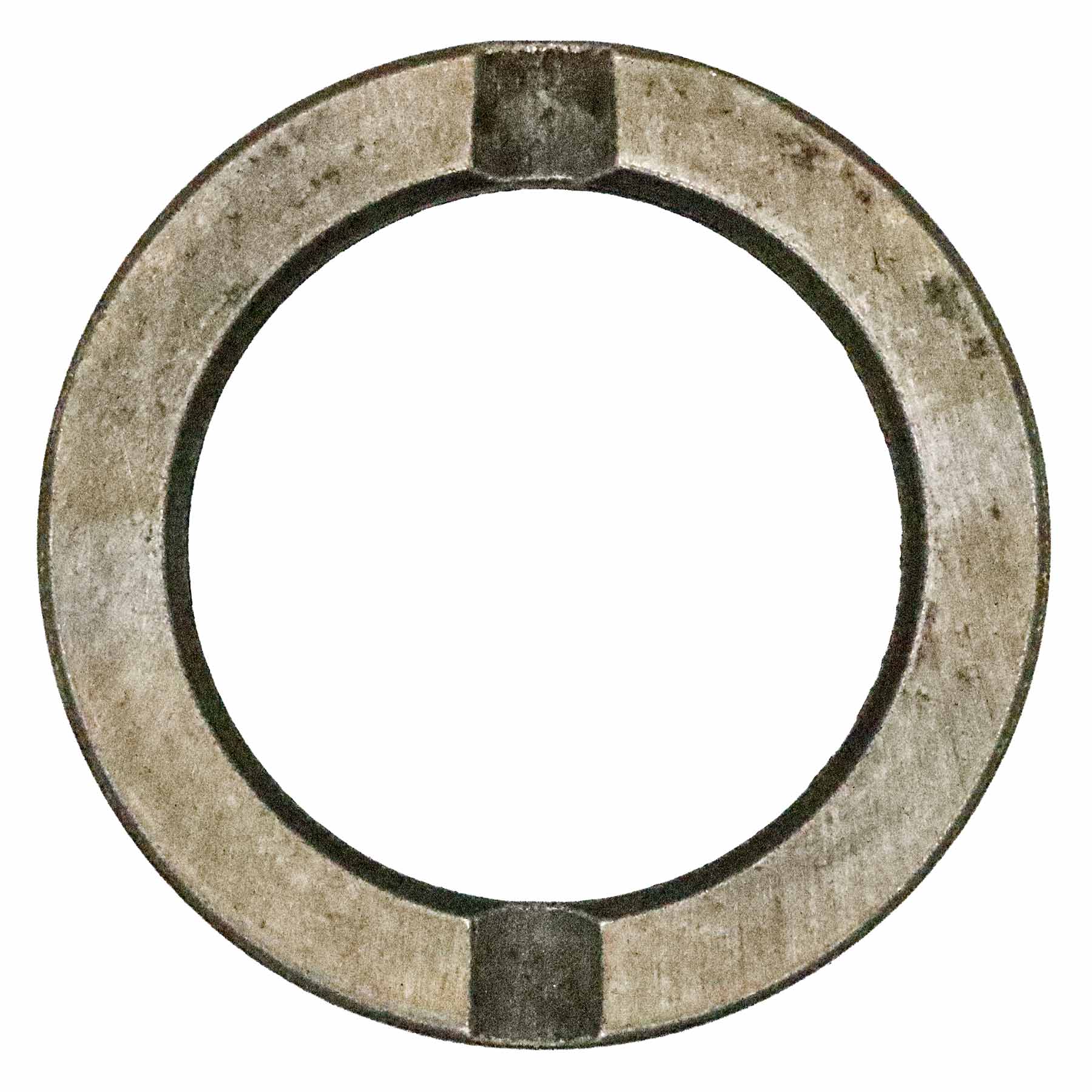

  • 17 COLLAR, THRUST

    COLLAR, THRUST

    • Part No. T2185-22581
    • Applied Dates Up to 2009-11-30
    • 1 shown on diagram
    $23.99
  • 18

    BEARING,BALL

    • Part No. 08101-06907
    • Applied Dates 2012-05-30 to 2009-02-01
    • #6907
    • 2 shown on diagram
    $49.99
  • 19 SEAL, OIL

    SEAL, OIL

    • Part No. T2440-21361
    • 1 shown on diagram
    $5.99
  • 20

    O RING

    • Part No. 04811-50250
    • 1 shown on diagram
    $1.29
  • 21

    SHAFT,REVERSE

    • Part No. T2185-22712
    • Applied Dates 2004-04-26 and up
    • 1 shown on diagram
    $114.99
  • 22

    25T Gear

    • Part No. T2185-22722
    • Applied Dates 2004-06-24 to 2004-07-13
    • Serial No. Up to E70100062
    • * multiple options for #22
    • 1 shown on diagram
    $54.99
  • 22

    25T Gear

    • Part No. T2185-22723
    • Compatibility No interchange
    • Applied Dates 2004-10-20 and up
    • Serial No. E70100063 and up
    • * multiple options for #22
    • 1 shown on diagram
    $99.99
  • 23

    COLLAR THRUST

    • Part No. T4620-22731
    • 1 shown on diagram
    $18.99
  • 24 BEARING, NEEDLE

    BEARING, NEEDLE

    • Part No. 08822-53020
    • Inner diameter 25
    • 1 shown on diagram
    $16.99
  • 25

    COLLAR

    • Part No. 31365-2278-1
    • 1 shown on diagram
    $15.99
  • 26

    SPACER obs v

    • Part No. T2185-22771
    • 1 shown on diagram
    $9.99
  • 27

    BOLT SET

    • Part No. T4620-22791
    • 1 shown on diagram
    $12.99
  • 28 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 29

    CIR CLIP, EXTERNAL

    • Part No. T4810-22852
    • Applied Dates 2009-12-14 and up
    • 2 shown on diagram
    $12.99
