FRONT AXLE GROUP - CK30M-T560A

Kioti TRACTOR | CK Series | CK25

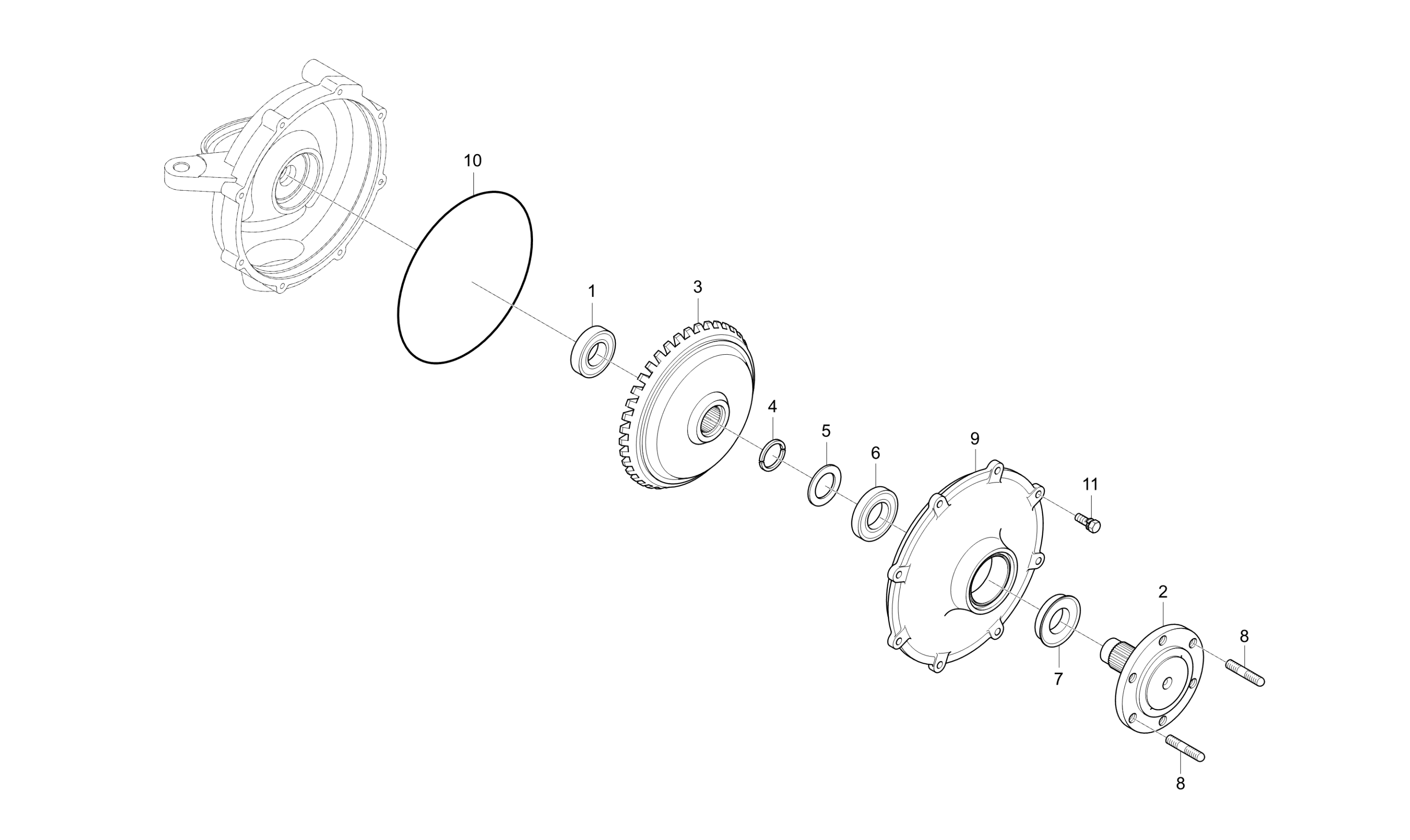

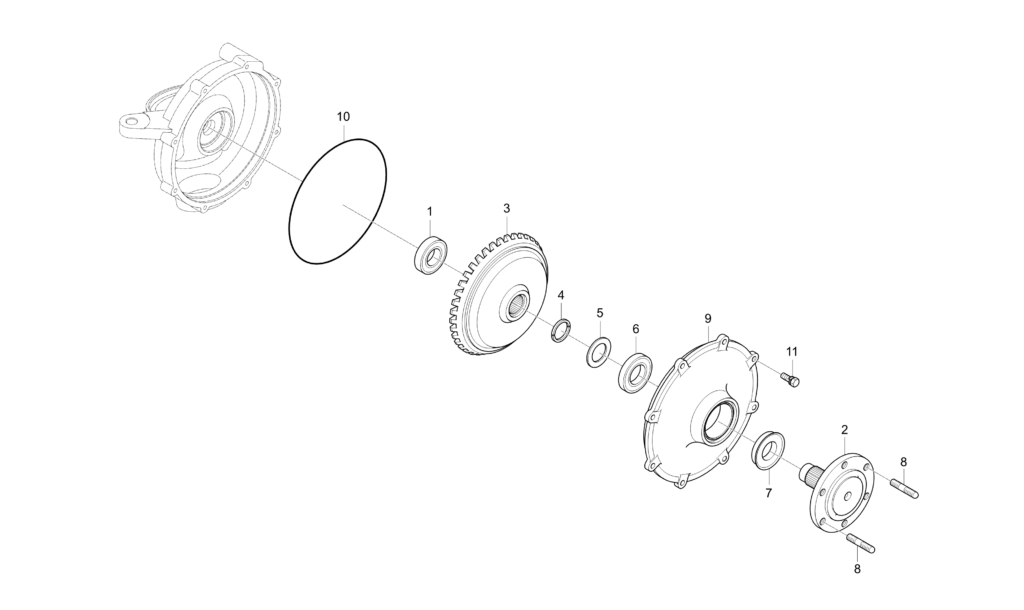

Diagram for FRONT AXLE GROUP - CK30M-T560A
  • 1 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 2 shown on diagram
    $29.99

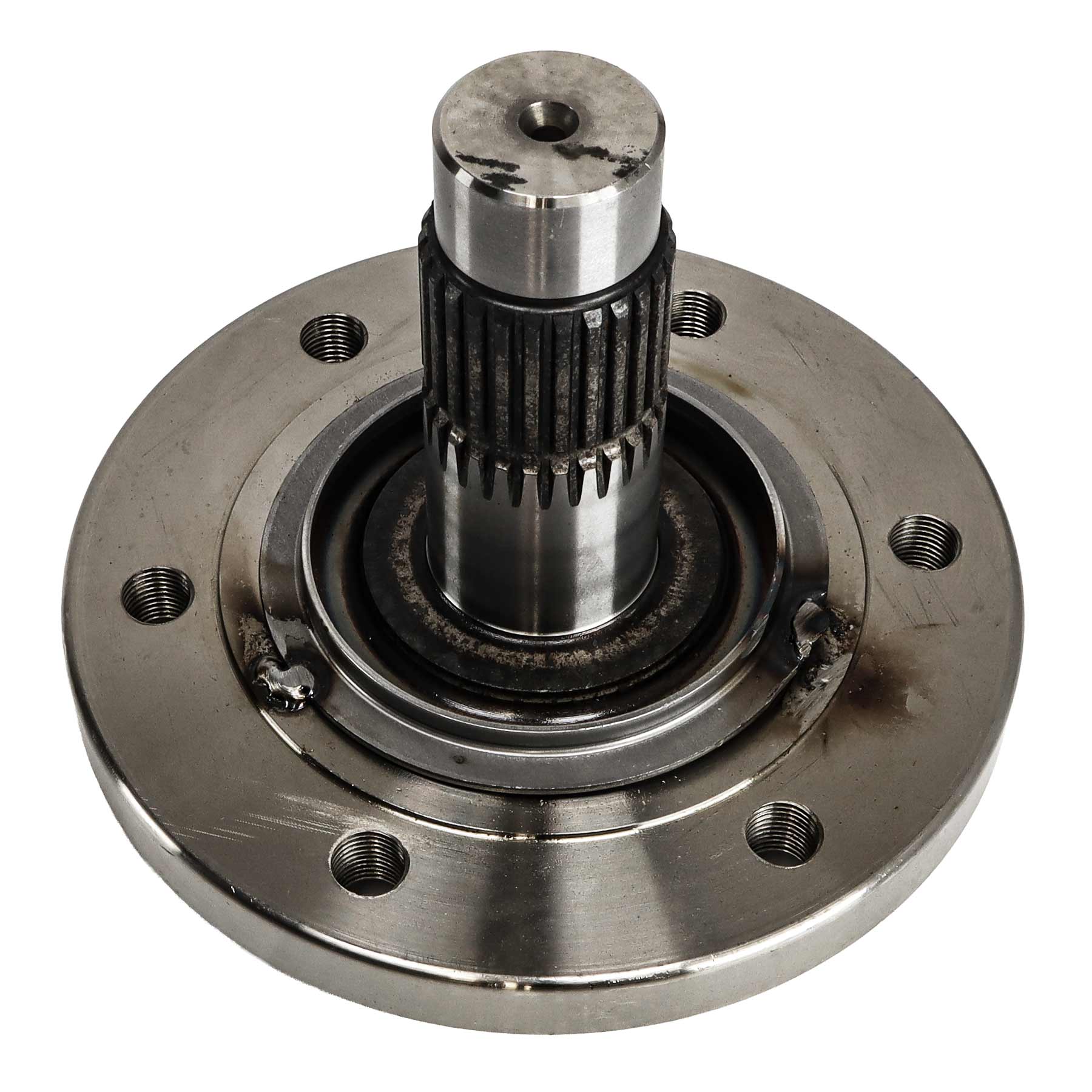

  • 2 AXLE,FRONT

    AXLE,FRONT

    • Part No. T2440-43611
    • 2 shown on diagram
    $349.99
  • 3

    GEAR,42 BEVEL

    • Part No. T2185-43661
    • 2 shown on diagram
    $464.99
  • 4 PIN

    PIN

    • Part No. 37650-4368-0
    • DIA5*55
    • 4 shown on diagram
    $3.99

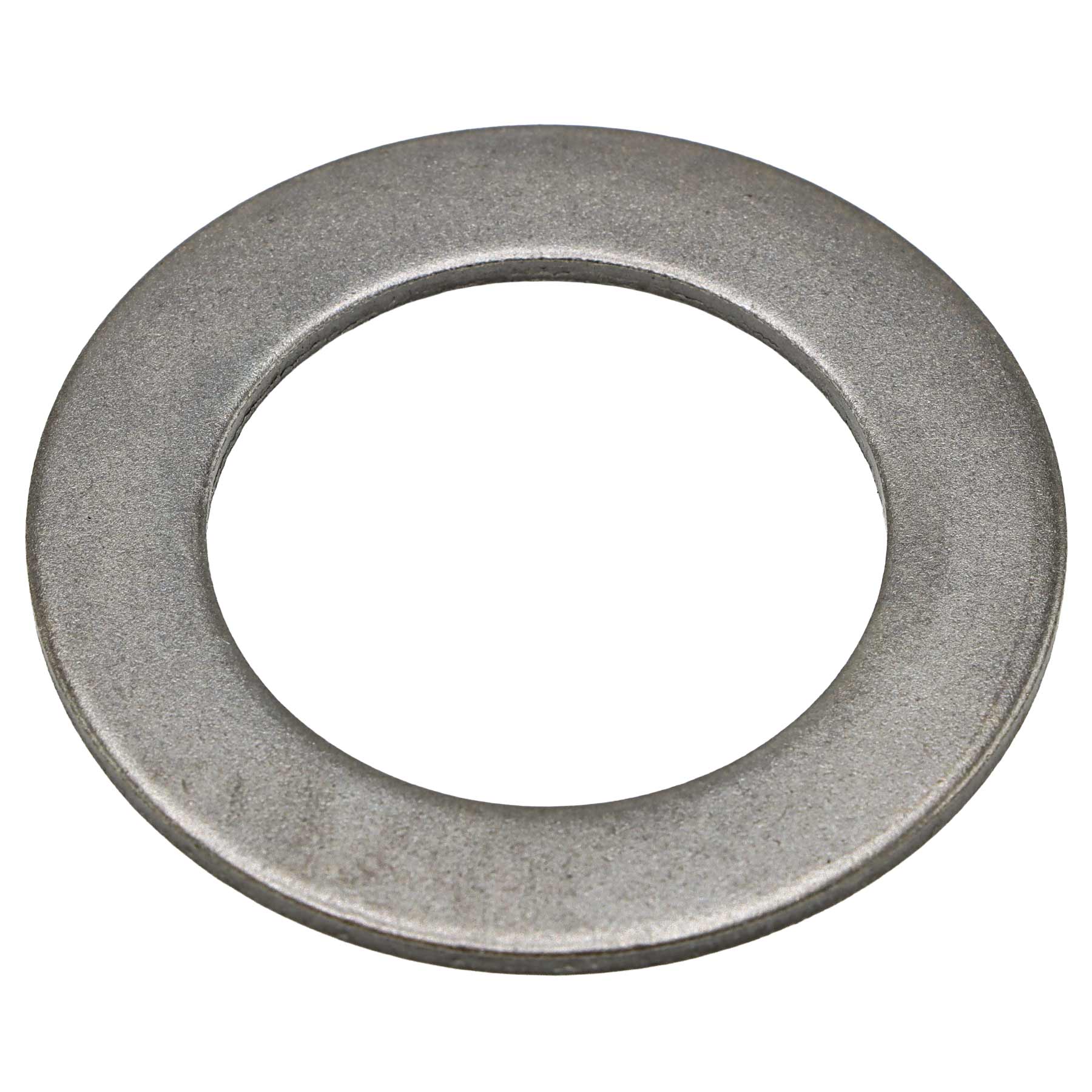

  • 5 SPACER

    SPACER

    • Part No. T2185-43681
    • 2 shown on diagram
    $8.49
  • 6 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 2 shown on diagram
    $28.99

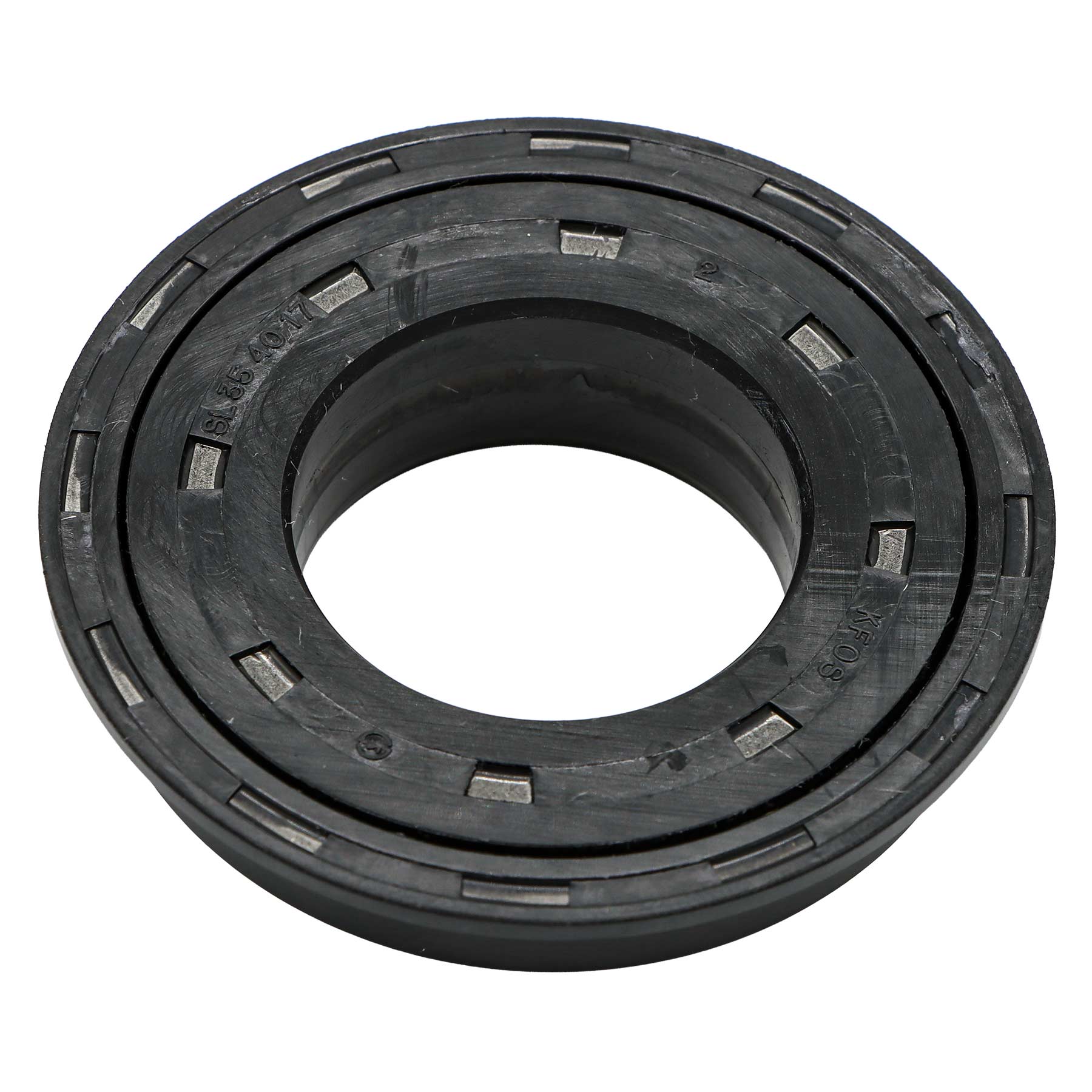

  • 7 SPECIAL SEAL 35/40x62x12

    SPECIAL SEAL 35/40x62x12

    • Part No. T2440-43492
    • 2 shown on diagram
    $19.99
  • 8 STUD

    STUD

    • Part No. 01574-51225
    • Applied Dates 2006-06-03 and up
    • M12XP1.25
    • 4 shown on diagram
    $2.99

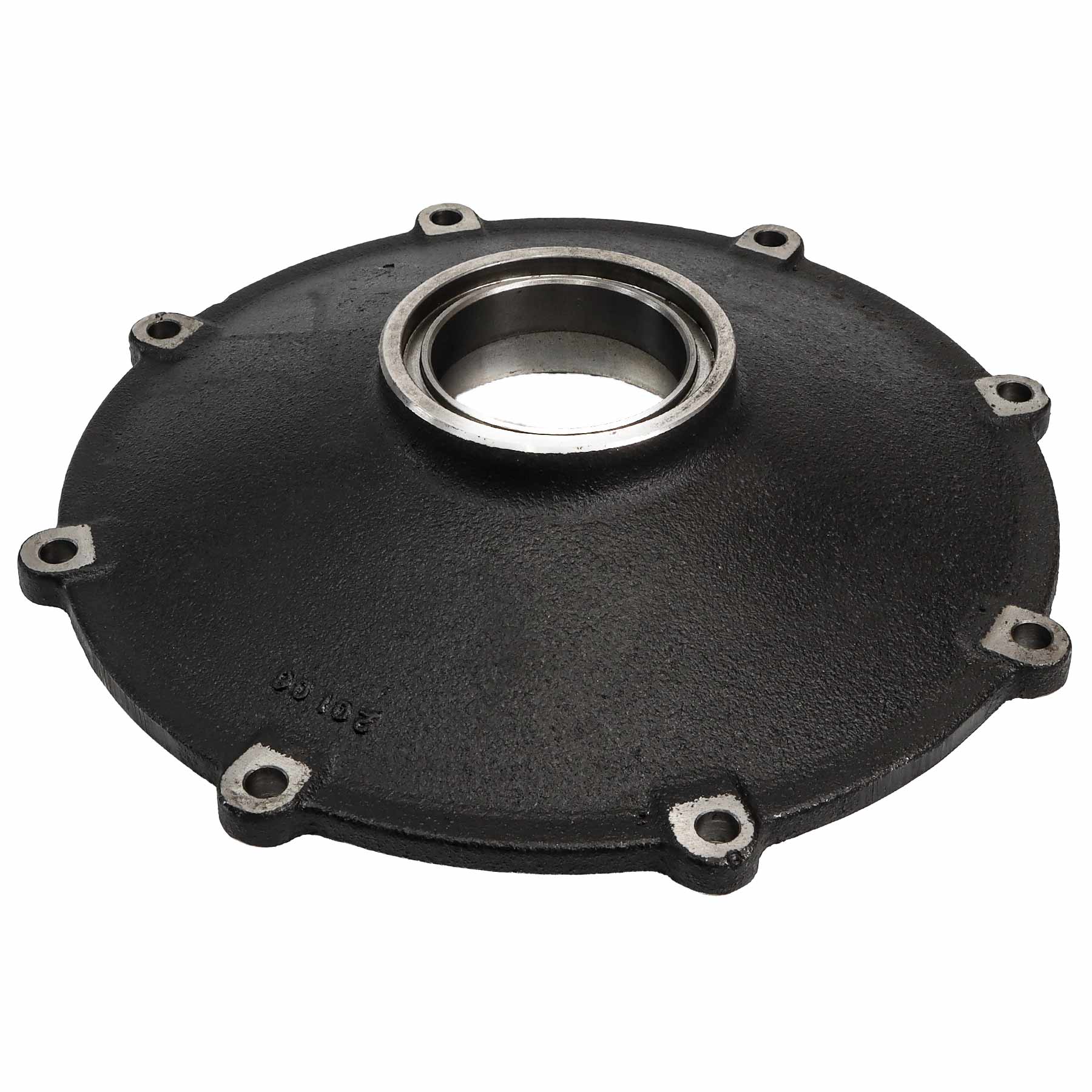

  • 9 COVER,FRONT AXLE

    COVER,FRONT AXLE

    • Part No. T2185-43621
    • 2 shown on diagram
    $169.99

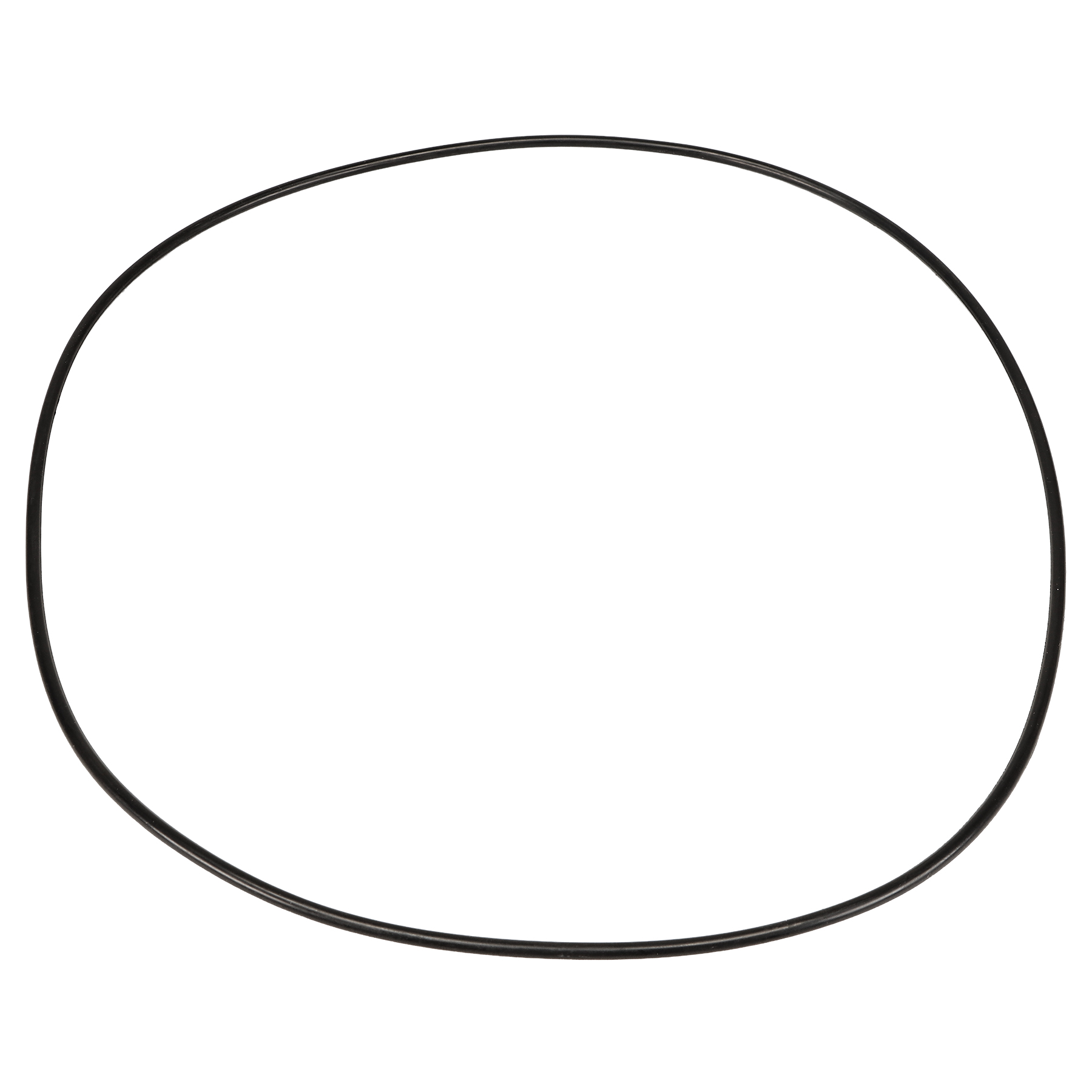

  • 10 O RING

    O RING

    • Part No. T2185-43671
    • 2 shown on diagram
    $11.99
  • 11 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 16 shown on diagram
    $1.99
