MAIN FRAME GROUP - TB2-G622005

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

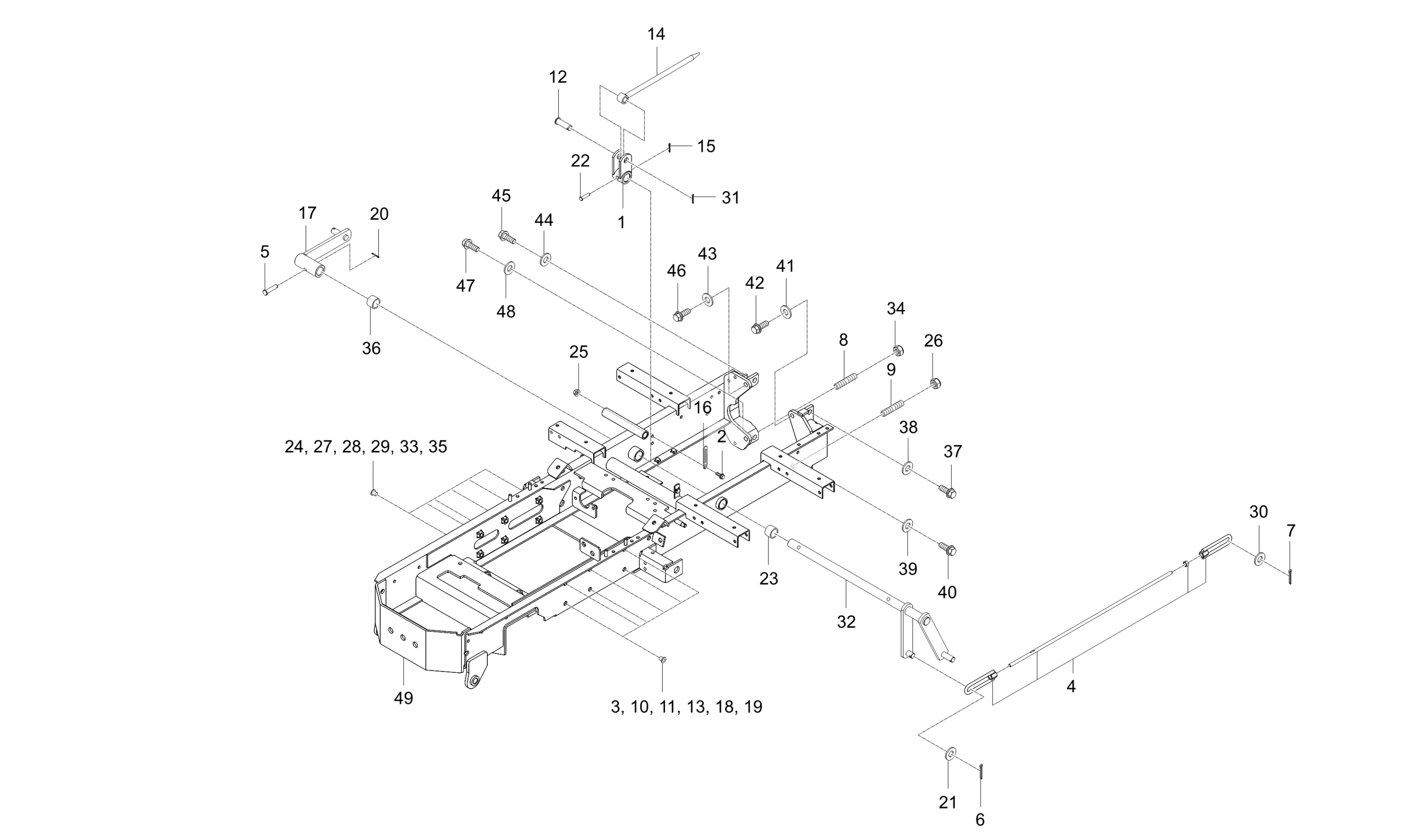

Diagram for MAIN FRAME GROUP - TB2-G622005
  • 1

    ARM, MOWER DECK dnr v

    • Part No. T2555-60581
    • 1 shown on diagram
    $49.99
  • 2 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 3

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 4

    LIFT ROD ASSY, MOWER DECK

    • Part No. T2555-60841
    • 1 shown on diagram
    $62.99
  • 5

    Pin, Joint M10x50mm, Replaced by 05122-51055

    • Part No. 05122-51050
    • 1 shown on diagram
    $.00
  • 6 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50435
    • DIA4
    • 1 shown on diagram
    $0.56
  • 7 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50435
    • DIA4
    • 1 shown on diagram
    $0.56
  • 8

    STUD

    • Part No. 01574-51230
    • M12XP1.25
    • 1 shown on diagram
    $5.99
  • 9

    STUD

    • Part No. 01574-51230
    • M12XP1.25
    • 1 shown on diagram
    $5.99
  • 10

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 11

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 12 PIN,HEAD 16×50

    PIN,HEAD 16×50

    • Part No. 05112-51650
    • 1 shown on diagram
    $7.99
  • 13

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 14

    ROD, MOWER DECK

    • Part No. T2555-60761
    • 1 shown on diagram
    $32.99
  • 15 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
    $.46
  • 16

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 17

    Mower Deck-Lift Arm Replaced By T2555-60831BB

    • Part No. T2555-60831
    • 1 shown on diagram
    $63.99
  • 18

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 19

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 20 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
    $.46
  • 21 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 1 shown on diagram
    $1.19
  • 22 PIN, MOWER DECK

    PIN, MOWER DECK

    • Part No. T2555-91251
    • 1 shown on diagram
    $5.49
  • 23

    BUSHING

    • Part No. 08511-02520
    • MB2520DU
    • 1 shown on diagram
    $12.99
  • 24

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 25 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 26

    U-NUT

    • Part No. T2555-58771
    • 1 shown on diagram
    $3.49
  • 27

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 28

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 29

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 30 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 1 shown on diagram
    $1.19
  • 31 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50435
    • DIA4
    • 1 shown on diagram
    $0.56
  • 32

    LIFT ARM, MOWER DECK dnr v

    • Part No. T2555-60811
    • 1 shown on diagram
    $139.99
  • 33

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 34

    U-NUT

    • Part No. T2555-58771
    • 1 shown on diagram
    $3.49
  • 35

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 1 shown on diagram
    $1.59
  • 36

    BUSHING

    • Part No. 08511-02520
    • MB2520DU
    • 1 shown on diagram
    $12.99
  • 37 BOLT, WASHER, M12 P1.25×40 01133-51240

    BOLT, WASHER, M12 P1.25×40 01133-51240

    • Part No. 01133-51240
    • M12XP1.25
    • 1 shown on diagram
    $4.49
  • 38 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $.85
  • 39 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $.85
  • 40 BOLT, WASHER, M12 P1.25×40 01133-51240

    BOLT, WASHER, M12 P1.25×40 01133-51240

    • Part No. 01133-51240
    • M12XP1.25
    • 1 shown on diagram
    $4.49
  • 41 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $.85
  • 42

    WASHER BOLT M12 P1.25 x35

    • Part No. 01133-51235
    • M12XP1.25
    • 1 shown on diagram
    $4.49
  • 43 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $.85
  • 44 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $.85
  • 45 BOLT, WASHER, M12 P1.25×40 01133-51240

    BOLT, WASHER, M12 P1.25×40 01133-51240

    • Part No. 01133-51240
    • M12XP1.25
    • 1 shown on diagram
    $4.49
  • 46

    WASHER BOLT M12 P1.25 x35

    • Part No. 01133-51235
    • M12XP1.25
    • 1 shown on diagram
    $4.49
  • 47 BOLT, WASHER, M12 P1.25×40 01133-51240

    BOLT, WASHER, M12 P1.25×40 01133-51240

    • Part No. 01133-51240
    • M12XP1.25
    • 1 shown on diagram
    $4.49
  • 48 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $.85
  • 49

    FRAME, MAIN-3C100

    • Part No. TB26-0310A
    • * multiple options for #49
    • 1 shown on diagram
    $1199.99
  • 49

    FRAME, MAIN-3C100 dnr v

    • Part No. TB26-0310B
    • Compatibility Interchngable
    • * multiple options for #49
    • 1 shown on diagram
    $1199.99
  • 49

    MAIN FRAME-3C100

    • Part No. TB26-0310C
    • Compatibility New repl old
    • * multiple options for #49
    • 1 shown on diagram
    $.00
  • 49

    FRAME, MAIN-3C100

    • Part No. TB26-0310D
    • Compatibility New repl old
    • * multiple options for #49
    • 1 shown on diagram
    $.00
  • 50

    FRAME, MAIN-3C100

    • Part No. TB26-0283D
    • 1 shown on diagram
    $.00
