PIN SOCKET GROUP - CK30M-T1020A

Kioti TRACTOR | DK Series | DK40HSE

Diagram for PIN SOCKET GROUP - CK30M-T1020A

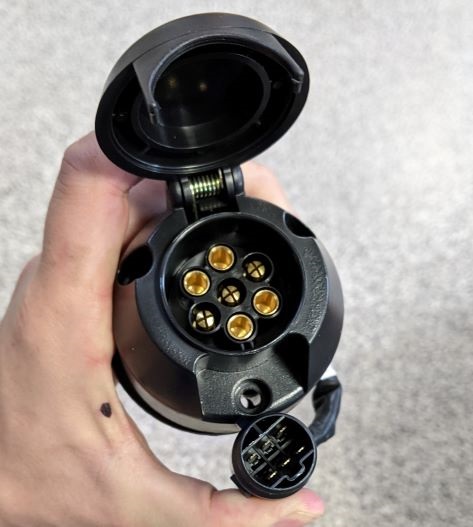

  • 1 PIN7, European SOCKET V

    PIN7, European SOCKET V

    • Part No. T4810-69931
    • 1 shown on diagram
    $109.99
  • 2 CROSS-RECESSED HEAD MACHINE SCREW obs

    CROSS-RECESSED HEAD MACHINE SCREW obs

    • Part No. 03054-50540
    • 3 shown on diagram
    $0.85
  • 3 Spring Lock Washer M5

    Spring Lock Washer M5

    • Part No. 04512-50050
    • Applied Dates Up to 2008-07-08
    • M5
    • 3 shown on diagram
    $.55

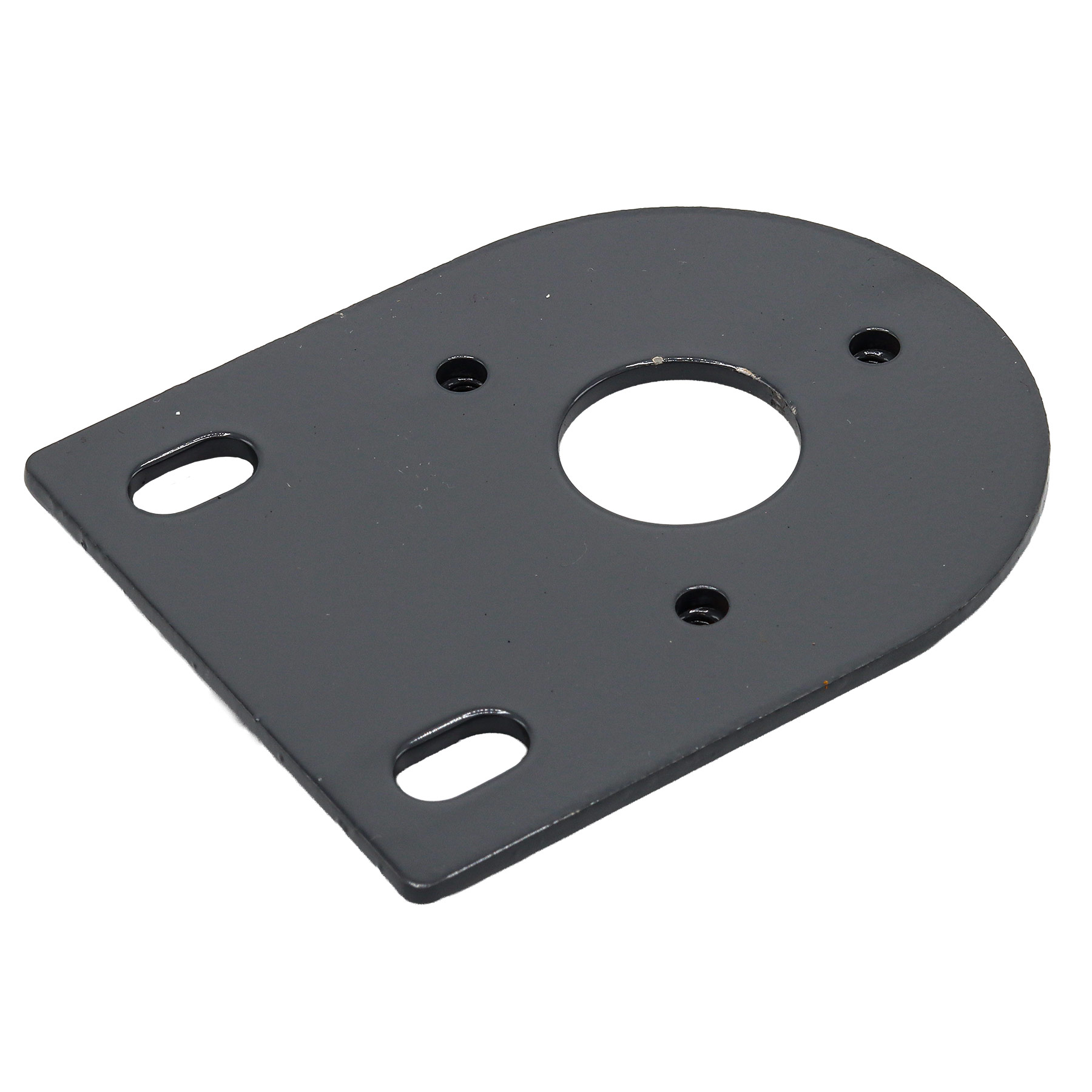

  • 4 BRACKET

    BRACKET

    • Part No. T2185-95612
    • Applied Dates 2006-10-12 to 2006-11-13
    • Serial No. Up to HT6500132
    • *multiple options for # 4
    • 1 shown on diagram
    $18.99
  • 4

    7 Pin Socket Bracket

    • Part No. T2185-95612BB
    • Compatibility No Interchange
    • Serial No. HT6500133 and up
    • *multiple options for # 4
    • 1 shown on diagram
    $18.99
  • 5 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09

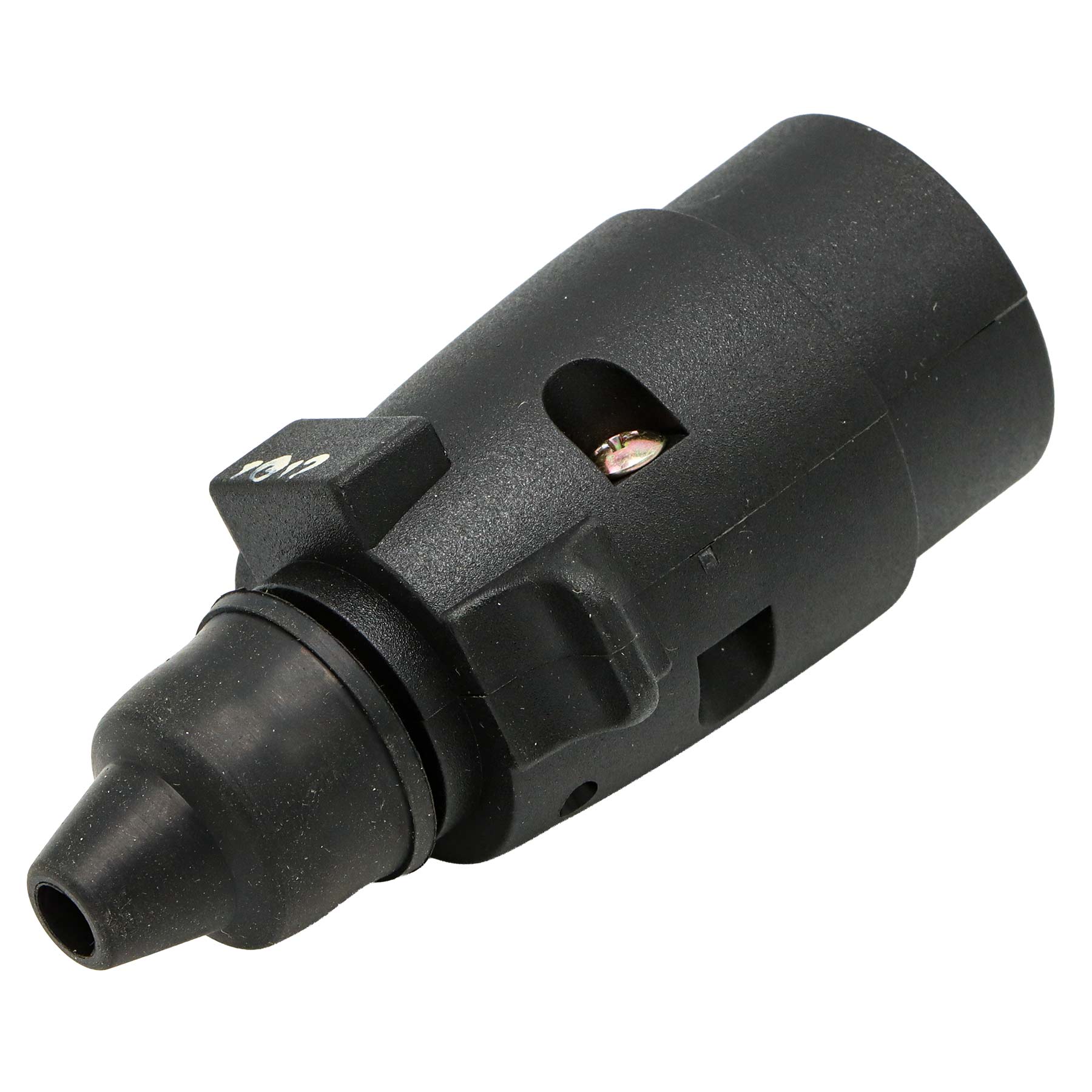

  • 6 SOCKET 2, 7 PIN

    SOCKET 2, 7 PIN

    • Part No. T4810-69941
    • 1 shown on diagram
    $78.99
