FRONT DIFF SYSTEM GROUP - D43-T430A

Kioti TRACTOR | DK Series | DK45

  • 1

    ASSY FRONT DIFF v

    • Part No. T4620-43101
    • Applied Dates Up to 2002-01-22
    • Serial No. Up to 256700100
    • *multiple options for # 1
    • 1 shown on diagram
    $739.99
  • 1

    ASS’Y,FRONT DIFF v

    • Part No. T4620-43102
    • Compatibility New Replaces Old
    • Serial No. 256700101 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $1139.99
  • 1

    DIFF SYSTEM ASSY, FR

    • Part No. T4620-43103
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $1139.99
  • 2

    CASE,FRONT DIFF v

    • Part No. T4520-43121
    • Applied Dates Up to 1999-06-20
    • *multiple options for # 2
    • 1 shown on diagram
    $184.99
  • 2

    CASE, DIFFERENTIAL v, Replaced by T4520-43123

    • Part No. T4620-43121
    • Compatibility Old replaces new
    • Applied Dates 1999-06-21 to 2002-01-22
    • Serial No. Up to 256700100
    • *multiple options for # 2
    • 1 shown on diagram
    $.00
  • 2

    CASE, DIFFERENTIAL FR v

    • Part No. T4620-43122
    • Compatibility No Interchange
    • Serial No. 256700101 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $259.99
  • 3

    GEAR BEVEL 27 v

    • Part No. T4620-42311
    • Applied Dates Up to 2002-01-22
    • Serial No. Up to 256700100
    • *multiple options for # 3
    • 1 shown on diagram
    $184.99
  • 3

    GEAR 27, BEVEL v

    • Part No. T4620-42312
    • Compatibility No Interchange
    • Serial No. 256700101 and up
    • *multiple options for # 3
    • 1 shown on diagram
    $409.99
  • 4

    PIN, PARALLEL v

    • Part No. T4520-43181
    • *multiple options for # 4
    • 1 shown on diagram
    $8.99
  • 4 PIN, DOWEL

    PIN, DOWEL

    • Part No. T4520-43182
    • Compatibility New Replaces Old
    • *multiple options for # 4
    • 1 shown on diagram
    $8.99
  • 5 BOLT, UBS

    BOLT, UBS

    • Part No. T4520-43162
    • *multiple options for # 5
    • 6 shown on diagram
    $6.49
  • 5

    BOLT, UBS dnr v

    • Part No. T4520-43163
    • Compatibility New Replaces Old
    • *multiple options for # 5
    • 6 shown on diagram
    $1.79
  • 6

    SHAFT, DIFFERENTIAL PINION

    • Part No. T4520-43111
    • 1 shown on diagram
    $61.99

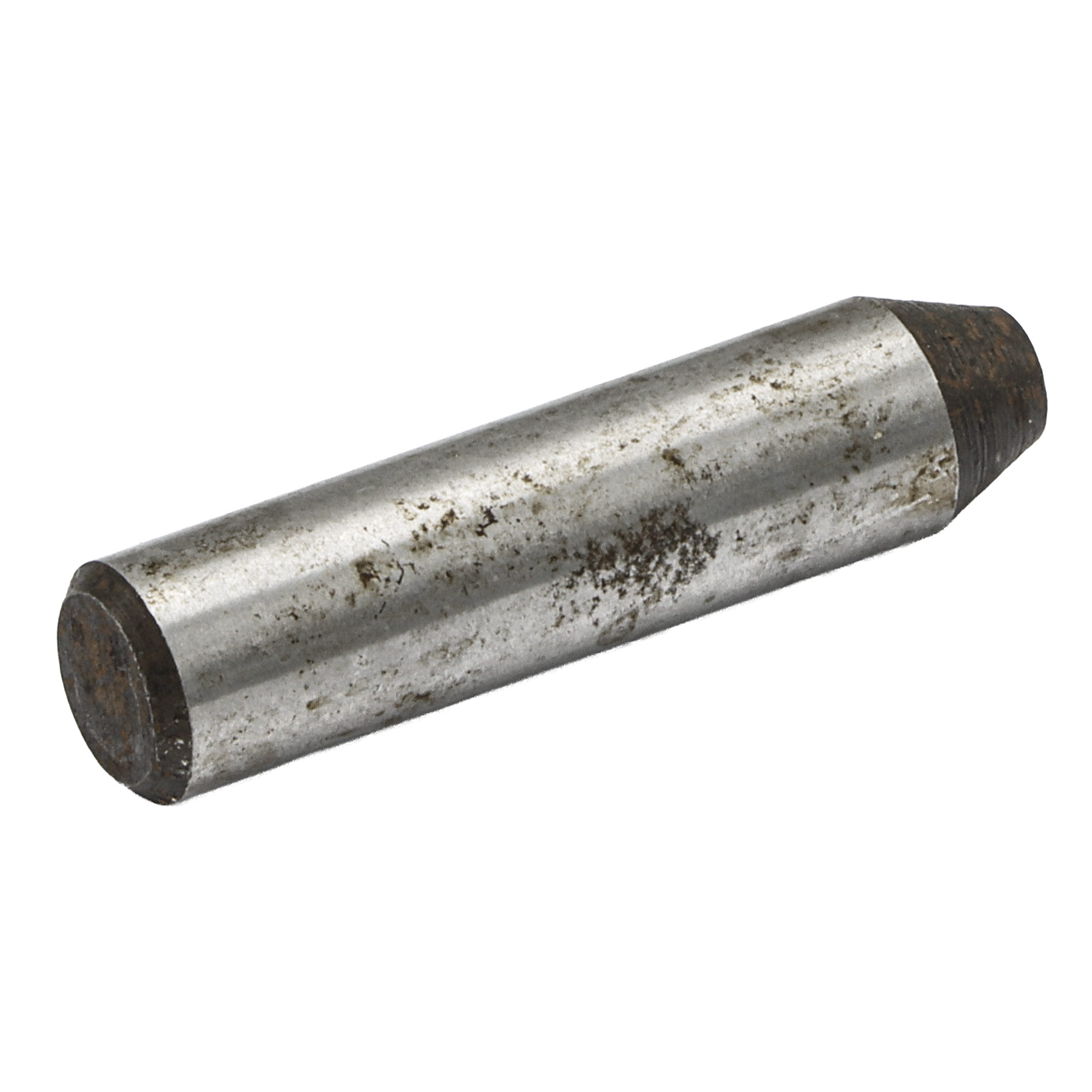

  • 7 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. T4520-43171
    • 1 shown on diagram
    $9.49
  • 8

    PINION, DIFFERENTIAL dnr v

    • Part No. T4520-43131
    • Applied Dates Up to 2002-01-22
    • Serial No. Up to 256700100
    • *multiple options for # 8
    • 2 shown on diagram
    $68.99
  • 8

    PINION, DIFFERENTIAL dnr v

    • Part No. T4682-43131
    • Compatibility No Interchange
    • Applied Dates 2002-01-23 and up
    • Serial No. 256700101 and up
    • *multiple options for # 8
    • 2 shown on diagram
    $77.99
  • 9

    WASHER, DIFF PINION

    • Part No. T4520-43151
    • 2 shown on diagram
    $16.99
  • 10

    GEAR, DIFF SIDE v

    • Part No. T4520-43141
    • Applied Dates Up to 2002-01-22
    • Serial No. Up to 256700100
    • *multiple options for # 10
    • 2 shown on diagram
    $299.99
  • 10

    GEAR, DIFFERENTIAL SIDE v

    • Part No. T4682-43141
    • Compatibility No Interchange
    • Serial No. 256700101 and up
    • *multiple options for # 10
    • 2 shown on diagram
    $124.99

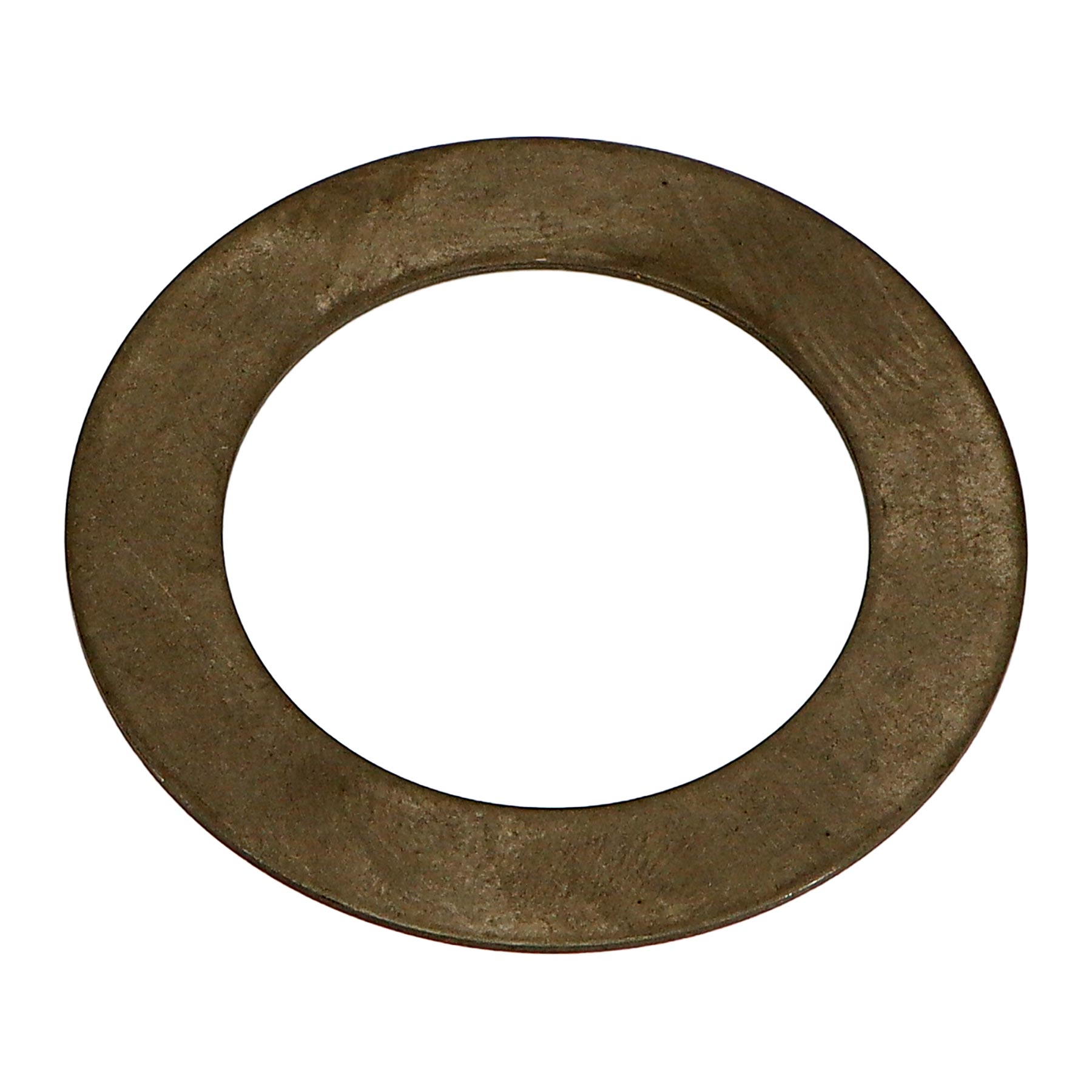

  • 11 SHIM, 0.8

    SHIM, 0.8

    • Part No. T4520-43071
    • T0.8
    • 2 shown on diagram
    $5.49

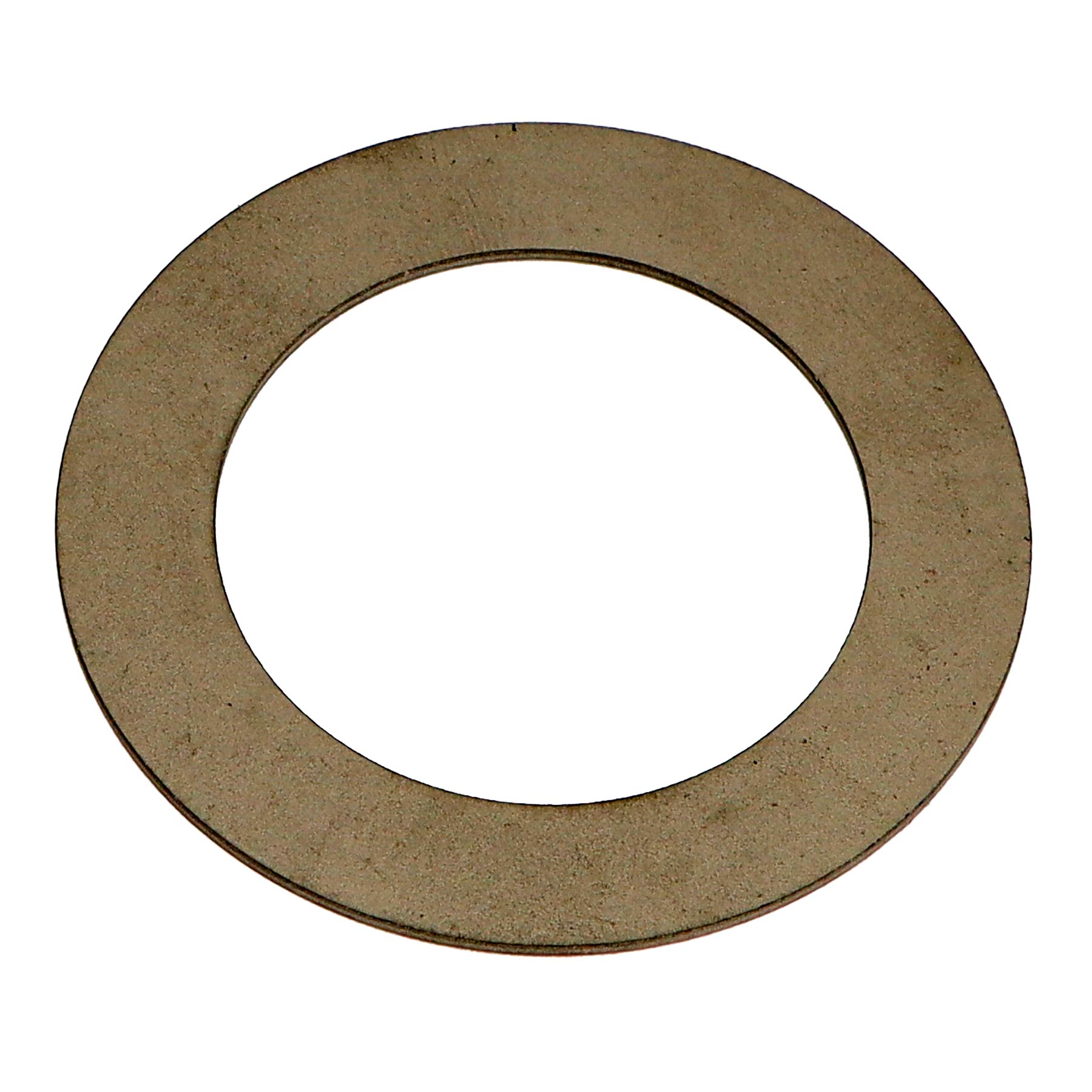

  • 12 SHIM, 0.1

    SHIM, 0.1

    • Part No. T4520-43081
    • T1.0
    • 2 shown on diagram
    $4.49

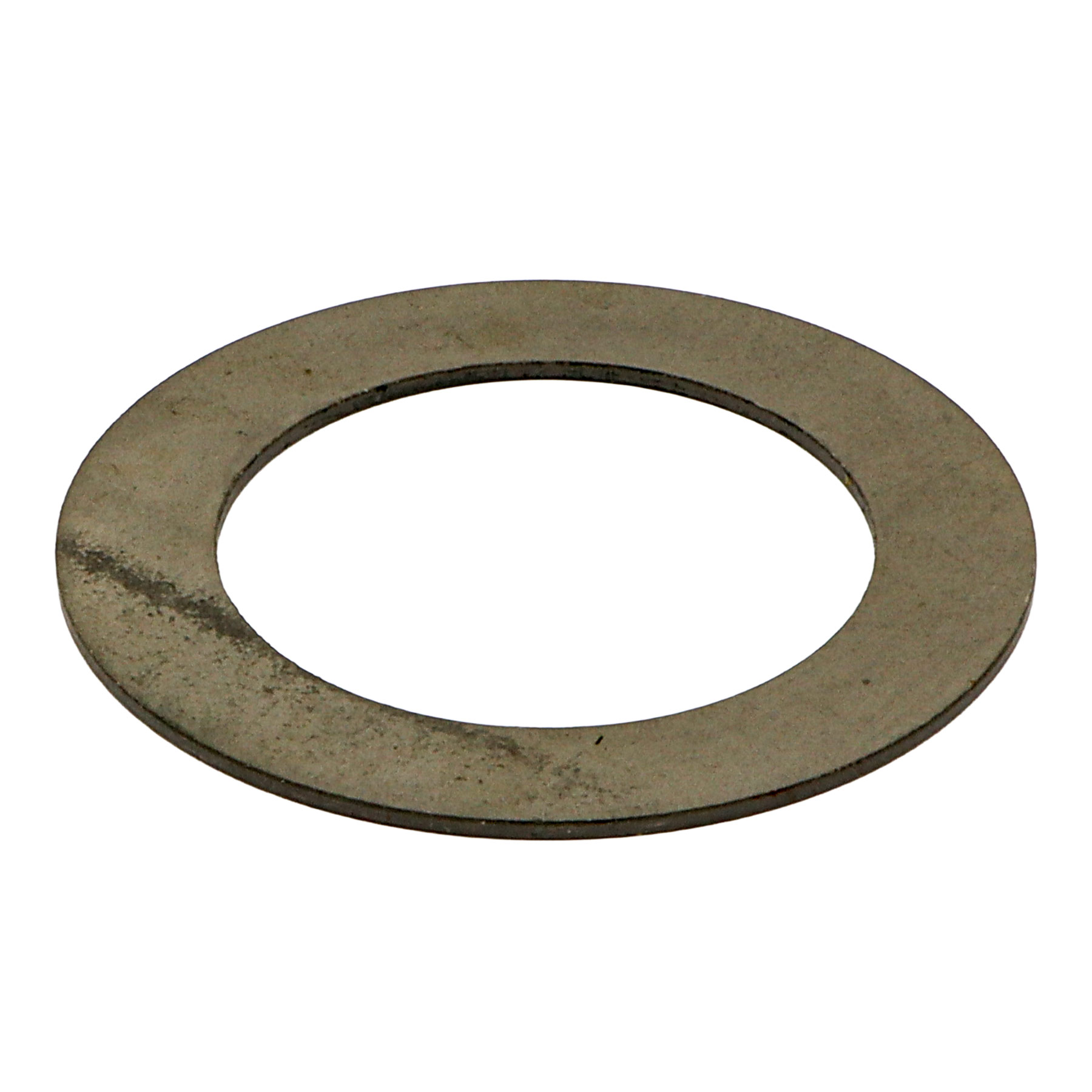

  • 13 SHIM, 1.2

    SHIM, 1.2

    • Part No. T4520-43091
    • T1.2
    • 2 shown on diagram
    $6.49
  • 14

    SUPORT DIFF BEARING obs v

    • Part No. T4620-42411
    • Applied Dates Up to 2001-02-19
    • Serial No. Up to 156700188
    • *multiple options for # 14
    • 1 shown on diagram
    $44.99
  • 14

    SUPPORT,DIFF BEARING obs v

    • Part No. T4620-42412
    • Compatibility No Interchange
    • Serial No. 156700201 and up
    • *multiple options for # 14
    • 1 shown on diagram
    $99.99
  • 15

    BOLT

    • Part No. 01173-51028
    • M10*P1.25*28
    • 5 shown on diagram
    $2.49
  • 16 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 5 shown on diagram
    $0.79

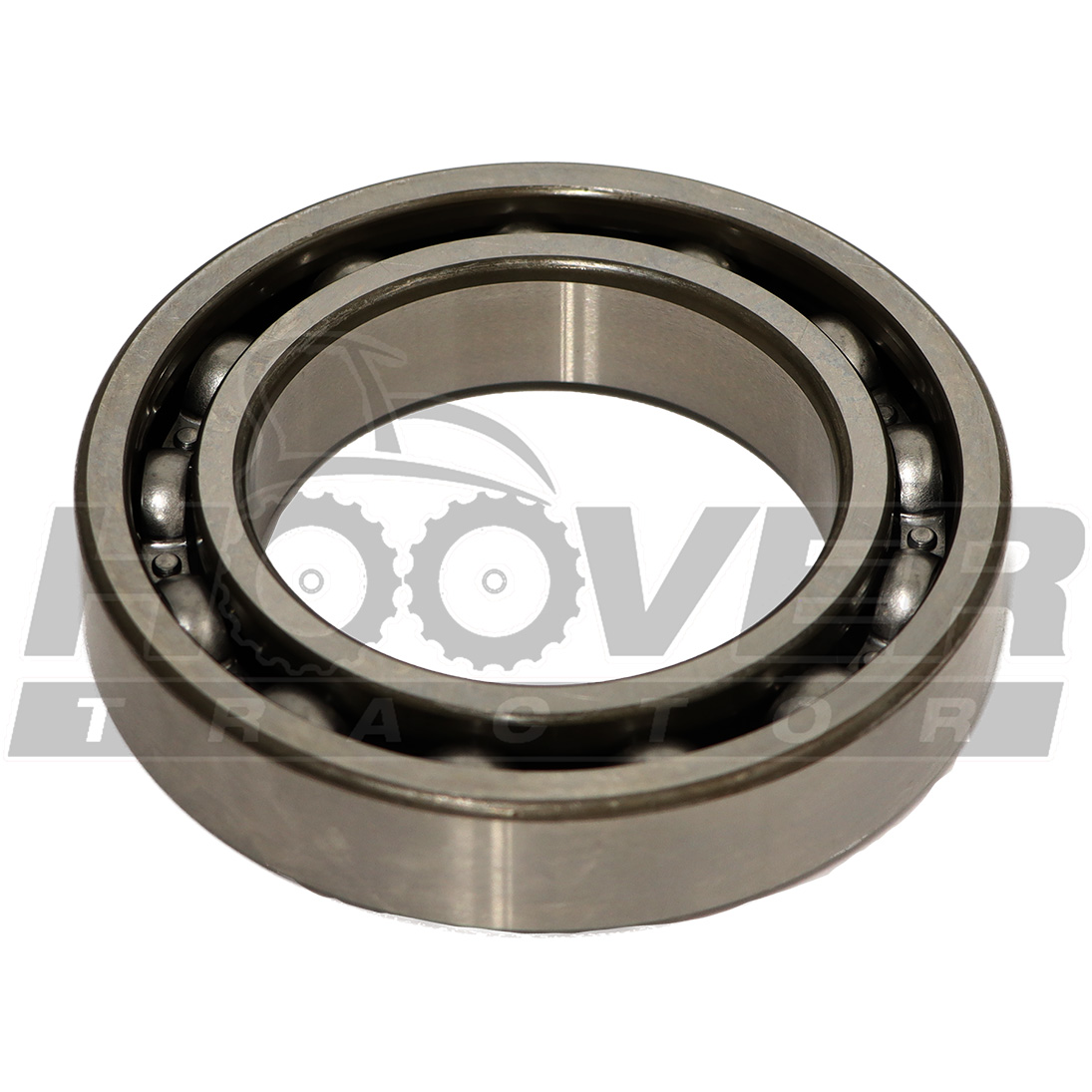

  • 17 BALL BEARING

    BALL BEARING

    • Part No. T4520-42421
    • 6010SH
    • 2 shown on diagram
    $65.99
  • 18

    SHIM, 0.1

    • Part No. T4520-43011
    • T0.1
    • 1 shown on diagram
    $3.49

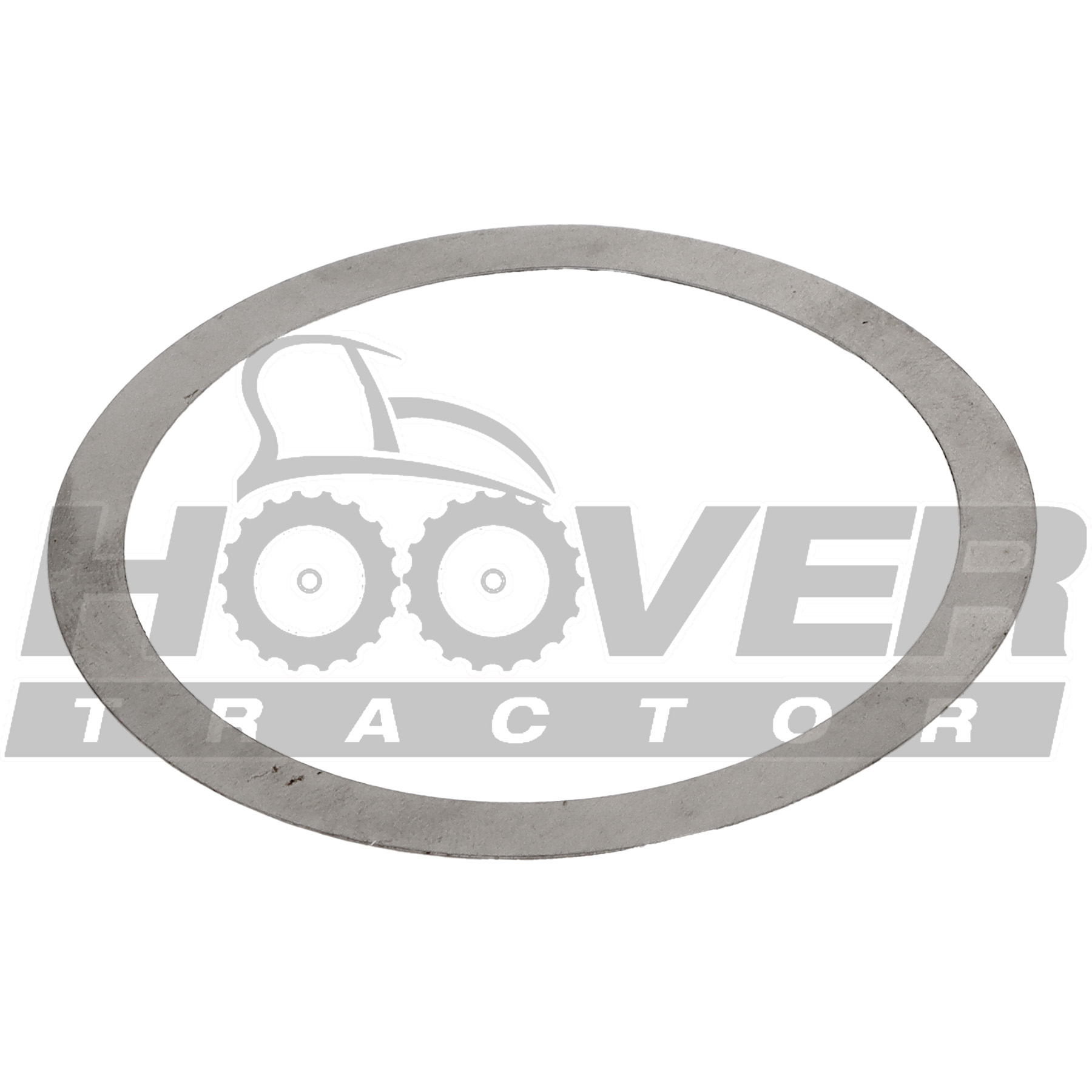

  • 19 SHIM, 0.2

    SHIM, 0.2

    • Part No. T4520-43021
    • T0.2
    • 1 shown on diagram
    $3.49

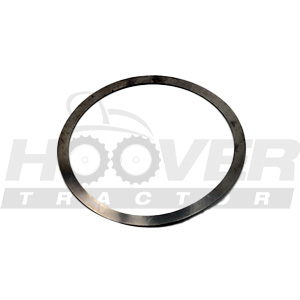

  • 20 SHIM, 0.4

    SHIM, 0.4

    • Part No. T4520-43031
    • T0.4
    • 1 shown on diagram
    $3.49

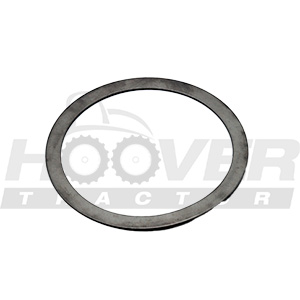

  • 21 SHIM, 0.8

    SHIM, 0.8

    • Part No. T4520-43041
    • T0.8
    • 1 shown on diagram
    $3.99

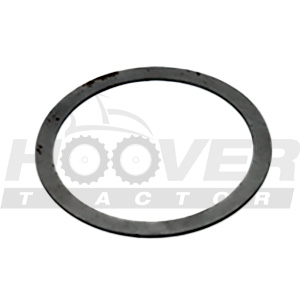

  • 22 SHIM, 1.0mm

    SHIM, 1.0mm

    • Part No. T4520-43051
    • T1.0
    • 1 shown on diagram
    $4.49

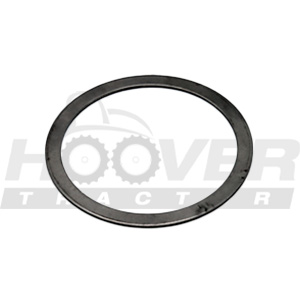

  • 23 SHIM, 1.2

    SHIM, 1.2

    • Part No. T4520-43061
    • T1.2
    • 1 shown on diagram
    $3.99
