FRONT AXLE BRACKET GROUP - D43-T490A

Kioti TRACTOR | DK Series | DK45C

  • 1

    FRONT BRACKET ASSEMBLY, Replaced by T4620-41602

    • Part No. T4620-41601
    • Applied Dates 2009-01-23 and up
    • 1 shown on diagram
    $.00
  • 2

    BRACKET, FRONT

    • Part No. T4620-41611
    • Applied Dates Up to 2009-01-22
    • 1 shown on diagram
    $82.99
  • 3

    BUSHING

    • Part No. T4520-41681
    • Applied Dates 2009-01-23 and up
    • 65-40DX
    • 1 shown on diagram
    $43.99
  • 4 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • Applied Dates 2009-01-23 and up
    • PT1/8
    • 1 shown on diagram
    $3.49
  • 5

    BOLT

    • Part No. 01175-51645
    • Applied Dates 2009-01-23 and up
    • 1 shown on diagram
    $7.49

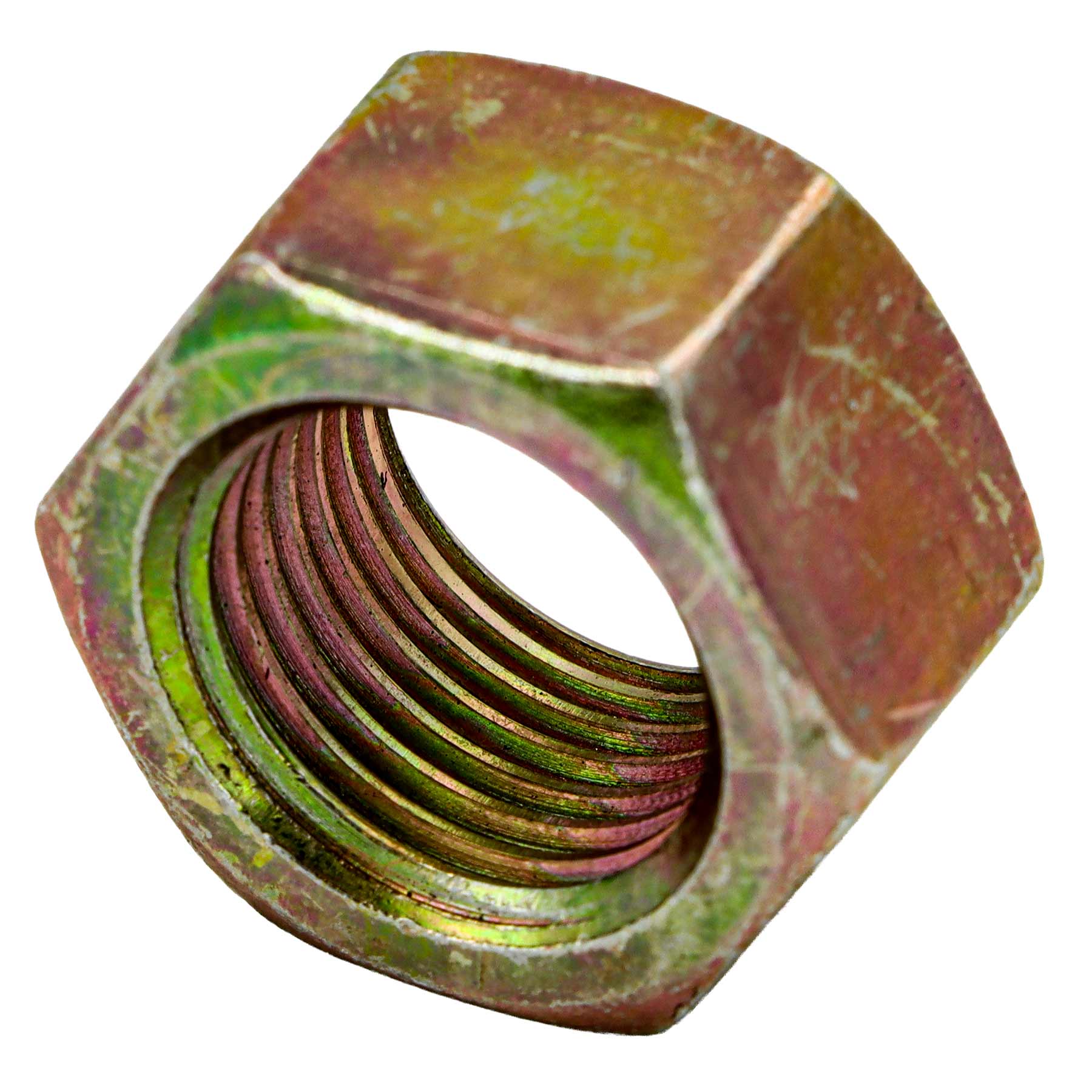

  • 6 NUT

    NUT

    • Part No. 02176-50160
    • Applied Dates 2009-01-23 and up
    • M16XP1.5
    • 1 shown on diagram
    $2.49
  • 7

    WASHER SEAL 38440-4475-1

    • Part No. 38440-4475-1
    • Applied Dates 2009-01-23 and up
    • 1 shown on diagram
    $4.99
  • 8

    SEAL, OIL

    • Part No. T4520-44811
    • Applied Dates 2009-01-23 and up
    • T1.0
    • 1 shown on diagram
    $13.99
  • 9

    PLATE, ADJUST

    • Part No. T4520-41631
    • T3.2
    • 1 shown on diagram
    $9.99

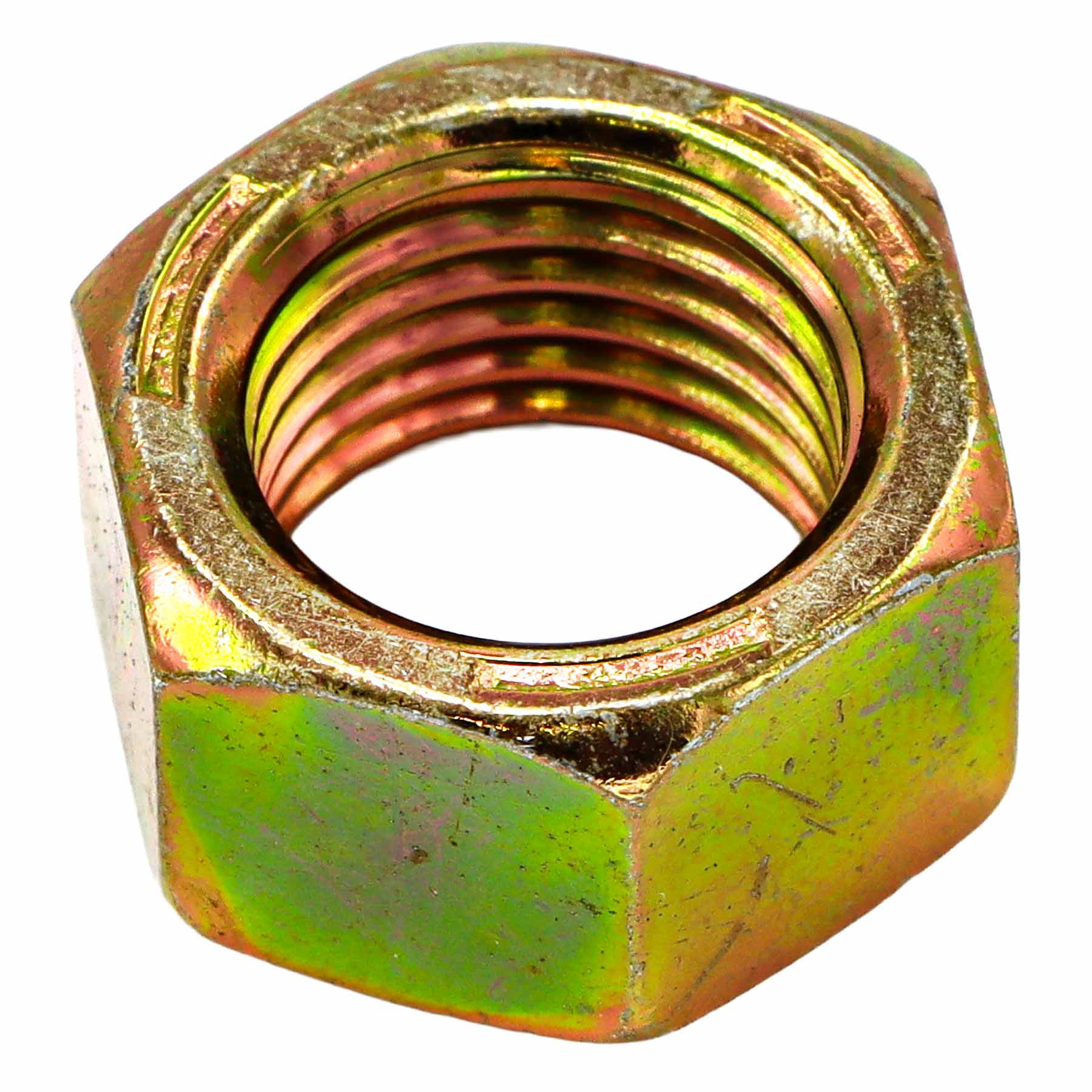

  • 10 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 4 shown on diagram
    $1.79
  • 11

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 8 shown on diagram
    $0.9
  • 12

    BOLT

    • Part No. 01176-51445
    • 4 shown on diagram
    $7.49
  • 13

    ASS’Y, REAR BRACKET obs v

    • Part No. T4620-A0311
    • Applied Dates 2008-10-30 to 2009-01-22
    • 1 shown on diagram
    $114.99
  • 14

    BRACKET, REAR

    • Part No. T4620-41622
    • Applied Dates Up to 2009-01-22
    • 1 shown on diagram
    $154.99
  • 15

    DX BUSH

    • Part No. T4620-41691
    • Applied Dates 2009-01-23 and up
    • 1 shown on diagram
    $53.99
  • 16

    SEAL, OIL

    • Part No. T4620-44821
    • Applied Dates 2009-01-23 and up
    • 1 shown on diagram
    $16.99
  • 17 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • Applied Dates 2009-01-23 and up
    • PT1/8
    • 1 shown on diagram
    $3.49
  • 18

    O RING 04811-00420

    • Part No. 04811-00420
    • Applied Dates 2008-10-30 and up
    • DIA41.7
    • 1 shown on diagram
    $1.19
  • 19

    COLLAR, THRUST

    • Part No. 38630-4464-3
    • 1 shown on diagram
    $12.99
