FENDER LIGHT GROUP - DK45-T570A

Kioti TRACTOR | DK Series | DK45

  • 1

    TURN SIGNAL LAMP v

    • Part No. 84612-3423-0
    • Applied Dates 2000-03-01 to 2000-11-09
    • *multiple options for # 1
    • 2 shown on diagram
    $33.99
  • 1

    LAMP, DIRECTION dnr v

    • Part No. 84612-3423-1
    • Compatibility New Replaces Old
    • Applied Dates 2000-11-10 to 2003-06-04
    • Serial No. 156700001 to D56700104
    • *multiple options for # 1
    • 2 shown on diagram
    $32.99
  • 1

    TURN SIGNAL LAMP dnr v, Replaced by T2546-69061

    • Part No. 84612-3423-2
    • Compatibility Interchangeable
    • Applied Dates 2003-06-05 and up
    • Serial No. D56700105 and up
    • *multiple options for # 1
    • 2 shown on diagram
    $.00
  • 2

    COVER, LH

    • Part No. 84612-3424-0
    • 2 shown on diagram
    $13.99
  • 3

    COVER, RH

    • Part No. 84612-3425-0
    • 2 shown on diagram
    $14.99
  • 4

    FRAME

    • Part No. 84612-3426-0
    • 2 shown on diagram
    $12.99
  • 5

    PACKING, RUBBER

    • Part No. 84612-3427-0
    • 2 shown on diagram
    $7.49
  • 6

    BULB-12VX21W dnr v, Replaced by T4620-69272

    • Part No. 84612-3428-1
    • Compatibility New Replaces Old
    • Applied Dates 2000-11-10 to 2003-06-04
    • 12V/21W
    • *multiple options for # 6
    • 2 shown on diagram
    $.00
  • 6

    BULB (12V 21W) v 1156

    • Part No. T4620-69272
    • Compatibility Interchangeable
    • Applied Dates 2003-06-05 and up
    • 12V21W(S25S)
    • *multiple options for # 6
    • 2 shown on diagram
    $9.49
  • 7

    SCREW

    • Part No. 84612-3430-0
    • 6 shown on diagram
    $0.68
  • 8

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 2 shown on diagram
    $0.79

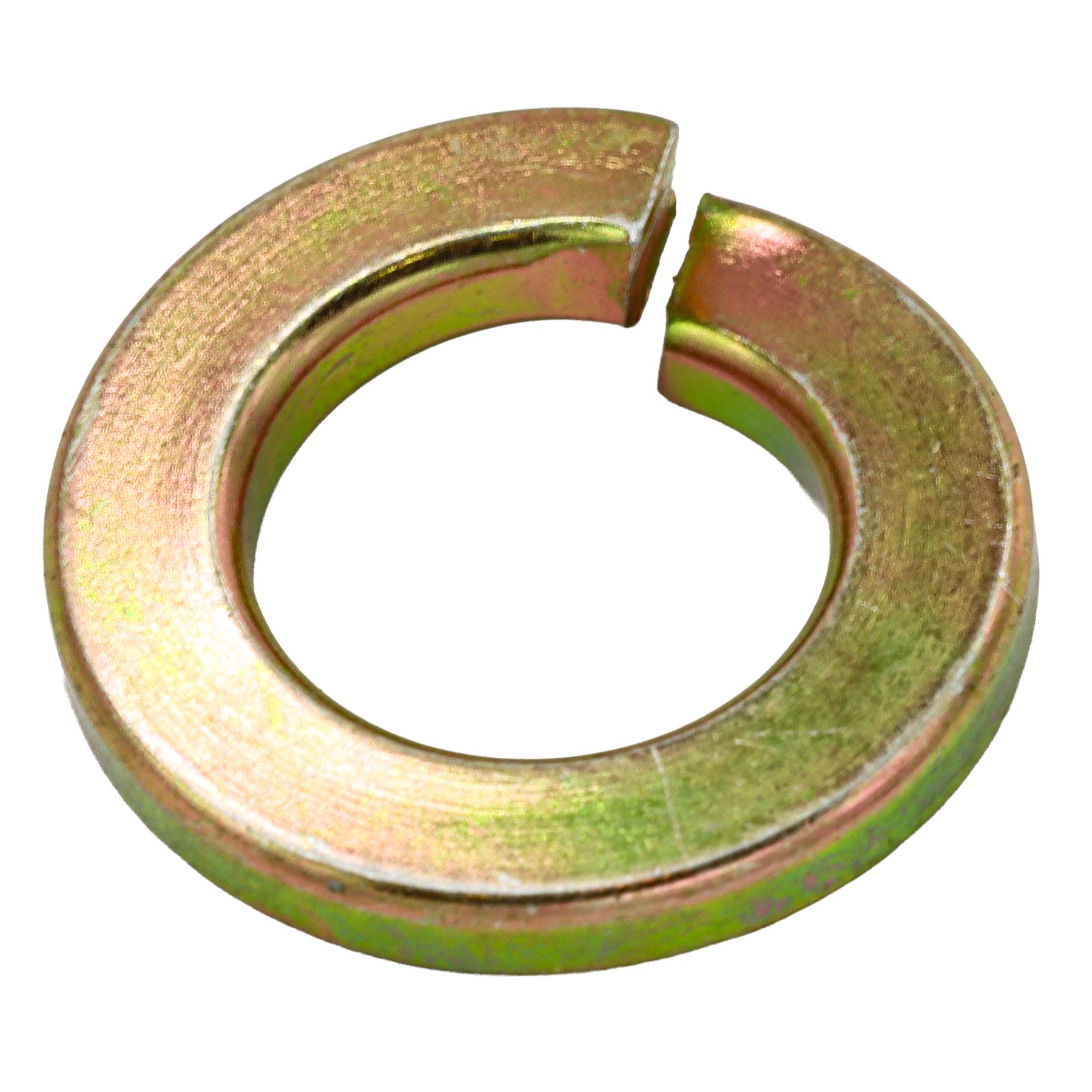

  • 9 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 10

    ASSY,LAMP REAR(L) v

    • Part No. T4520-75893
    • Applied Dates 1999-06-02 to 2000-11-09
    • Serial No. 956700001 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $65.99
  • 10

    ASS’Y LAMP REAR(L) v

    • Part No. T4520-75894
    • Compatibility Interchangeable
    • Applied Dates 2000-11-10 to 2003-06-04
    • Serial No. 156700001 to D56700104
    • *multiple options for # 10
    • 1 shown on diagram
    $52.99
  • 10

    ASS Y TAIL LAMP LEFT

    • Part No. T4520-75895
    • Compatibility Interchangeable
    • Applied Dates 2003-06-05 and up
    • Serial No. D56700105 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $99.99
  • 11 LENS

    LENS

    • Part No. T4340-33661
    • Applied Dates 1999-06-02 and up
    • 1 shown on diagram
    $24.99
  • 12

    Packing

    • Part No. T4340-33671
    • Applied Dates 1999-06-02 and up
    • 1 shown on diagram
    $5.99
  • 13

    BULB v

    • Part No. T4340-33681
    • Applied Dates 1999-06-02 to 2000-11-09
    • 12V-21/8W
    • *multiple options for # 13
    • 1 shown on diagram
    $4.99

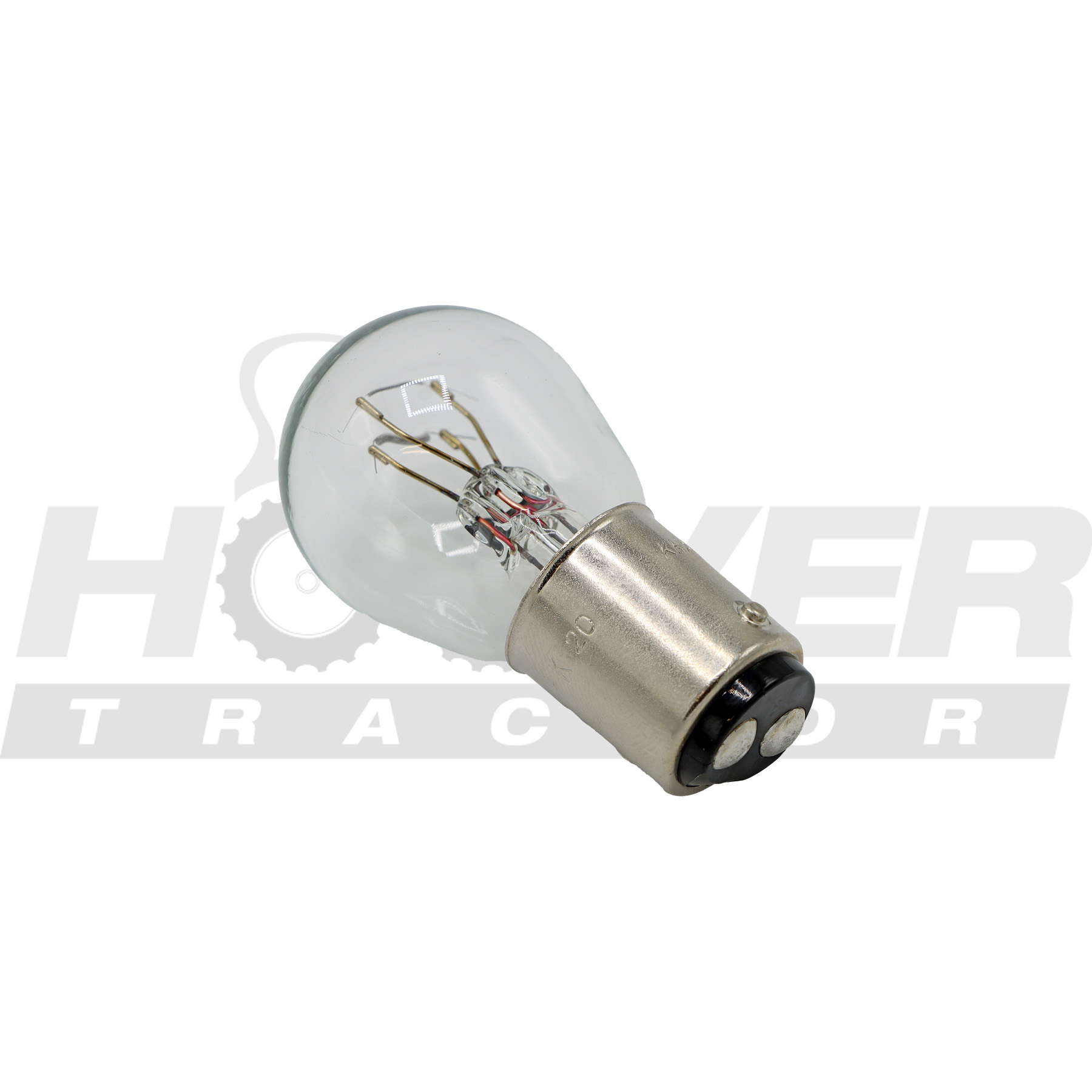

  • 13 BULB 12V 21W-5W (1157)

    BULB 12V 21W-5W (1157)

    • Part No. T4340-33682
    • Compatibility Interchangeable
    • Applied Dates 2000-11-10 and up
    • 12V21/5W(S25D)
    • *multiple options for # 13
    • 1 shown on diagram
    $9.49
  • 14

    BULB, Replaced by T4620-69272

    • Part No. T4340-33691
    • Applied Dates 1999-06-02 to 2000-11-09
    • 12V-23W
    • *multiple options for # 14
    • 1 shown on diagram
    $.00
  • 14

    BULB, Replaced by T4620-69272

    • Part No. T4340-33692
    • Compatibility Interchangeable
    • Applied Dates 2000-11-10 to 2003-06-04
    • 12V-21W
    • *multiple options for # 14
    • 1 shown on diagram
    $.00
  • 14

    BULB (12V 21W) v 1156

    • Part No. T4620-69272
    • Compatibility Interchangeable
    • Applied Dates 2003-06-05 and up
    • 12V21W(S25S)
    • *multiple options for # 14
    • 1 shown on diagram
    $9.49
  • 15

    ASS’Y,LAMP REAR(R) v

    • Part No. T4520-75883
    • Applied Dates 1999-06-02 to 2000-11-09
    • Serial No. 956700001 and up
    • *multiple options for # 15
    • 1 shown on diagram
    $51.99
  • 15

    ASS’Y LAMP REAR(R) v

    • Part No. T4520-75884
    • Compatibility Interchangeable
    • Applied Dates 2000-11-10 to 2003-06-04
    • Serial No. 156700001 to D56700104
    • *multiple options for # 15
    • 1 shown on diagram
    $52.99

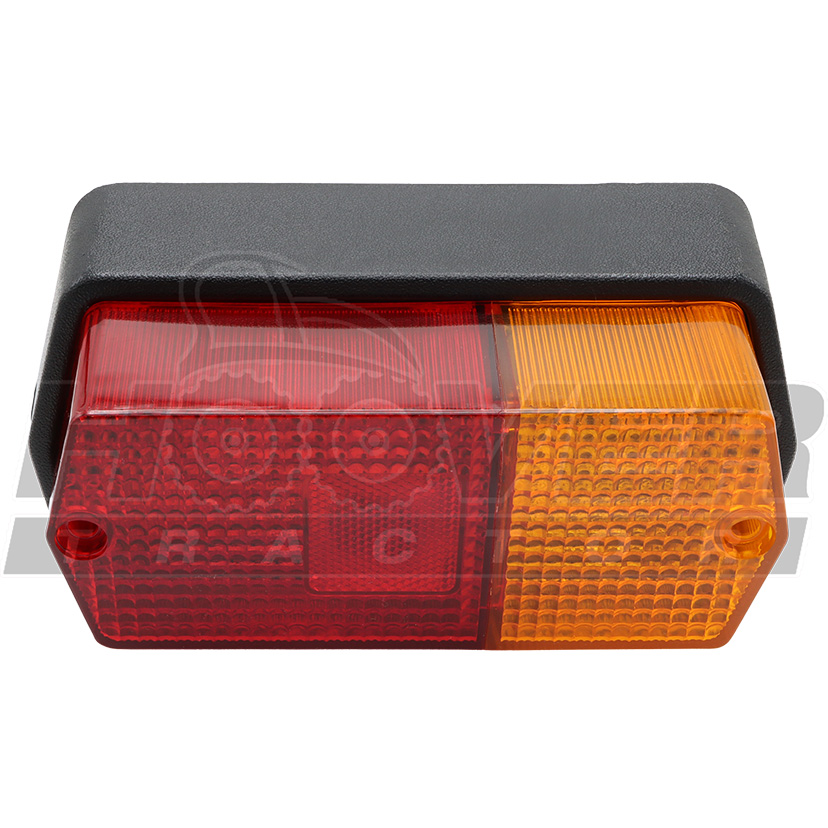

  • 15 ASS Y REAR COMBI LAMP

    ASS Y REAR COMBI LAMP

    • Part No. T4520-75885
    • Compatibility Interchangeable
    • Applied Dates 2003-06-05 and up
    • Serial No. D56700105 and up
    • *multiple options for # 15
    • 1 shown on diagram
    $99.99
  • 16 LENS

    LENS

    • Part No. T4340-33661
    • Applied Dates 1999-06-02 and up
    • 1 shown on diagram
    $24.99
  • 17

    BULB v

    • Part No. T4340-33681
    • Applied Dates 1999-06-02 to 2000-11-09
    • 12V-21/8W
    • *multiple options for # 17
    • 1 shown on diagram
    $4.99
  • 17 BULB 12V 21W-5W (1157)

    BULB 12V 21W-5W (1157)

    • Part No. T4340-33682
    • Compatibility Interchangeable
    • Applied Dates 2000-11-10 and up
    • 12V21/5W(S25D)
    • *multiple options for # 17
    • 1 shown on diagram
    $9.49
  • 18

    BULB, Replaced by T4620-69272

    • Part No. T4340-33692
    • Applied Dates 2000-11-10 to 2003-06-04
    • 12V-21W
    • *multiple options for # 18
    • 1 shown on diagram
    $.00
  • 18

    BULB (12V 21W) v 1156

    • Part No. T4620-69272
    • Compatibility Interchangeable
    • Applied Dates 2003-06-05 and up
    • 12V21W(S25S)
    • *multiple options for # 18
    • 1 shown on diagram
    $9.49
  • 19

    Packing

    • Part No. T4340-33671
    • Applied Dates 1999-06-02 and up
    • 1 shown on diagram
    $5.99
  • 20

    Flat Washer M5

    • Part No. 04012-50050
    • M5
    • 4 shown on diagram
    $.67
  • 21

    SCREW

    • Part No. T4340-33712
    • 4 shown on diagram
    $0.96
  • 22

    ASSY LAMP, WORKING dnr v

    • Part No. T2610-34501
    • Applied Dates 2000-11-01 to 2001-08-27
    • Serial No. 056700001 to 156700400
    • *multiple options for # 22
    • 1 shown on diagram
    $144.99
  • 22

    ASSY,WORKING LAMP

    • Part No. T2610-34502
    • Compatibility No Interchange
    • Applied Dates 2001-08-28 and up
    • Serial No. 256700001 and up
    • *multiple options for # 22
    • 1 shown on diagram
    $144.99
  • 23 BULB 12V 21W-5W (1157)

    BULB 12V 21W-5W (1157)

    • Part No. T4340-33682
    • Applied Dates 2001-08-28 and up
    • 12V21/5W(S25D)
    • 1 shown on diagram
    $9.49
