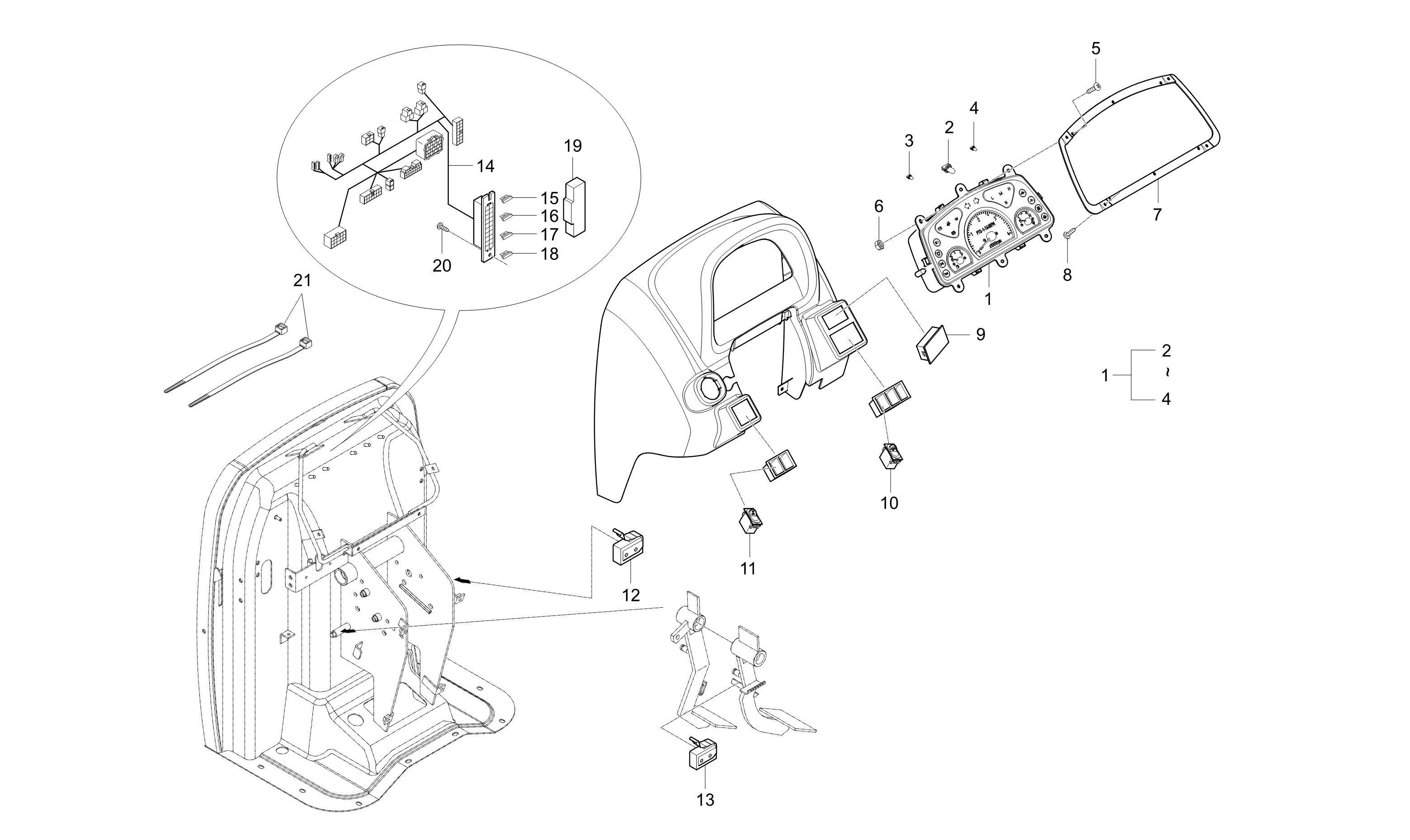

FRAME ELECTRICAL SYSTEM 2 GROUP - DK45CHSE-T1045C

ASSY PLATE,METER

• Part No. T4025-69011
• Applied Dates 2008-03-24 to 2008-07-17
• Serial No. HH1400022 to HH1400161
• *multiple options for # 1
• 1 shown on diagram

ASSY PLATE,METER v

• Part No. T4025-69012
• Compatibility Interchangeable
• Applied Dates 2008-07-18 to 2010-10-30
• Serial No. HH1400162 to KH1400094
• *multiple options for # 1
• 1 shown on diagram

Instrument Assy

• Part No. T4025-69013
• Compatibility New Replaces Old
• Applied Dates 2010-10-31 and up
• Serial No. KH1400095 and up
• *multiple options for # 1
• 1 shown on diagram

• Part No. T4025-69014
• Compatibility New Replaces Old
• *multiple options for # 1
• 1 shown on diagram

BULB dnr v

• Part No. T4684-69021004
• 12V3.4W
• 2 shown on diagram

BULB v

• Part No. T2185-00101
• Applied Dates 2008-07-18 and up
• 14V 1.4W
• 15 shown on diagram

LAMP dnr v

• Part No. T4710-69021013
• 14V3W
• 1 shown on diagram

SCREW

• Part No. 03024-50414
• M4XP0.7
• 6 shown on diagram

Nut M4XP0.7 (02054-50040)

• Part No. 02054-50040
• M4XP0.7
• 6 shown on diagram

HOLDER, MATER v, Replaced by T4121-69611BB

• Part No. T4121-69611
• Applied Dates Up to 2008-01-12
• Serial No. Up to HH1400085
• t1.6
• *multiple options for # 7
• 1 shown on diagram

HOLDER, INSTRUMENT v

• Part No. T4121-69611BB
• Compatibility No Interchange
• Serial No. HH1400086 and up
• *multiple options for # 7
• 1 shown on diagram

TAPPING SCREW v

• Part No. 38240-1883-1
• M4X16
• 4 shown on diagram

COVER

• Part No. T4025-68511
• 1 shown on diagram

SWITCH

• Part No. T4025-68311
• 1 shown on diagram

SWITCH, 4WD

• Part No. T4025-68291
• 1 shown on diagram

MICRO SWITCH N/C

• Part No. T2198-68811
• DC30V 3A
• 1 shown on diagram

SWITCH, MICRO

• Part No. T4125-69391
• 1 shown on diagram

ASSY HARNESS v, Replaced by T4145-69122

• Part No. T4145-69121
• Applied Dates Up to 2008-09-23
• *multiple options for # 14
• 1 shown on diagram

HARNESS ASSY v

• Part No. T4145-69122
• Compatibility New Replaces Old
• *multiple options for # 14
• 1 shown on diagram

FUSE, 10A

• Part No. T4260-33631
• 3 shown on diagram

FUSE, 15A

• Part No. 35820-7556-1
• 5 shown on diagram

20A Fuse (36919-5665-0)

• Part No. 36919-5665-0
• 2 shown on diagram

FUSE 25A

• Part No. 36919-5666-1
• 2 shown on diagram

COVER, FUSE BOX

• Part No. P5370-69321
• 1 shown on diagram

OB-BOLT

• Part No. 03027-50516
• M5XP0.8
• 2 shown on diagram

BAND CORD

• Part No. T2185-82551
• L290
• 2 shown on diagram
