CABIN GROUP - DK45CHSE-T1085C

Kioti TRACTOR | DK Series | DK45CHSE

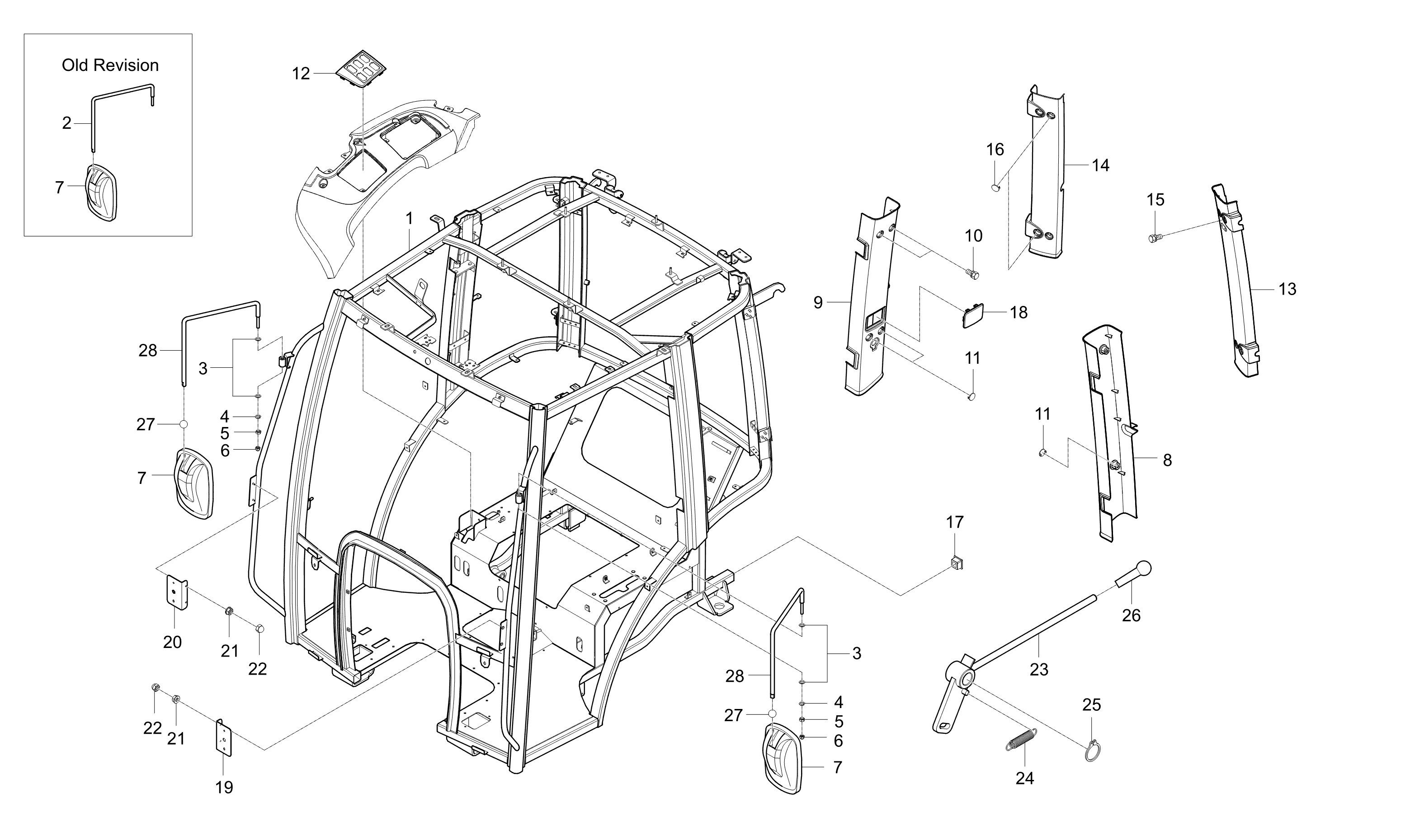

Diagram for CABIN GROUP - DK45CHSE-T1085C
  • 1

    CABIN FRAME ASSY

    • Part No. T4145-80021
    • Serial No. Up to HH1400085
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1

    ASSY,CABIN FRAME

    • Part No. T4145-80022
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1

    ASSY, CABIN FRAME

    • Part No. T4145-80023
    • Compatibility No Interchange
    • *multiple options for # 1
    • 1 shown on diagram
    $3649.99
  • 2

    ROD, REAR MIRROR v

    • Part No. T4145-83011
    • Serial No. Up to HH1400085
    • *multiple options for # 2
    • 2 shown on diagram
    $58.99
  • 2

    ROD, REARVIEW MIRROR

    • Part No. T4145-83011BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $59.99
  • 3 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 4 shown on diagram
    $.73
  • 4 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 5

    NUT

    • Part No. 02114-50100
    • M10*P1.5
    • 2 shown on diagram
    $0.67
  • 6

    NUT, CAP

    • Part No. 44366-4723-1
    • 2 shown on diagram
    $3.49
  • 7

    BACK MIRROR ASS Y

    • Part No. T4935-83001
    • *multiple options for # 7
    • 2 shown on diagram
    $79.99
  • 7 ASSY MIRROR, RV

    ASSY MIRROR, RV

    • Part No. T4935-83002
    • Compatibility New Replaces Old
    • *multiple options for # 7
    • 1 shown on diagram
    $79.99
  • 8

    COVER, B-PILLAR (LH)

    • Part No. T4145-82261
    • 1 shown on diagram
    $39.99
  • 9

    COVER, B-PILLAR (RH)

    • Part No. T4145-82271
    • *multiple options for # 9
    • 1 shown on diagram
    $29.99
  • 9

    COVER, B-PILLAR (RH)

    • Part No. T4145-82272
    • Compatibility New Replaces Old
    • *multiple options for # 9
    • 1 shown on diagram
    $28.99
  • 10 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 8 shown on diagram
    $1.79
  • 11

    CAP

    • Part No. T4930-93211
    • 8 shown on diagram
    $2.49
  • 12

    PANNEL, SWITCH

    • Part No. T4145-64241
    • 1 shown on diagram
    $9.99
  • 13

    COVER, C-PILLAR INNER (LH)

    • Part No. T4145-82301
    • 1 shown on diagram
    $19.99
  • 14

    COVER, C-PILLAR INNER (RH)

    • Part No. T4145-82311
    • 1 shown on diagram
    $19.99
  • 15 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 8 shown on diagram
    $1.89
  • 16

    CAP

    • Part No. T4930-93211
    • 8 shown on diagram
    $2.49
  • 17

    COVER, RUBBER

    • Part No. T4145-83941
    • 2 shown on diagram
    $8.99
  • 18

    COVER

    • Part No. T4145-82281
    • 1 shown on diagram
    $5.99
  • 19

    BRACKET, TURN SIGNAL LAMP, Replaced by T4145-83971BB

    • Part No. T4145-83971
    • Serial No. Up to HH1400085
    • *multiple options for # 19
    • 1 shown on diagram
    $.00
  • 19

    BRAKET, DIRECTION LAMP LH

    • Part No. T4145-83971BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 19
    • 1 shown on diagram
    $23.99
  • 20

    BRACKET, TURN SIGNAL LAMP

    • Part No. T4145-83981
    • Serial No. Up to HH1400085
    • T3.0
    • *multiple options for # 20
    • 1 shown on diagram
    $19.99
  • 20

    BRAKET, DIRECTION LAMP RH

    • Part No. T4145-83981BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 20
    • 1 shown on diagram
    $19.99

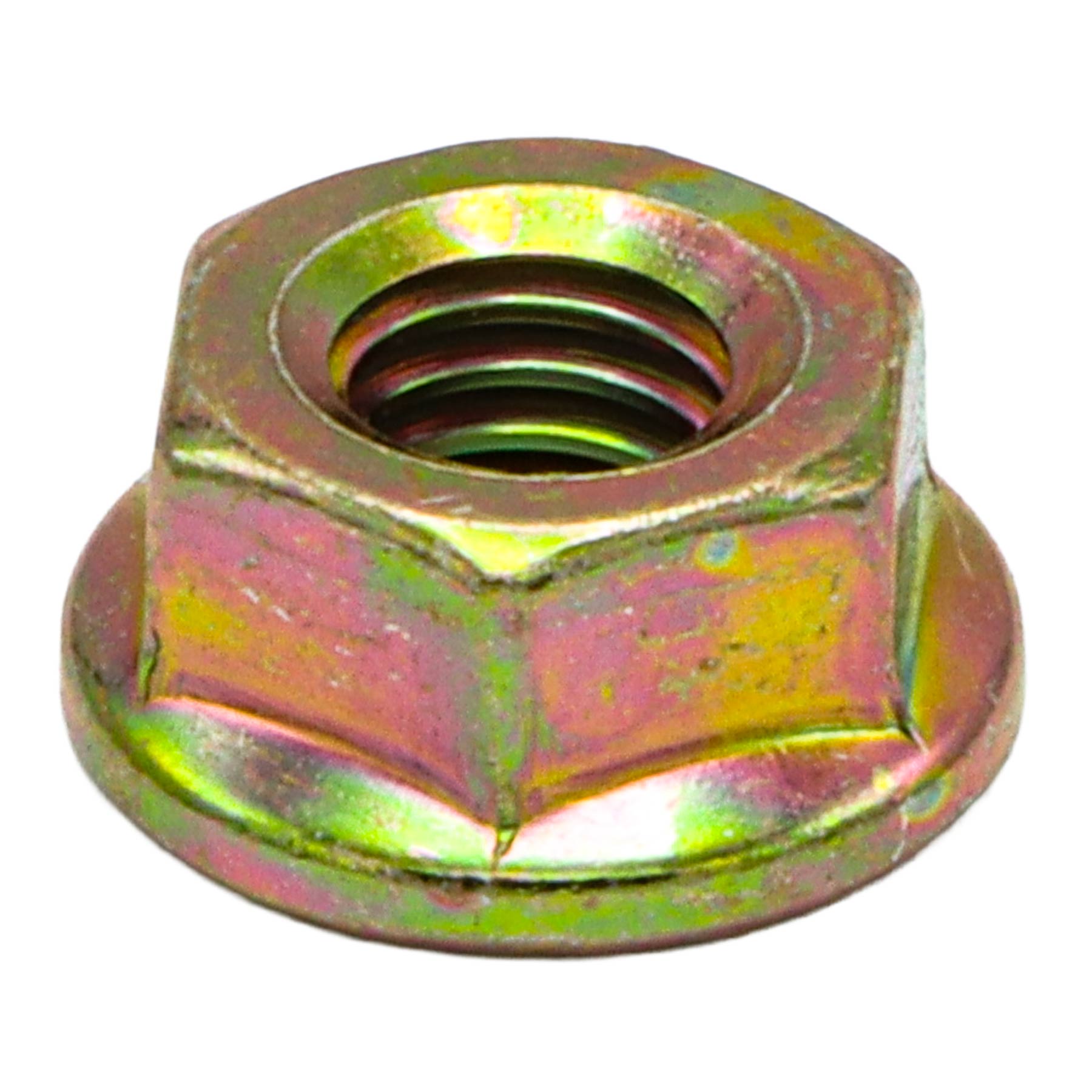

  • 21 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.67

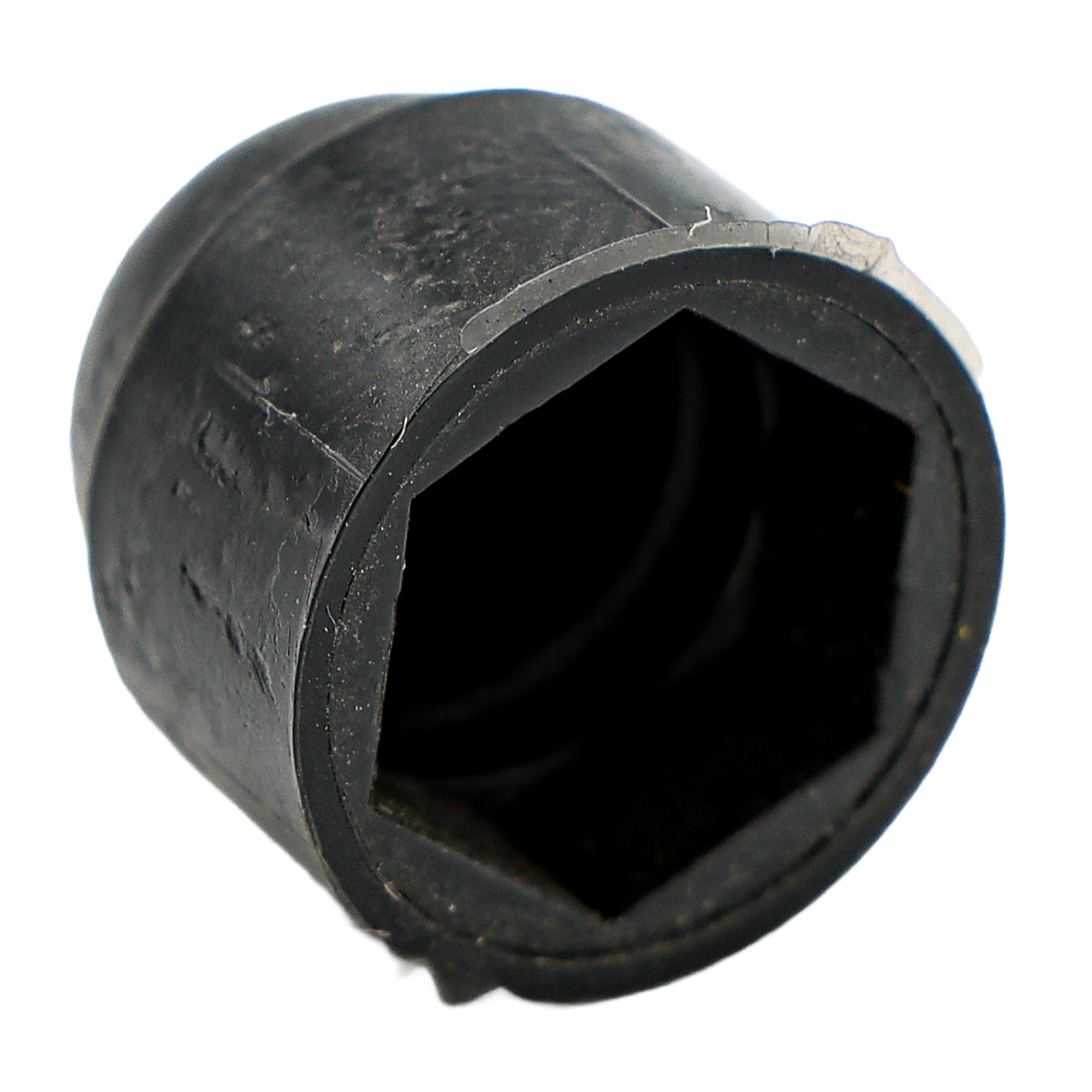

  • 22 NUT CAP M6

    NUT CAP M6

    • Part No. T4680-93211
    • 4 shown on diagram
    $1.29
  • 23

    LEVER,POSITION CONTROL 2

    • Part No. T4145-65511
    • Applied Dates Up to 2008-04-30
    • Serial No. Up to HH1400085
    • *multiple options for # 23
    • 1 shown on diagram
    $53.99
  • 23

    LEVER 2, POSITION CONTROL

    • Part No. T4145-65511BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 23
    • 1 shown on diagram
    $53.99

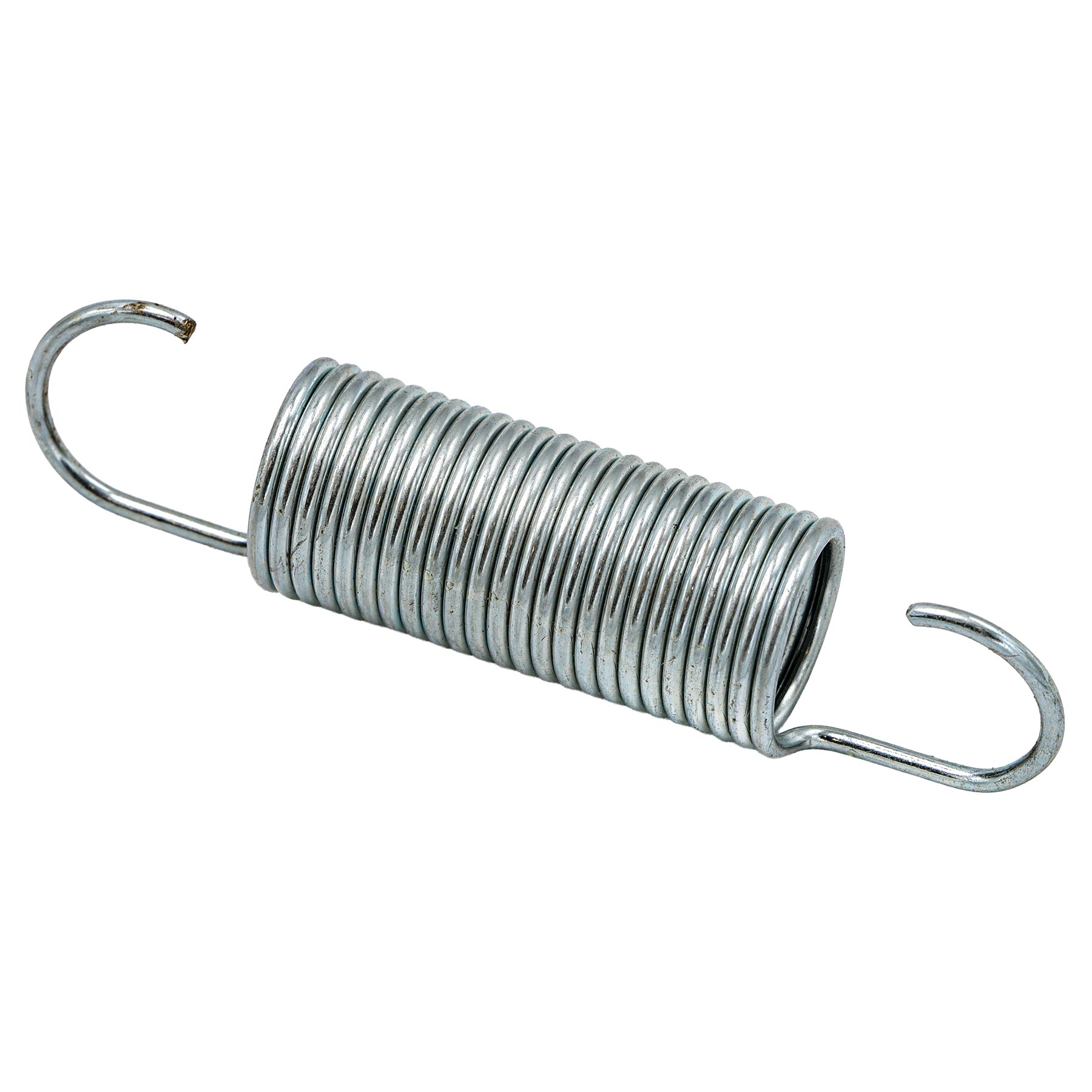

  • 24 SPRING, DIFF.LOCK PEDAL

    SPRING, DIFF.LOCK PEDAL

    • Part No. T2305-26641
    • Applied Dates 2008-04-10 to 2008-08-03
    • DIA1.2
    • 1 shown on diagram
    $5.99
  • 25 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
    $1.09
  • 26

    GRIP

    • Part No. T4818-71221
    • 1 shown on diagram
    $8.49
  • 27

    BALL

    • Part No. T4930-83001003
    • 1 shown on diagram
    $3.49
  • 28 PLASTIC

    PLASTIC

    • Part No. T5525-84301
    • 1 shown on diagram
    $3.99
