FRONT AXLE FRAME GROUP - DK45CHSE-T815A

Kioti TRACTOR | DK Series | DK45CHSE

  • 1

    FRAME, FRONT AXLE dnr v, Replaced by T4145-50012BB

    • Part No. T4145-50012
    • Applied Dates 2008-04-25 and up
    • 1 shown on diagram
    $.00
  • 2

    BOLT v

    • Part No. 01177-51235
    • Applied Dates 2008-06-04 and up
    • M12XP1.25
    • 11 shown on diagram
    $3.49
  • 3

    WASHER BOLT M12 P1.25 x35

    • Part No. 01133-51235
    • Applied Dates 2008-06-04 and up
    • M12XP1.25
    • 2 shown on diagram
    $4.49
  • 4

    BOLT

    • Part No. 01177-51250
    • Applied Dates 2008-04-17 and up
    • M12XP1.25(9T)
    • 2 shown on diagram
    $3.99
  • 5

    BOLT, M10 P1.25×30

    • Part No. 01177-51030
    • Applied Dates 2008-04-17 and up
    • M10XP1.25(9T)
    • 1 shown on diagram
    $3.49
  • 6

    SUPPORT, RADIATOR dvr dnr v

    • Part No. T4145-50203
    • Applied Dates 2008-06-10 to 2008-08-14
    • Serial No. HH1400002 to HH1400085
    • *multiple options for # 6
    • 1 shown on diagram
    $269.99
  • 6

    SUPPORT, RADIATOR dnr v

    • Part No. T4145-50204
    • Compatibility Interchangeable
    • Applied Dates 2008-08-15 to 2008-10-23
    • Serial No. Up to HH1400085
    • *multiple options for # 6
    • 1 shown on diagram
    $414.99
  • 6

    SUPPORT, RADIATOR

    • Part No. T4145-50204ED
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $384.99
  • 6

    SUPPORT, RADIATOR

    • Part No. T4145-50205
    • Compatibility No Interchange
    • Applied Dates 2011-08-01 to 2011-08-29
    • *multiple options for # 6
    • 1 shown on diagram
    $.00
  • 6

    SUPPORT, RADIATOR

    • Part No. T4145-50206
    • Compatibility No Interchange
    • Applied Dates 2011-08-30 and up
    • Serial No. LH1400078 to NH1400076
    • *multiple options for # 6
    • 1 shown on diagram
    $.00
  • 6

    SUPPORT, RADIATOR

    • Part No. T4145-50207
    • Compatibility New Replaces Old
    • Applied Dates 2013-12-01 and up
    • Serial No. NH1400077 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $229.99

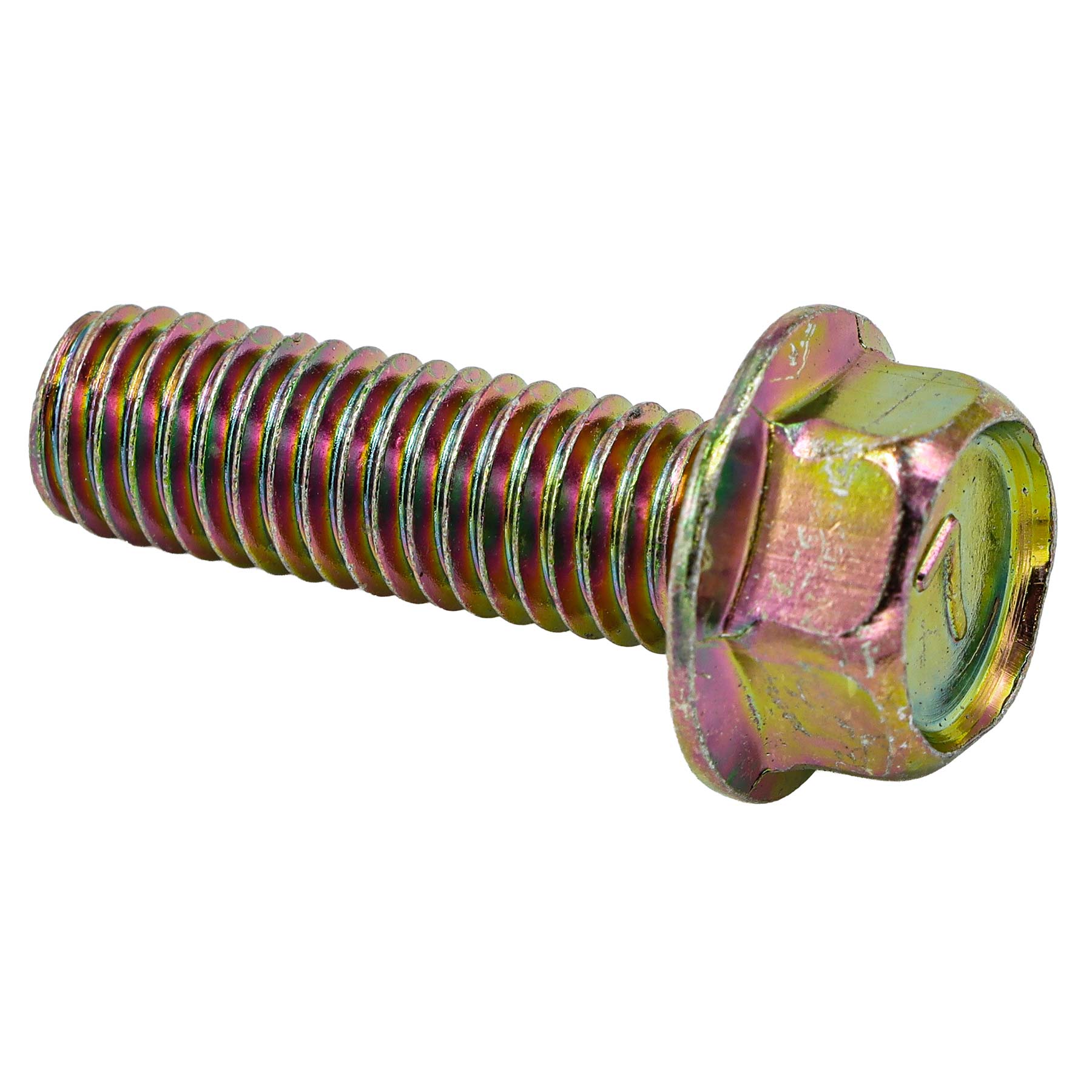

  • 7 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • Applied Dates 2008-05-01 to 2009-03-31
    • Serial No. HH1400002 to JH1400044
    • M8XP1.25
    • *multiple options for # 7
    • 5 shown on diagram
    $2.49
  • 7 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • Compatibility Interchangeable
    • Applied Dates 2009-04-01 to 2010-06-08
    • Serial No. JH1400045 to KH1400050
    • M8XP1.25
    • *multiple options for # 7
    • 5 shown on diagram
    $2.49
  • 7 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • Compatibility Interchangeable
    • Applied Dates 2010-06-09 to 2008-04-30
    • Serial No. KH1400051 to HH1400001
    • M8XP1.25
    • *multiple options for # 7
    • 5 shown on diagram
    $1.19
  • 8

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 2 shown on diagram
    $4.99
  • 9

    ASSY,CATCH

    • Part No. T4125-50681
    • Applied Dates Up to 2011-07-31
    • Serial No. Up to LH1400077
    • *multiple options for # 9
    • 1 shown on diagram
    $98.99
  • 9

    HANDLE ASSY

    • Part No. T4145-60581
    • Compatibility No Interchange
    • Applied Dates 2011-08-01 to 2011-08-29
    • *multiple options for # 9
    • 1 shown on diagram
    $44.99
  • 9 HANDLE ASSY

    HANDLE ASSY

    • Part No. T4145-60582
    • Compatibility No Interchange
    • Applied Dates 2011-08-30 and up
    • Serial No. LH1400078 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $66.99

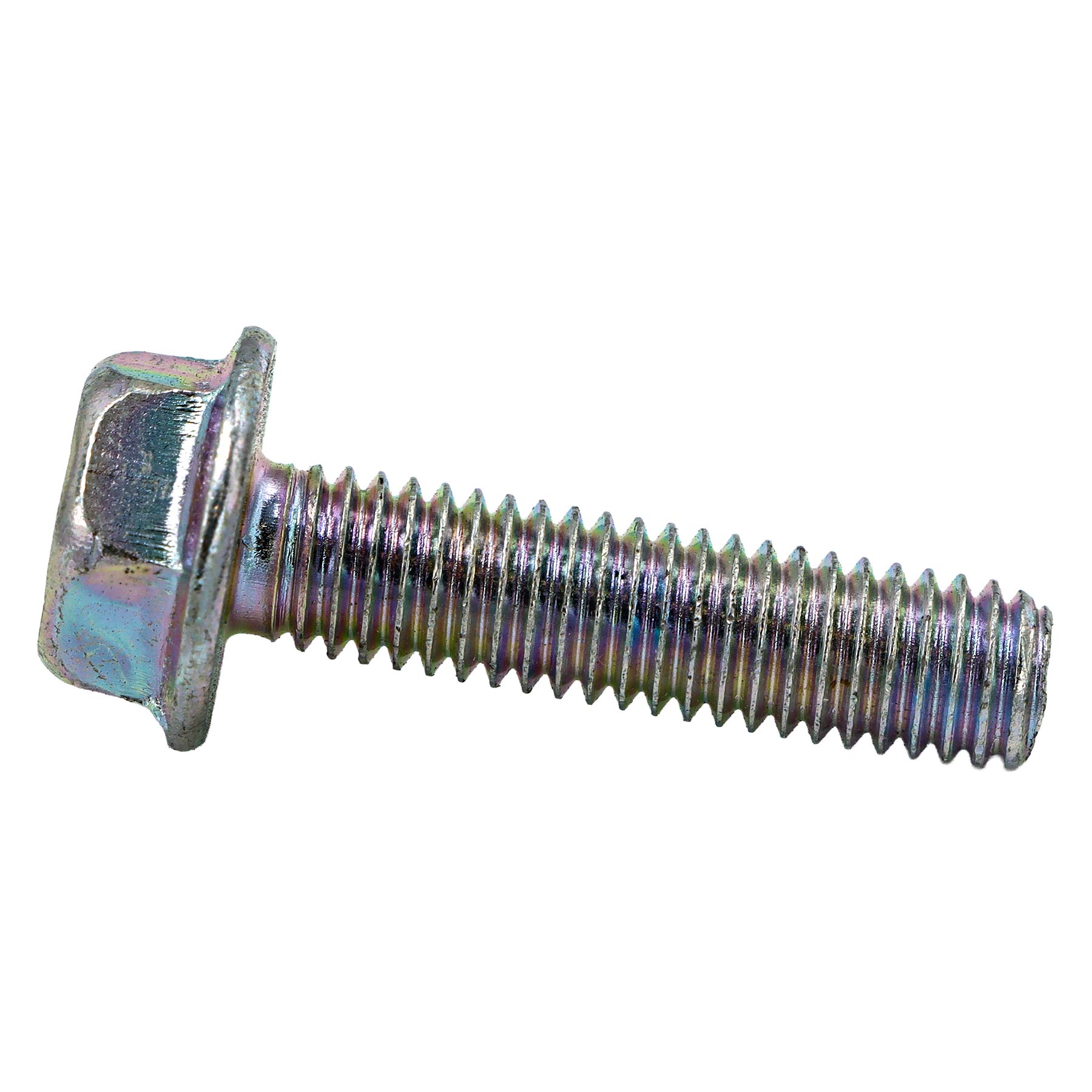

  • 10 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50625
    • M6XP1.0
    • 4 shown on diagram
    $1.29
  • 11

    CABLE,BONNET OPEN dnr v

    • Part No. T4125-50692
    • Applied Dates Up to 2011-05-28
    • Serial No. Up to LH1400041
    • *multiple options for # 11
    • 1 shown on diagram
    $37.99
  • 11 CABLE BONNET

    CABLE BONNET

    • Part No. T4125-50693
    • Compatibility Interchangeable
    • Applied Dates 2011-05-29 and up
    • Serial No. LH1400042 and up
    • *multiple options for # 11
    • 1 shown on diagram
    $44.99
  • 12

    Pin, Joint M6x14mm

    • Part No. 05122-50614
    • 1 shown on diagram
    $2.49
  • 13

    Flat Washer M6

    • Part No. 04014-50060
    • 1 shown on diagram
    $.67
  • 14

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
    $0.56
  • 15

    RUBBER, CUSHION ROUND T4620-50592

    • Part No. T4620-50592
    • Applied Dates Up to 2009-01-20
    • *multiple options for # 15
    • 2 shown on diagram
    $5.49
  • 15

    RUBBER, CUSHION

    • Part No. T4125-50591
    • Compatibility New Replaces Old
    • Applied Dates 2009-01-21 and up
    • Serial No. JH1400001 and up
    • *multiple options for # 15
    • 2 shown on diagram
    $3.99
  • 16

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 8 shown on diagram
    $1.59
  • 17

    PLATE, GUIDE

    • Part No. T2185-50441
    • T2.3
    • 2 shown on diagram
    $6.49

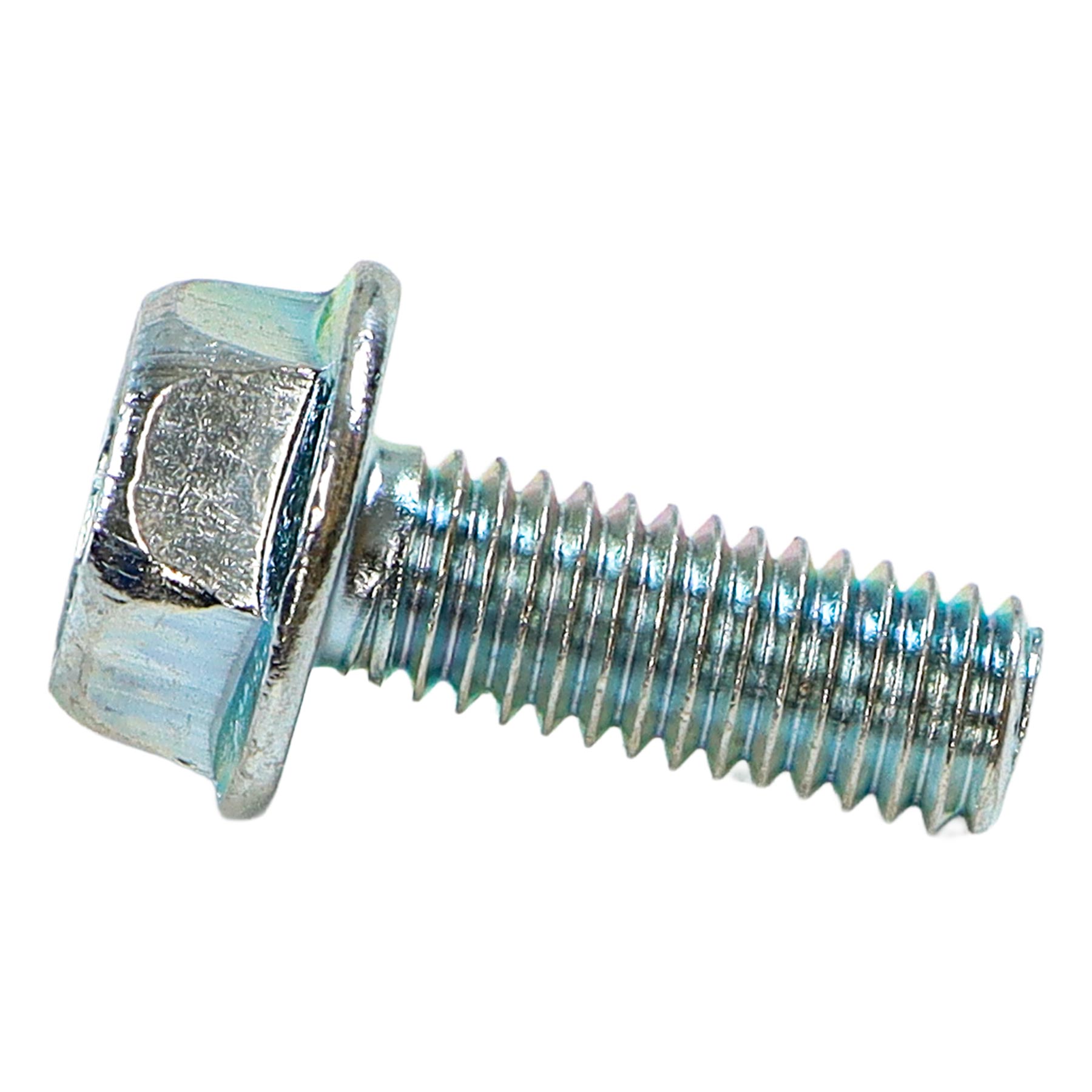

  • 18 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • Applied Dates 2012-02-01 to 2008-07-24
    • Serial No. Up to HH1400061
    • M6XP1.0
    • *multiple options for # 18
    • 4 shown on diagram
    $1.89

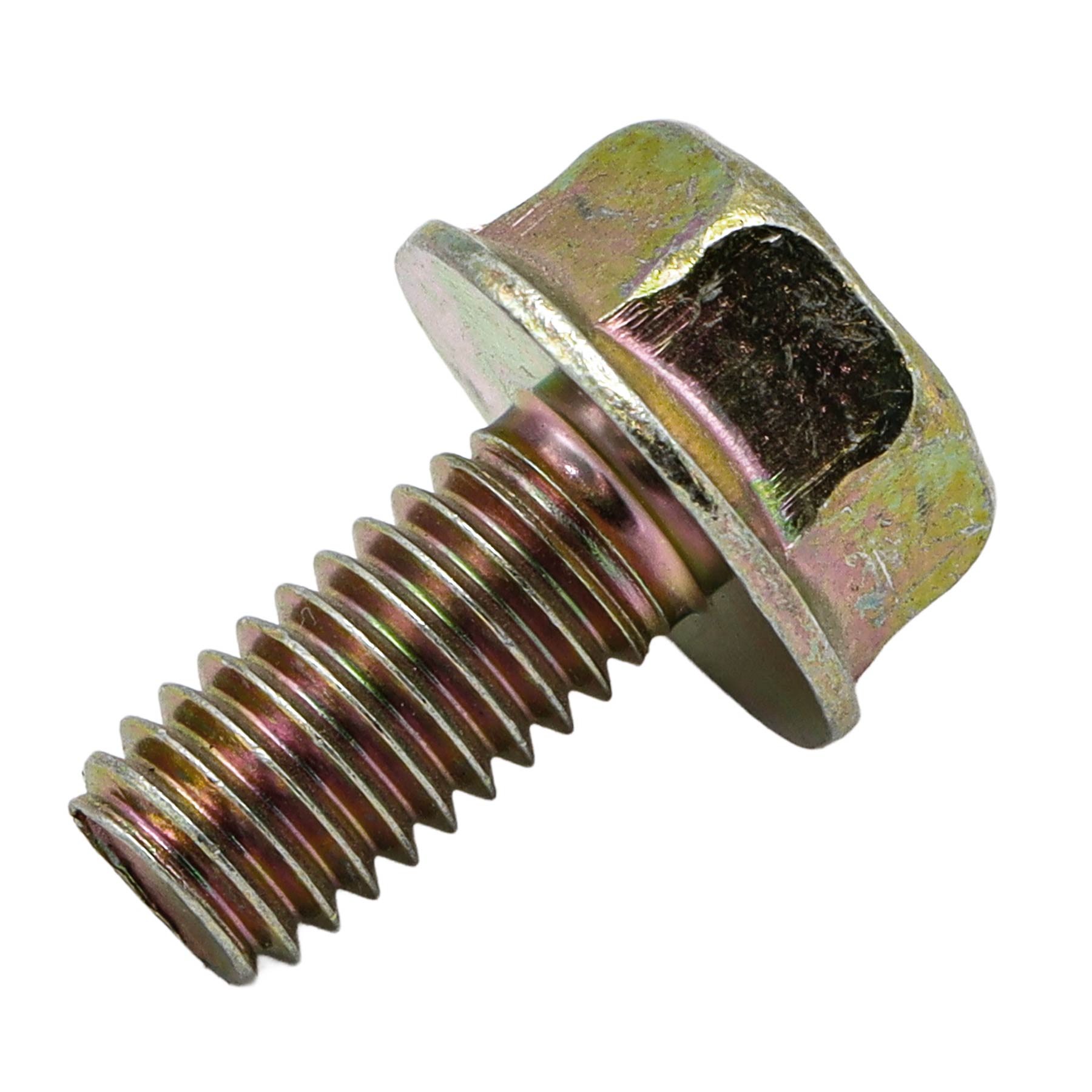

  • 18 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • Compatibility No Interchange
    • Applied Dates 2008-04-30 and up
    • Serial No. KH1400001 to JH1400064
    • M6XP1.0
    • *multiple options for # 18
    • 4 shown on diagram
    $1.39
  • 19

    SPONGE

    • Part No. T4125-50272
    • 2 shown on diagram
    $5.99
  • 20

    SPONGE

    • Part No. T4125-50282
    • 2 shown on diagram
    $7.99
  • 21 FIXED PLATE, Replaced by T4125-50862BK

    FIXED PLATE, Replaced by T4125-50862BK

    • Part No. T4125-50862
    • T1.6
    • 2 shown on diagram
    $.00

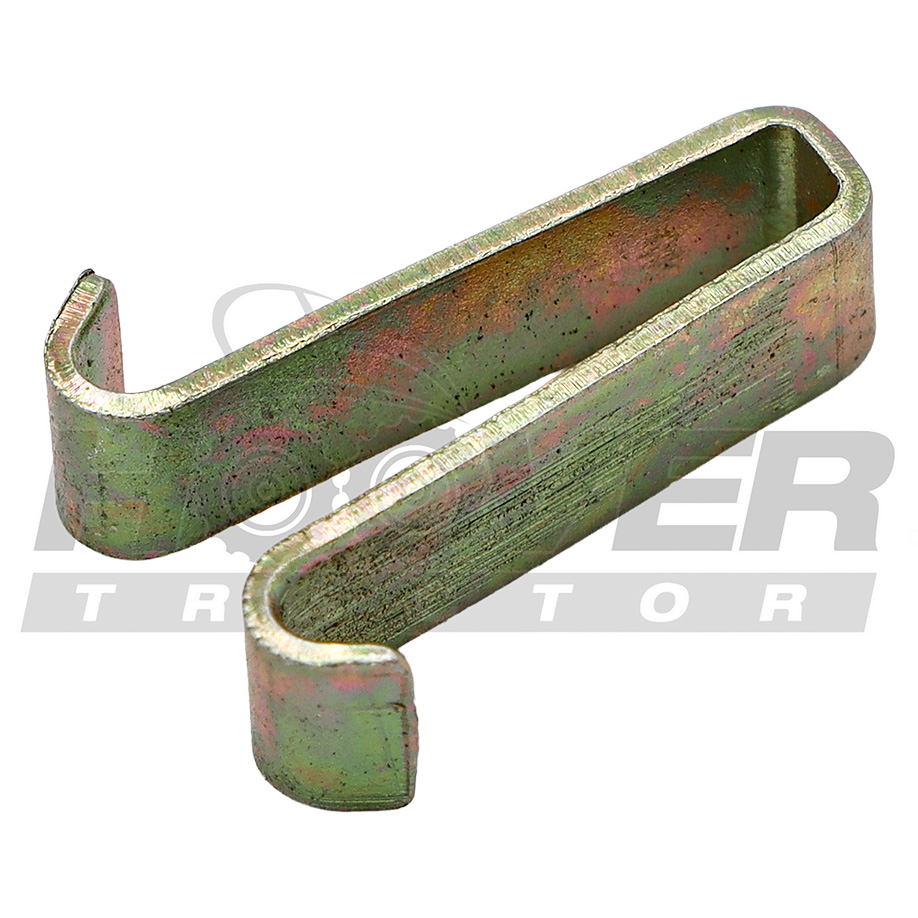

  • 22 HANGER

    HANGER

    • Part No. T4125-50871
    • T2.0
    • 2 shown on diagram
    $3.49

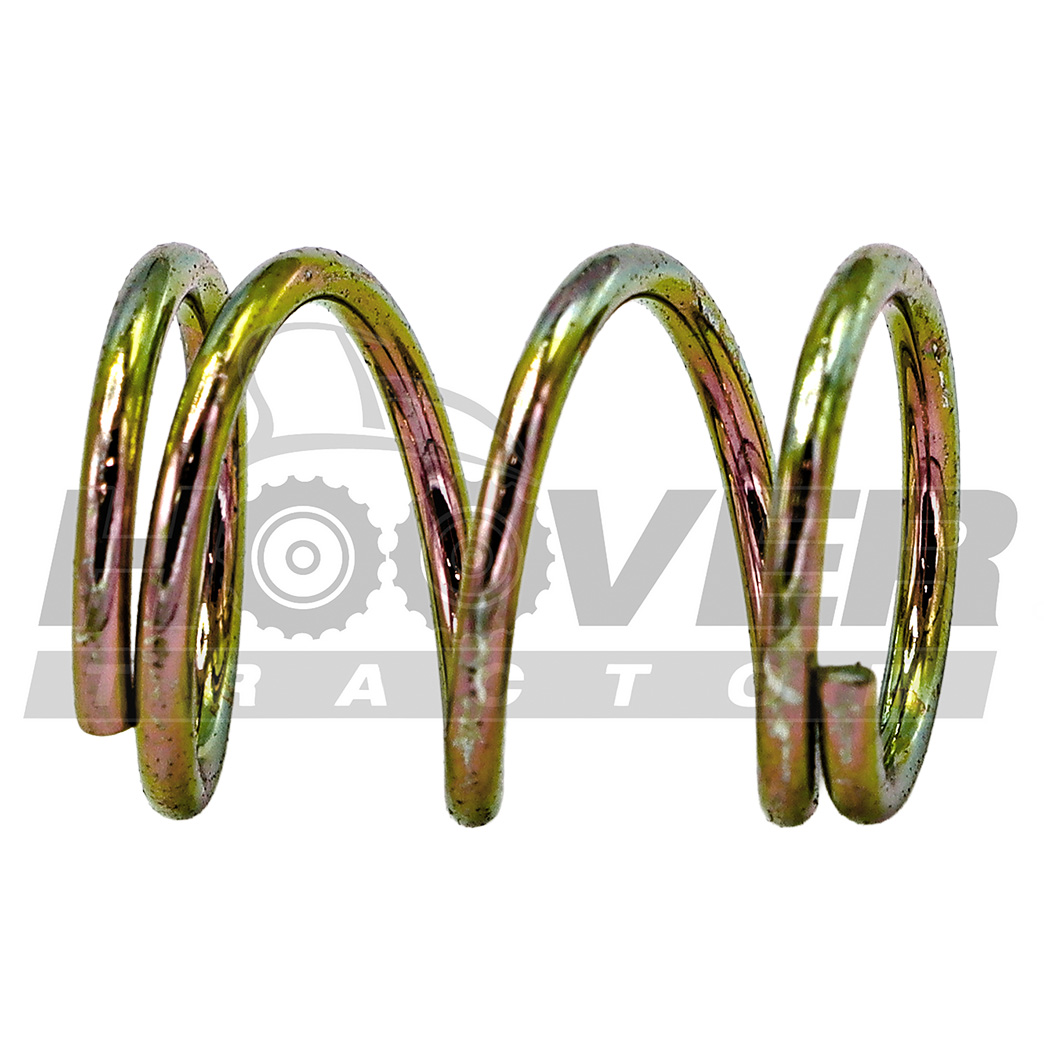

  • 23 SPRING

    SPRING

    • Part No. T4125-50882
    • T1.0
    • 2 shown on diagram
    $2.99
  • 24

    RUBBER(RADIATOR)

    • Part No. T4125-13691
    • 1 shown on diagram
    $14.99

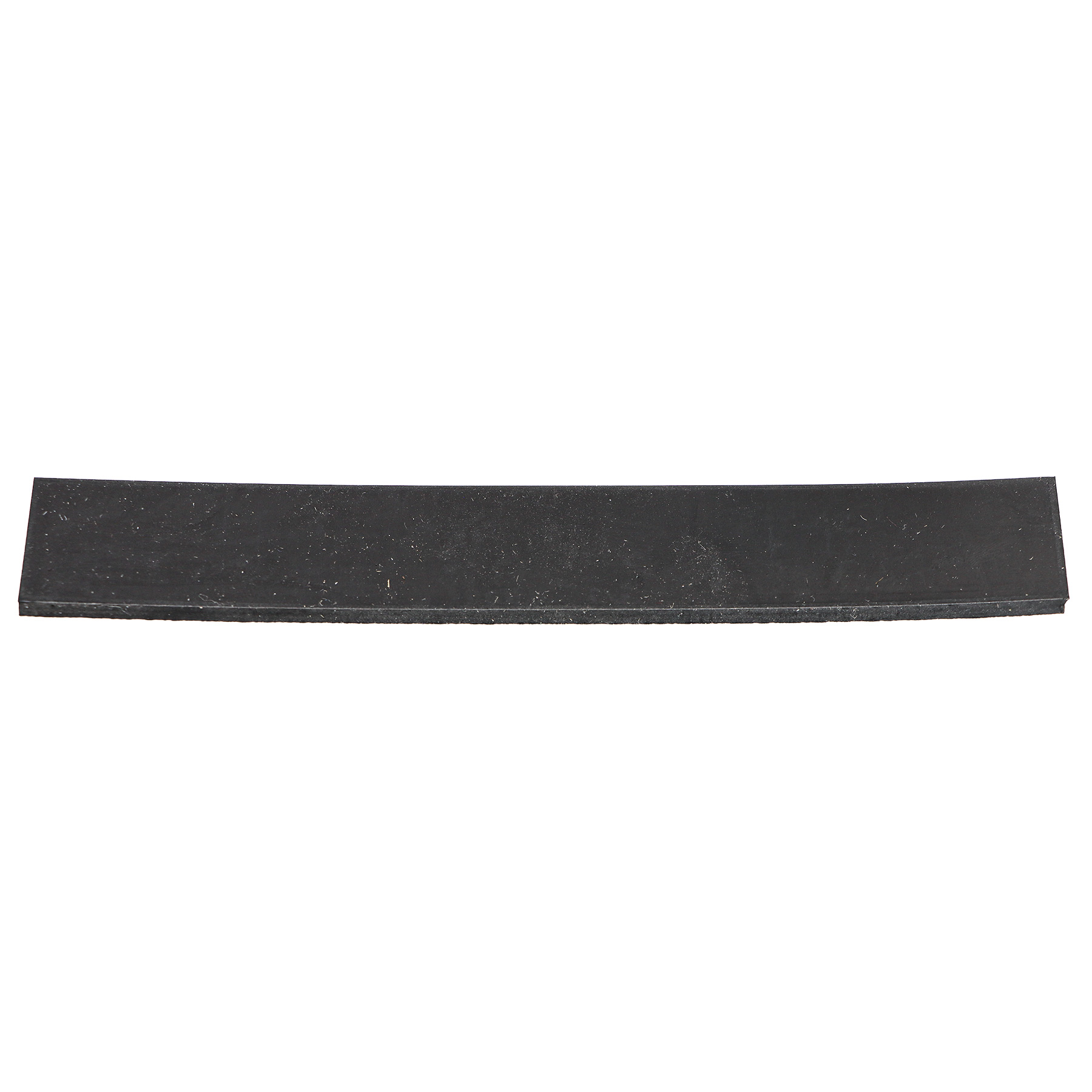

  • 25 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T2610-50271
    • 1 shown on diagram
    $5.99
  • 26

    RUBBER

    • Part No. T4125-50091
    • 1 shown on diagram
    $5.99
  • 27

    RUBBER

    • Part No. T4125-50901
    • 2 shown on diagram
    $4.99
