ELECTRICITY SYSTEM 2 GROUP - DK50-T550C
Kioti TRACTOR | DK Series | DK45C
-
ASS’Y FUSE BOX
- Part No. T4685-69103
- Applied Dates 2002-11-21 to 2003-06-08
- *multiple options for # 1
- 1 shown on diagram
$48.99 -
FUSE BOX ASSY
- Part No. T4685-69104
- Compatibility New Replaces Old
- Applied Dates 2003-06-09 and up
- Serial No. 356800001 and up
- *multiple options for # 1
- 1 shown on diagram
$58.99 -
FUSE 25A
- Part No. 36919-5666-1
- 2 shown on diagram
$2.99 -
20A Fuse (36919-5665-0)
- Part No. 36919-5665-0
- 4 shown on diagram
$2.99 -
FUSE, 10A
- Part No. T4260-33631
- Applied Dates 2002-11-21 and up
- 5 shown on diagram
$2.99 -
FUSE, 15A
- Part No. 35820-7556-1
- Applied Dates 2002-11-21 and up
- 3 shown on diagram
$2.99 -
COVER v
- Part No. 52300-4166-4
- 1 shown on diagram
$26.99 -
BOLT, WASHER
- Part No. 01023-50620
- M6XP1.0
- 2 shown on diagram
$1.39 -
MARK SWITCH v
- Part No. 44512-8317-2
- 1 shown on diagram
$55.99 -
TIMER RELAY v, Replaced by T4340-60243
- Part No. T4340-60242
- Applied Dates Up to 2004-11-21
- 1 shown on diagram
$.00 -
UNIT, FLASHER V
- Part No. T4240-31052
- Applied Dates Up to 2007-04-16
- 1 shown on diagram
$47.99 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- Applied Dates 2003-10-31 to 2003-06-08
- Serial No. 356800001 to 256800052
- M6XP1.0
- *multiple options for # 11
- 2 shown on diagram
$0.73 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- Compatibility No Interchange
- Applied Dates 2003-06-09 and up
- Serial No. D56800001 and up
- M6XP1.0
- *multiple options for # 11
- 2 shown on diagram
$1.89 -
RELAY(5P), Replaced by T5535-69961
- Part No. T4620-69041
- Applied Dates 2003-06-09 to 2007-01-01
- 1 shown on diagram
$.00 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- Applied Dates Up to 2003-06-08
- M6XP1.0
- 1 shown on diagram
$1.89 -
RELAY-COOLER
- Part No. T4520-75031
- Applied Dates 2003-06-09 and up
- 1 shown on diagram
$25.99 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- Applied Dates 2003-06-09 and up
- M6XP1.0
- 2 shown on diagram
$1.89 -

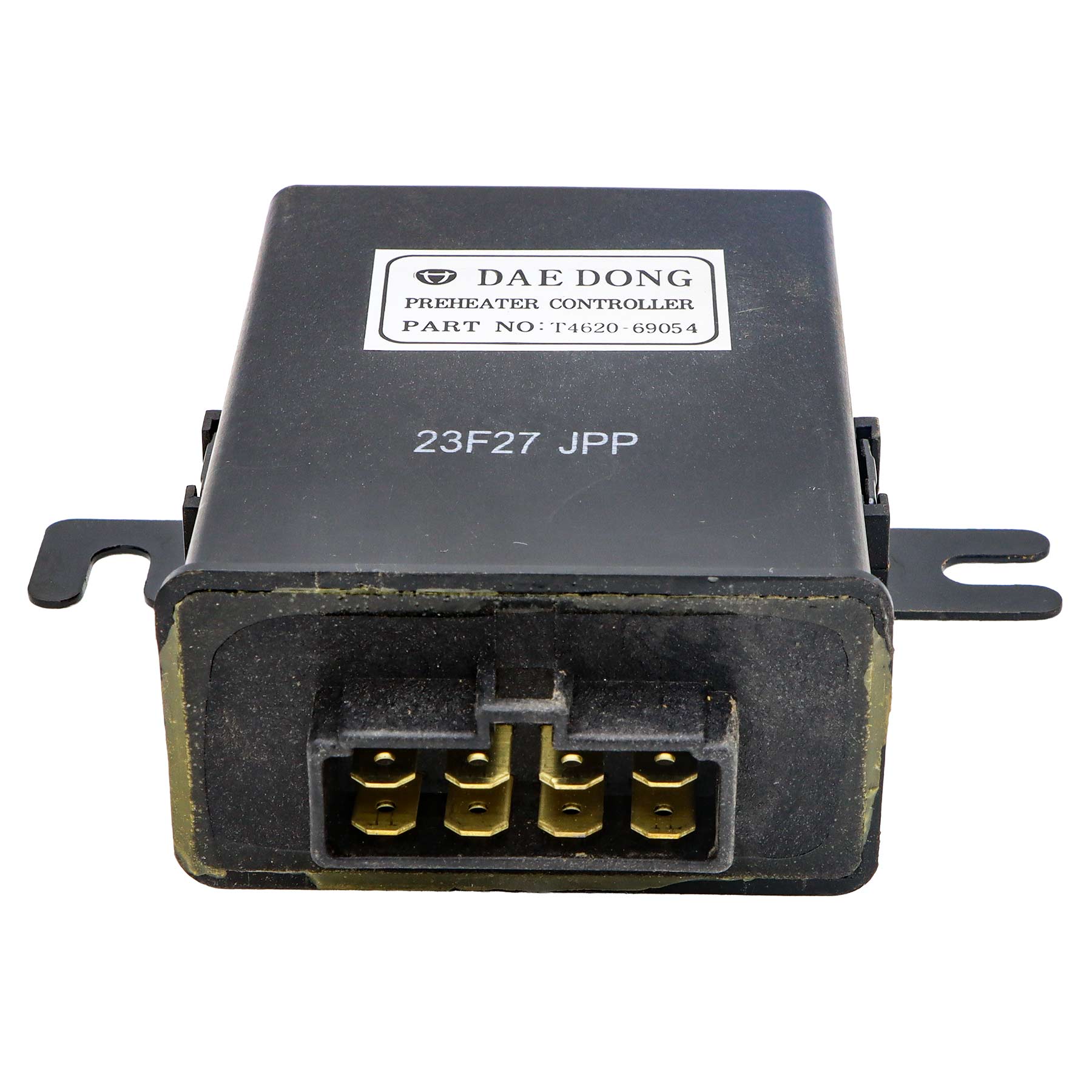

PREHEATER CONTROLLER
- Part No. T4620-69054
- 1 shown on diagram
$129.99 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- 2 shown on diagram
$0.73 -
GLOW RELAY V, Replaced by T4180-69951
- Part No. C5510-43101
- Applied Dates Up to 2005-07-25
- 1 shown on diagram
$.00 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- 1 shown on diagram
$0.73 -
GLOW RELAY V, Replaced by T4180-69951
- Part No. C5510-43101
- Applied Dates Up to 2005-07-25
- 1 shown on diagram
$.00 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- 2 shown on diagram
$0.73 -

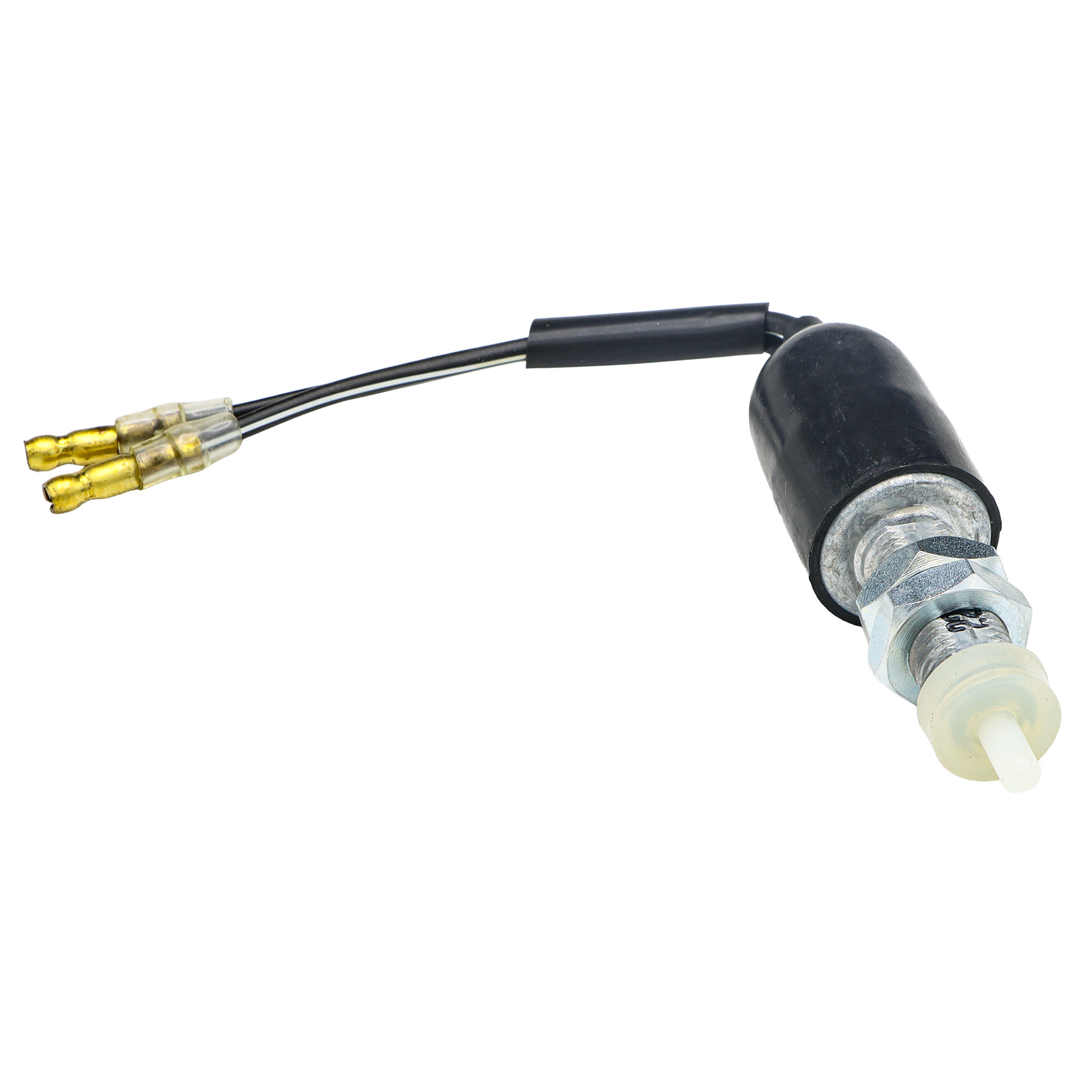

SWITCH, SAFETY STARTE
- Part No. T4520-75481
- 1 shown on diagram
$53.99 -

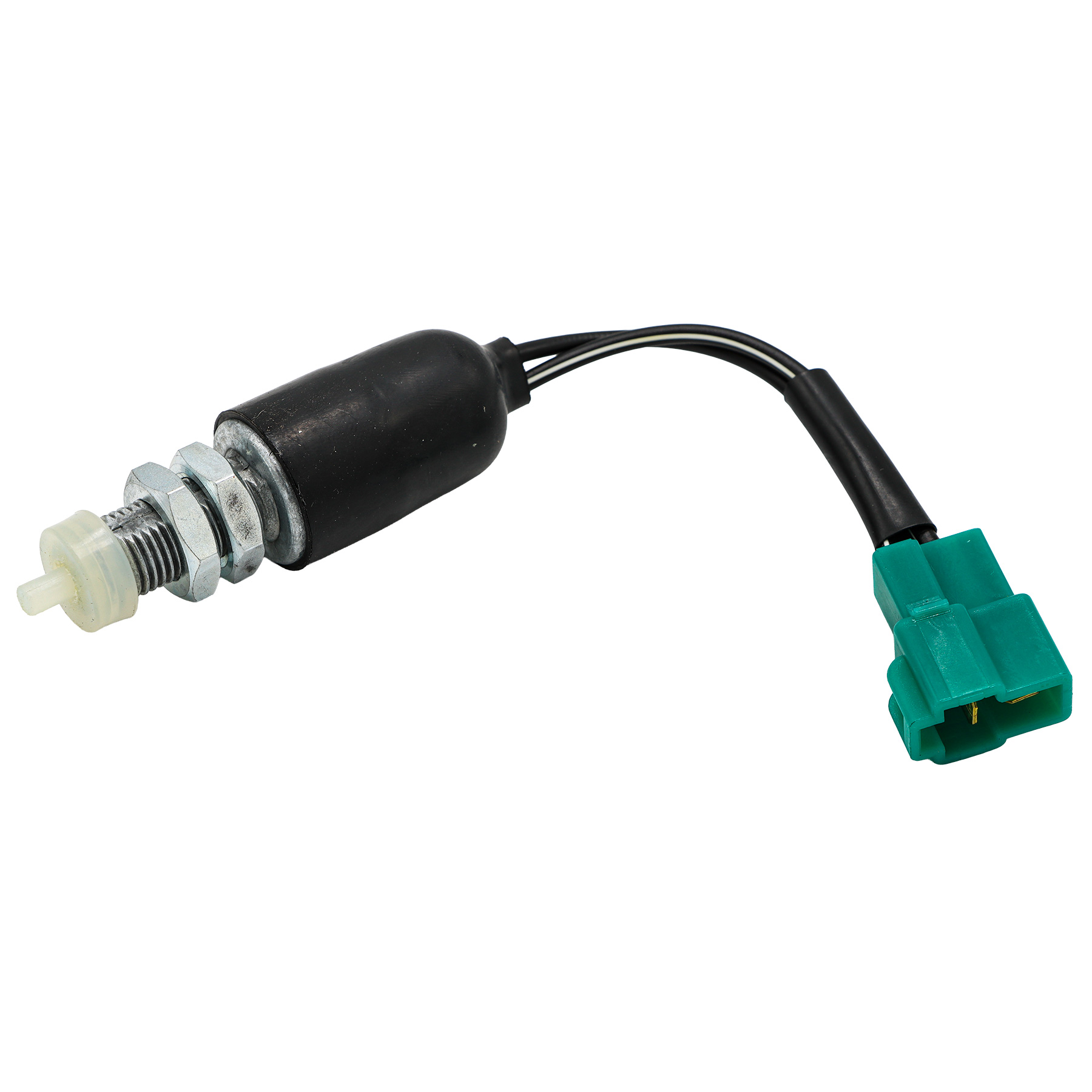

ASSY STOP SWITCH
- Part No. T4520-41821
- 1 shown on diagram
$58.99 -
MICRO SWITCH
- Part No. T4810-69251
- 1 shown on diagram
$84.99 -
BOLT SCREW
- Part No. 03054-50316
- M3XP0.5
- 2 shown on diagram
$0.62 -
Flat Washer M3
- Part No. 04012-50030
- M3
- 2 shown on diagram
$.67 -
WASHER, SPRING
- Part No. 04512-50030
- M03
- 2 shown on diagram
$0.61 -
NUT
- Part No. 02054-50030
- M3XP0.5
- 2 shown on diagram
$0.61 -
MICRO SWITCH, Replaced by T2198-68811
- Part No. 44512-6881-3
- 1 shown on diagram
$.00 -
ASSY, LAMP SWITCH v
- Part No. C7910-42311
- Applied Dates 2000-10-30 to 2003-04-14
- Serial No. 056800001 and up
- *multiple options for # 30
- 1 shown on diagram
$99.99 -
ASS Y LAMP SWITCH PTO
- Part No. T4625-42311
- Compatibility New Replaces Old
- Applied Dates 2003-04-15 and up
- Serial No. 356800001 and up
- *multiple options for # 30
- 1 shown on diagram
$84.99 -
ASS Y, SAFETY STARTER SWITCH, Replaced by T4930-69881
- Part No. C7810-43211
- Applied Dates 2002-11-21 to 2007-03-21
- 1 shown on diagram
$.00 -
ASS’Y HORN
- Part No. T4520-75953
- 1 shown on diagram
$44.99 -
Bolt With Washer, M8 P1.25 x 20mm
- Part No. 01123-50820
- M8XP1.25
- 2 shown on diagram
$2.49 -
RELAY-COOLER
- Part No. T4520-75031
- Applied Dates 2003-06-09 and up
- 1 shown on diagram
$25.99 -
ASS’Y FFT CONTROLLER dnr v
- Part No. T4835-69261
- Applied Dates 2003-06-09 to 2004-02-18
- Serial No. 356800001 to D56800100
- *multiple options for # 35
- 1 shown on diagram
$79.99 -
FFT Controller
- Part No. T4835-69262
- Compatibility New Replaces Old
- Applied Dates 2004-02-19 and up
- Serial No. D56800101 and up
- *multiple options for # 35
- 1 shown on diagram
$149.99 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- Applied Dates 2003-06-09 and up
- M6XP1.0
- 1 shown on diagram
$1.89 -
PICK UP SENSOR
- Part No. E6302-04931
- Applied Dates 2003-06-09 and up
- 1 shown on diagram
$119.99 -
BOLT, FLANGE
- Part No. 01754-50612
- Applied Dates 2003-06-09 and up
- M6XP1.0
- 1 shown on diagram
$1.39 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- Applied Dates 2003-06-09 and up
- M6XP1.0
- 1 shown on diagram
$0.73
