ROCKER ARM_VALVE GROUP - EA2-G125003

Kioti TRACTOR | DK Series | DK451

  • 1

    INLET VALVE

    • Part No. E6301-13111
    • 4 shown on diagram
    $39.99
  • 2

    EXHAUST VALVE

    • Part No. E6301-13121
    • 4 shown on diagram
    $38.99
  • 3

    VALVE SPRING

    • Part No. 15221-1324-2
    • DIA3.5
    • 8 shown on diagram
    $6.49
  • 4

    RETAINER VALVE SPRING

    • Part No. E5500-13333
    • 8 shown on diagram
    $11.99
  • 5

    COLLET,VALVE SPRING v, Replaced by E6403-13361

    • Part No. E5500-13362
    • *multiple options for # 5
    • 16 shown on diagram
    $.00
  • 5

    COLLET,VALVE SPRING v

    • Part No. E6403-13361
    • Compatibility Interchangeable
    • KK8(??TRW)
    • *multiple options for # 5
    • 16 shown on diagram
    $1.99

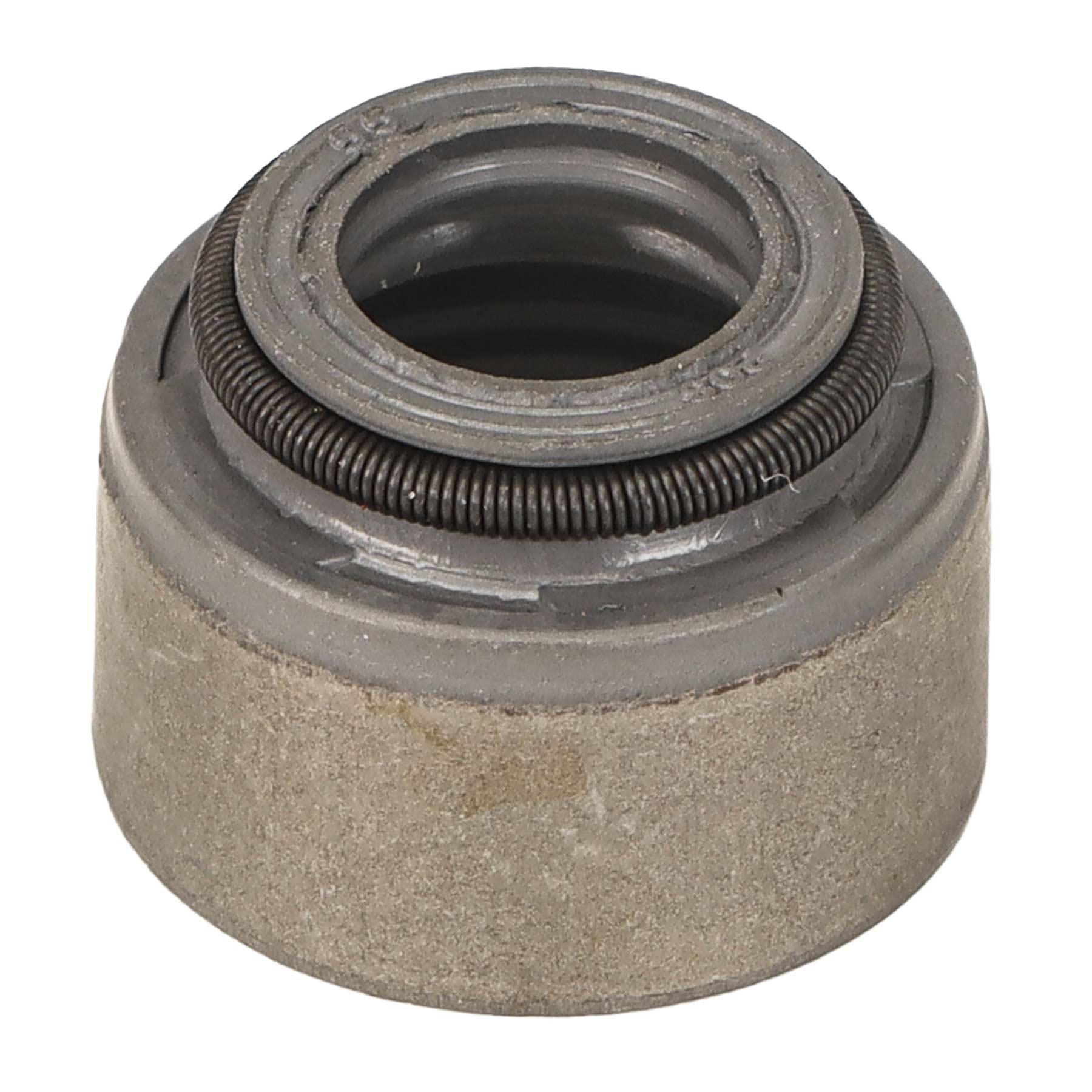

  • 6 SEAL, VALVE STEM

    SEAL, VALVE STEM

    • Part No. E6301-13151
    • 8 shown on diagram
    $4.99
  • 7

    ASSY, ROCKERARM SHAFT

    • Part No. E6301-14001
    • 1 shown on diagram
    $549.99
  • 8

    ROCKERARM SHAFT

    • Part No. E6301-14261
    • DIA21*7*360
    • 1 shown on diagram
    $89.99
  • 9

    CAP, SEALING obs v

    • Part No. E6301-14331
    • 2 shown on diagram
    $3.99
  • 10

    ROCKERARM BRACKET

    • Part No. E6301-14351
    • 4 shown on diagram
    $31.99
  • 11

    PLAIN WASHER

    • Part No. E6301-14431
    • T1.2*30*30
    • 2 shown on diagram
    $1.19
  • 12

    ROCKERARM SPRING

    • Part No. E6301-14311
    • 3 shown on diagram
    $3.49
  • 13

    SNAP RING

    • Part No. 04612-00190
    • DIA19
    • 2 shown on diagram
    $1.19
  • 14

    ROCKERARM

    • Part No. E6301-14111
    • 8 shown on diagram
    $29.99
  • 15

    NUT

    • Part No. 15021-1424-1
    • HEX12,M8*1.0*11
    • 8 shown on diagram
    $1.59
  • 16

    SCREW,ADJUSTING

    • Part No. E5500-14232
    • DIA10,M8*1.0*34
    • 8 shown on diagram
    $6.99
  • 17

    BOLT, (R/A SUPPORT) v

    • Part No. E6510-91501
    • *multiple options for # 17
    • 4 shown on diagram
    $4.49
  • 17

    BOLT,(R/A SUPPORT) v

    • Part No. E6510-91502
    • Compatibility New Replaces Old
    • *multiple options for # 17
    • 4 shown on diagram
    $5.49
