EXHAUST MANIFOLD GROUP - EH3-G133001

Kioti TRACTOR | DK Series | DK4220HSE

Diagram for EXHAUST MANIFOLD GROUP - EH3-G133001
  • 1

    MANIFOLD,EXHAUST

    • Part No. F5800-12313
    • 1 shown on diagram
    $289.99

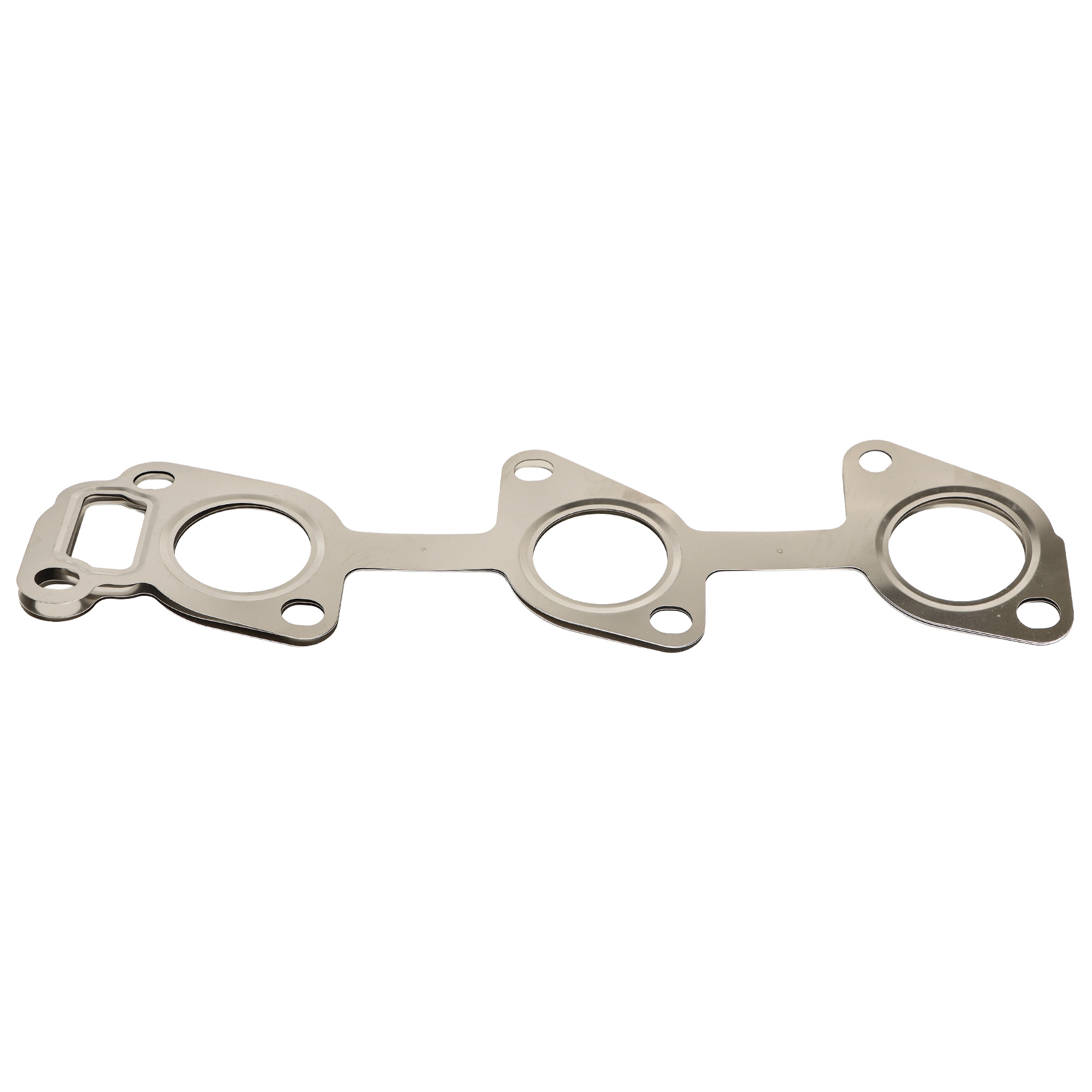

  • 2 GASKET, EXHAUST MANIFOLD

    GASKET, EXHAUST MANIFOLD

    • Part No. F5800-12351
    • 1 shown on diagram
    $21.99
  • 3

    BOLT, STUD v

    • Part No. F6800-92452
    • M8*P1.25
    • 5 shown on diagram
    $4.49
  • 4 U-NUT

    U-NUT

    • Part No. F6800-91911
    • 6 shown on diagram
    $0.79
  • 5

    PLATE,HEAT

    • Part No. F5800-13764
    • t1.2
    • 1 shown on diagram
    $109.99
  • 6

    PLATE

    • Part No. F5800-13773
    • t1.2
    • 1 shown on diagram
    $5.99
  • 7

    RIVET

    • Part No. F6800-94111
    • 2 shown on diagram
    $0.43
  • 8

    BOLT, FLANGE

    • Part No. 01754-50610
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 9

    FLANGE BOLT

    • Part No. 01754-50640
    • M6XP1.0
    • 1 shown on diagram
    $0.92

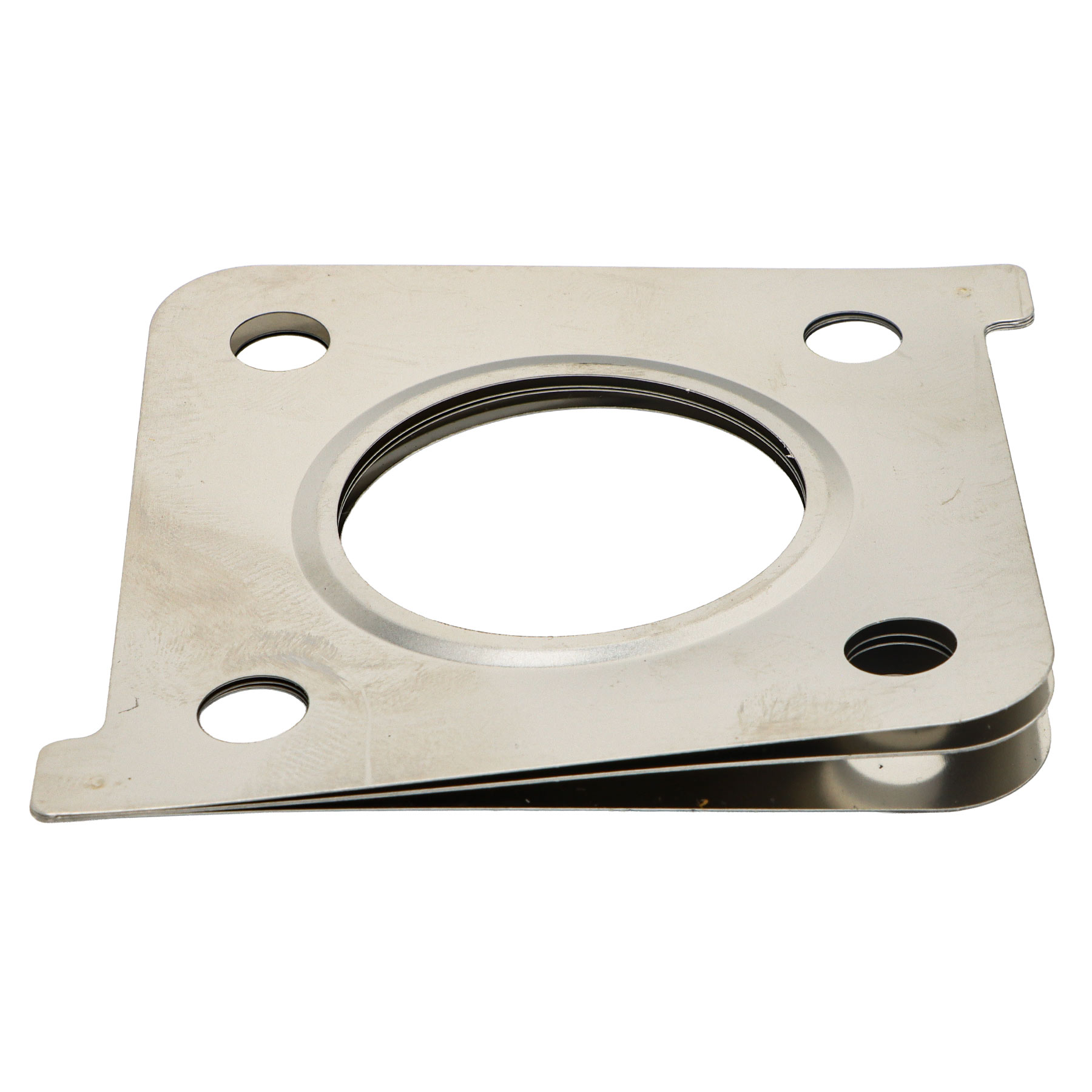

  • 10 GASKET 1, TURBOCHARGER

    GASKET 1, TURBOCHARGER

    • Part No. F6800-17101
    • t0.2*4
    • 1 shown on diagram
    $16.99
  • 11

    EXHAUST MANIFOLD FLANGE

    • Part No. F5850-11953
    • 1 shown on diagram
    $229.99
  • 12

    FLANGEBOLT

    • Part No. F6800-92411
    • M8x1.25 25mm
    • 1 shown on diagram
    $9.99
  • 13

    FLANGEBOLT

    • Part No. F6800-92421
    • M8x1.25 65mm
    • 2 shown on diagram
    $15.99

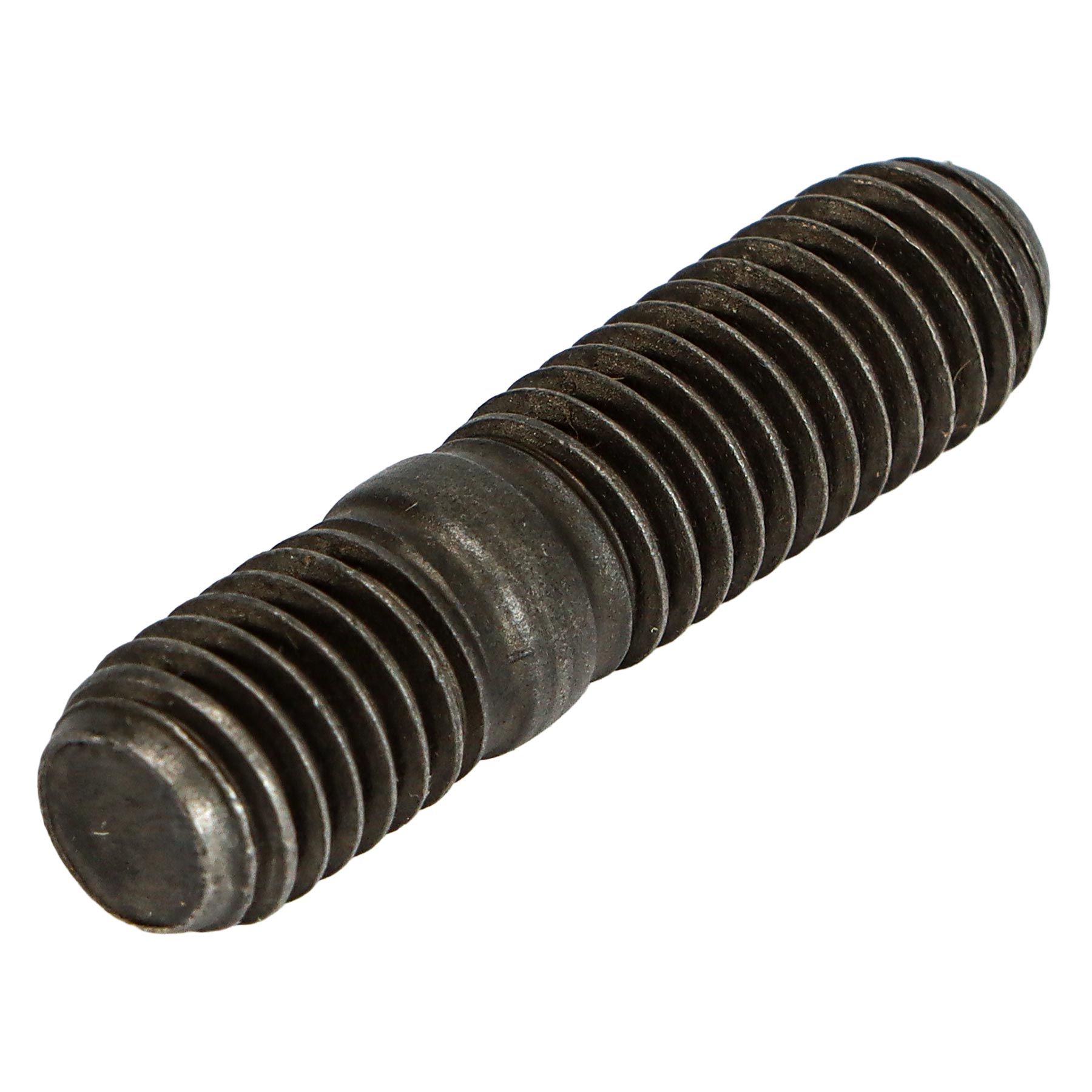

  • 14 BOLT, STUD

    BOLT, STUD

    • Part No. F6800-92441
    • 1 shown on diagram
    $8.49
  • 15 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 1 shown on diagram
    $1.99
  • 16

    SUPPORT, TURBOCHARGER FLANGE

    • Part No. F6800-25501
    • 1 shown on diagram
    $81.99
  • 17 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 4 shown on diagram
    $2.49
