WATER FLANGE GROUP - EH3-G162001

Kioti TRACTOR | DK Series | DK4220CHSE

Diagram for WATER FLANGE GROUP - EH3-G162001
  • 1

    PLANGE, WATER dnr v

    • Part No. F5830-72914
    • 1 shown on diagram
    $169.99

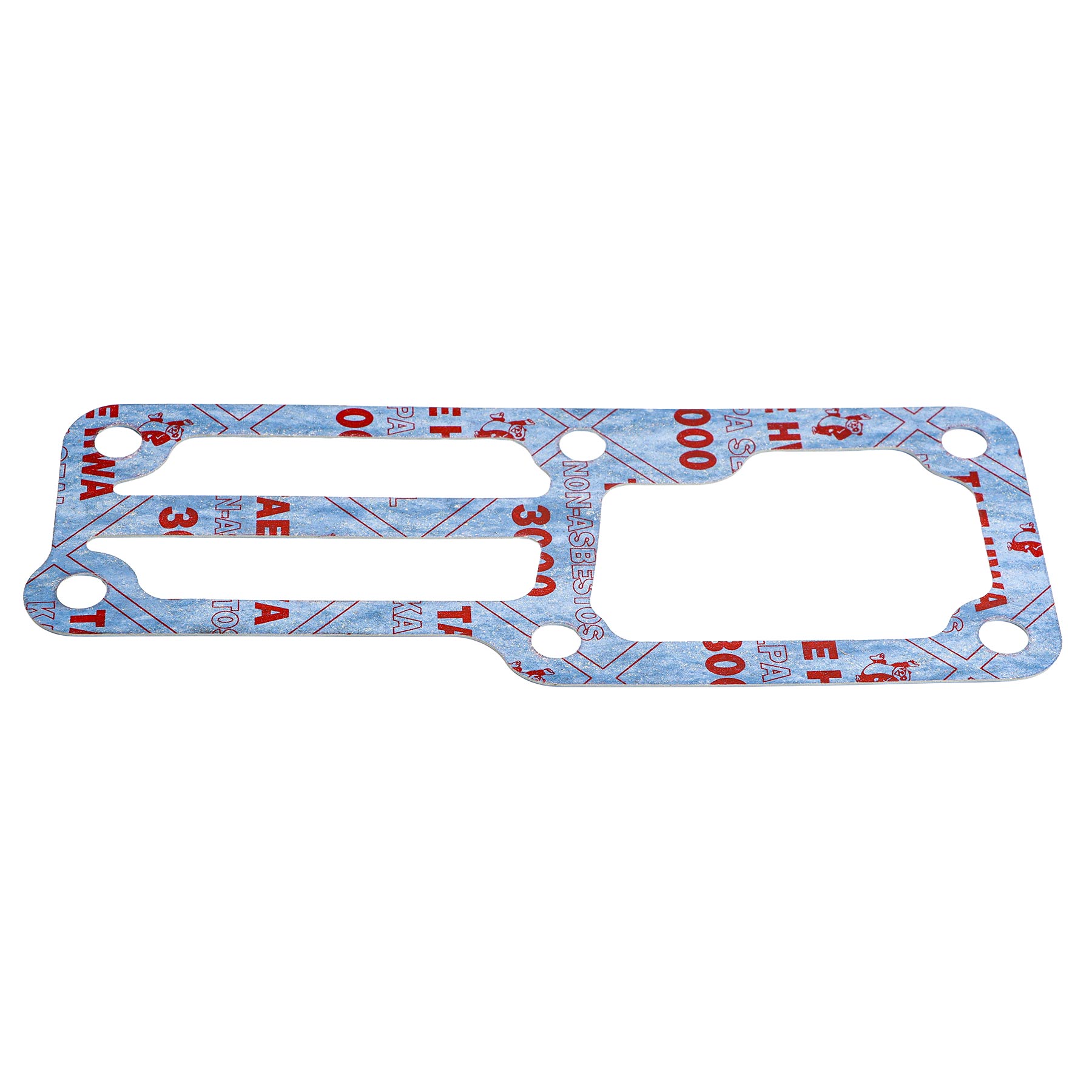

  • 2 GASKET COOLING WATER FLANGE

    GASKET COOLING WATER FLANGE

    • Part No. F6800-72921
    • t0.5
    • 1 shown on diagram
    $7.99
  • 3

    Bolt With Washer, M8 P1.25 x 70mm

    • Part No. 01123-50870
    • M8XP1.25
    • 1 shown on diagram
    $3.49
  • 4

    SUPPORT, ALTERNATOR dnr v

    • Part No. F6800-64421
    • 1 shown on diagram
    $16.99
  • 5 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 6 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 7 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 8

    Water Return Pipe (E5500-73343)

    • Part No. E5500-73343
    • 1 shown on diagram
    $9.99
  • 9

    HOSE, WATER PUMP V

    • Part No. E6850-73342
    • 1 shown on diagram
    $11.99
  • 10

    CLAMP, HOSE

    • Part No. 09318-88180
    • DIA18
    • 2 shown on diagram
    $2.49
  • 11

    CONNECTOR, COOLANT

    • Part No. F6800-13311
    • OD22.2, t2
    • 1 shown on diagram
    $15.99

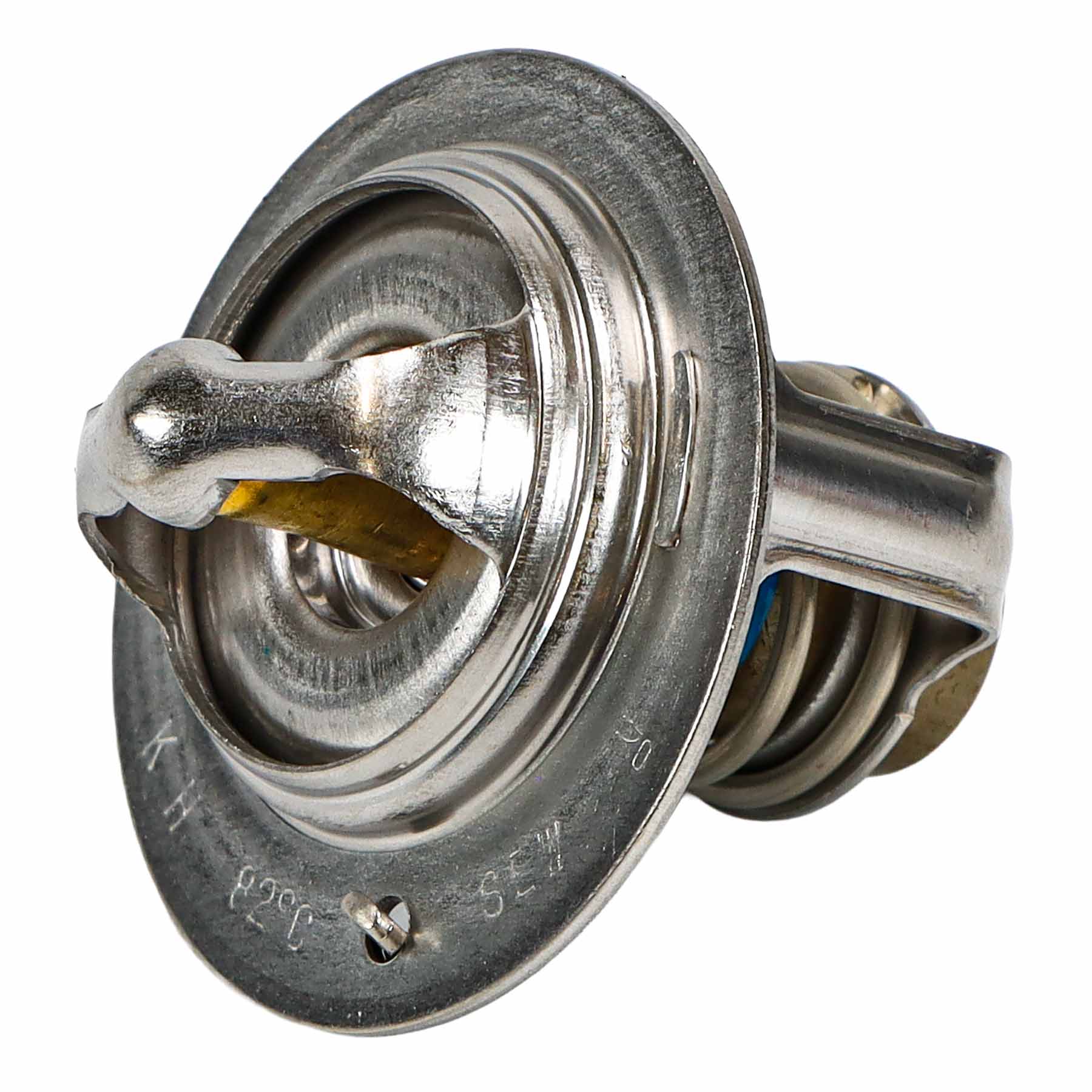

  • 12 THERMOSTAT ASSEMBLY

    THERMOSTAT ASSEMBLY

    • Part No. E5500-73013
    • 1 shown on diagram
    $41.99
  • 13

    COVER,THERMOSTAT

    • Part No. F5850-73262
    • 1 shown on diagram
    $96.99
  • 14 Gasket, Thermostat

    Gasket, Thermostat

    • Part No. E5500-73272
    • t1.0
    • 1 shown on diagram
    $5.99
  • 15 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 16

    PLUG

    • Part No. F6860-96042
    • PT1/2
    • 1 shown on diagram
    $4.49
