ENGINEELECTRICALGROUP - EX45-T910A

Kioti TRACTOR | DK Series | DK45SE

Diagram for ENGINEELECTRICALGROUP - EX45-T910A
  • 1

    SOLENOID, ENGINE STOP, Replaced by E6820-60012

    • Part No. E6850-60012
    • Applied Dates 2008-03-31 to 2011-05-31
    • Serial No. Up to LH7100040
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1 Engine Stop Solenoid, 3 Pin

    Engine Stop Solenoid, 3 Pin

    • Part No. E6820-60011
    • Compatibility Interchangeable
    • Applied Dates 2011-06-01 and up
    • Serial No. LH7100041 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $154.99
  • 2 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 3 STARTER MOTOR ASSY

    STARTER MOTOR ASSY

    • Part No. E5500-63016
    • Applied Dates 2019-07-01 and up
    • 1 shown on diagram
    $474.99

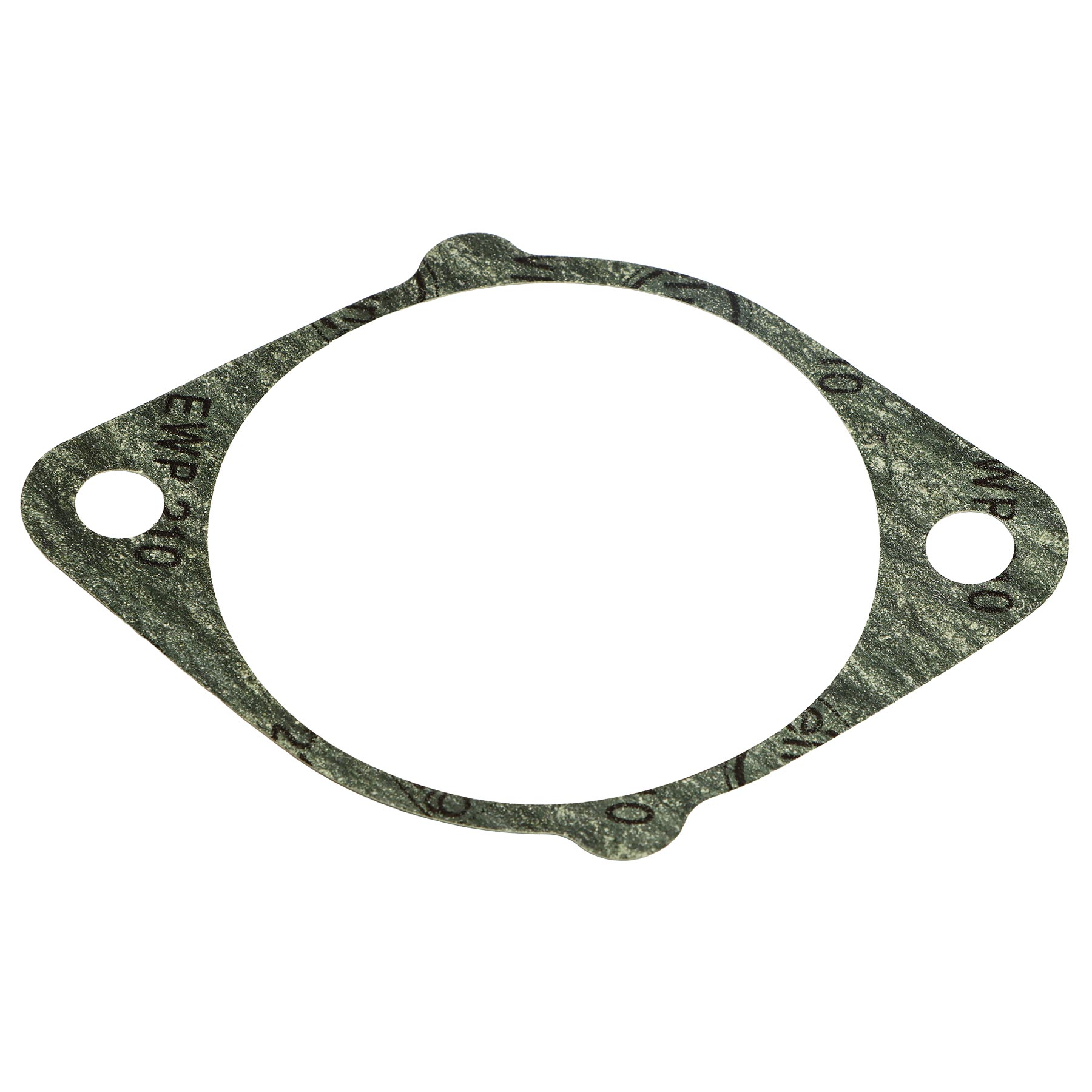

  • 4 GASKET V

    GASKET V

    • Part No. E6200-04623
    • T0.5
    • 1 shown on diagram
    $7.99
  • 5 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 1 shown on diagram
    $0.67
  • 6 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $.61
  • 7 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 8 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 9 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
