BEVEL GEAR CASE GROUP - EX45H-T545A - Up to HT6400168

Kioti TRACTOR | DK Series | DK40SE

Diagram for BEVEL GEAR CASE GROUP - EX45H-T545A - Up to HT6400168
  • 1

    BEVEL GEAR CASE obs v

    • Part No. T4130-43312
    • Applied Dates Up to 2006-12-31
    • Serial No. Up to GT6400127
    • *multiple options for # 1
    • 2 shown on diagram
    $689.99
  • 1

    BEVEL GEARCASE(LH) dnr v

    • Part No. T4130-43313
    • Compatibility Call for compatibility
    • Applied Dates 2007-05-03 to 2008-04-06
    • Serial No. GT6400128 to HT6400168
    • *multiple options for # 1
    • 1 shown on diagram
    $414.99
  • 1

    BEVEL GEARCASE(LH) v

    • Part No. T4125-43311
    • Compatibility Call for compatibility
    • Applied Dates 2008-04-07 and up
    • Serial No. HT6400179 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $644.99
  • 2

    PLUG, OIL DRAIN v

    • Part No. 34150-1426-1
    • Applied Dates 2007-05-03 and up
    • DIA30X34
    • 1 shown on diagram
    $6.99

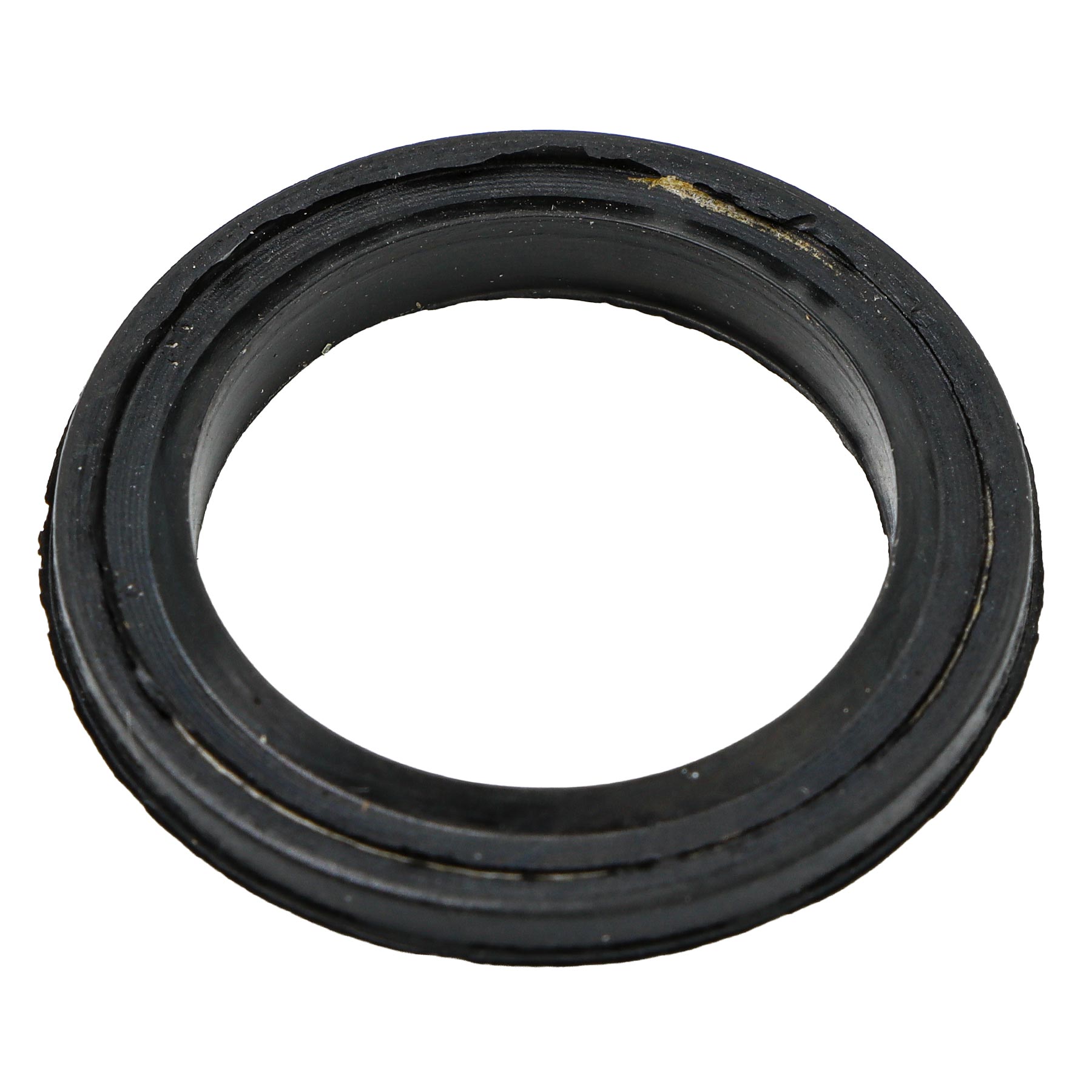

  • 3 WASHER,SEAL

    WASHER,SEAL

    • Part No. 04717-02150
    • Applied Dates 2007-05-03 and up
    • PS1/2
    • 1 shown on diagram
    $2.49
  • 4

    GAUGE OIL

    • Part No. T4680-14211
    • Applied Dates Up to 2007-05-02
    • Serial No. Up to GT6400127
    • *multiple options for # 4
    • 2 shown on diagram
    $28.99
  • 4 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • Compatibility Call for compatibility
    • Applied Dates 2007-05-03 and up
    • Serial No. GT6400128 and up
    • M10XP1.25
    • *multiple options for # 4
    • 1 shown on diagram
    $4.49

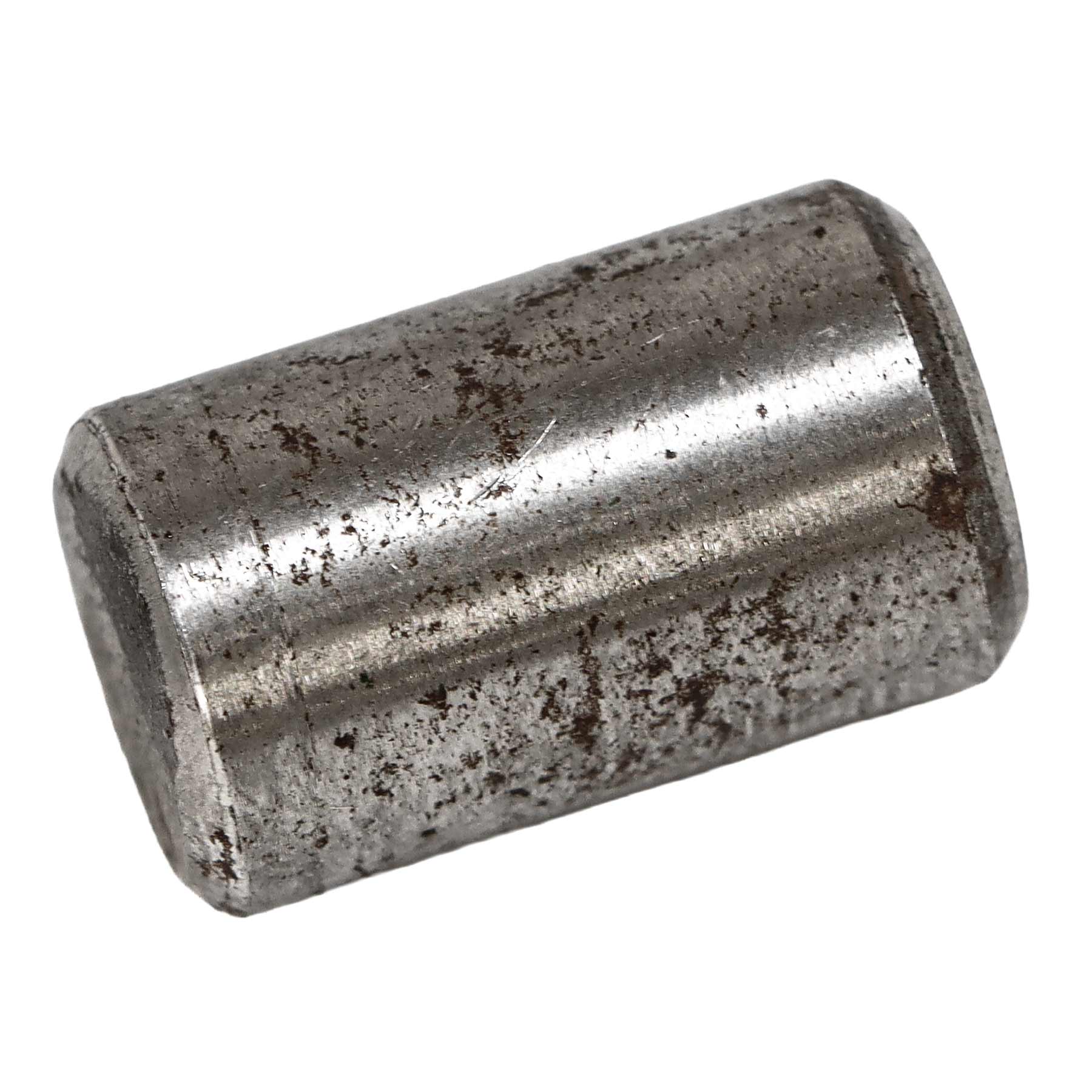

  • 5 PIN, DOWEL

    PIN, DOWEL

    • Part No. 37805-4350-1
    • Applied Dates Up to 2014-12-31
    • 4 shown on diagram
    $5.99

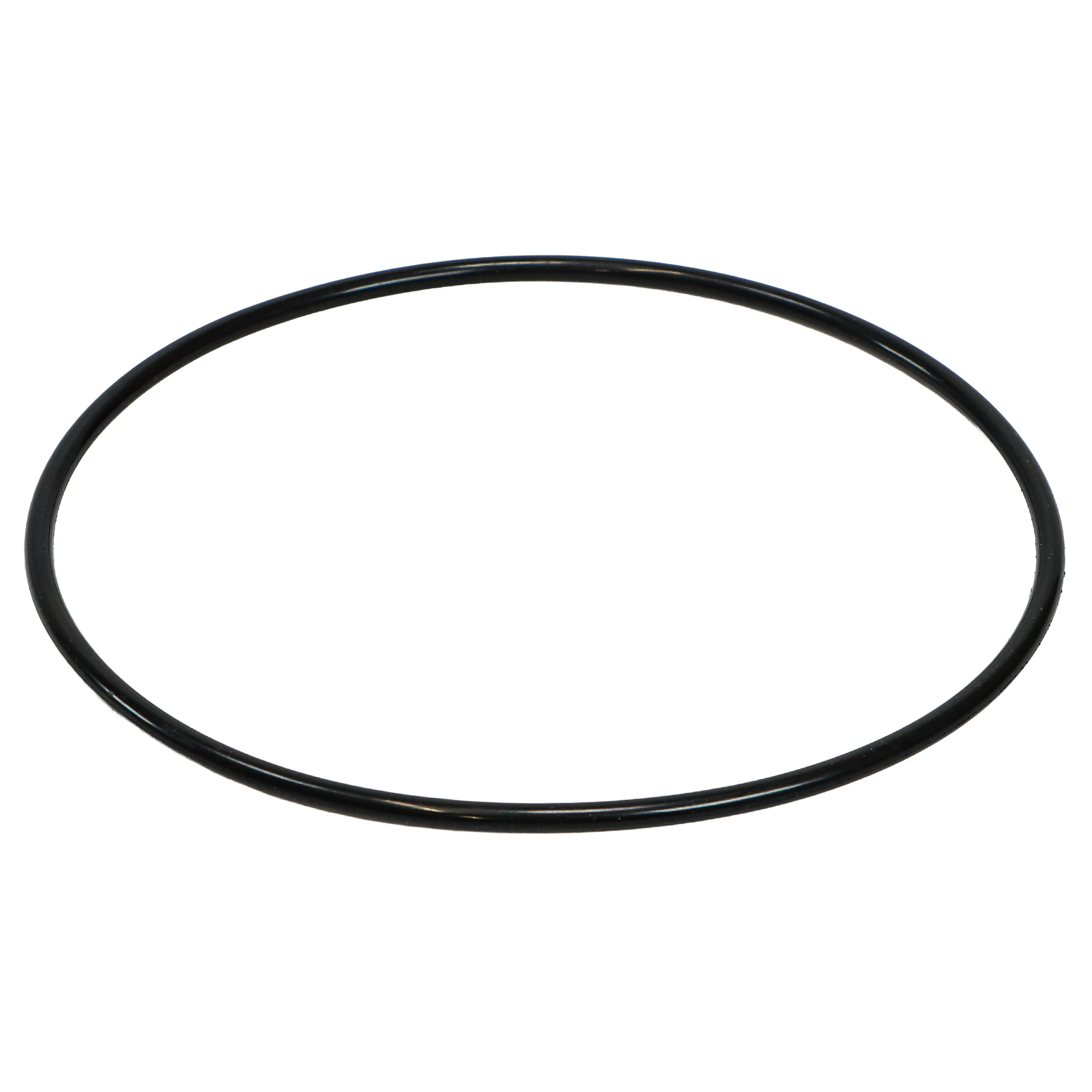

  • 6 O RING

    O RING

    • Part No. 04811-51050
    • Applied Dates Up to 2014-12-31
    • 2 shown on diagram
    $1.89
  • 7

    STUD v

    • Part No. 01517-51440
    • Applied Dates Up to 2014-12-31
    • 4 shown on diagram
    $5.99
  • 8

    BOLT

    • Part No. 01173-51445
    • Applied Dates Up to 2014-12-31
    • M14XP1.5
    • 8 shown on diagram
    $7.99
  • 9 NUT

    NUT

    • Part No. 02176-50140
    • Applied Dates Up to 2014-12-31
    • M14XP1.5
    • 4 shown on diagram
    $1.79
  • 10

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • Applied Dates Up to 2014-12-31
    • M14
    • 12 shown on diagram
    $0.9

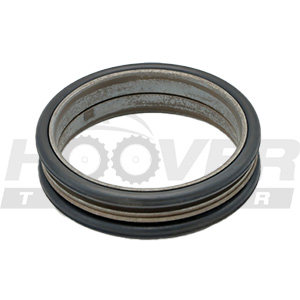

  • 11 FLOATING SEAL ASSY, 61mm ID

    FLOATING SEAL ASSY, 61mm ID

    • Part No. T4818-43451
    • 2 shown on diagram
    $77.99
  • 12

    RING, SEAL, Replaced by T4818-43451

    • Part No. T4818-43451001
    • 2 shown on diagram
    $.00
  • 13

    O RING dnr v

    • Part No. T4818-43451002
    • 2 shown on diagram
    $.00
  • 14

    BEARING

    • Part No. 08121-06013
    • #6013ZZ
    • 2 shown on diagram
    $89.99
  • 15

    SUPPORT, AXLE CASE

    • Part No. T4125-43341
    • 2 shown on diagram
    $154.99

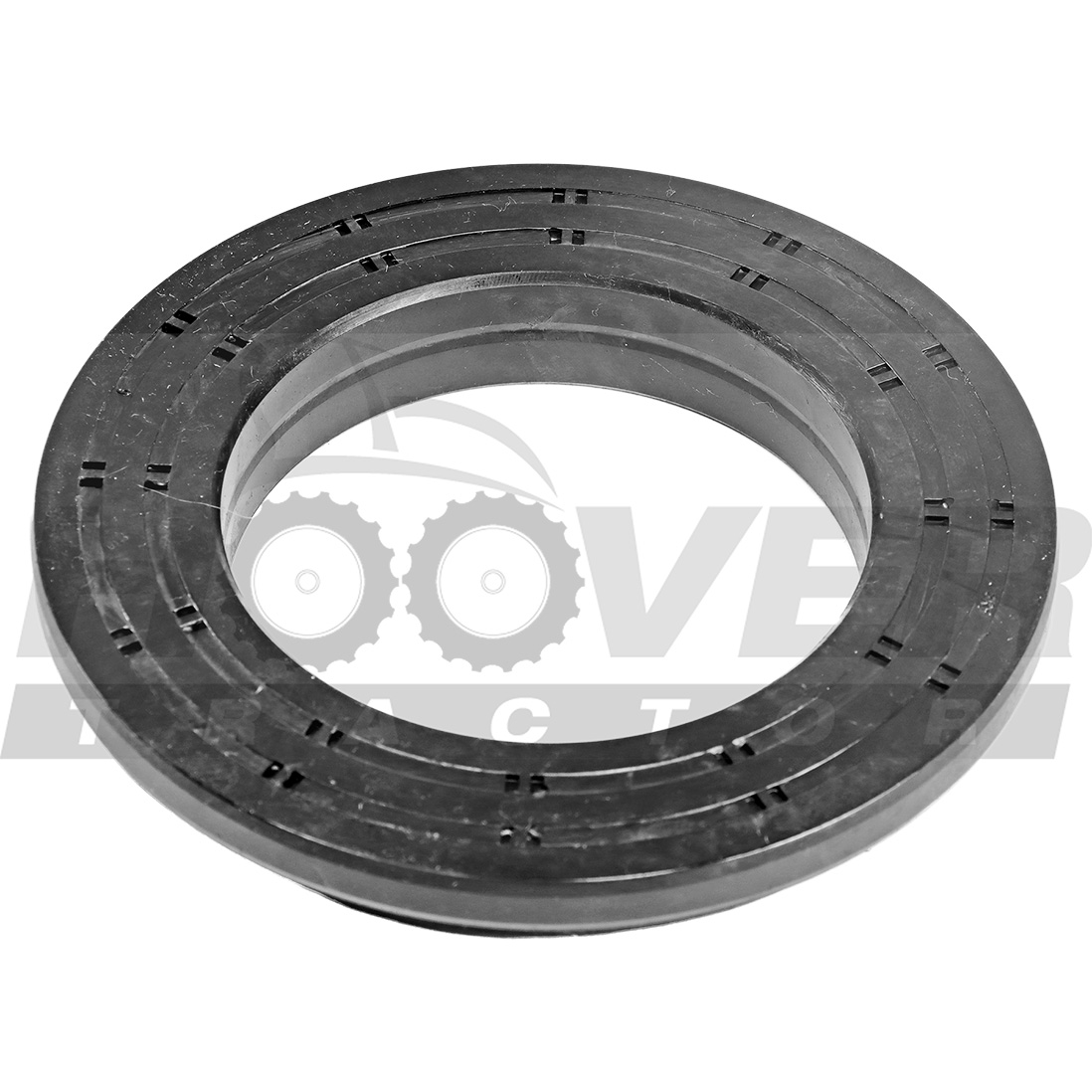

  • 16 OIL SEAL

    OIL SEAL

    • Part No. T4130-43471
    • 2 shown on diagram
    $38.99

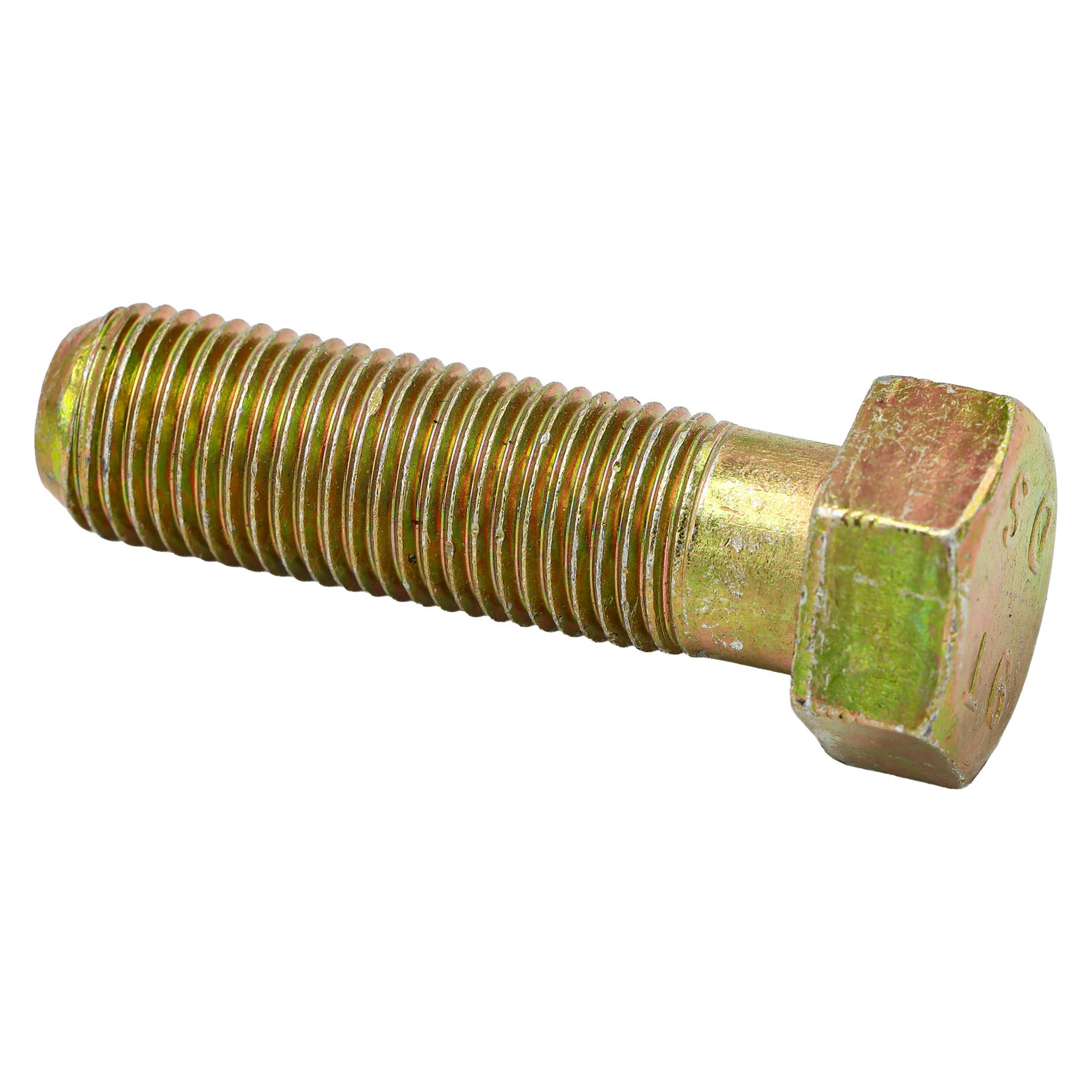

  • 17 BOLT

    BOLT

    • Part No. 01173-51235
    • M12P1.25*35
    • 8 shown on diagram
    $3.99
  • 18 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 8 shown on diagram
    $0.95
  • 19

    SHIM 0.5 dnr v

    • Part No. T2630-43751
    • T0.5
    • 2 shown on diagram
    $2.49
  • 20 Shim 0.8

    Shim 0.8

    • Part No. T2630-43761
    • T0.8
    • 2 shown on diagram
    $5.49
  • 21

    SHIM 1.0

    • Part No. T2630-43771
    • T1.0
    • 2 shown on diagram
    $3.99
  • 22

    Shim 1.2

    • Part No. T2630-43781
    • T1.2
    • 2 shown on diagram
    $4.49
  • 23

    PLUG

    • Part No. 06331-45014
    • Applied Dates 2007-05-03 to 2008-04-06
    • M14XP1.5
    • 1 shown on diagram
    $5.99
  • 24

    WASHER,SEAL

    • Part No. 04717-01400
    • Applied Dates 2007-05-03 to 2008-04-06
    • 1 shown on diagram
    $1.69
  • 25 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • PT1/8
    • 2 shown on diagram
    $3.49
  • 26 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • Applied Dates 2007-05-03 and up
    • M10
    • 1 shown on diagram
    $1.99
  • 27

    CASE,BEVEL GEAR(RH) v

    • Part No. T4130-43331
    • Applied Dates 2007-05-03 to 2008-04-06
    • Serial No. Up to HT6400168
    • *multiple options for # 27
    • 1 shown on diagram
    $414.99
  • 27

    CASE,BEVEL GEAR(RH) v

    • Part No. T4130-43332
    • Compatibility Call for compatibility
    • Applied Dates 2008-04-07 and up
    • Serial No. HT6400179 and up
    • *multiple options for # 27
    • 1 shown on diagram
    $499.99
