MODULE CONNECTING GROUP - T5715-G517A

Kioti TRACTOR | DK Series | DK4510HS

  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 8 shown on diagram
    $1.79
  • 2

    ROD 2, SHUTTLE, Replaced by T5715-51733BB

    • Part No. T5715-51733
    • 1 shown on diagram
    $15.70
  • 3 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • Applied Dates Up to 2015-06-16
    • Serial No. Up to RR7700014
    • DIA8
    • *multiple options for # 3
    • 2 shown on diagram
    $1.29

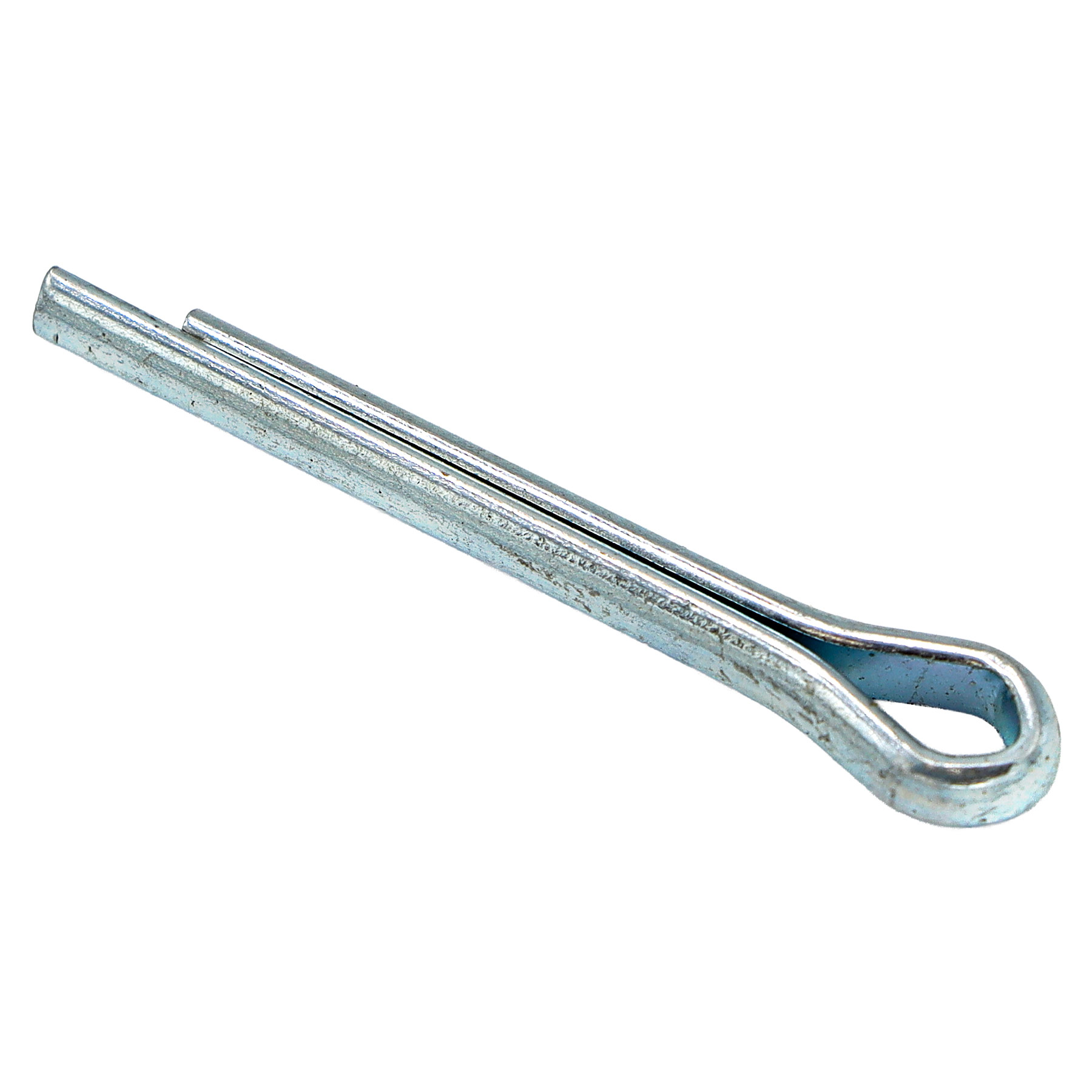

  • 3 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • Compatibility Interchangeable
    • Applied Dates 2015-06-17 and up
    • Serial No. RR7700015 and up
    • DIA1.8XL18
    • *multiple options for # 3
    • 2 shown on diagram
    $0.56
  • 4

    SENSOR, BRACKET

    • Part No. T5710-51771
    • 1 shown on diagram
    $15.99
  • 5 Flange Bolt M10 P1.25 x16 (01774-51016)

    Flange Bolt M10 P1.25 x16 (01774-51016)

    • Part No. 01774-51016
    • M10XP1.25
    • 2 shown on diagram
    $2.49
  • 6

    Pin, Joint M6x16mm

    • Part No. 05122-50616
    • DIA6XL16
    • 1 shown on diagram
    $2.49
  • 7

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 8

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 1 shown on diagram
    $3.49
  • 9

    WASHER 1

    • Part No. T4930-66731
    • 1 shown on diagram
    $3.49
  • 10 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 11

    PIN, SNAP

    • Part No. 52300-3413-1
    • DIA1.8
    • 1 shown on diagram
    $2.49
  • 12

    HOSE GUIDE, LH

    • Part No. T5710-51742
    • 1 shown on diagram
    $29.99
  • 13 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 3 shown on diagram
    $1.09
  • 14

    COVER, INSPECTION

    • Part No. T5710-80791
    • 1 shown on diagram
    $9.99
  • 15 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 1 shown on diagram
    $1.09
  • 16 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 17

    PLUG

    • Part No. 34150-2758-1
    • 4 shown on diagram
    $2.49
  • 18

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 8 shown on diagram
    $1.59
  • 19

    PLUG

    • Part No. 31220-1429-3
    • 20 shown on diagram
    $3.49
