FRONT AXLE GROUP - TC2-G317005

Kioti TRACTOR | CK Series | CK3520H

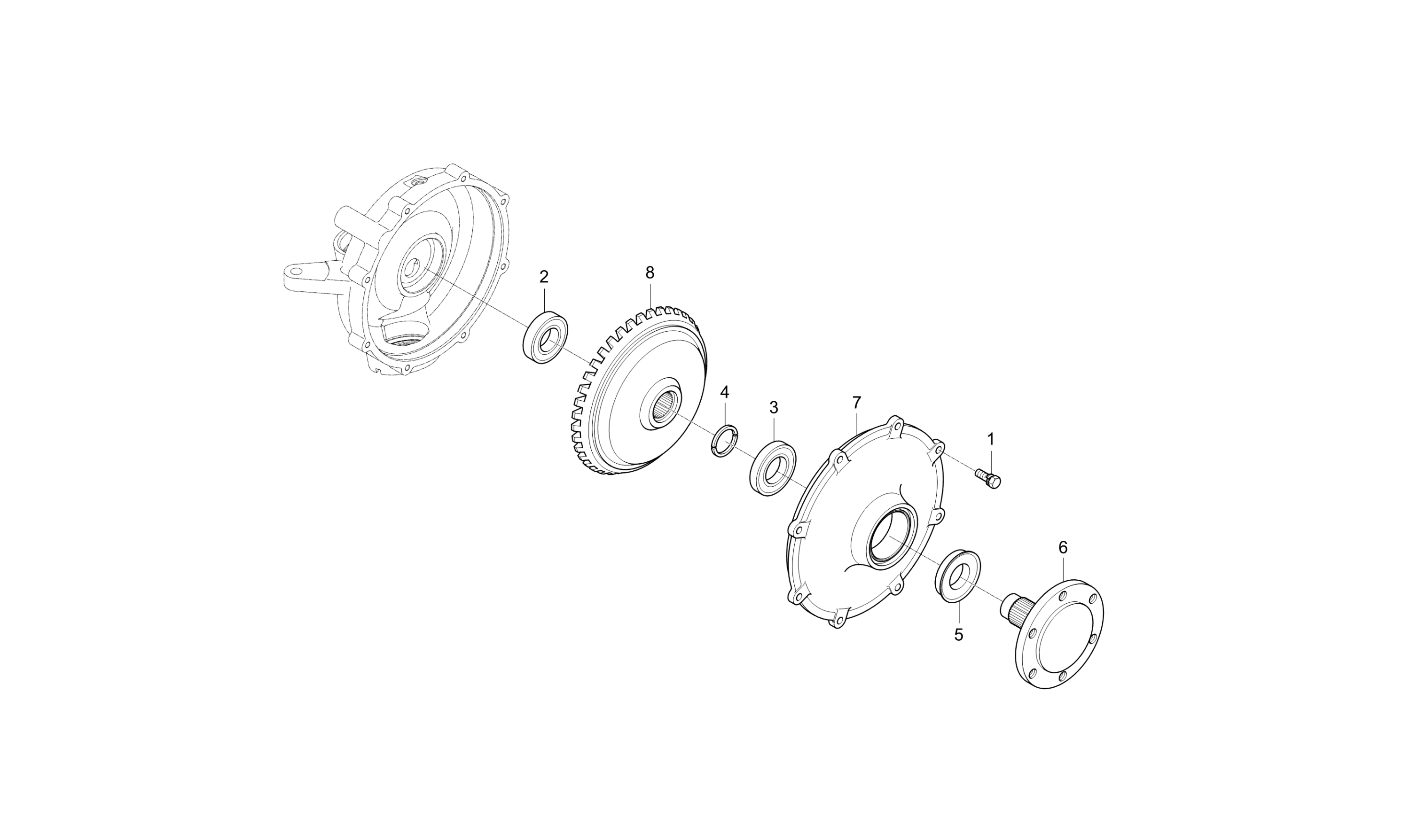

Diagram for FRONT AXLE GROUP - TC2-G317005

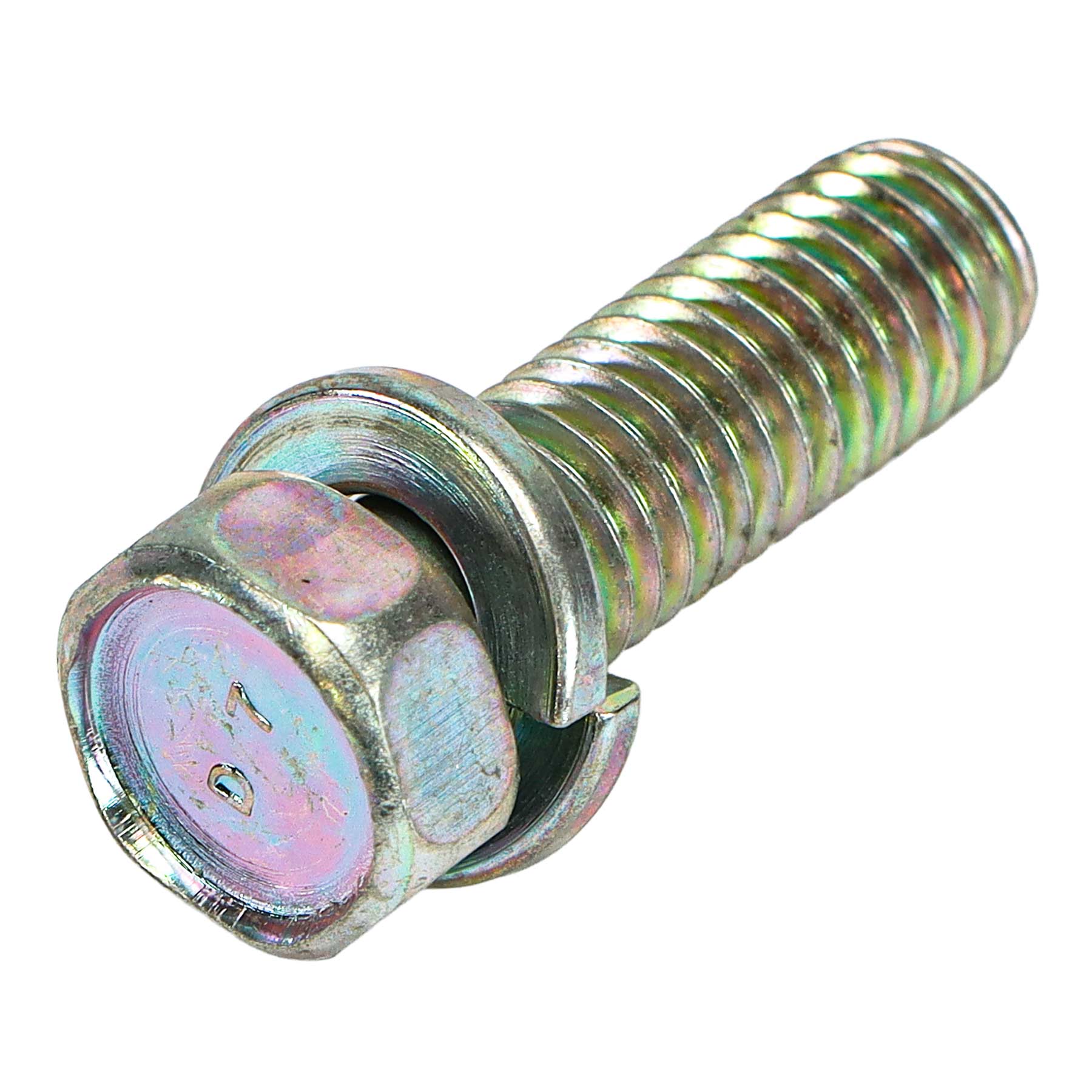

  • 1 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 16 shown on diagram
    $1.99
  • 2 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 2 shown on diagram
    $29.99
  • 3
    • Part No. 08101-06307
    • DIA35
    • 2 shown on diagram

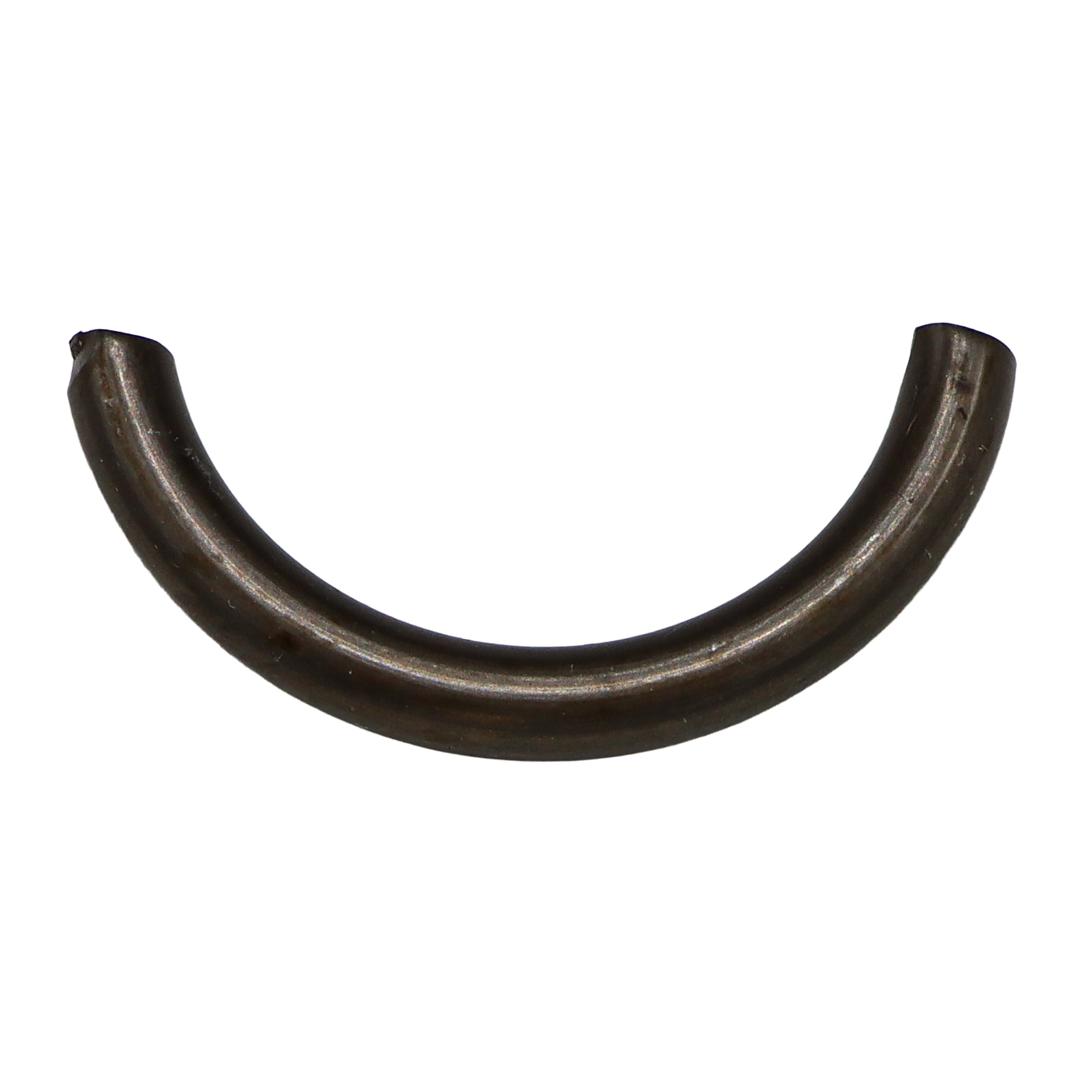

  • 4 PIN

    PIN

    • Part No. 37650-4368-0
    • DIA5*55
    • 4 shown on diagram
    $3.99

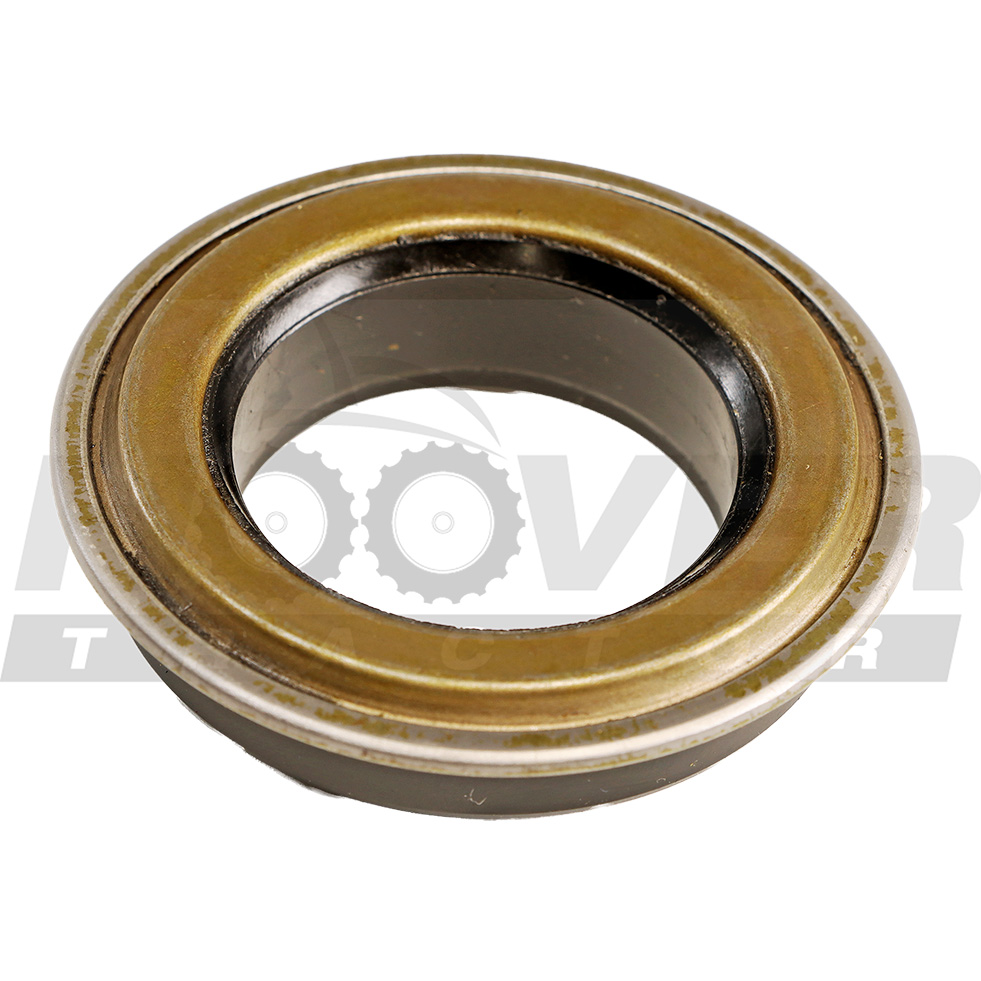

  • 5 SEAL,OIL 35x60x15

    SEAL,OIL 35x60x15

    • Part No. 76802-5691-0
    • 2 shown on diagram
    $12.99
  • 6
    • Part No. T5815-43612
    • 2 shown on diagram
  • 7

    COVER,FRONT AXLE

    • Part No. T5815-43621
    • 2 shown on diagram
    $184.99
  • 8
    • Part No. T5815-43661
    • 2 shown on diagram
