HST CONTROL GROUP - TC2-G647603

Kioti TRACTOR | CK Series | CK4020H

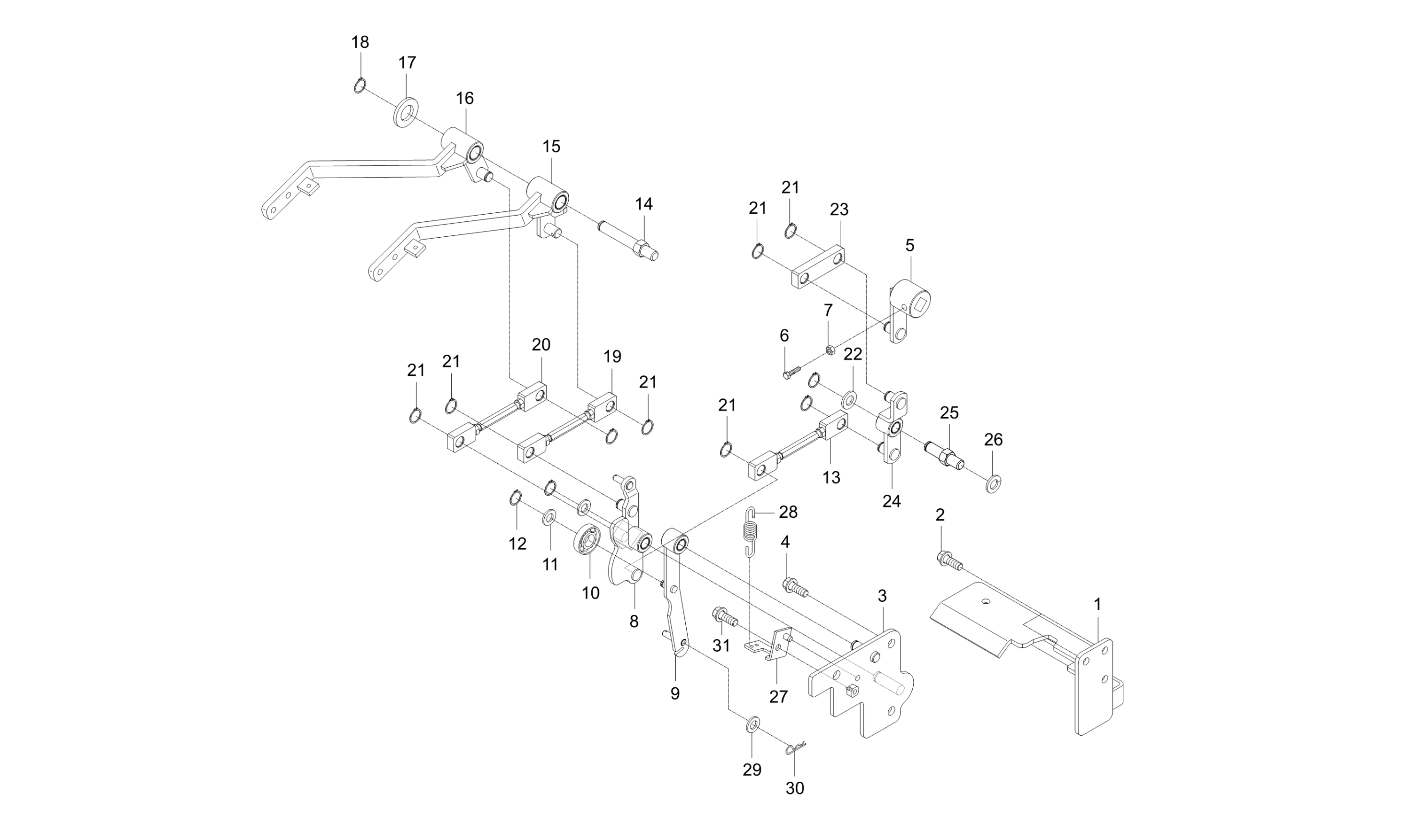

Diagram for HST CONTROL GROUP - TC2-G647603
  • 1

    BRACKET.SUPORT

    • Part No. T5855-55143BB
    • 1 shown on diagram
    $134.99
  • 2

    Bolt With Washer, M10 P1.50 x 25mm

    • Part No. 01123-51025
    • M10X1.5
    • 3 shown on diagram
    $3.49
  • 3

    BRACKET v

    • Part No. T5855-55013
    • 1 shown on diagram
    $71.99
  • 4 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 3 shown on diagram
    $3.49
  • 5

    JOINT

    • Part No. T5855-55022
    • 1 shown on diagram
    $91.99
  • 6

    STOP BOLT,HST LEVER

    • Part No. T2195-32111
    • 1 shown on diagram
    $9.99
  • 7 NUT

    NUT

    • Part No. 02116-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.67
  • 8

    BRACKET

    • Part No. T5855-55035
    • 1 shown on diagram
    $149.99
  • 9

    BRACKET, BEARING

    • Part No. T5855-55043
    • 1 shown on diagram
    $59.99
  • 10 BEARING(NCX)

    BEARING(NCX)

    • Part No. 08141-06200
    • 1 shown on diagram
    $15.99
  • 11

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 1 shown on diagram
    $.67
  • 12

    RING,SNAP

    • Part No. 04612-00100
    • DIA10
    • 1 shown on diagram
    $0.67
  • 13

    ROD

    • Part No. T5855-55051
    • 1 shown on diagram
    $114.99
  • 14

    SHAFT, STAY PEDAL

    • Part No. T4125-33171
    • HEX27
    • 1 shown on diagram
    $27.99
  • 15

    PEDAL v

    • Part No. T5855-55072BB
    • 1 shown on diagram
    $169.99
  • 16

    PEDAL,RH

    • Part No. T5855-55082BB
    • 1 shown on diagram
    $.00
  • 17 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • M18
    • 1 shown on diagram
    $1.59
  • 18 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
    $1.09
  • 19 ROD

    ROD

    • Part No. T5855-55091
    • 1 shown on diagram
    $119.99
  • 20

    ROD

    • Part No. T5855-55101
    • 1 shown on diagram
    $119.99
  • 21 RING,SNAP

    RING,SNAP

    • Part No. 04612-00140
    • DIA14
    • 11 shown on diagram
    $0.55
  • 22 Flat Washer M14

    Flat Washer M14

    • Part No. 04011-50140
    • M14
    • 9 shown on diagram
    $1.19
  • 23

    ROD, HST

    • Part No. T5855-55111
    • 1 shown on diagram
    $51.99
  • 24

    LEVER

    • Part No. T5855-55121
    • 1 shown on diagram
    $84.99
  • 25

    SHAFT

    • Part No. T5855-55131
    • Hexagon19
    • 1 shown on diagram
    $29.99
  • 26

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 1 shown on diagram
    $0.9
  • 27

    BRACKET

    • Part No. T5855-55173BB
    • 1 shown on diagram
    $.00
  • 28 SPRING, DIFF.LOCK PEDAL

    SPRING, DIFF.LOCK PEDAL

    • Part No. T2305-26641
    • DIA1.2
    • 1 shown on diagram
    $5.99
  • 29 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $.67
  • 30 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 31 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
