SHUTTLE SHAFT GROUP - TD2-G251001

Kioti TRACTOR | DK Series | DK4510

  • 1 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Applied Dates 2020-07-17 and up
    • DIA25
    • 1 shown on diagram
    $1.09
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Applied Dates 2020-07-17 and up
    • DIA25
    • 1 shown on diagram
    $1.09
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 4 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 2 shown on diagram
    $29.99
  • 5

    BEARING,NEEDLE v

    • Part No. 08822-83327
    • 1 shown on diagram
    $31.99
  • 6

    BEARING,NEEDLE v

    • Part No. 08822-83327
    • 1 shown on diagram
    $31.99
  • 7

    COLLAR v

    • Part No. 34150-2156-1
    • T2*42*42
    • 1 shown on diagram
    $3.49
  • 8

    COLLAR v

    • Part No. 34150-2156-1
    • T2*42*42
    • 1 shown on diagram
    $3.49
  • 9

    COUPLING

    • Part No. 37805-4452-1
    • 1 shown on diagram
    $52.99
  • 10

    SYNCHRONIZER SPRING [NLA]

    • Part No. 38360-2178-1
    • DIA1.2
    • 2 shown on diagram
    $3.99
  • 11

    COLLAR, THRUST v

    • Part No. T2305-21762
    • T3.2
    • 1 shown on diagram
    $18.99
  • 12

    COLLAR, THRUST v

    • Part No. T2305-21762
    • T3.2
    • 1 shown on diagram
    $18.99
  • 13

    BALL BEARING

    • Part No. T2555-06204
    • #6204, GMB CHINA
    • 1 shown on diagram
    $12.99

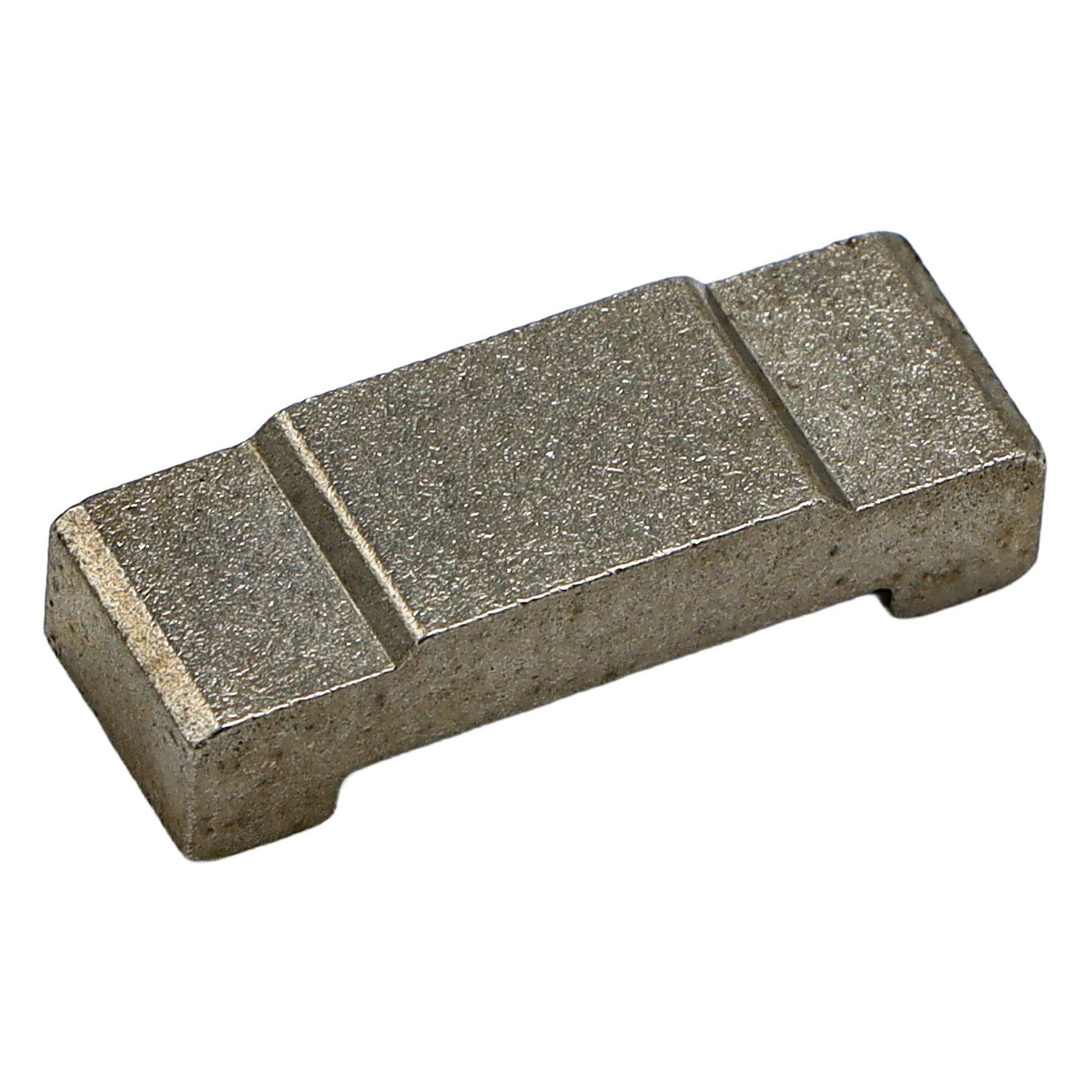

  • 14 SYNCHRONIZER KEY

    SYNCHRONIZER KEY

    • Part No. T2610-21812
    • 3 shown on diagram
    $6.99
  • 15

    HUB,SPLINE

    • Part No. T2610-22812
    • 1 shown on diagram
    $119.99
  • 16 Snap Ring

    Snap Ring

    • Part No. T2610-22821
    • 1 shown on diagram
    $9.99
  • 17

    SHIFTER

    • Part No. T2610-22834
    • 1 shown on diagram
    $139.99
  • 18

    ASSY,SYNCHRO V

    • Part No. T2610-22851
    • 2 shown on diagram
    $219.99
  • 19 OB BEARING,BALL

    OB BEARING,BALL

    • Part No. T2610-24131
    • 6205R
    • 1 shown on diagram
    $49.99
  • 20

    BALL BEARING

    • Part No. T5210-96305
    • HC6305T2
    • 1 shown on diagram
    $44.99
  • 21

    BALL BEARING

    • Part No. T5210-96305
    • HC6305T2
    • 1 shown on diagram
    $44.99
  • 22

    GEAR 21

    • Part No. T5715-22612
    • 1 shown on diagram
    $219.99
  • 23

    GEAR 18

    • Part No. T5715-22622
    • 1 shown on diagram
    $194.99
  • 24

    SHAFT, SHUTTLE

    • Part No. T5715-22631
    • 1 shown on diagram
    $174.99
  • 25

    SHAFT, 22 GEAR

    • Part No. T5715-22641
    • 1 shown on diagram
    $299.99
  • 26

    GEAR, 25

    • Part No. T5715-22651
    • 1 shown on diagram
    $129.99
  • 27

    SHAFT,GEAR 17

    • Part No. T5715-22721
    • 1 shown on diagram
    $194.99
