RADIATOR GROUP - TD2-G612505

Kioti TRACTOR | DK Series | DK4220CHSE

  • 1

    ASSY RADIATOR – OS v

    • Part No. TC26-1800A
    • 1 shown on diagram
    $649.99
  • 2

    CUSHION

    • Part No. T4125-13561
    • Serial No. PA4VA0001 and up
    • 2 shown on diagram
    $5.99

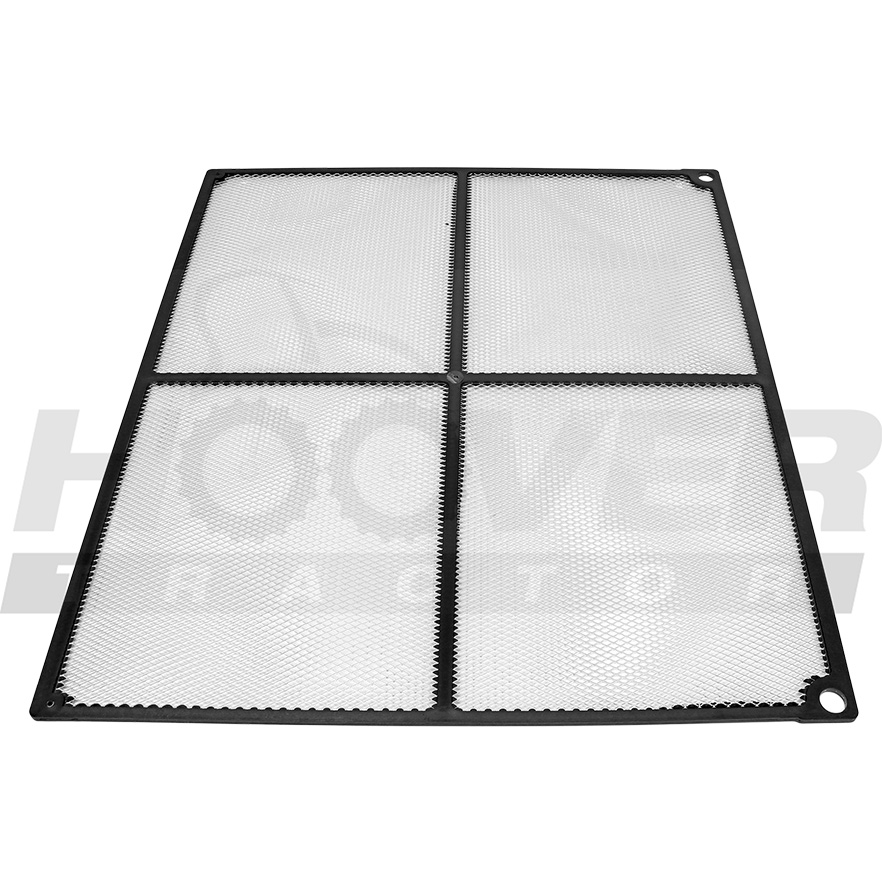

  • 3 Net-Radiator

    Net-Radiator

    • Part No. T5525-50435
    • Serial No. PA4VA0001 to PA4VA0162
    • 1 shown on diagram
    $99.99
  • 4

    SPONGE.RADIATOR

    • Part No. T5710-50502
    • 1 shown on diagram
    $19.99
  • 5

    SHROUD

    • Part No. TD26-0302B
    • 1 shown on diagram
    $87.99
  • 6

    BOLT FLANGE

    • Part No. T4625-55441
    • 6 shown on diagram
    $2.49
  • 7

    RUBBER(RADIATOR)

    • Part No. T5710-50492
    • 2 shown on diagram
    $26.99
  • 8

    BRACKET, RESERVOIR SUPPORT, Replaced by T5710-50461BB

    • Part No. T5710-50461
    • Serial No. PA4VA0001 and up
    • 1 shown on diagram
    $.00
  • 9

    Bolt

    • Part No. T2185-70491
    • 2 shown on diagram
    $1.59
  • 10

    HOSE, COOLING WATER-UPR

    • Part No. TD26-1025A
    • OD46/ID35
    • 1 shown on diagram
    $29.99
  • 11

    CLAMP BAND

    • Part No. E1500-18411
    • *multiple options for # 11
    • 2 shown on diagram
    $4.49
  • 11

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchangeable
    • 25-40mm
    • *multiple options for # 11
    • 1 shown on diagram
    $2.99
  • 11

    CLAMP,HOSESTAINLESS32-50

    • Part No. CE11-0011A
    • Compatibility Interchangeable
    • 32-50mm
    • *multiple options for # 11
    • 2 shown on diagram
    $3.49
  • 12

    HOSE,LOWER

    • Part No. T5855-50483
    • Serial No. PA4VA0001 and up
    • OD 46 / ID 34
    • 1 shown on diagram
    $43.99
  • 13

    CLAMP BAND

    • Part No. E1500-18411
    • *multiple options for # 13
    • 2 shown on diagram
    $4.49
  • 13

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchangeable
    • 25-40mm
    • *multiple options for # 13
    • 1 shown on diagram
    $2.99
  • 13

    CLAMP,HOSESTAINLESS32-50

    • Part No. CE11-0011A
    • Compatibility Interchangeable
    • 32-50mm
    • *multiple options for # 13
    • 2 shown on diagram
    $3.49
  • 14

    Radiator Cap

    • Part No. U3215-77501
    • 1 shown on diagram
    $27.99
