ROPS BAR GROUP - TD2-G631010

Kioti TRACTOR | DK Series | DK4220HSE

  • 1

    SUPPORT, LH

    • Part No. T5715-55237
    • 1 shown on diagram
    $559.99
  • 2

    SUPPORT, RH

    • Part No. T5715-55258
    • 1 shown on diagram
    $564.99
  • 3

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 10 shown on diagram
    $0.9
  • 4

    BOLT

    • Part No. T2230-85242
    • M14*2.0*32
    • 10 shown on diagram
    $4.99
  • 5

    ASSY ROPS v

    • Part No. TD26-0916B
    • 1 shown on diagram
    $364.99
  • 6 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 4 shown on diagram
    $1.19

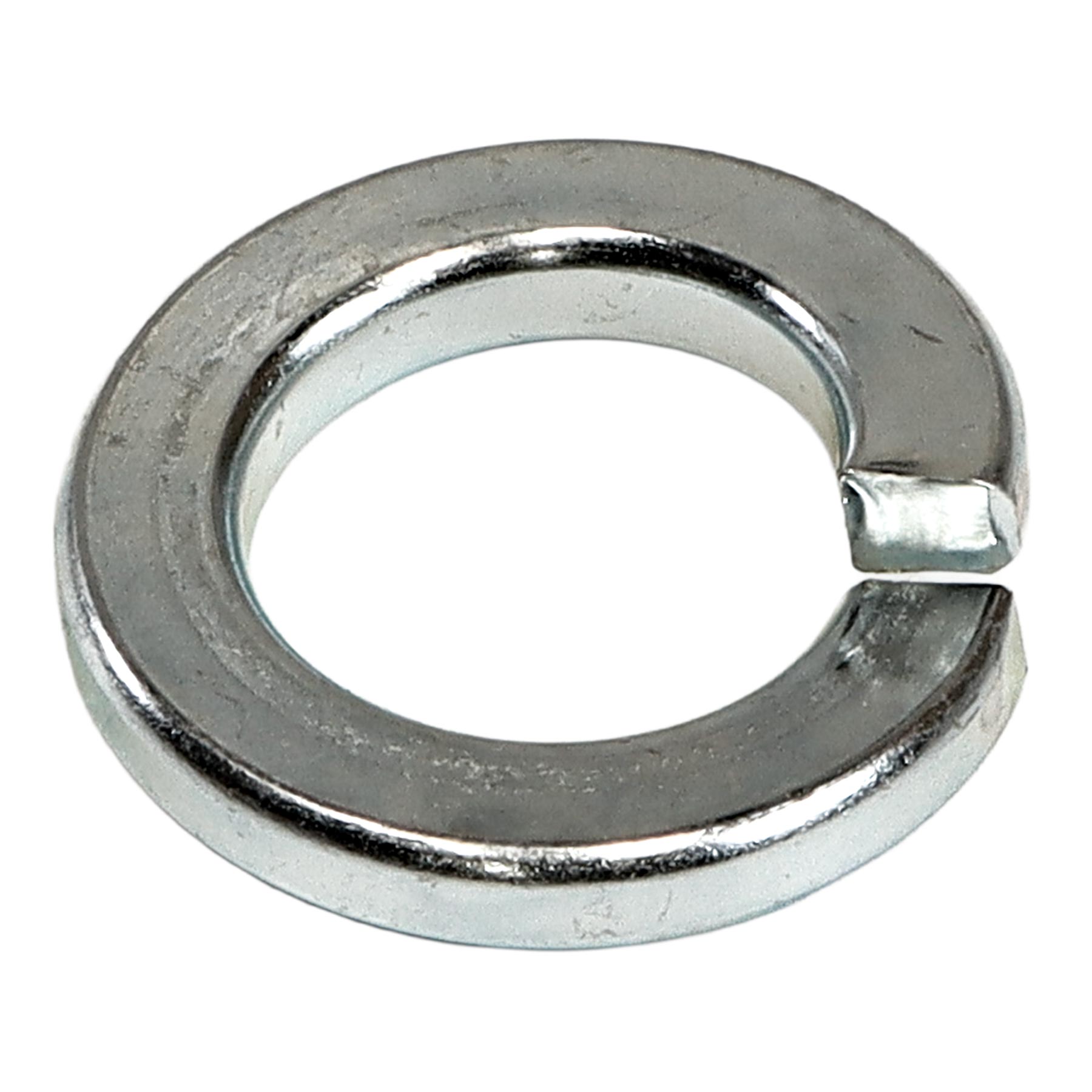

  • 7 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 2 shown on diagram
    $1.29
  • 8 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49

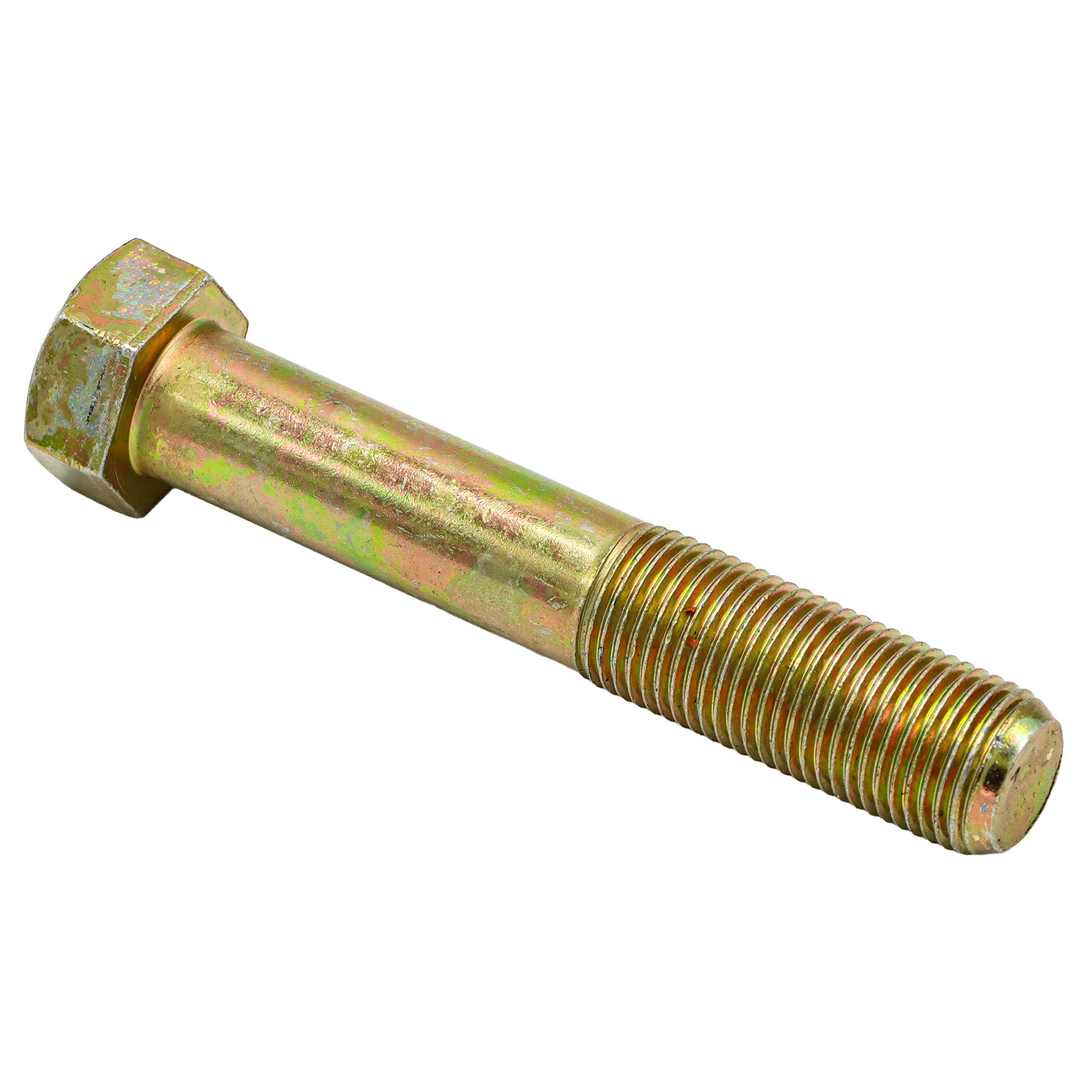

  • 9 BOLT

    BOLT

    • Part No. 01173-51690
    • 2 shown on diagram
    $9.99
  • 10

    PIN, ROPS FIXING

    • Part No. TC26-1717B
    • 2 shown on diagram
    $34.99
  • 11 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 2 shown on diagram
    $2.99
  • 12

    SUPPORT, Replaced by T5710-55274BB

    • Part No. T5710-55274
    • T6.0
    • 1 shown on diagram
    $.00
  • 13

    BOLT WITH WASHER v

    • Part No. 01135-51025
    • M8*1.25
    • 4 shown on diagram
    $3.49
  • 14

    CLIP,TOP LINK

    • Part No. T5410-48081
    • 1 shown on diagram
    $17.99
  • 15 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $.73
  • 16

    FLANGE BOLT v

    • Part No. 01774-51030
    • 1 shown on diagram
    $2.49
  • 17

    NUT, REMOVE CHECK V

    • Part No. 41182-5151-1
    • DIA10
    • 1 shown on diagram
    $1.49
  • 18

    NUT

    • Part No. 02114-50120
    • M12*P1.75
    • 2 shown on diagram
    $0.85
  • 19

    BOLT dnr v

    • Part No. T5710-55311
    • M12XP1.75
    • 2 shown on diagram
    $4.99
