HYDRAULICGROUP - CK20M-T655-1B

Kioti TRACTOR | CK Series | CK20S

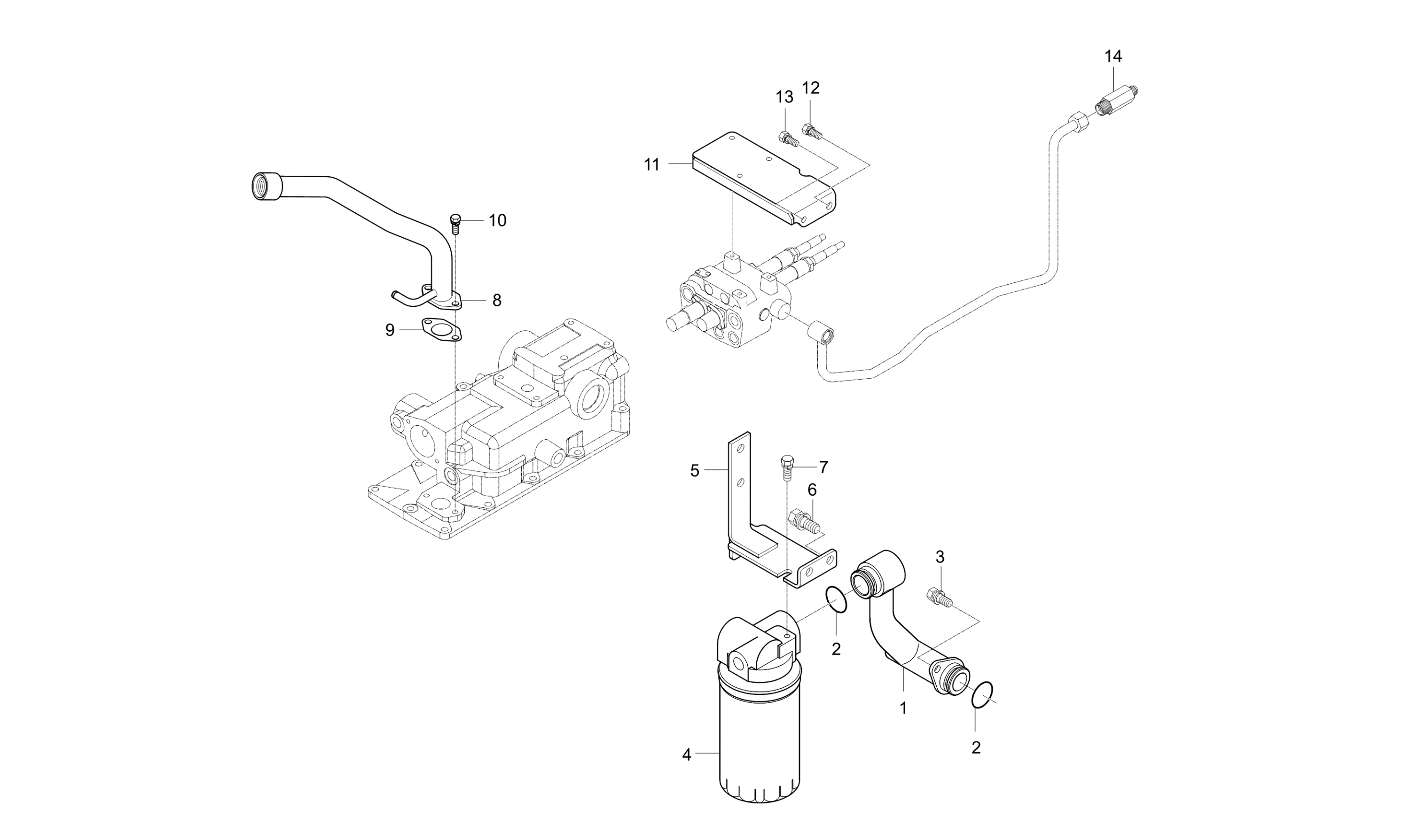

Diagram for HYDRAULICGROUP - CK20M-T655-1B
  • 1

    TUBE 1, INLET v

    • Part No. T2350-38002BB
    • 1 shown on diagram
    $124.99
  • 2 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 2 shown on diagram
    $0.96
  • 3 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 4

    FILTER ASS’Y-HYD.

    • Part No. T2350-38123
    • 1 shown on diagram
    $68.99
  • 5

    SUPPORT,FILTER

    • Part No. T2350-38061
    • 1 shown on diagram
    $19.99
  • 6

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 7

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 8

    TUBE, OIL INLET

    • Part No. T2350-35004BB
    • 1 shown on diagram
    $89.99
  • 9

    PACKING

    • Part No. T4620-35012
    • 1 shown on diagram
    $3.99
  • 10 BOLT

    BOLT

    • Part No. 01133-51018
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 11

    BRACKET, VALVE

    • Part No. T2350-90213BB
    • 1 shown on diagram
    $39.99
  • 12 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 13 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 1 shown on diagram
    $3.49
  • 14

    CONNECTION

    • Part No. T2350-37061
    • Applied Dates 2011-07-24 and up
    • 1 shown on diagram
    $28.99
