FLOW CONTROL VALVE GROUP - CK20M-T670-2A

Kioti TRACTOR | CK Series | CK20

Diagram for FLOW CONTROL VALVE GROUP - CK20M-T670-2A
  • 1

    FLOW CONTROL VAVLE ASSY v

    • Part No. T2350-38301
    • Applied Dates Up to 2003-05-06
    • * multiple options for #1
    • 1 shown on diagram
    $489.99
  • 1

    ASSY, CONTROL VALVE obs v

    • Part No. T2350-38302
    • Compatibility New repl old
    • Applied Dates 2003-05-07 to 2003-09-20
    • Serial No. 3 00011 and up
    • * multiple options for #1
    • 1 shown on diagram
    $459.99
  • 2

    BOLT JOINT

    • Part No. T2350-76121
    • 1 shown on diagram
    $25.99
  • 3 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 4

    ELBOW

    • Part No. T2350-66161
    • 1 shown on diagram
    $37.99
  • 5

    CONNECTOR

    • Part No. T2350-66181
    • Applied Dates 2004-09-01 and up
    • 1 shown on diagram
    $18.99
  • 6

    BAND, HOSE v

    • Part No. 52200-2523-1
    • 2 shown on diagram
    $4.99
  • 7

    HOSE, RETURN v

    • Part No. T2350-38401
    • Applied Dates Up to 2003-06-18
    • * multiple options for #7
    • 1 shown on diagram
    $6.99
  • 7

    HOSE, RETURN

    • Part No. T2350-38402
    • Compatibility Interchngable
    • Applied Dates 2003-06-19 to 2007-03-27
    • Serial No. 3 00011 and up
    • * multiple options for #7
    • 1 shown on diagram
    $8.99
  • 8

    SPOOL, FLOW CONTROL

    • Part No. 21001-02
    • Applied Dates Up to 2003-05-06
    • 1 shown on diagram
    $0.00
  • 9

    PLUG, FLOW CONTROL

    • Part No. 21001-03
    • 1 shown on diagram
    $9.99
  • 10

    SPOOL

    • Part No. 21001-04
    • 1 shown on diagram
    $69.99
  • 11

    PLUG, R/V

    • Part No. 21001-05
    • 1 shown on diagram
    $18.99
  • 12

    SPRING PRI

    • Part No. 21001-06-01
    • Applied Dates 2003-05-07 and up
    • 1 shown on diagram
    $3.99
  • 13

    SEAT, R/V

    • Part No. 150-0020
    • 1 shown on diagram
    $24.99
  • 14

    POPPET, R/V

    • Part No. 150-0030
    • 1 shown on diagram
    $9.99
  • 15

    PLUG, PT

    • Part No. PLS02TL
    • 5 shown on diagram
    $2.49
  • 16 O-RING OJIS16

    O-RING OJIS16

    • Part No. OJIS16
    • 1 shown on diagram
    $2.49
  • 17

    SPRING

    • Part No. S30-09610
    • 1 shown on diagram
    $3.99
  • 18

    RING, SNAP

    • Part No. SRS14
    • 2 shown on diagram
    $1.99
  • 19 O RING

    O RING

    • Part No. OPABP04A
    • 04810-00040
    • 2 shown on diagram
    $1.99
  • 20

    STEEL PLUG obs v

    • Part No. PLS06F9
    • 2 shown on diagram
    $2.49

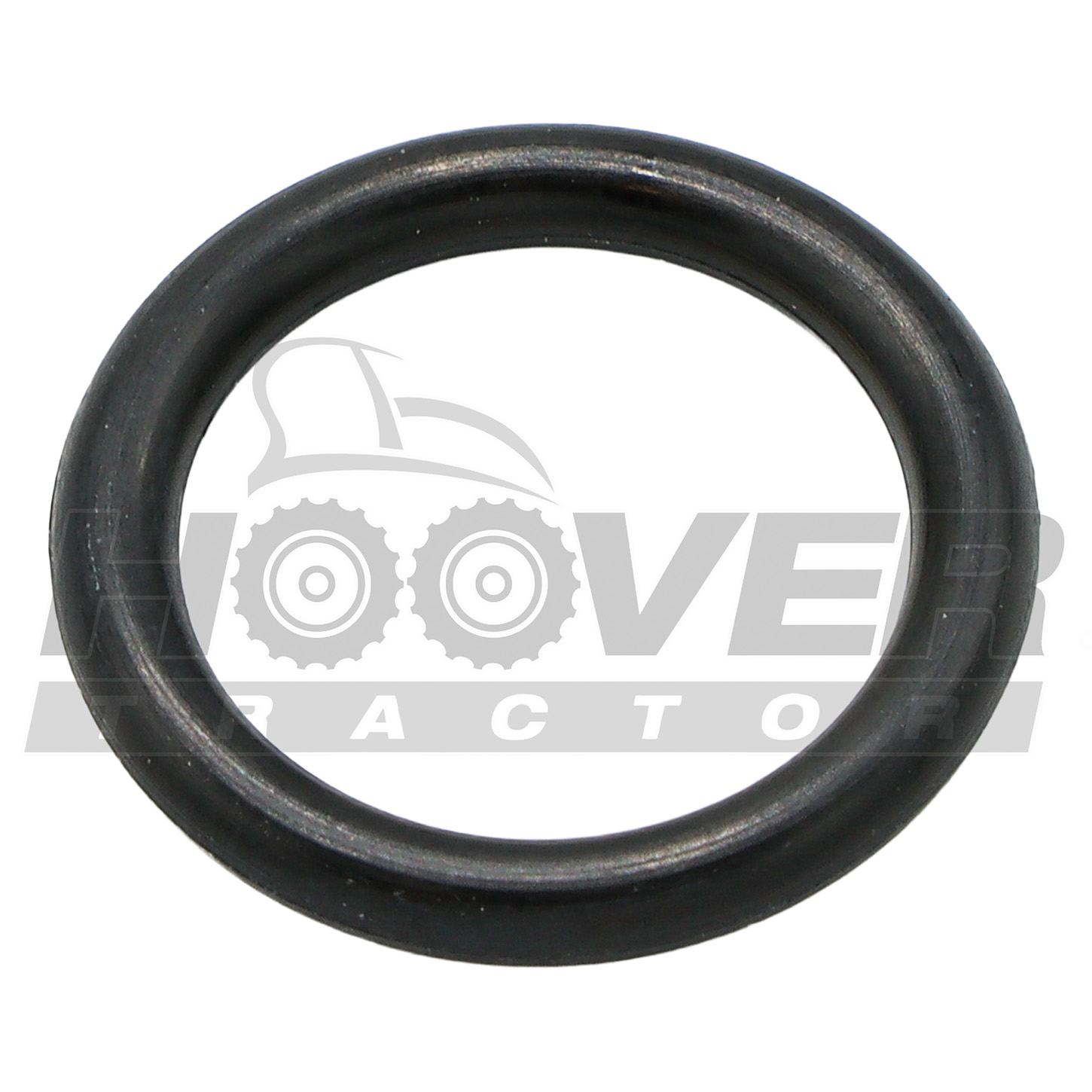

  • 21 O-RING

    O-RING

    • Part No. OPABP14
    • 04810-00140
    • 3 shown on diagram
    $3.49
  • 22

    PIN,SPRING

    • Part No. PSW0530
    • 1 shown on diagram
    $2.49
  • 23

    PIN,SPRING

    • Part No. PSW0525
    • 2 shown on diagram
    $1.09
  • 24

    PIN

    • Part No. MS0510
    • 2 shown on diagram
    $4.99

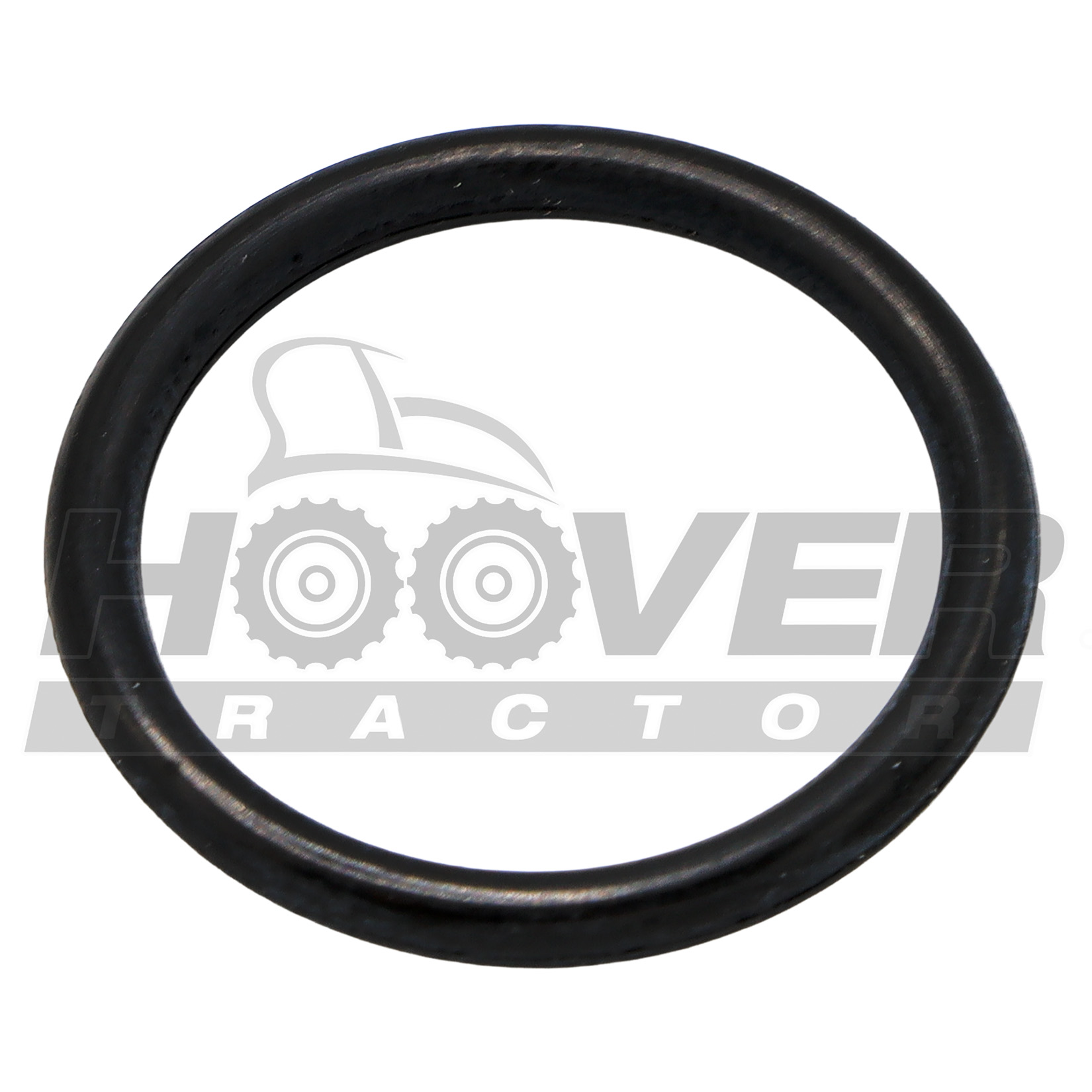

  • 25 O-RING

    O-RING

    • Part No. OPABP20
    • 2 shown on diagram
    $4.49
  • 26

    SHIM

    • Part No. SH02012
    • 2 shown on diagram
    $5.99
  • 27 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 28 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 1 shown on diagram
    $21.99
  • 29

    USE T2350-37051

    • Part No. T2350-37052
    • Applied Dates Up to 2007-03-26
    • * multiple options for #29
    • 1 shown on diagram
    $124.99
  • 29

    TUBE P, HYDRAULIC

    • Part No. T2350-37053
    • Compatibility Interchngable
    • Applied Dates 2007-03-27 and up
    • * multiple options for #29
    • 1 shown on diagram
    $139.99
  • 30

    CONNECTER,FILTER

    • Part No. T2350-37071
    • Applied Dates Up to 2007-01-31
    • * multiple options for #30
    • 1 shown on diagram
    $25.99
  • 30

    CONNECTION

    • Part No. T2350-37061
    • Compatibility Interchngable
    • Applied Dates 2007-02-01 and up
    • * multiple options for #30
    • 1 shown on diagram
    $28.99
  • 31

    GUIDE, SPRING

    • Part No. 21001-07
    • Applied Dates 2003-05-07 and up
    • 1 shown on diagram
    $0.00
