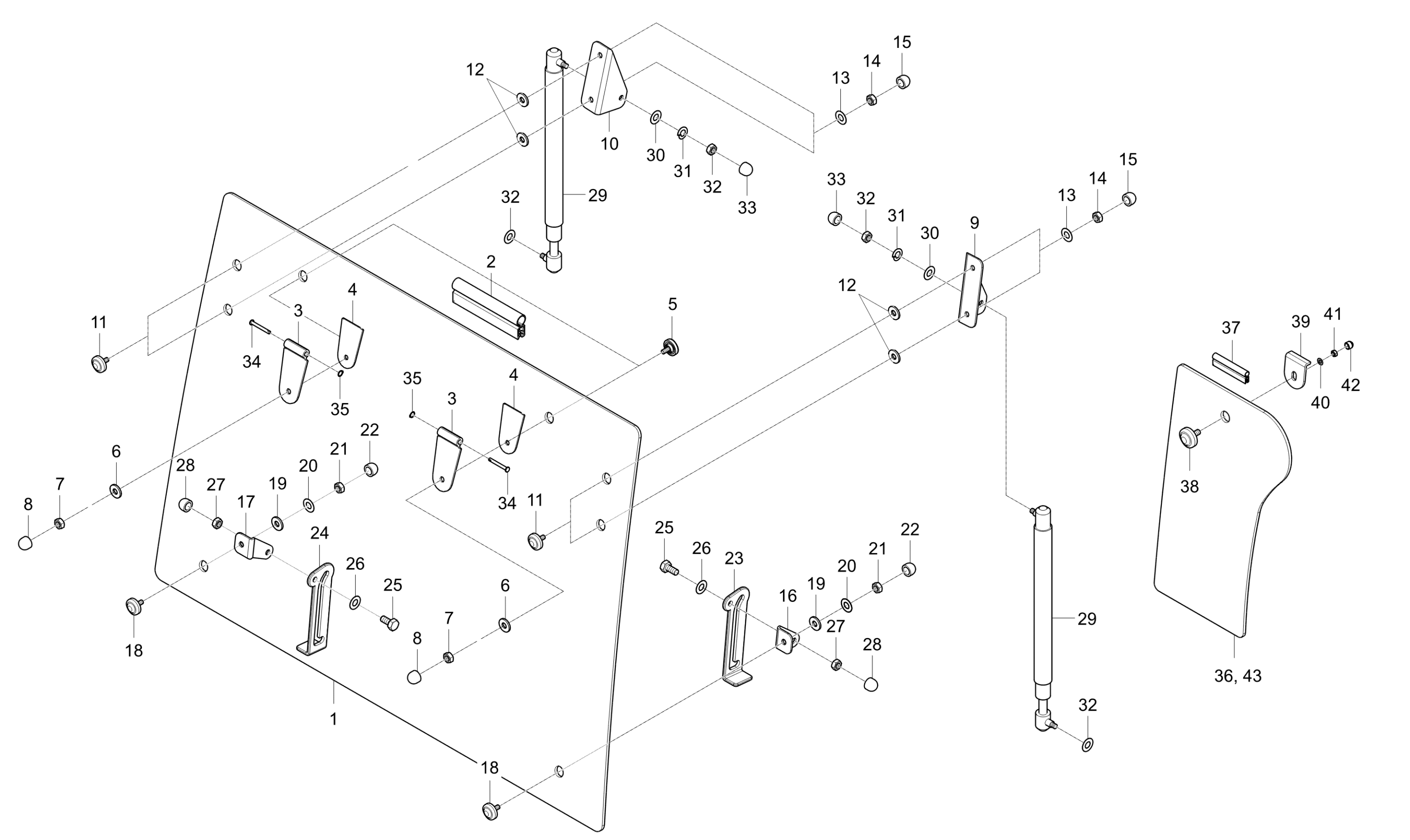

FRONT GLASS GROUP - CK30C-T9020A
Kioti TRACTOR | CK Series | CK25
-
TRK – Front Upper Glass
- Part No. T2131-82111
- 1 shown on diagram
$494.99 -
RUBBER FRONT GLASS UP
- Part No. T2131-82121
- 1 shown on diagram
$49.99 -
Hinge (T4624-84511)
- Part No. T4624-84511
- T3.0
- 2 shown on diagram
$21.99 -
PACKING
- Part No. T4681-90911
- 2 shown on diagram
$5.49 -
BOLT,CUSHION (interchanges w/ T4620-81841)
- Part No. T4620-81842
- 2 shown on diagram
$6.99 -
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79 -
NUT
- Part No. 02114-50080
- M8*P1.25
- 2 shown on diagram
$0.67 -
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 2 shown on diagram
$1.49 -
BRACKET, DOOR RR LH
- Part No. T4681-85321
- 1 shown on diagram
$12.99 -
BRACKET, DOOR RR RH
- Part No. T4681-85331
- 1 shown on diagram
$12.99 -
BOLT,CUSHION (interchanges w/ T4620-81841)
- Part No. T4620-81842
- 4 shown on diagram
$6.99 -
PACKING
- Part No. T4520-88401
- 4 shown on diagram
$3.49 -
Flat Washer M8
- Part No. 04013-50080
- 4 shown on diagram
$0.79 -
NUT
- Part No. 02114-50080
- M8*P1.25
- 4 shown on diagram
$0.67 -
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 4 shown on diagram
$1.49 -
BRACKET HOLDING FRONT GLASS LH
- Part No. T2131-82141
- 1 shown on diagram
$19.99 -
BRACKET HOLDING FRONT GLASS RH
- Part No. T2131-82151
- 1 shown on diagram
$18.99 -
BOLT,CUSHION (interchanges w/ T4620-81841)
- Part No. T4620-81842
- 2 shown on diagram
$6.99 -
PACKING
- Part No. T4520-88401
- 2 shown on diagram
$3.49 -
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79 -
NUT
- Part No. 02114-50080
- M8*P1.25
- 2 shown on diagram
$0.67 -
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 2 shown on diagram
$1.49 -
GRIP LH v
- Part No. T2131-82161
- 1 shown on diagram
$8.99 -
GRIP RH
- Part No. T2131-82171
- 1 shown on diagram
$8.99 -
BOLT
- Part No. 01150-50820
- 2 shown on diagram
$0.98 -
Flat Washer M8
- Part No. 04013-50080
- 4 shown on diagram
$0.79 -
NUT, LOCK(M8)
- Part No. 41011-5151-4
- 2 shown on diagram
$2.49 -
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 4 shown on diagram
$1.49 -
CYLINDER
- Part No. T4835-87621
- 2 shown on diagram
$99.99 -
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79 -
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 2 shown on diagram
$0.61 -
NUT
- Part No. 02114-50080
- M8*P1.25
- 2 shown on diagram
$0.67 -
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 2 shown on diagram
$1.49 -
Hinge Pin ( T4620-88051 )
- Part No. T4620-88051
- 2 shown on diagram
$2.99 -
RING SNAP
- Part No. 04613-50060
- DIA06
- 2 shown on diagram
$0.67 -
GLASS FR LOW LH
- Part No. T2131-83111
- 1 shown on diagram
$144.99 -
Lower Front Glass Rubber
- Part No. T2131-83121
- 2 shown on diagram
$18.99 -
BOLT,CUSHION (interchanges w/ T4620-81841)
- Part No. T4620-81842
- 2 shown on diagram
$6.99 -
PACKING
- Part No. T4520-88401
- 2 shown on diagram
$3.49 -
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79 -
NUT
- Part No. 02114-50080
- M8*P1.25
- 2 shown on diagram
$0.67 -
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 2 shown on diagram
$1.49 -
Lower Front (RH) Glass
- Part No. T2131-83211
- 1 shown on diagram
$154.99
