HYDRAULIC CYLINDER BODY GROUP - D360-T610A

Kioti TRACTOR | DK Series | DK45CHSE

Diagram for HYDRAULIC CYLINDER BODY GROUP - D360-T610A
  • 1

    TRK – BODY,POWER LIFT v

    • Part No. T2610-37116
    • Applied Dates 2004-11-11 to 2004-11-11
    • 1 shown on diagram
    $2044.99

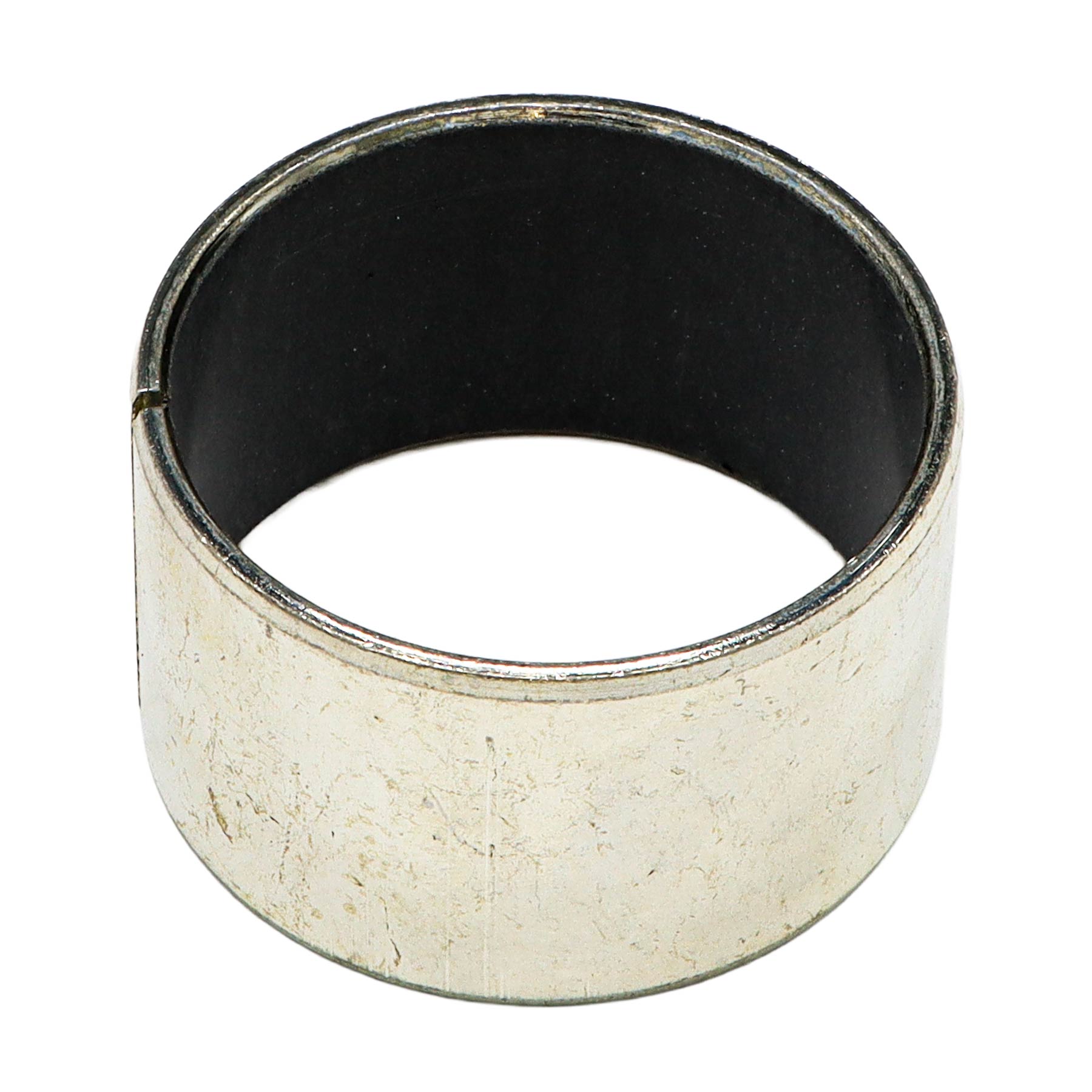

  • 2 BUSH

    BUSH

    • Part No. 08511-04530
    • ??DIA45XL30
    • 1 shown on diagram
    $31.99

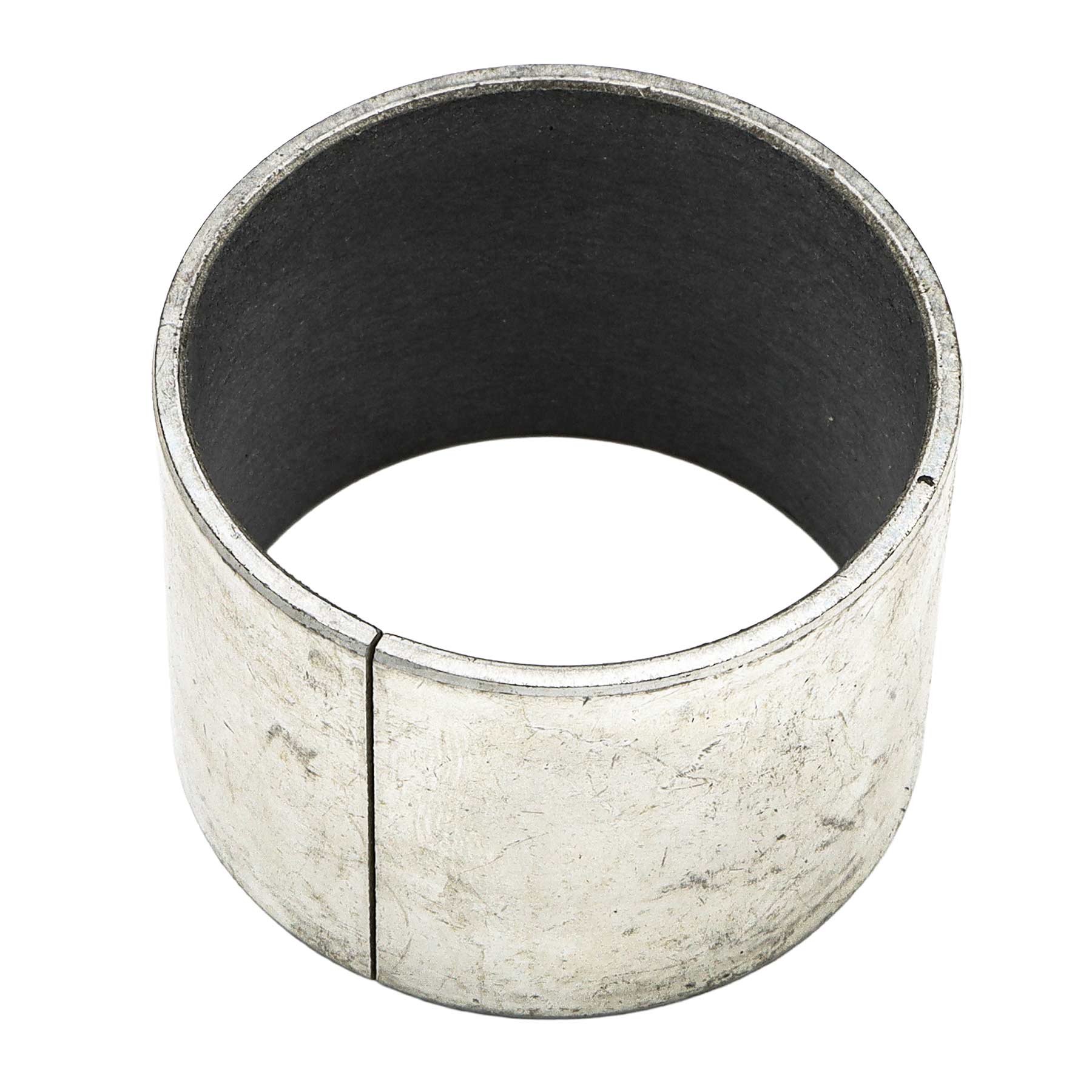

  • 3 DU BUSH

    DU BUSH

    • Part No. 08511-05040
    • ??DIA50XL40
    • 2 shown on diagram
    $35.99
  • 4

    DU BUSH

    • Part No. 08511-04540
    • ??DIA45XL40
    • 1 shown on diagram
    $37.99
  • 5 Bushing (2 required per wheel)

    Bushing (2 required per wheel)

    • Part No. 08511-01615
    • ??DIA16XL15
    • 2 shown on diagram
    $2.49
  • 6 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • PT1/8
    • 2 shown on diagram
    $3.49

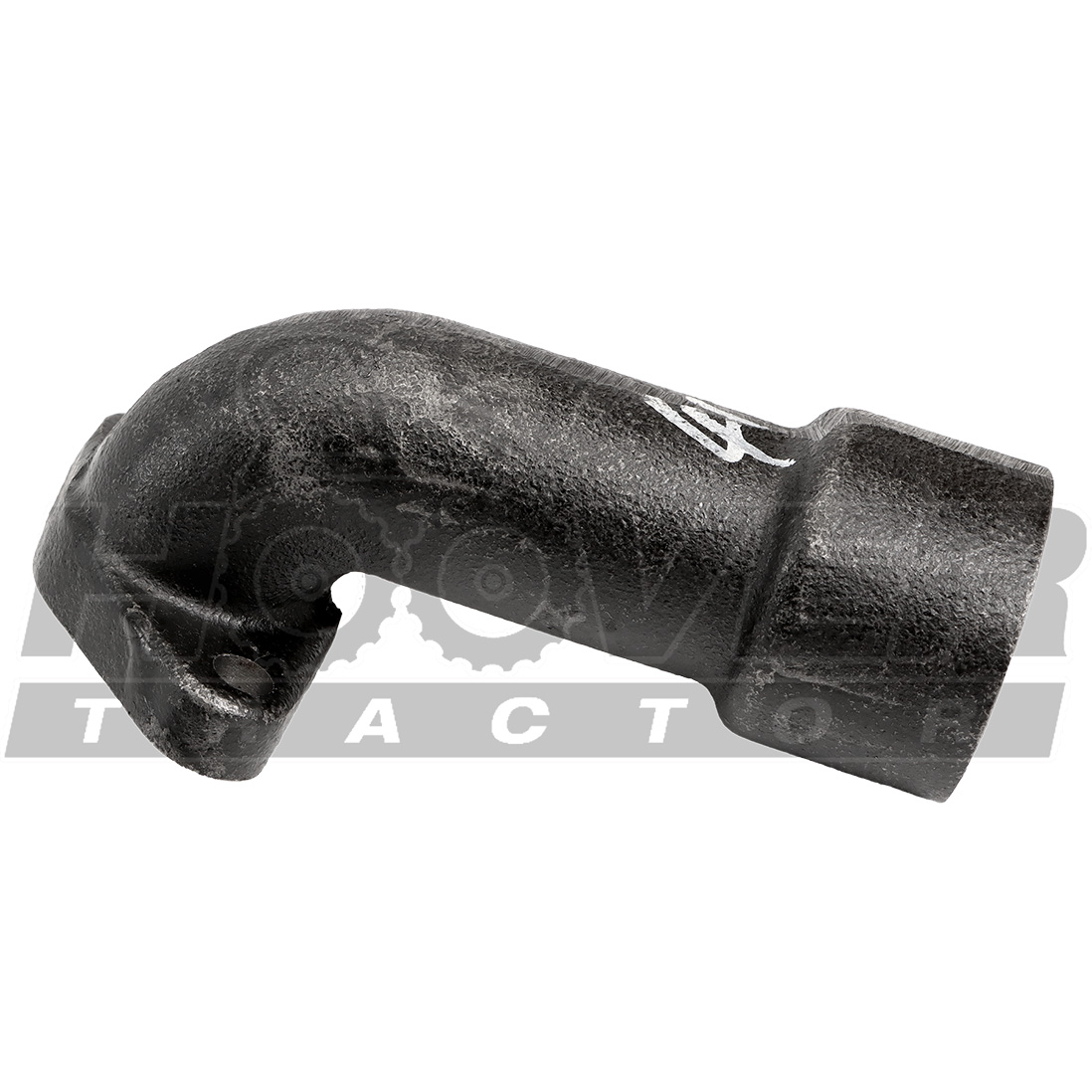

  • 7 TUBE, OIL INLET

    TUBE, OIL INLET

    • Part No. T2610-35001
    • 1 shown on diagram
    $97.99
  • 8 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 9 AIR BREATHER v, Replaced by T4680-36002BK

    AIR BREATHER v, Replaced by T4680-36002BK

    • Part No. T4680-36002
    • Applied Dates Up to 2008-02-04
    • 1 shown on diagram
    $.00
  • 10 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 11 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • Applied Dates Up to 2012-12-31
    • M10
    • 1 shown on diagram
    $1.99
