HST FILTER GROUP - EX45H-T740A

Kioti TRACTOR | DK Series | DK45CHSE

Diagram for HST FILTER GROUP - EX45H-T740A
  • 1

    FILTER ASS’Y-HYD.

    • Part No. T4125-38123
    • Applied Dates 2010-02-21 and up
    • 1 shown on diagram
    $284.99
  • 2 Hydrostatic Transmission Filter (6″ yellow)

    Hydrostatic Transmission Filter (6″ yellow)

    • Part No. T4125-38021
    • 1 shown on diagram
    $84.99
  • 3 BRAKET,FILTER(HST)

    BRAKET,FILTER(HST)

    • Part No. T4125-38032
    • 1 shown on diagram
    $98.99
  • 4

    CONNECTION

    • Part No. T4125-38052
    • 1 shown on diagram
    $42.99
  • 5 BOLT

    BOLT

    • Part No. 01133-51025
    • Applied Dates 2010-02-21 and up
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 6

    TUBE-HST INLET CHARGE dnr v, Replaced by T4125-37043BB

    • Part No. T4125-37043
    • Applied Dates 2010-02-21 and up
    • Serial No. NH1400065 to HH1400085
    • *multiple options for # 6
    • 1 shown on diagram
    $.00
  • 6

    HST Inlet Charge Tube

    • Part No. T4125-37043BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $159.99
  • 7 O RING

    O RING

    • Part No. 04810-00200
    • Applied Dates 2010-02-21 and up
    • DIA19.8
    • 4 shown on diagram
    $1.19

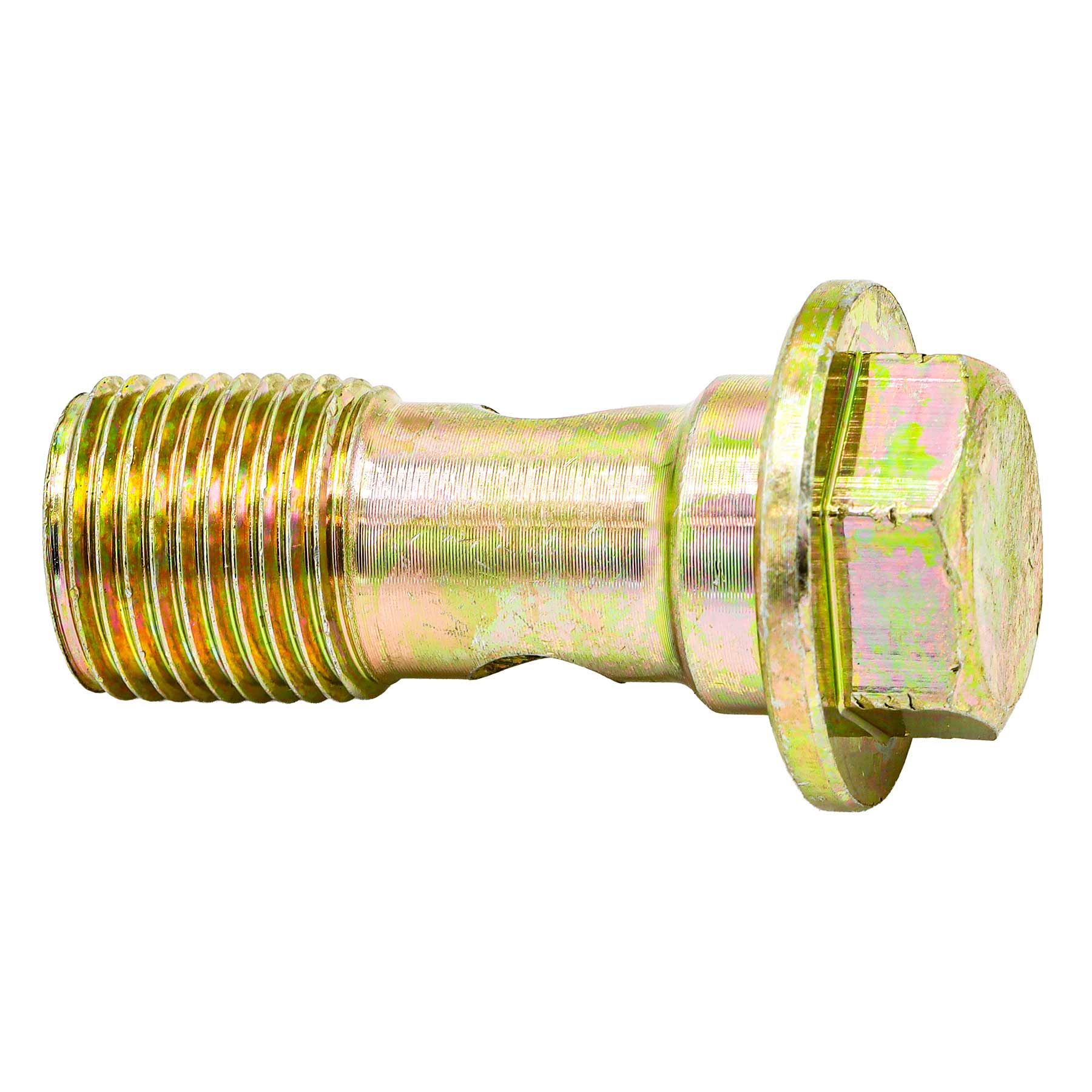

  • 8 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • Applied Dates 2010-02-21 and up
    • 1 shown on diagram
    $21.99

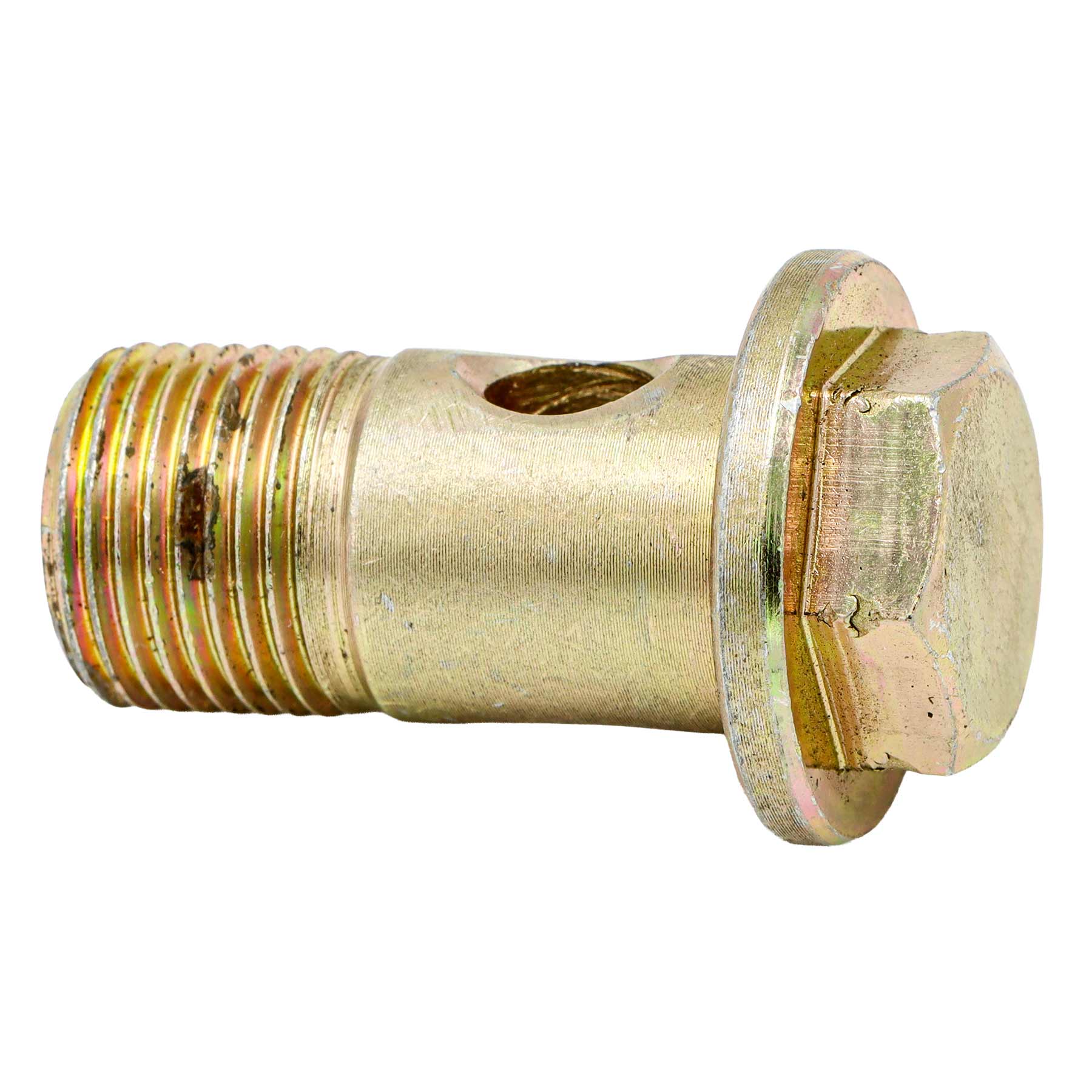

  • 9 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • Applied Dates 2010-02-21 and up
    • 1 shown on diagram
    $26.99
  • 10

    FILTER SUPPORT, HST, Replaced by T4125-38091ED

    • Part No. T4125-38091
    • Applied Dates 2010-02-21 and up
    • Serial No. NH1400065 to HH1400085
    • *multiple options for # 10
    • 1 shown on diagram
    $.00
  • 10

    Filter HST Support

    • Part No. T4125-38091BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $63.99
  • 11 BOLT

    BOLT

    • Part No. 01133-51025
    • Applied Dates 2010-02-21 and up
    • M10XP1.25
    • 2 shown on diagram
    $3.49
