SHAFT 1 GROUP - D500-T150A - 256700101 and up

Kioti TRACTOR | DK Series | DK45

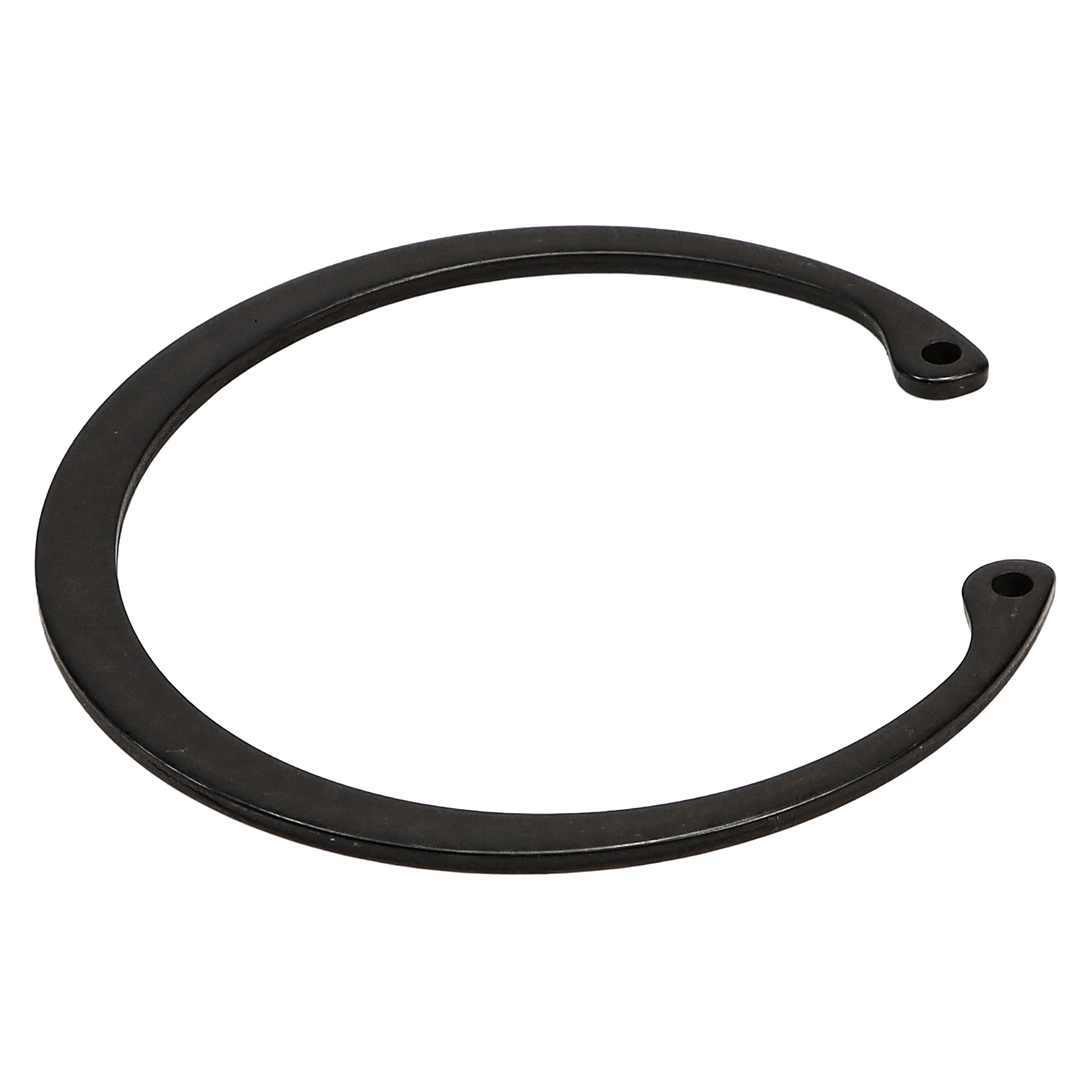

  • 1 RING,SNAP

    RING,SNAP

    • Part No. 04611-00800
    • DIA80
    • 1 shown on diagram
    $9.49
  • 2

    BEARING,BALL

    • Part No. 08100-00026
    • Applied Dates 1998-08-12 and up
    • KOYO,M6307
    • 1 shown on diagram
    $56.99
  • 3

    SHAFT,GEAR 17

    • Part No. T4682-21511
    • Applied Dates 2003-05-26 and up
    • 1 shown on diagram
    $519.99
  • 4

    COLLAR, THRUST v

    • Part No. T4620-21521
    • 2 shown on diagram
    $24.99
  • 5

    RING INNER

    • Part No. T4620-21532
    • 1 shown on diagram
    $61.99
  • 6

    GEAR 42 v

    • Part No. T4682-21611
    • Applied Dates Up to 2011-05-27
    • *multiple options for # 6
    • 1 shown on diagram
    $154.99
  • 6

    GEAR 42

    • Part No. T4601-21612
    • Compatibility New Replaces Old
    • Applied Dates 2011-07-19 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $414.99

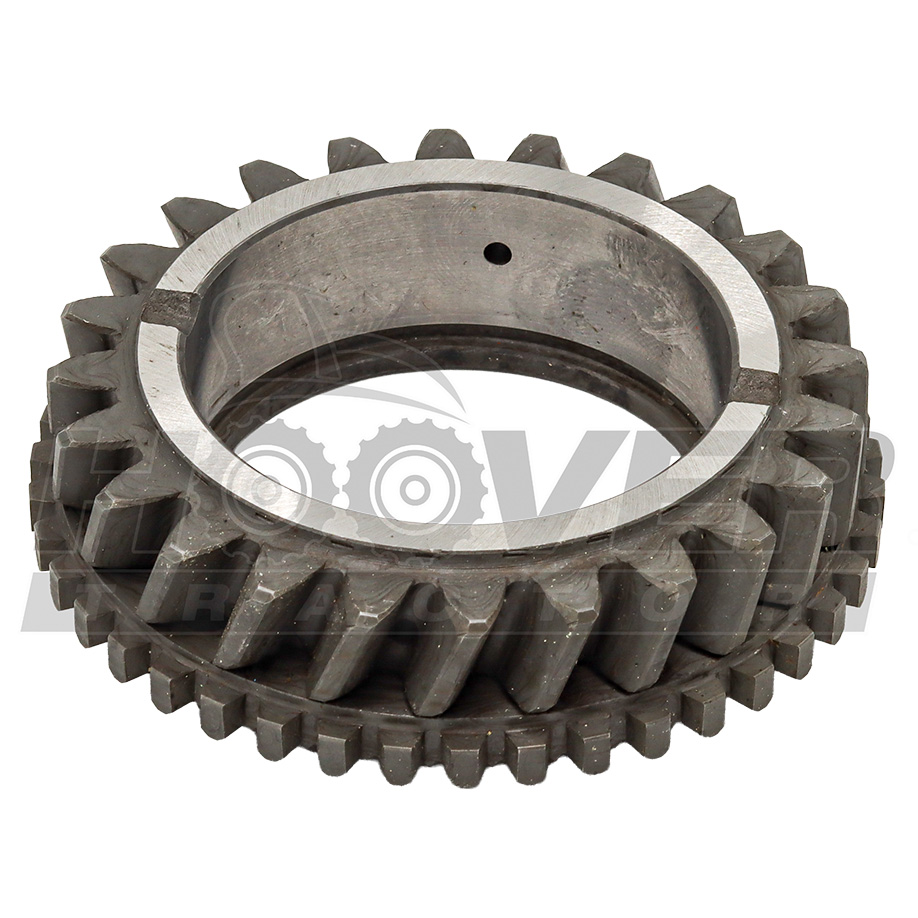

  • 7 HUB SYNCHRO, Replaced by T4601-21811

    HUB SYNCHRO, Replaced by T4601-21811

    • Part No. T4620-21811
    • Applied Dates Up to 2011-05-27
    • 2 shown on diagram
    $65.99
  • 8

    SYNCHRONIZER SPRING [NLA]

    • Part No. 38360-2178-1
    • Applied Dates Up to 2011-05-27
    • DIA1.2
    • 4 shown on diagram
    $3.99

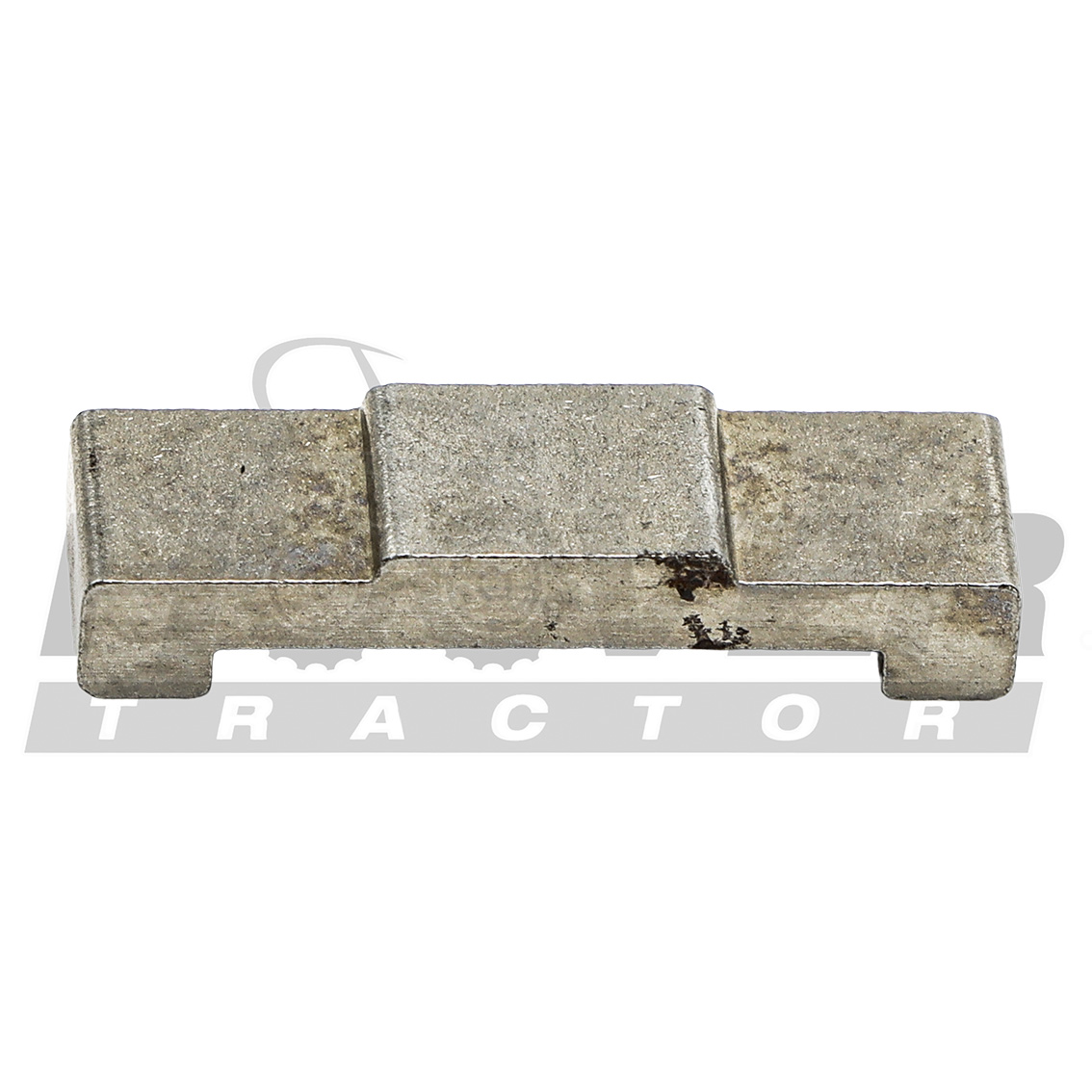

  • 9 KEY, SYNCHRONIZER

    KEY, SYNCHRONIZER

    • Part No. T4240-21811
    • 6 shown on diagram
    $6.49
  • 10

    CLUTCH, SLIDING

    • Part No. 38655-2175-1
    • Applied Dates Up to 2011-05-27
    • 2 shown on diagram
    $114.99

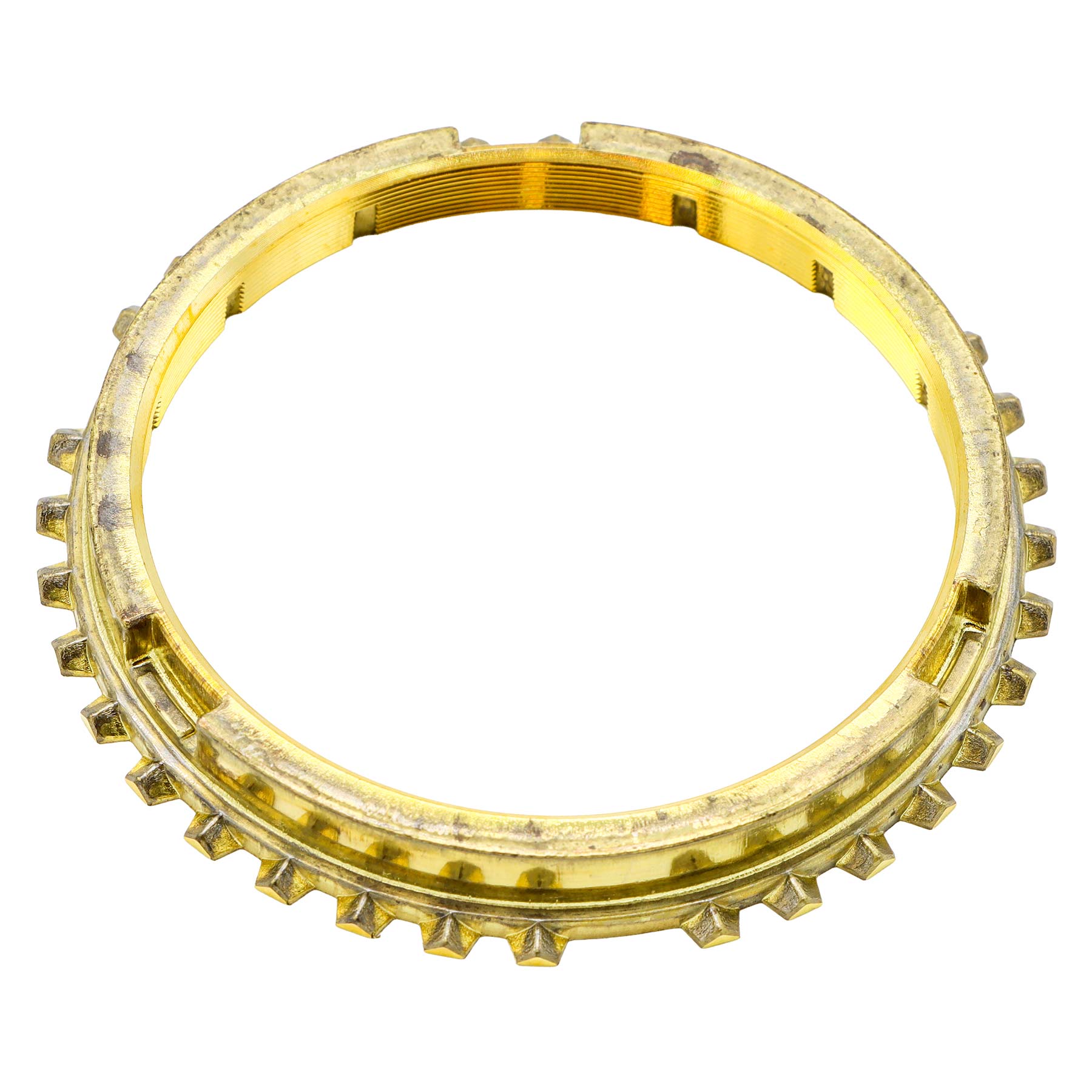

  • 11 RING, SYNCHRONIZER

    RING, SYNCHRONIZER

    • Part No. T4240-21792
    • 4 shown on diagram
    $52.99
  • 12

    RING INNER

    • Part No. T4620-21542
    • 2 shown on diagram
    $55.99
  • 13

    GEAR 38 v

    • Part No. T4620-21623
    • Applied Dates Up to 2011-05-27
    • *multiple options for # 13
    • 1 shown on diagram
    $119.99
  • 13

    Gear 38T

    • Part No. T4601-21622
    • Compatibility New Replaces Old
    • Applied Dates 2011-07-19 and up
    • *multiple options for # 13
    • 1 shown on diagram
    $229.99
  • 14

    GEAR 33, Replaced by T4601-21633

    • Part No. T4620-21633
    • Applied Dates Up to 2011-05-27
    • 1 shown on diagram
    $.00
  • 15

    RING INNER

    • Part No. T4620-21551
    • 1 shown on diagram
    $57.99
  • 16

    BEARING,NEEDLE v

    • Part No. 08824-04527
    • 1 shown on diagram
    $44.99
  • 17

    Spacer

    • Part No. T4620-21561
    • 1 shown on diagram
    $13.99
  • 18

    GEAR 26-26 v

    • Part No. T4620-21642
    • Applied Dates Up to 2011-05-27
    • 1 shown on diagram
    $184.99
  • 19 Ball Bearing 30x62x16

    Ball Bearing 30x62x16

    • Part No. 08101-06206
    • #6206
    • *multiple options for # 19
    • 1 shown on diagram
    $19.99
  • 19

    Ball Bearing, Replaced by 08101-06206

    • Part No. T4682-06206
    • Compatibility Interchangeable
    • #6206, C&U
    • *multiple options for # 19
    • 1 shown on diagram
    $.00
  • 20

    WASHER

    • Part No. 38455-2314-1
    • 1 shown on diagram
    $4.99

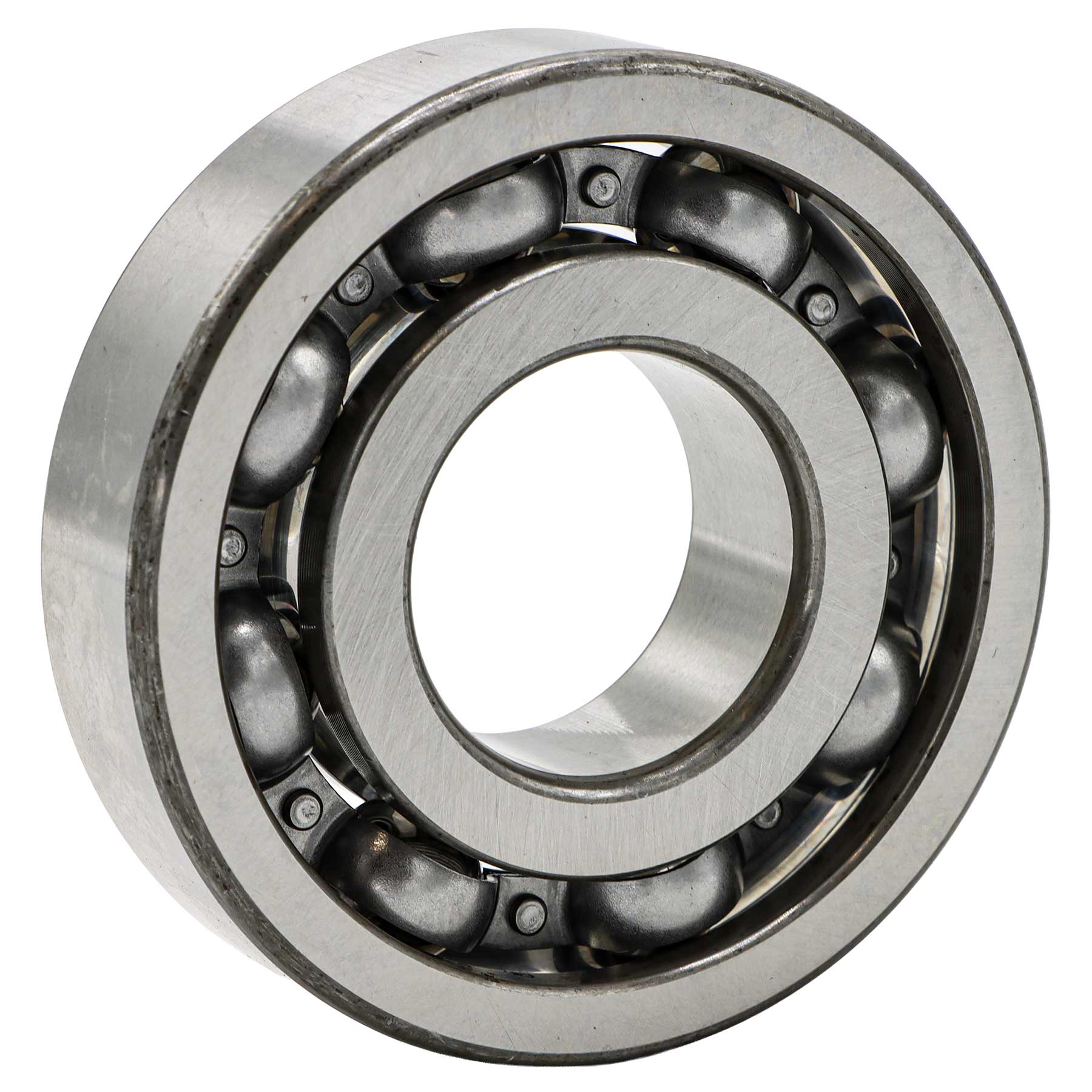

  • 21 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 1 shown on diagram
    $29.99

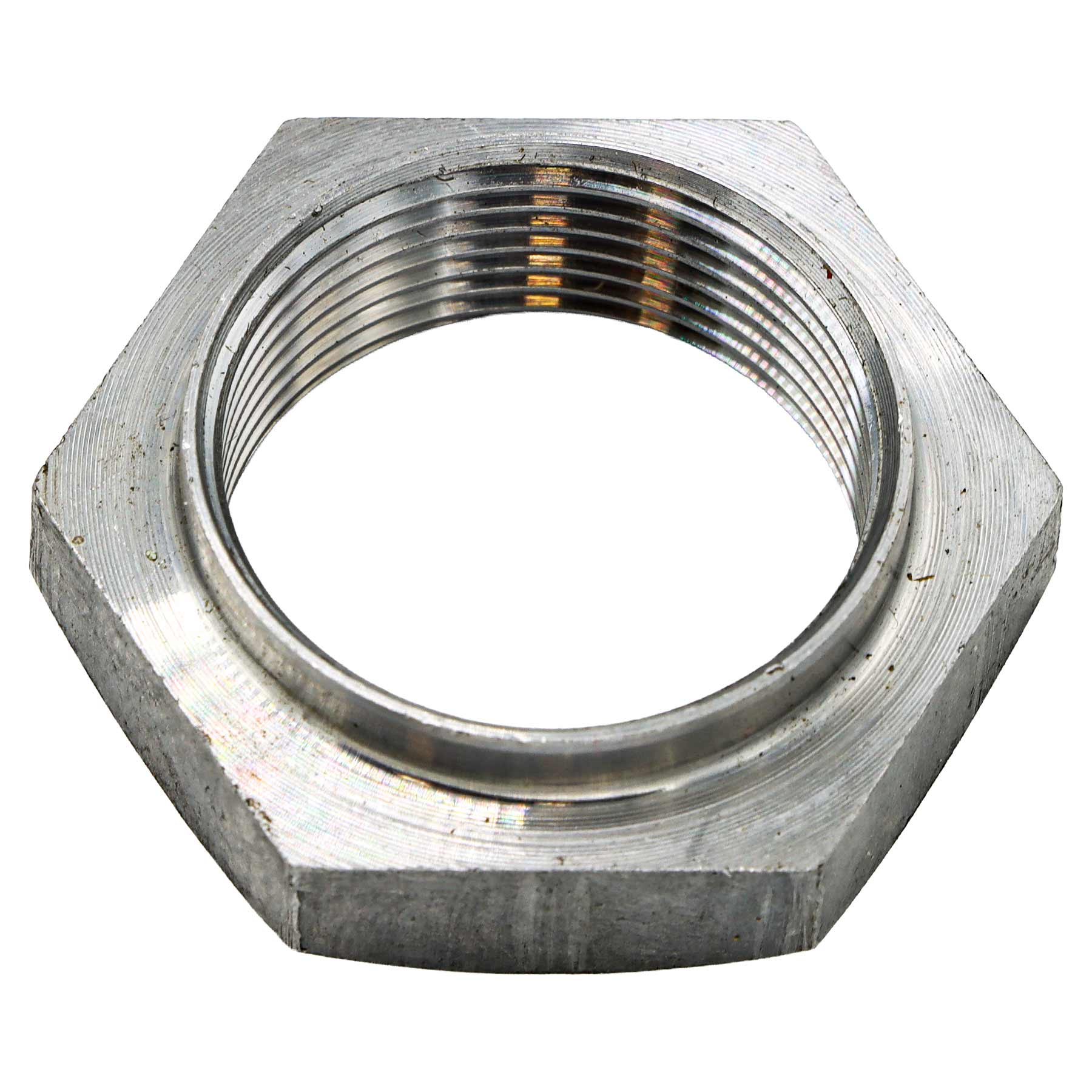

  • 22 NUT, 28mm LOCK

    NUT, 28mm LOCK

    • Part No. T4620-21591
    • 1 shown on diagram
    $14.99

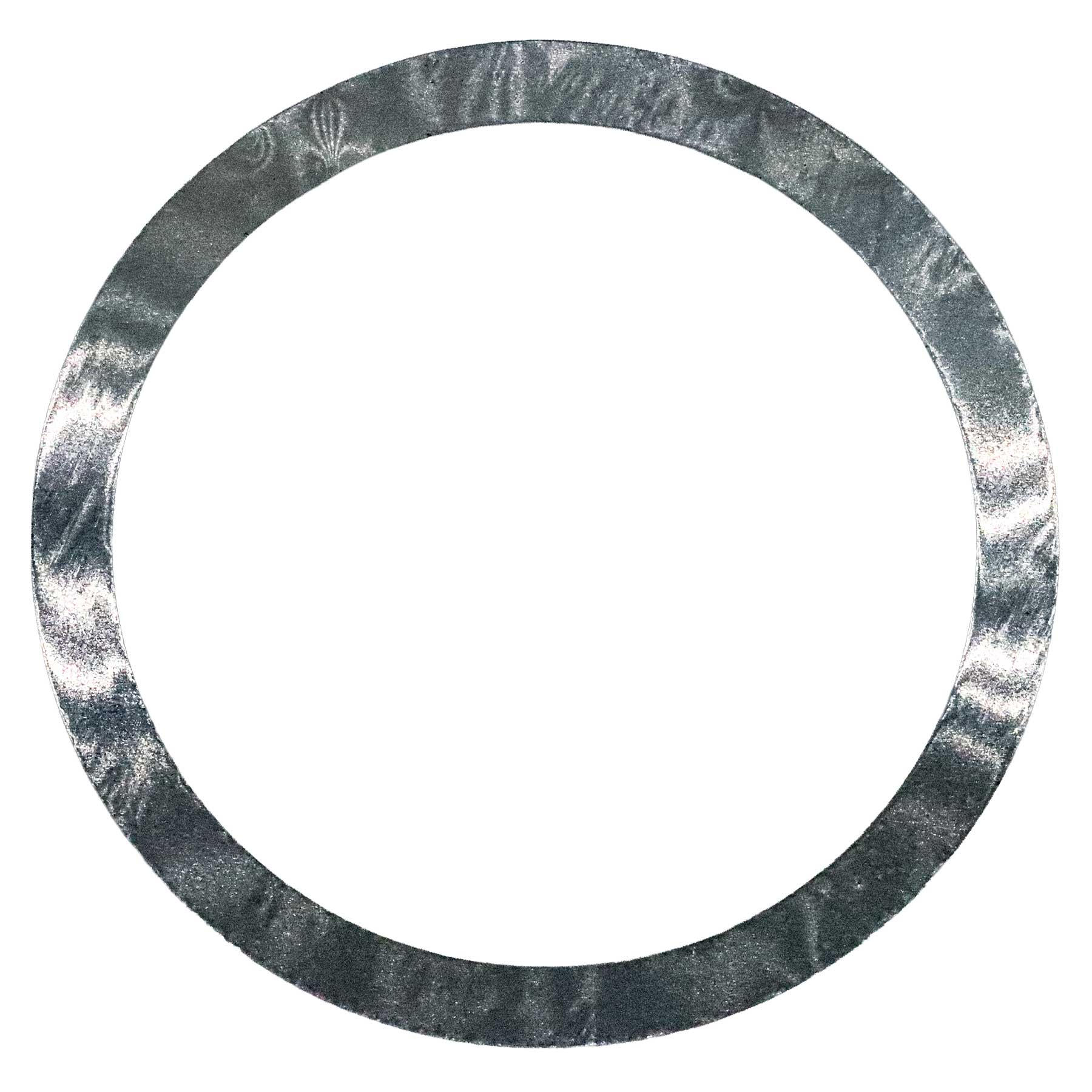

  • 23 SHIM 0.1

    SHIM 0.1

    • Part No. T4520-42351
    • T0.1
    • 1 shown on diagram
    $3.99
  • 24

    SHIM 0.2

    • Part No. T4520-42361
    • T0.2
    • 1 shown on diagram
    $2.99
  • 25

    SHIM 0.4

    • Part No. T4520-42371
    • T0.4
    • 1 shown on diagram
    $4.99

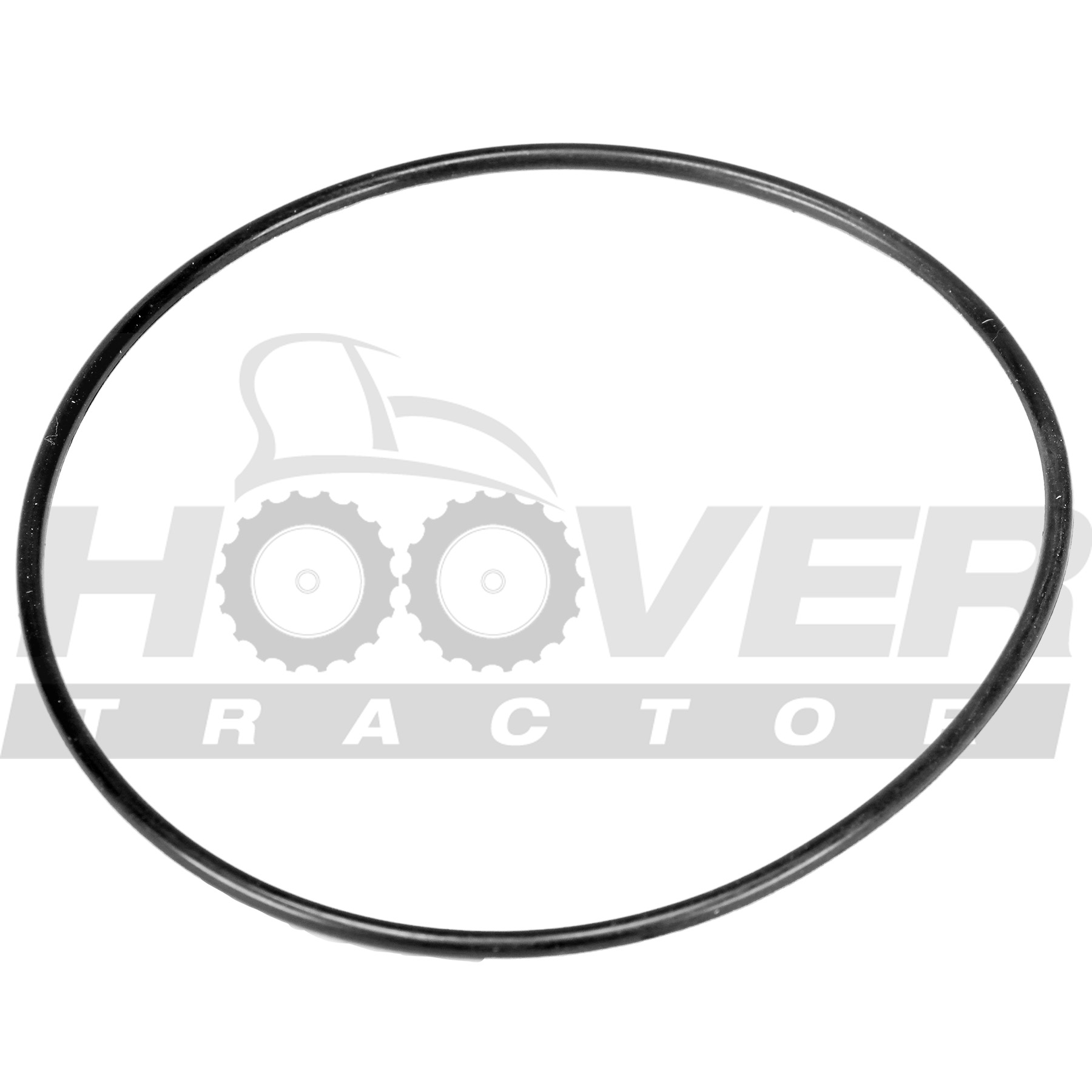

  • 26 O RING

    O RING

    • Part No. 04811-10700
    • 1 shown on diagram
    $2.49
  • 27

    COVER, BEARING

    • Part No. T4620-21791
    • 1 shown on diagram
    $23.99
  • 28 Bolt With Washer, M8 P1.25 x 28mm

    Bolt With Washer, M8 P1.25 x 28mm

    • Part No. 01123-50828
    • 4 shown on diagram
    $2.49
  • 29

    RING,SNAP obs v

    • Part No. T4682-21891
    • Applied Dates 2003-05-26 and up
    • T1.5
    • 1 shown on diagram
    $7.99
  • 30

    BEARING,NEEDLE

    • Part No. 08822-53121
    • Applied Dates 2003-05-26 and up
    • 1 shown on diagram
    $53.99
