SPEED SHIFT SYSTEM GROUP - D500-T170A - 156700201 and up

Kioti TRACTOR | DK Series | DK45

  • 1 BEARING BALL v, Replaced by T4682-43731

    BEARING BALL v, Replaced by T4682-43731

    • Part No. 08101-06208
    • DIA40
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1

    BALL BEARING

    • Part No. T4682-06208
    • Compatibility Interchangeable
    • #6208, C&U
    • *multiple options for # 1
    • 1 shown on diagram
    $38.99
  • 2

    GEAR 39-21

    • Part No. T4620-23513
    • 1 shown on diagram
    $419.99
  • 3

    GEAR 43-21

    • Part No. T4620-23523
    • 1 shown on diagram
    $344.99
  • 4

    BEARING NEEDLE

    • Part No. 08824-24727
    • 42*47*27
    • 2 shown on diagram
    $51.99
  • 5

    COLLAR, THRUST v

    • Part No. T4620-21521
    • 2 shown on diagram
    $24.99
  • 6

    SHAFT HI-LOW

    • Part No. T4682-23612
    • Applied Dates 2003-05-26 and up
    • 1 shown on diagram
    $199.99
  • 7 BEARING, BALL 35x80x21

    BEARING, BALL 35x80x21

    • Part No. 08101-06307
    • DIA35
    • *multiple options for # 7
    • 1 shown on diagram
    $41.99
  • 7

    BALL BEARING

    • Part No. T4682-06307
    • Compatibility Interchangeable
    • #6307, C&U
    • *multiple options for # 7
    • 1 shown on diagram
    $29.99
  • 8 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 3 shown on diagram
    $1.89
  • 9

    GEAR 39

    • Part No. T4620-23632
    • 1 shown on diagram
    $379.99
  • 10

    SPACER

    • Part No. T4620-23641
    • 1 shown on diagram
    $9.99
  • 11

    BOSS SPLINE

    • Part No. T4620-23571
    • Applied Dates Up to 2013-12-31
    • 1 shown on diagram
    $51.99
  • 12

    SHIFTER

    • Part No. T4620-23581
    • 1 shown on diagram
    $61.99
  • 13

    COLLAR, THRUST

    • Part No. T4620-23652
    • Applied Dates 1997-09-30 and up
    • 1 shown on diagram
    $14.99
  • 14

    BEARING,NEEDLE

    • Part No. 08823-03520
    • KT303520
    • 2 shown on diagram
    $22.99
  • 15

    GEAR 39-17

    • Part No. T4620-23622
    • 1 shown on diagram
    $189.99
  • 16

    BOSS SPLINE

    • Part No. T4620-23671
    • 1 shown on diagram
    $154.99
  • 17

    SHIFTER

    • Part No. T4620-23681
    • 1 shown on diagram
    $109.99
  • 18

    RING, SNAP v

    • Part No. 38430-2554-1
    • 1 shown on diagram
    $7.49
  • 19 RING,SNAP

    RING,SNAP

    • Part No. 04611-00800
    • DIA80
    • 1 shown on diagram
    $9.49

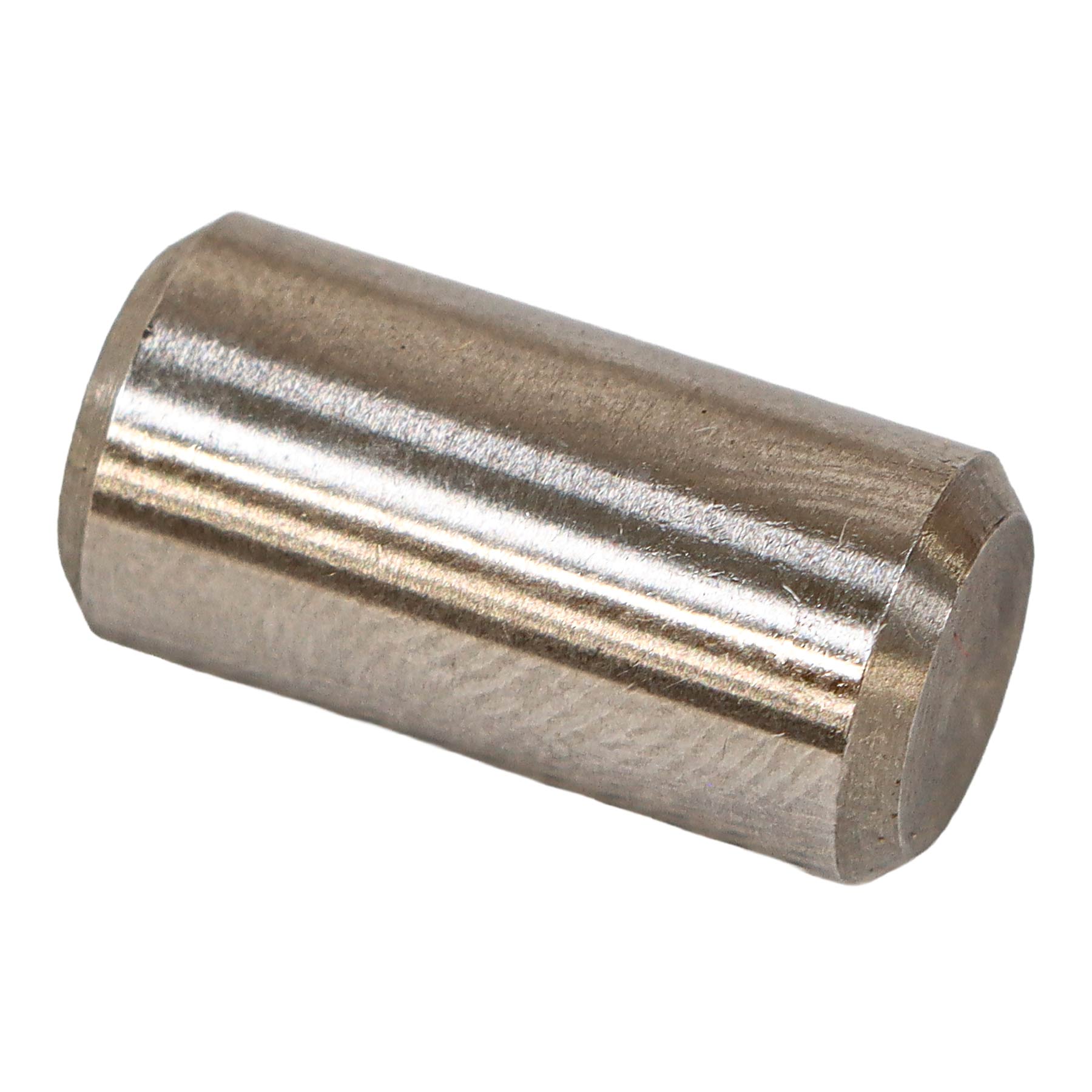

  • 20 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • Applied Dates Up to 2004-02-28
    • DIA10XL18
    • *multiple options for # 20
    • 2 shown on diagram
    $1.79
  • 20

    PIN, DOWEL

    • Part No. 05012-01016
    • Compatibility New Replaces Old
    • Applied Dates 2004-03-22 and up
    • *multiple options for # 20
    • 2 shown on diagram
    $1.49
  • 21

    CASE, BEARING

    • Part No. T4620-23313
    • Applied Dates 1998-01-14 and up
    • 1 shown on diagram
    $1584.99
  • 22

    WASHER BOLT M12 P1.25 x35

    • Part No. 01133-51235
    • Applied Dates 1999-05-11 and up
    • M12XP1.25
    • 4 shown on diagram
    $4.49
  • 23 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • *multiple options for # 23
    • 1 shown on diagram
    $28.99
  • 23

    BALL BEARING

    • Part No. T4682-06207
    • Compatibility Interchangeable
    • #6207, C&U
    • *multiple options for # 23
    • 1 shown on diagram
    $28.99
  • 24

    RING INNER

    • Part No. T4620-21542
    • 1 shown on diagram
    $55.99
