INLET TUBE GROUP - EX45M-T736A

Kioti TRACTOR | DK Series | DK50SE

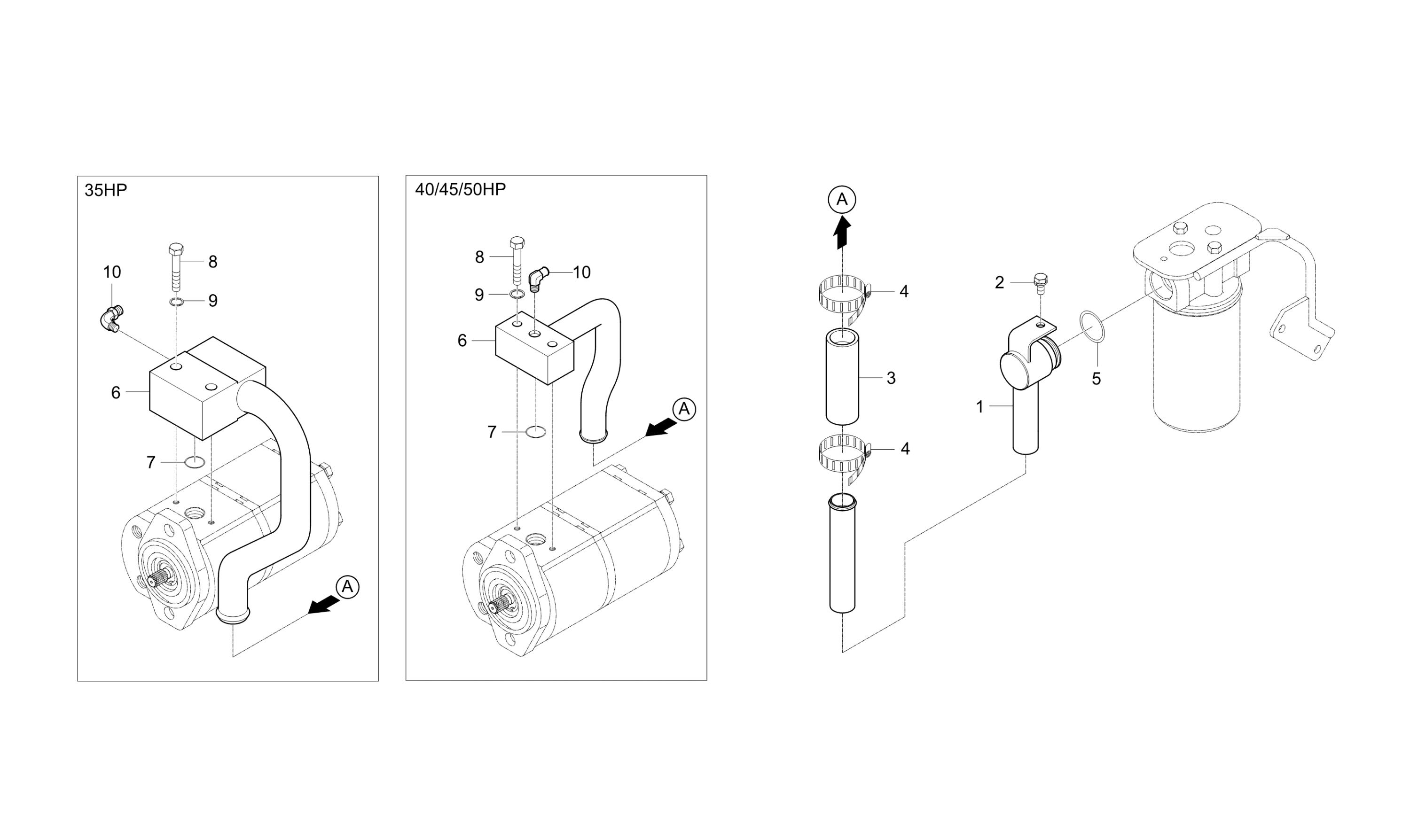

Diagram for INLET TUBE GROUP - EX45M-T736A
  • 1

    TUBE-INLET v

    • Part No. T4115-38012
    • Applied Dates 2006-04-04 to 2006-11-28
    • *multiple options for # 1
    • 1 shown on diagram
    $99.99
  • 1

    TUBE, INLET

    • Part No. T4115-38013
    • Compatibility New Replaces Old
    • Applied Dates 2006-11-29 to 2007-01-22
    • *multiple options for # 1
    • 1 shown on diagram
    $84.99
  • 1

    TUBE, INLET v

    • Part No. T4115-38014
    • Compatibility New Replaces Old
    • Applied Dates 2007-01-23 to 2007-03-26
    • *multiple options for # 1
    • 1 shown on diagram
    $99.99
  • 1

    TUBE, INLET v

    • Part No. T4115-38015
    • Compatibility Interchangeable
    • Applied Dates 2007-05-01 and up
    • Serial No. GS9600001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $164.99
  • 2 Bolt With Washers, M8 P1.25 x 14mm

    Bolt With Washers, M8 P1.25 x 14mm

    • Part No. 01125-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 3

    HOSE, RUBBER dnr v

    • Part No. 84612-3777-0
    • Applied Dates Up to 2008-02-24
    • *multiple options for # 3
    • 1 shown on diagram
    $6.49
  • 3 HOSE,RUBBER 28mm ID

    HOSE,RUBBER 28mm ID

    • Part No. T4125-38151
    • Compatibility Call for compatibility
    • Applied Dates 2008-02-27 and up
    • Serial No. HS9600001 and up
    • *multiple options for # 3
    • 1 shown on diagram
    $6.49
  • 4

    HOSE BAND v

    • Part No. 31355-3819-1
    • Applied Dates Up to 2007-02-23
    • ??40#
    • *multiple options for # 4
    • 2 shown on diagram
    $4.99
  • 4

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchangeable
    • 25-40mm
    • *multiple options for # 4
    • 2 shown on diagram
    $2.99
  • 5 O-ring

    O-ring

    • Part No. 04810-00320
    • 1 shown on diagram
    $1.39
  • 6

    TUBE 3-INLET v, Replaced by T2610-38072BB

    • Part No. T2610-38072
    • Applied Dates Up to 2007-02-23
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 6

    TUBE, INLET

    • Part No. T2610-38072BB
    • Compatibility No Interchange
    • Applied Dates 2008-11-19 and up
    • Serial No. HS9600001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $129.99
  • 7 O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    • Part No. 04810-00220
    • DIA21.8
    • 1 shown on diagram
    $1.19
  • 8

    Bolt, M8 P1.25 x 50mm

    • Part No. 01153-50850
    • M8*P1.25
    • 2 shown on diagram
    $2.49
  • 9 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 10

    ELBOW

    • Part No. T2185-66151
    • 1 shown on diagram
    $17.99
