BRAKE GROUP - T2555-G250

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

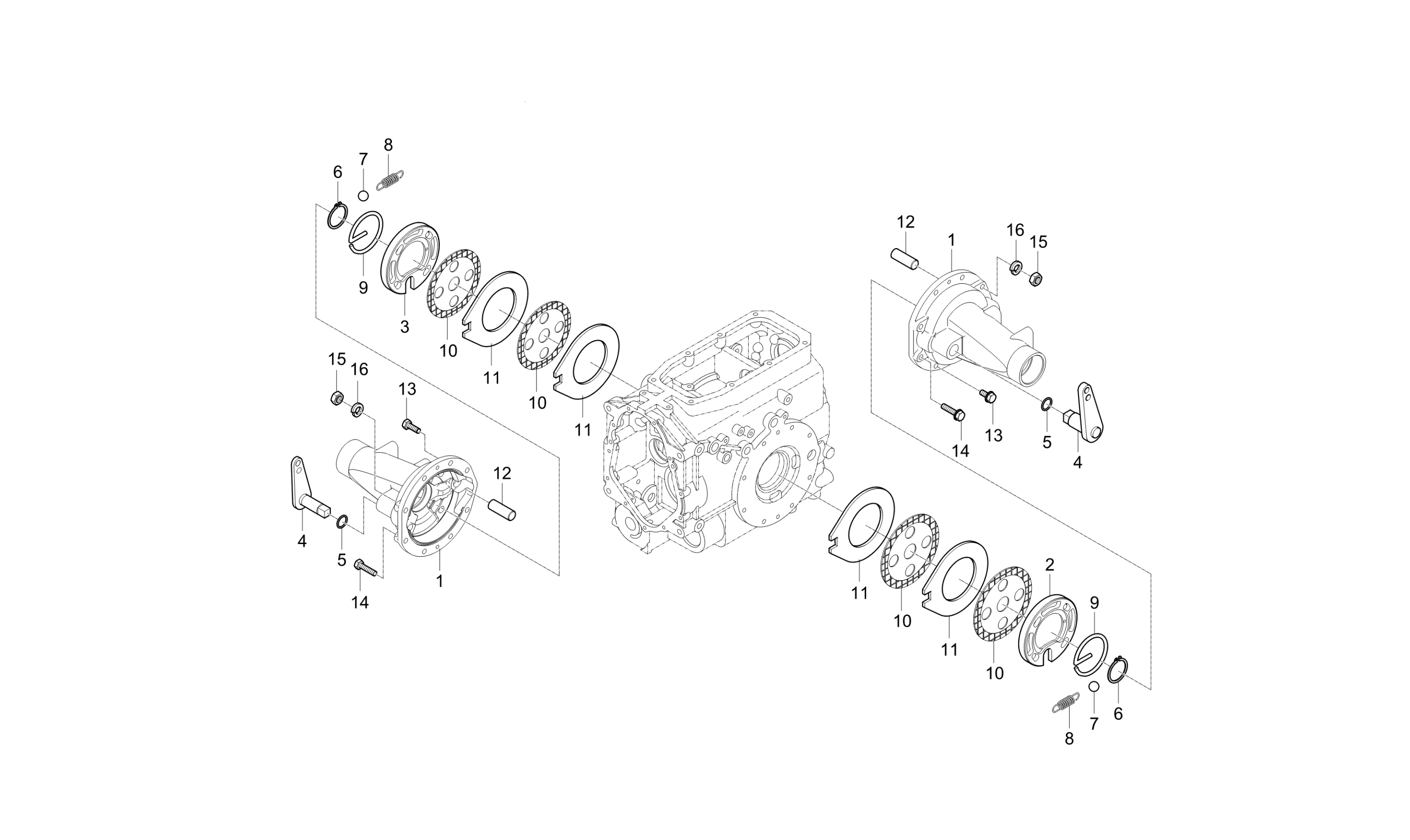

Diagram for BRAKE GROUP - T2555-G250
  • 1

    CASE,REARAXLE dnr v

    • Part No. T2555-28311
    • * multiple options for #1
    • 2 shown on diagram
    $214.99
  • 1

    CASE, REAR AXLE

    • Part No. T2555-28312
    • Compatibility New repl old
    • * multiple options for #1
    • 2 shown on diagram
    $139.99
  • 1

    CASE, REAR AXLE

    • Part No. T2555-28313
    • Compatibility Interchngable
    • Applied Dates 2018-05-01 to 2018-11-08
    • * multiple options for #1
    • 2 shown on diagram
    $0.00
  • 1

    CASE, REAR AXLE

    • Part No. T2555-28314
    • Compatibility Interchngable
    • Applied Dates 2018-11-09 and up
    • * multiple options for #1
    • 2 shown on diagram
    $234.99

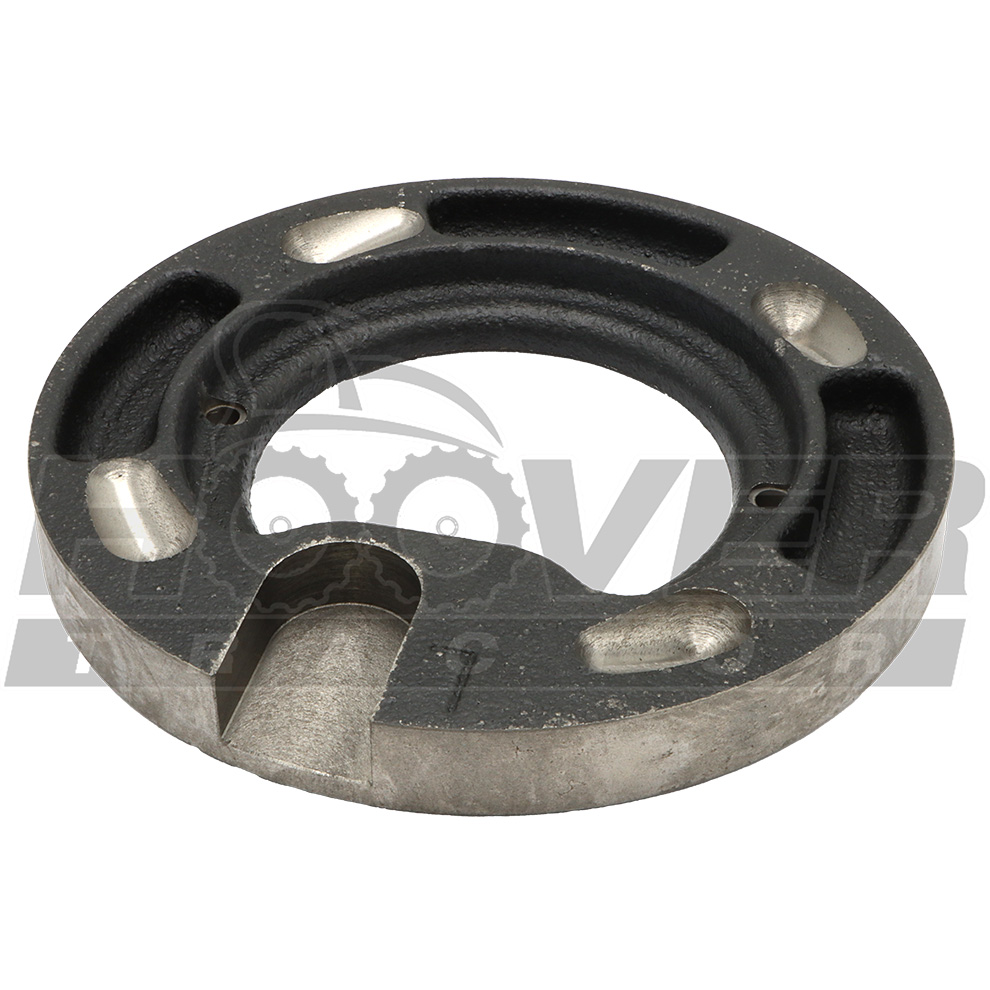

  • 2 PLATE,CAM LH

    PLATE,CAM LH

    • Part No. T2555-28341
    • 1 shown on diagram
    $66.99

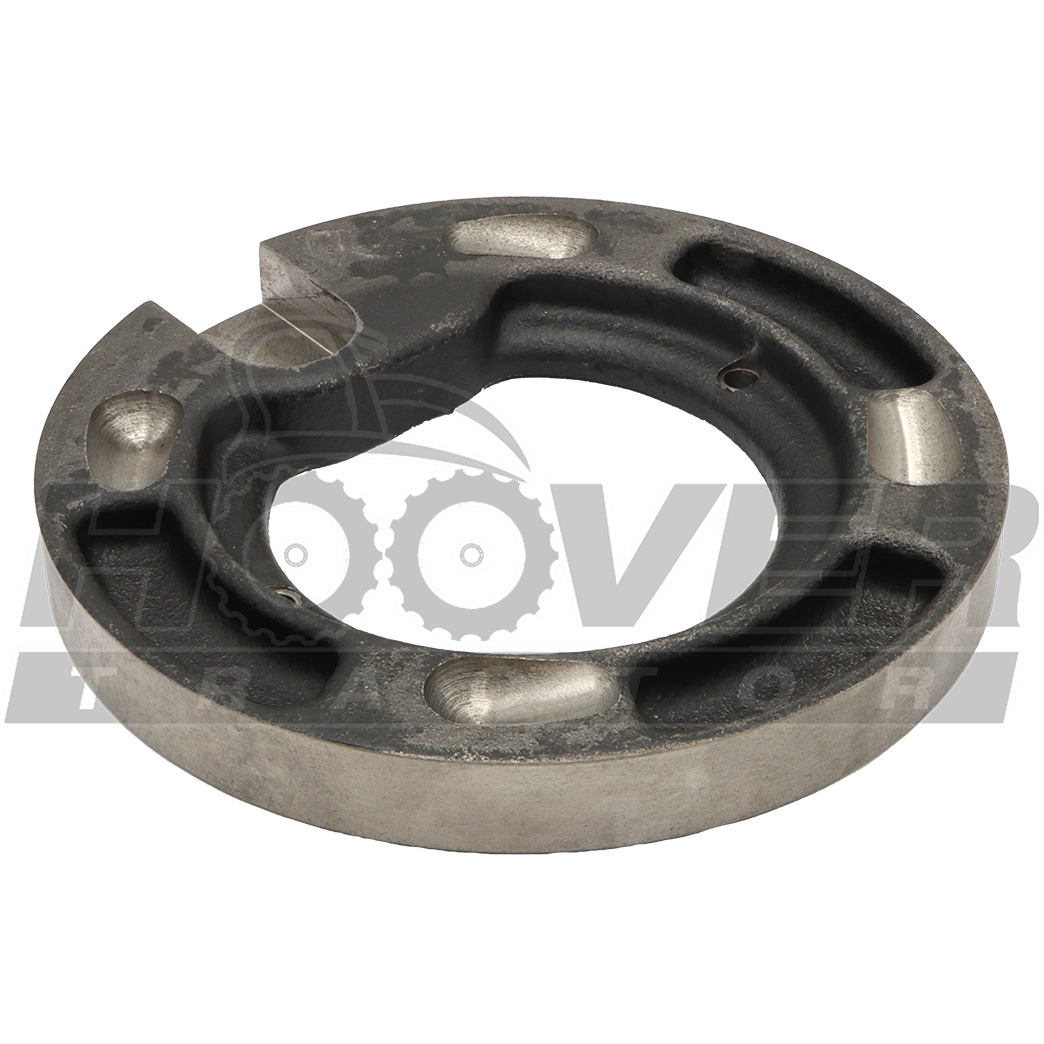

  • 3 PLATE,CAM RH

    PLATE,CAM RH

    • Part No. T2555-28351
    • 1 shown on diagram
    $53.99
  • 4

    CAM,BRAKE

    • Part No. T2555-28411
    • 2 shown on diagram
    $82.99
  • 5 O RING

    O RING

    • Part No. 04811-00210
    • DIA20.8
    • 2 shown on diagram
    $4.49
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 2 shown on diagram
    $1.09
  • 7

    OB BALL

    • Part No. 07715-03219
    • 19/32
    • 8 shown on diagram
    $4.99
  • 8 FRICTION SPRING

    FRICTION SPRING

    • Part No. T2555-28461
    • 4 shown on diagram
    $14.99
  • 9

    HOLDING, SPRING

    • Part No. T2555-28471
    • 2 shown on diagram
    $11.99

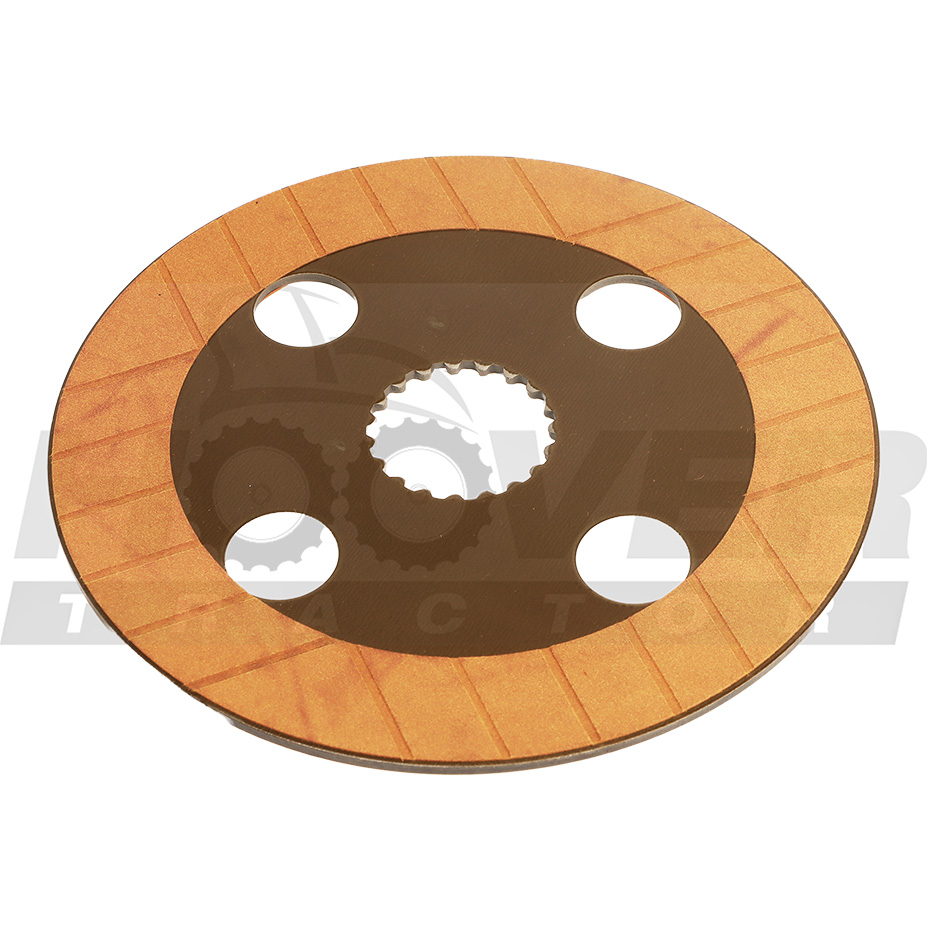

  • 10 BREAK DISC

    BREAK DISC

    • Part No. T2555-28421
    • 4 shown on diagram
    $42.99

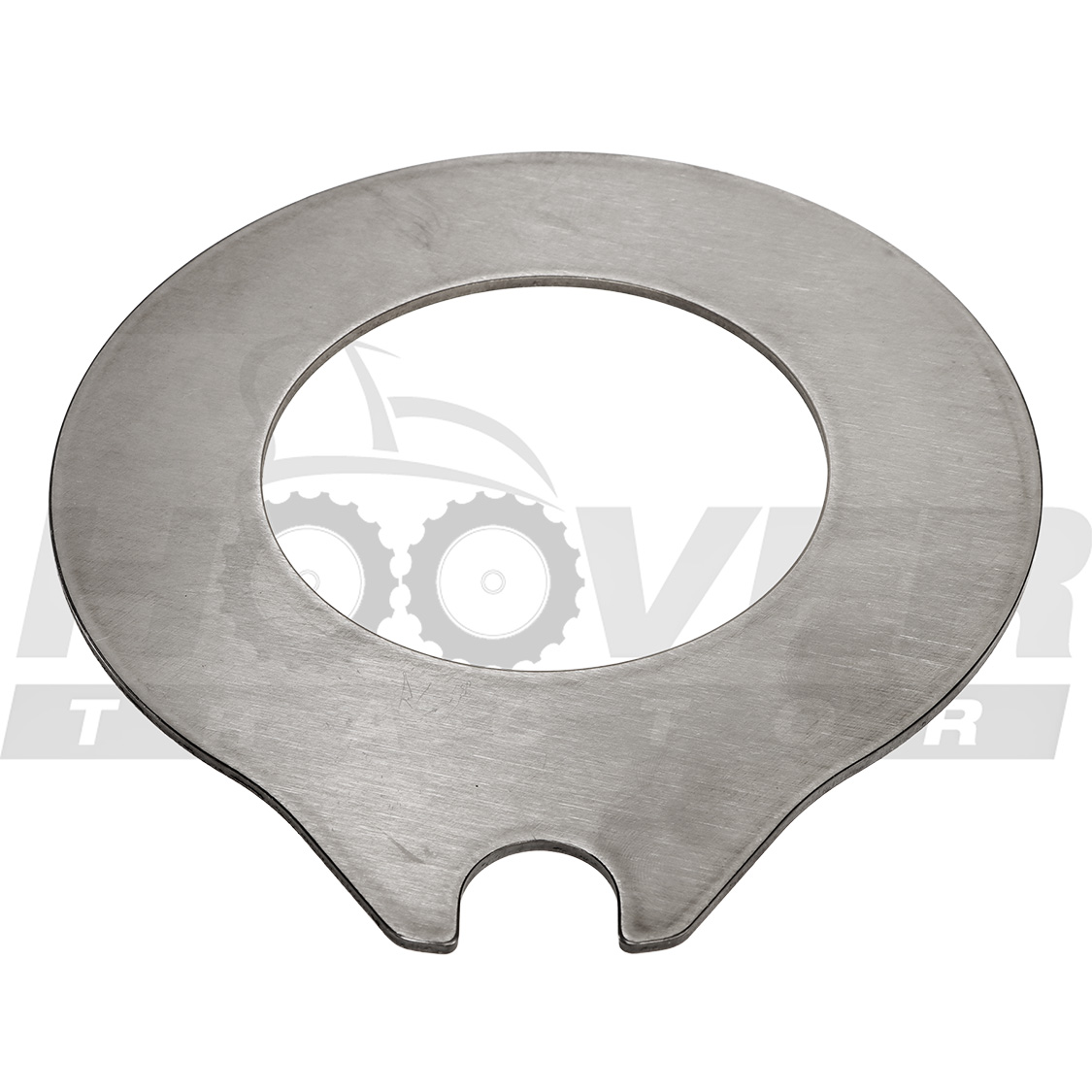

  • 11 PLATE,BRAKE

    PLATE,BRAKE

    • Part No. T2555-28381
    • 4 shown on diagram
    $59.99
  • 12

    PIN

    • Part No. T2555-28441
    • * multiple options for #12
    • 2 shown on diagram
    $13.99
  • 12

    PIN

    • Part No. T2555-28442
    • Compatibility Call for compat
    • * multiple options for #12
    • 2 shown on diagram
    $13.99
  • 13 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 8 shown on diagram
    $2.99
  • 14

    WASHER BOLT v

    • Part No. 01133-51040
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 15 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 4 shown on diagram
    $0.98
  • 16 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
