SEAT, GROUP - T2555-G432

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

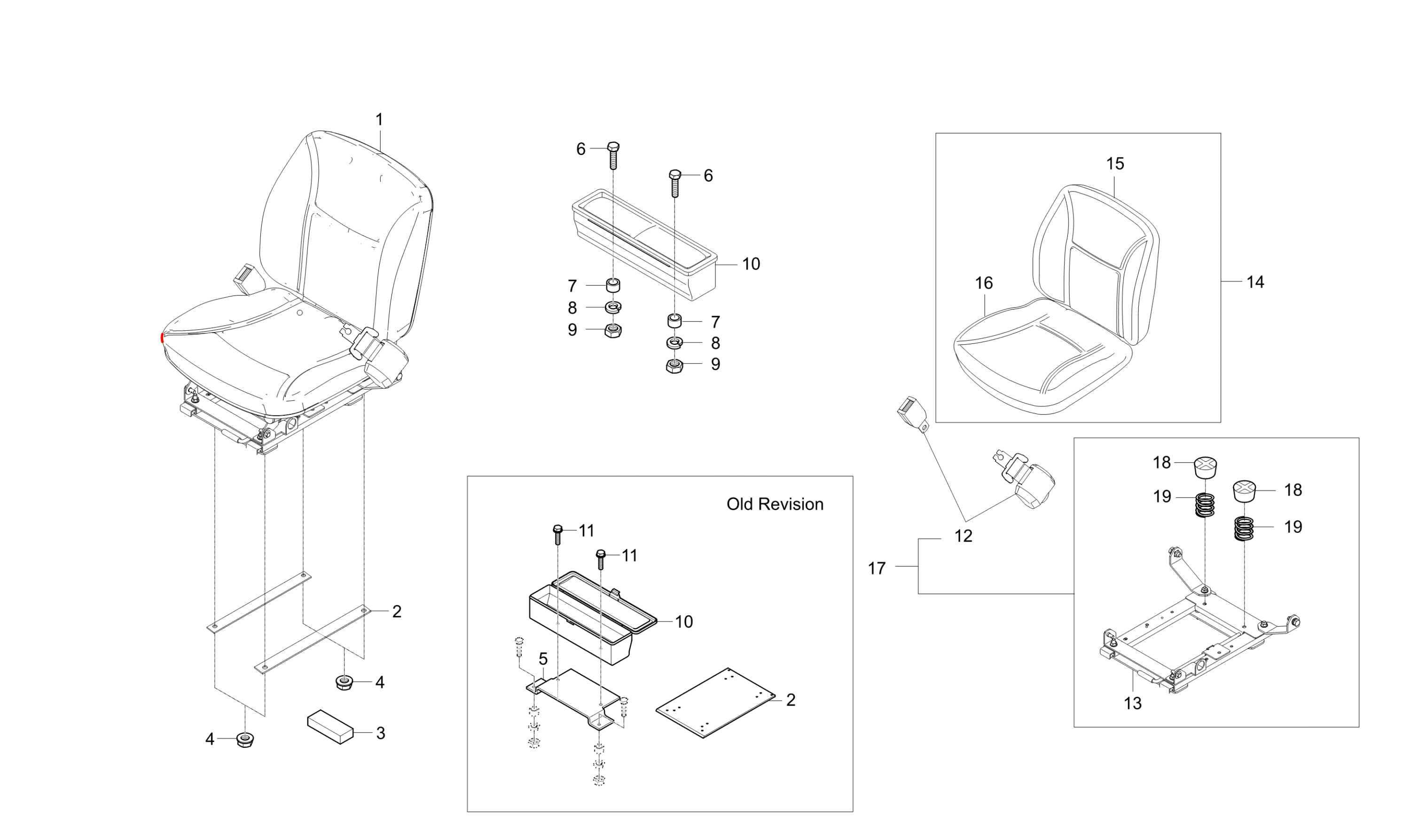

Diagram for SEAT, GROUP - T2555-G432
  • 1

    ASS’Y, SEAT

    • Part No. T2555-70701
    • * multiple options for #1
    • 1 shown on diagram
    $1,809.99
  • 1

    SEAT ASSY

    • Part No. T2555-70702
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $1,409.99
  • 2

    PLATE, SEAT FLOOR-1 dnr v

    • Part No. T2555-70752
    • T2.3
    • 1 shown on diagram
    $25.99
  • 3

    RUBBER, CUSHION

    • Part No. T2555-70792
    • 1 shown on diagram
    $9.99
  • 4 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.67
  • 5

    PLATE, HOLDER

    • Part No. T2555-70313
    • 1 shown on diagram
    $21.99
  • 6

    BOLT v

    • Part No. 01173-51230
    • M12P1.25*30
    • 2 shown on diagram
    $4.49
  • 7

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 2 shown on diagram
    $4.49
  • 8 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 9 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 10

    TOOL BOX

    • Part No. T4930-70492
    • * multiple options for #10
    • 1 shown on diagram
    $25.99
  • 10

    BOX, TOOL

    • Part No. T4930-70493
    • Compatibility Interchngable
    • * multiple options for #10
    • 1 shown on diagram
    $25.99
  • 11 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79

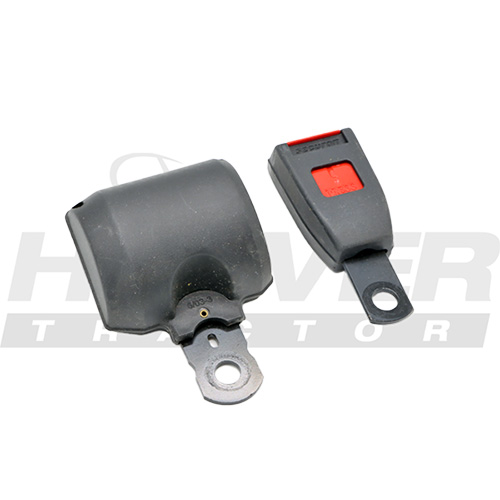

  • 12 SEAT BELT ASSY CS2410

    SEAT BELT ASSY CS2410

    • Part No. T2555-70641
    • * multiple options for #12
    • 1 shown on diagram
    $324.99
  • 12 SEAT BELT ASSY CS2410

    SEAT BELT ASSY CS2410

    • Part No. T2555-70641
    • Compatibility Interchngable
    • * multiple options for #12
    • 1 shown on diagram
    $324.99
  • 13

    SUSPENSION ASSY CS2410 v

    • Part No. T2555-70631
    • * multiple options for #13
    • 1 shown on diagram
    $1,049.99
  • 13

    SUSPENSION ASSY

    • Part No. T2555-70632
    • Compatibility No interchange
    • * multiple options for #13
    • 1 shown on diagram
    $999.99
  • 14

    SEAT BODY ASSY CS2410

    • Part No. T2555-70601
    • 1 shown on diagram
    $1,109.99
  • 15

    SEAT BACK ASSY CS2410

    • Part No. T2555-70621
    • 1 shown on diagram
    $289.99
  • 16

    SEAT CUSHION CS2410

    • Part No. T2555-70611
    • 1 shown on diagram
    $329.99
  • 17

    ASSY SUPPORT

    • Part No. T2555-70681
    • 1 shown on diagram
    $764.99

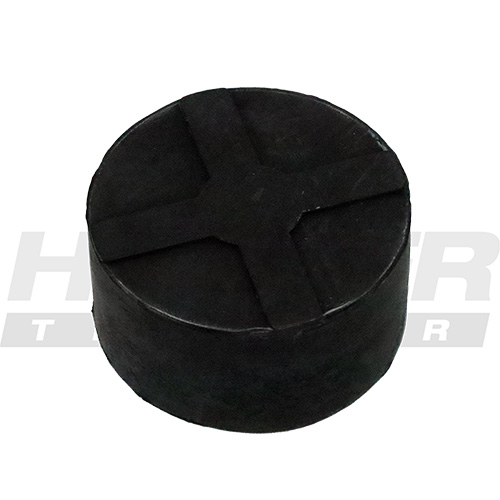

  • 18 RUBBER

    RUBBER

    • Part No. T2615-18501023
    • 2 shown on diagram
    $25.99
  • 19

    SPRING

    • Part No. T2615-18501022
    • 2 shown on diagram
    $25.99
  • 20 Bolt, Flange M8 P1.25

    Bolt, Flange M8 P1.25

    • Part No. 01754-50830
    • M8XP1.25
    • 2 shown on diagram
    $1.89
  • 21 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
