FILTER AND PIPE GROUP - T2555-G625

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

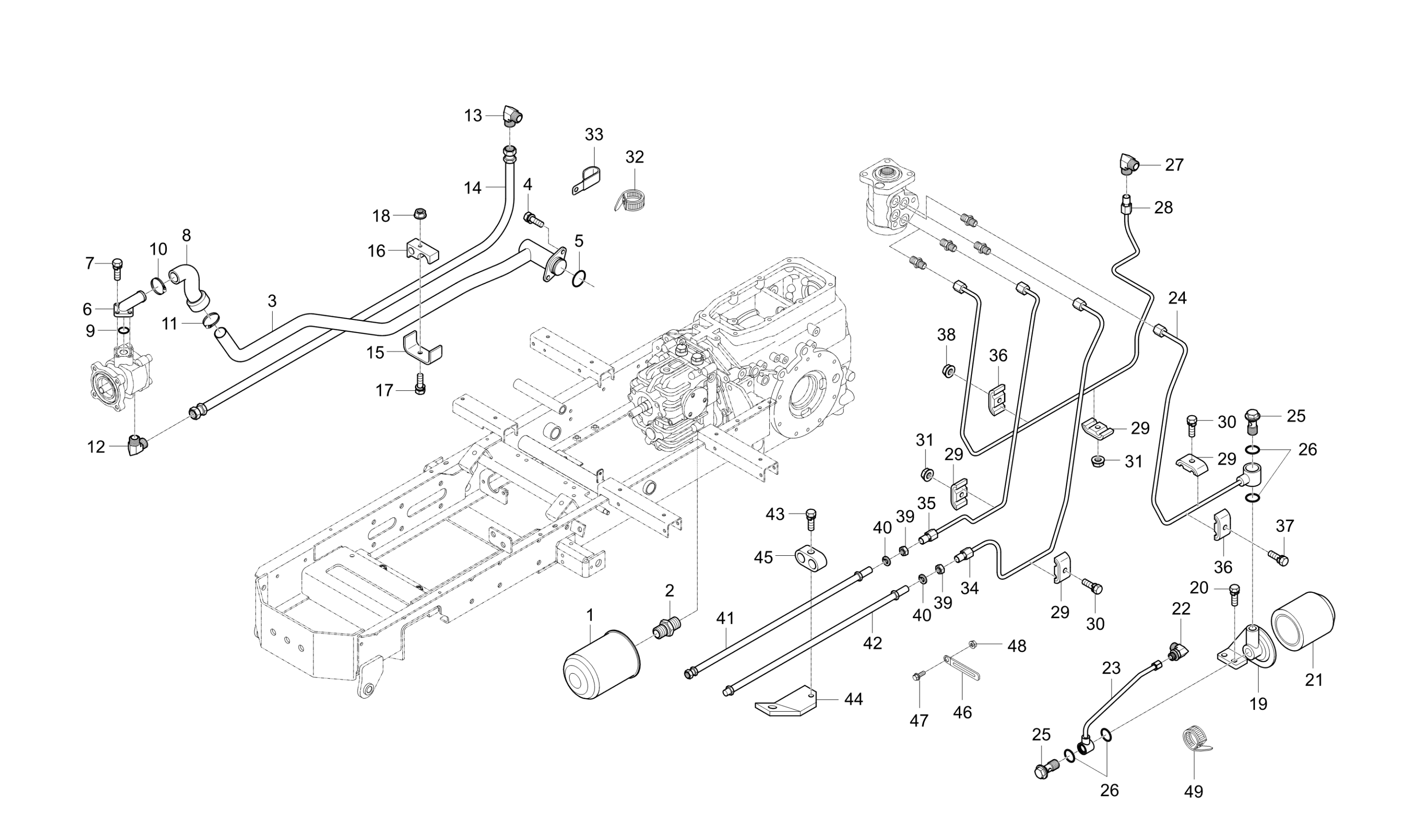

Diagram for FILTER AND PIPE GROUP - T2555-G625
  • 1 Hydraulic Filter

    Hydraulic Filter

    • Part No. T2555-38031
    • 1 shown on diagram
    $34.99
  • 2

    CONNECTION

    • Part No. T2555-38041
    • 1 shown on diagram
    $33.99
  • 3

    TUBE, INLET

    • Part No. T2555-38053
    • 1 shown on diagram
    $119.99
  • 4 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 5 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 1 shown on diagram
    $0.96
  • 6

    FLANGE

    • Part No. T2555-38061
    • 1 shown on diagram
    $31.99
  • 7

    BOLT, WASHER

    • Part No. 01023-50620
    • M6XP1.0
    • 3 shown on diagram
    $1.39
  • 8

    HOSE, INLET

    • Part No. T2555-38071
    • 1 shown on diagram
    $25.99
  • 9 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 1 shown on diagram
    $1.19
  • 10

    CLMAP, HOSE

    • Part No. 09318-87032
    • 1 shown on diagram
    $3.99
  • 11

    CLMAP, HOSE

    • Part No. 09318-87040
    • 1 shown on diagram
    $4.49
  • 12

    ELBOW

    • Part No. T4850-45161
    • 1 shown on diagram
    $36.99
  • 13

    ELBOW v

    • Part No. T2555-38402
    • Applied Dates 2012-04-01 and up
    • 1 shown on diagram
    $27.99
  • 14

    OIL HOSE v

    • Part No. T2555-38083
    • 1 shown on diagram
    $134.99
  • 15

    CLAMP

    • Part No. T2555-38201
    • 1 shown on diagram
    $8.49
  • 16

    HOLDER, TUBE

    • Part No. T2555-38212
    • 1 shown on diagram
    $9.99
  • 17 Bolt With Washers, M8 P1.25 x 50mm

    Bolt With Washers, M8 P1.25 x 50mm

    • Part No. 01125-50850
    • M8XP1.25
    • 1 shown on diagram
    $2.99
  • 18

    NUT, FLANGE v

    • Part No. 02761-50080
    • 1 shown on diagram
    $0.56

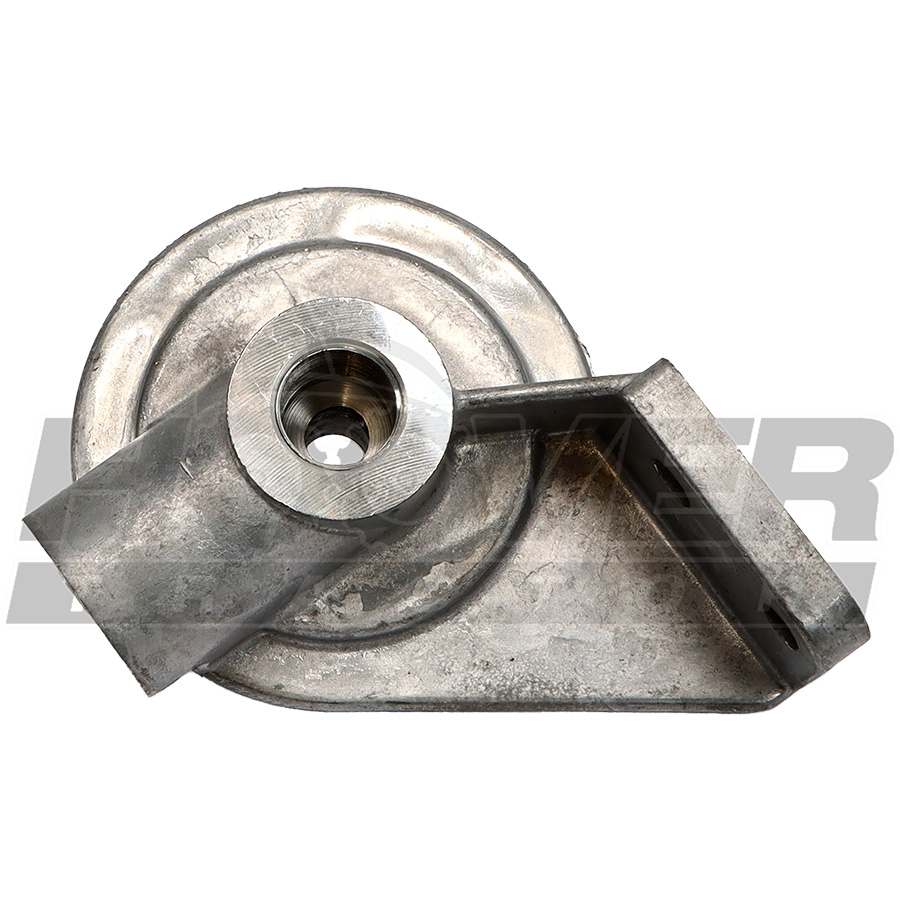

  • 19 BRACKET; HST FILTER

    BRACKET; HST FILTER

    • Part No. T2555-38091
    • 1 shown on diagram
    $91.99
  • 20 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 21 Hydrostatic Transmission Filter

    Hydrostatic Transmission Filter

    • Part No. T2555-38021
    • 1 shown on diagram
    $24.99
  • 22

    ELBOW

    • Part No. T4420-37361
    • 1 shown on diagram
    $38.99

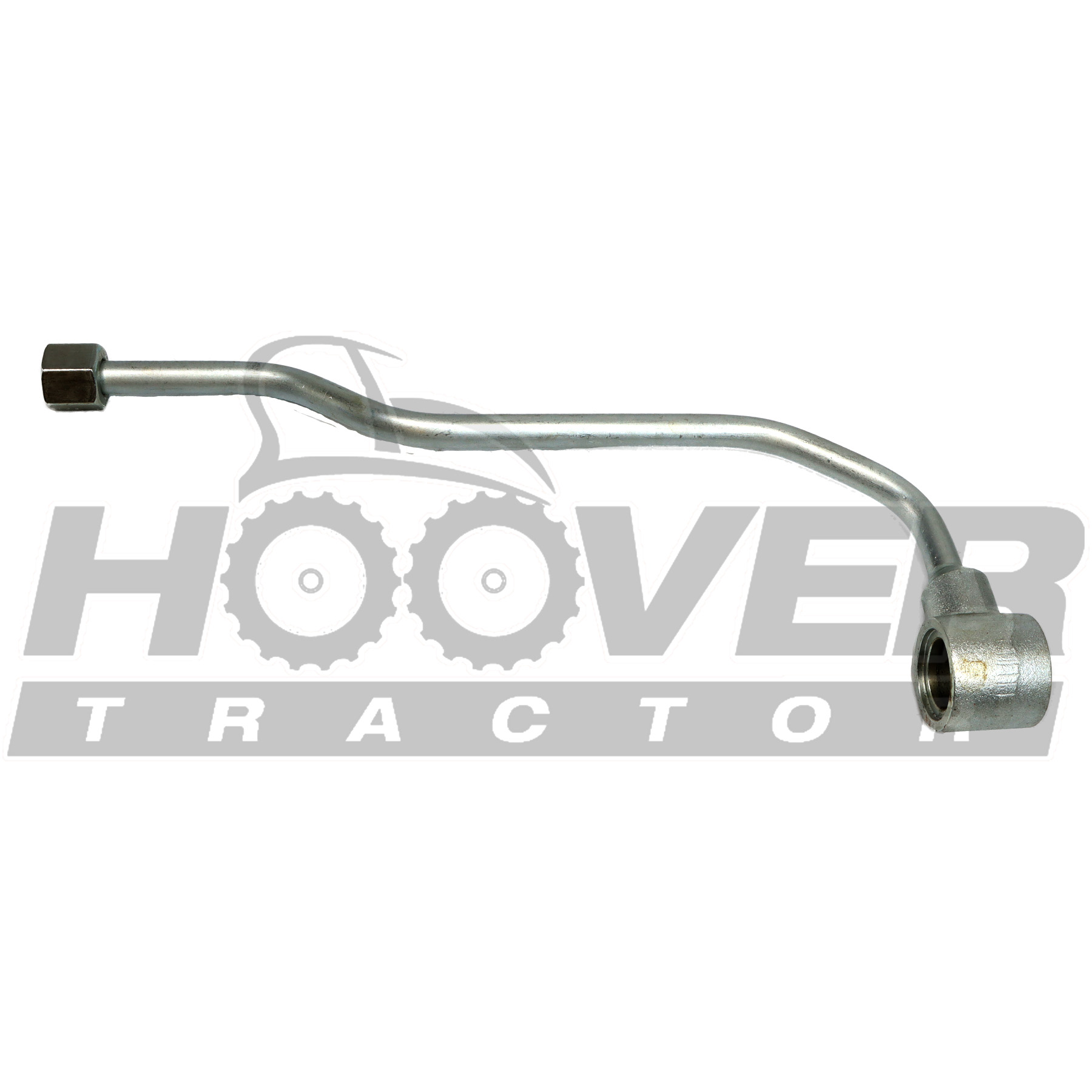

  • 23 TUBE, HST CHARGE

    TUBE, HST CHARGE

    • Part No. T2555-38222
    • 1 shown on diagram
    $92.99

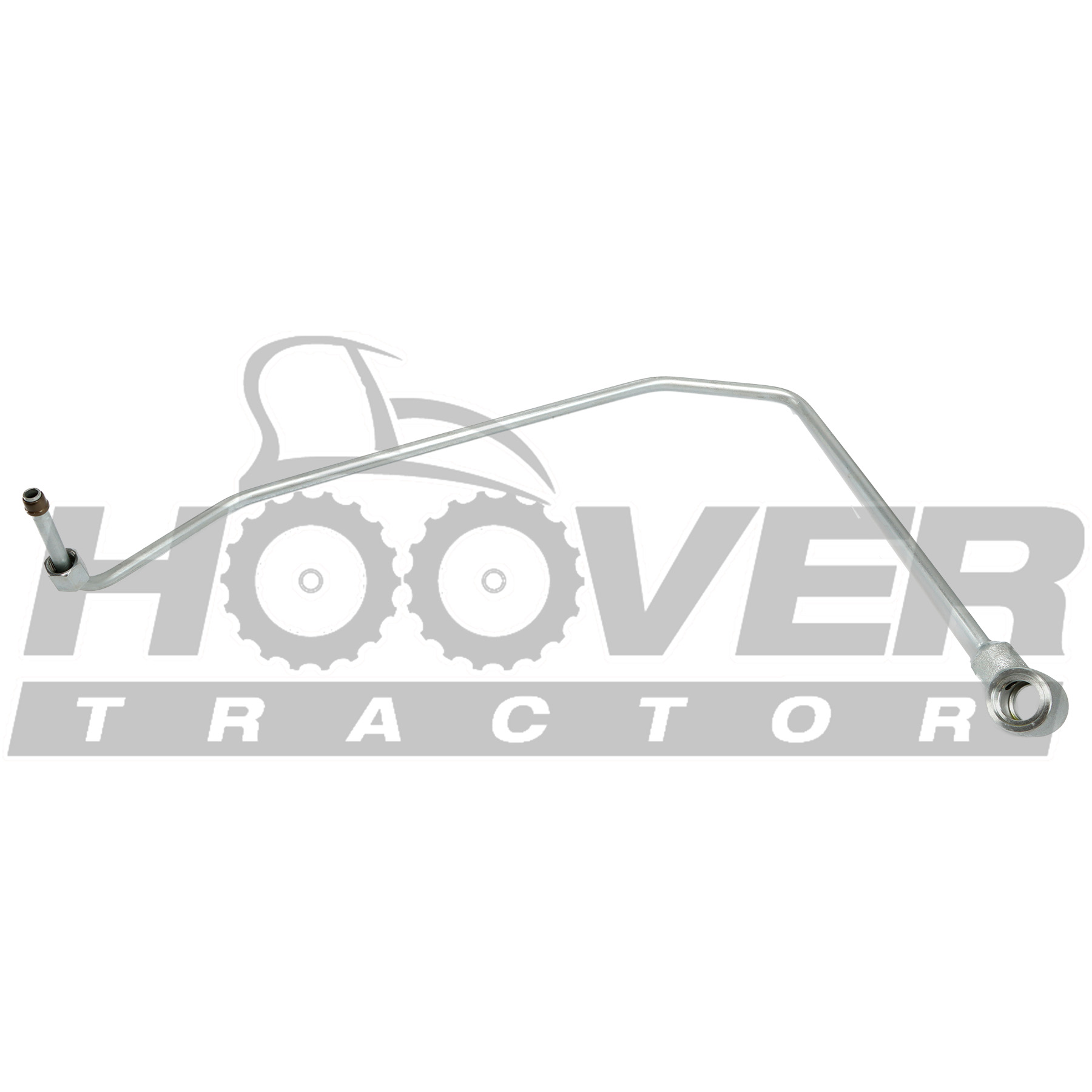

  • 24 TUBE T, HYDRAULIC

    TUBE T, HYDRAULIC

    • Part No. T2555-36042
    • 1 shown on diagram
    $114.99
  • 25 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 2 shown on diagram
    $21.99
  • 26 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 27

    ELBOW v

    • Part No. T2555-37202
    • Applied Dates 2012-04-01 and up
    • 1 shown on diagram
    $19.99

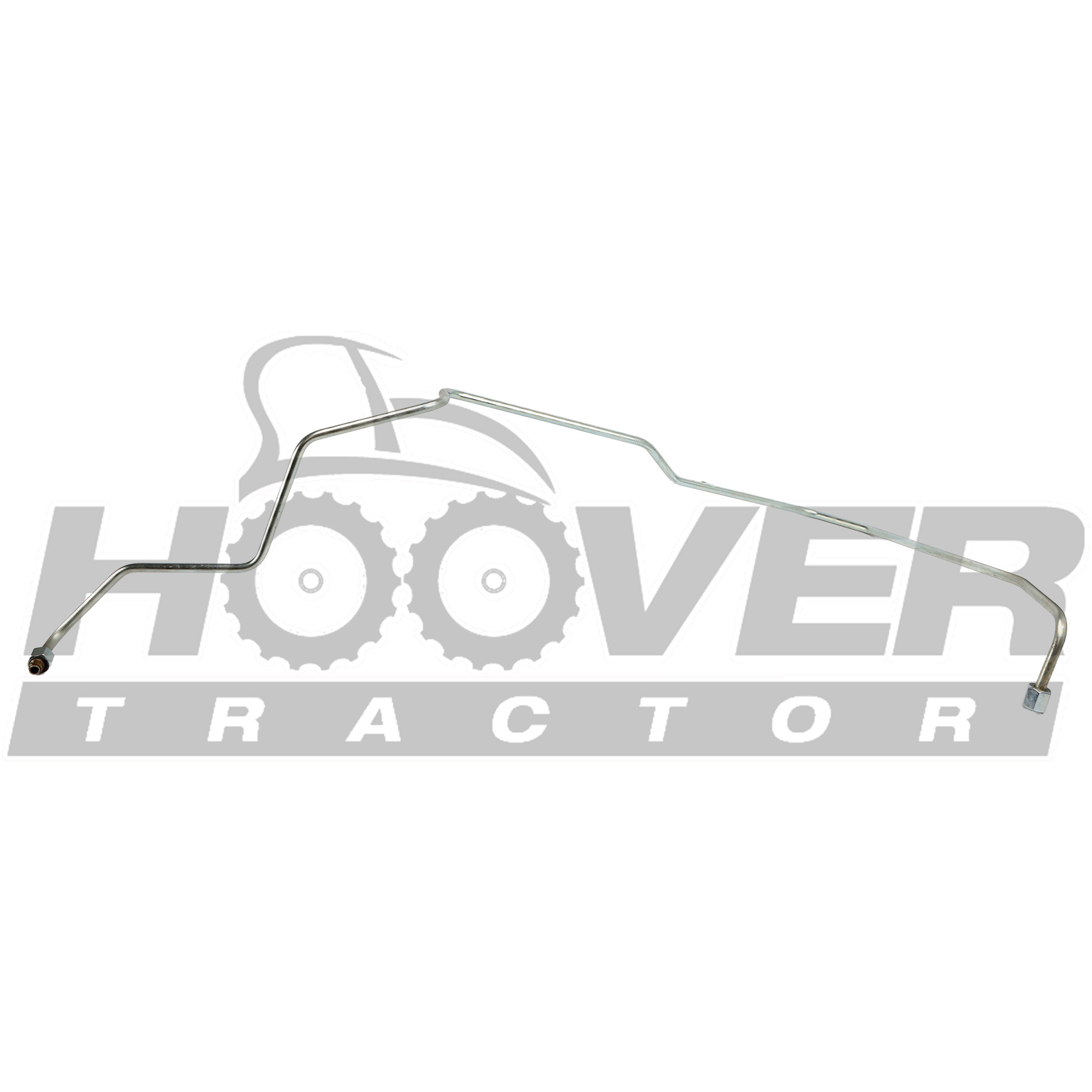

  • 28 HYD. TUBE P

    HYD. TUBE P

    • Part No. T2555-36011
    • 1 shown on diagram
    $95.99
  • 29

    HOLDER, TUBE

    • Part No. T2555-36101
    • 4 shown on diagram
    $12.99
  • 30

    FLANGE BOLT

    • Part No. 01754-50630
    • M6XP1.0
    • 2 shown on diagram
    $0.92
  • 31 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 32

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 2 shown on diagram
    $0.49
  • 33

    CLAMP

    • Part No. T2555-38301
    • 1 shown on diagram
    $4.99
  • 34

    TUBE, HYD dnr v

    • Part No. T2555-36022
    • * multiple options for #34
    • 1 shown on diagram
    $109.99
  • 34

    TUBE L, HYDRAULIC v

    • Part No. T2555-36023
    • Compatibility Interchngable
    • * multiple options for #34
    • 1 shown on diagram
    $109.99
  • 35

    TUBE R, HYDRAULIC

    • Part No. T2555-36032
    • * multiple options for #35
    • 1 shown on diagram
    $85.99
  • 35

    TUBE R, HYDRAULIC

    • Part No. T2555-36033
    • Compatibility Interchngable
    • * multiple options for #35
    • 1 shown on diagram
    $98.99
  • 36

    HOLDER, TUBE

    • Part No. T2555-36101
    • 2 shown on diagram
    $12.99
  • 37

    FLANGE BOLT

    • Part No. 01754-50630
    • M6XP1.0
    • 1 shown on diagram
    $0.92
  • 38 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 39 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 2 shown on diagram
    $1.79
  • 40

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.90

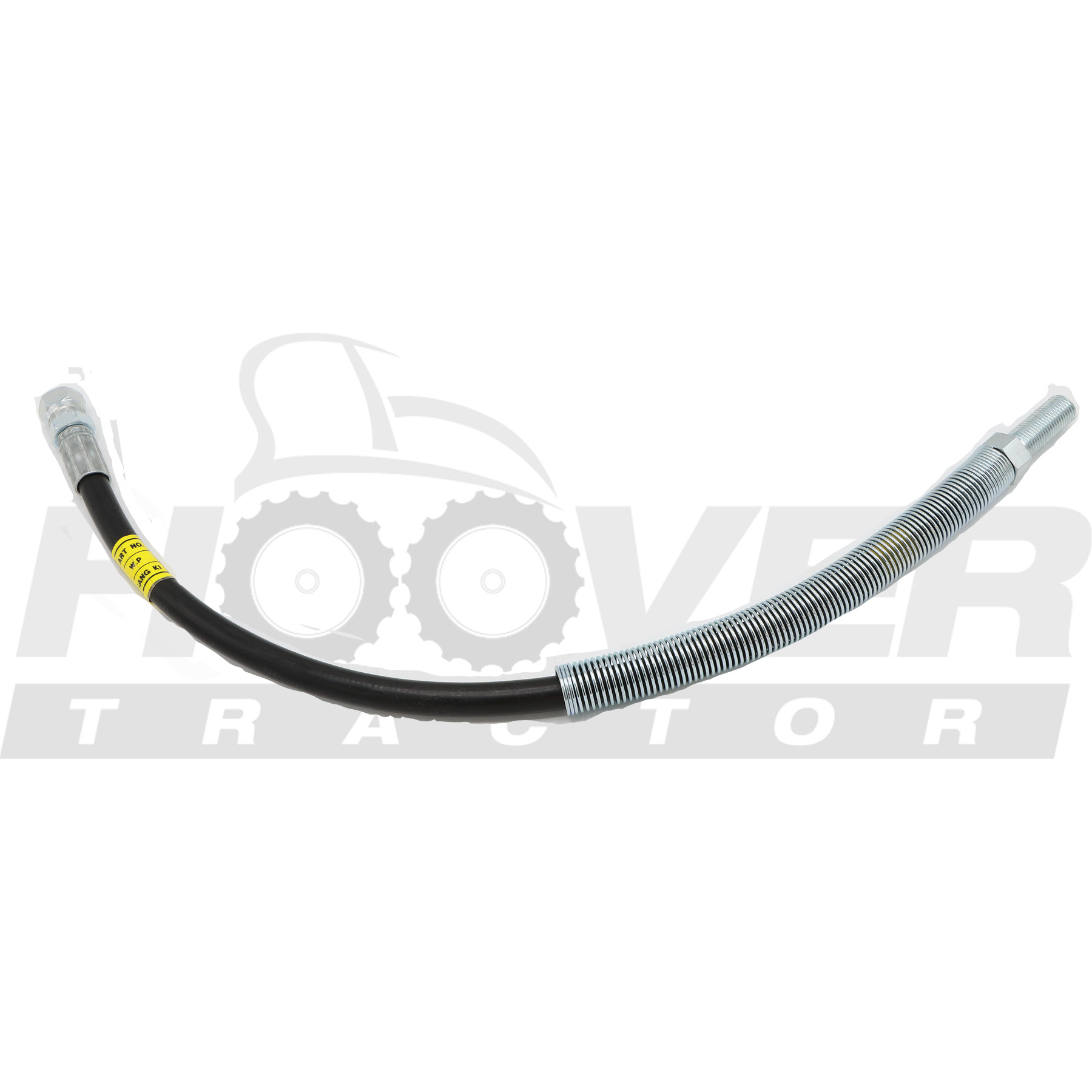

  • 41 HOSE L STEERING

    HOSE L STEERING

    • Part No. T2555-36122
    • 1 shown on diagram
    $75.99

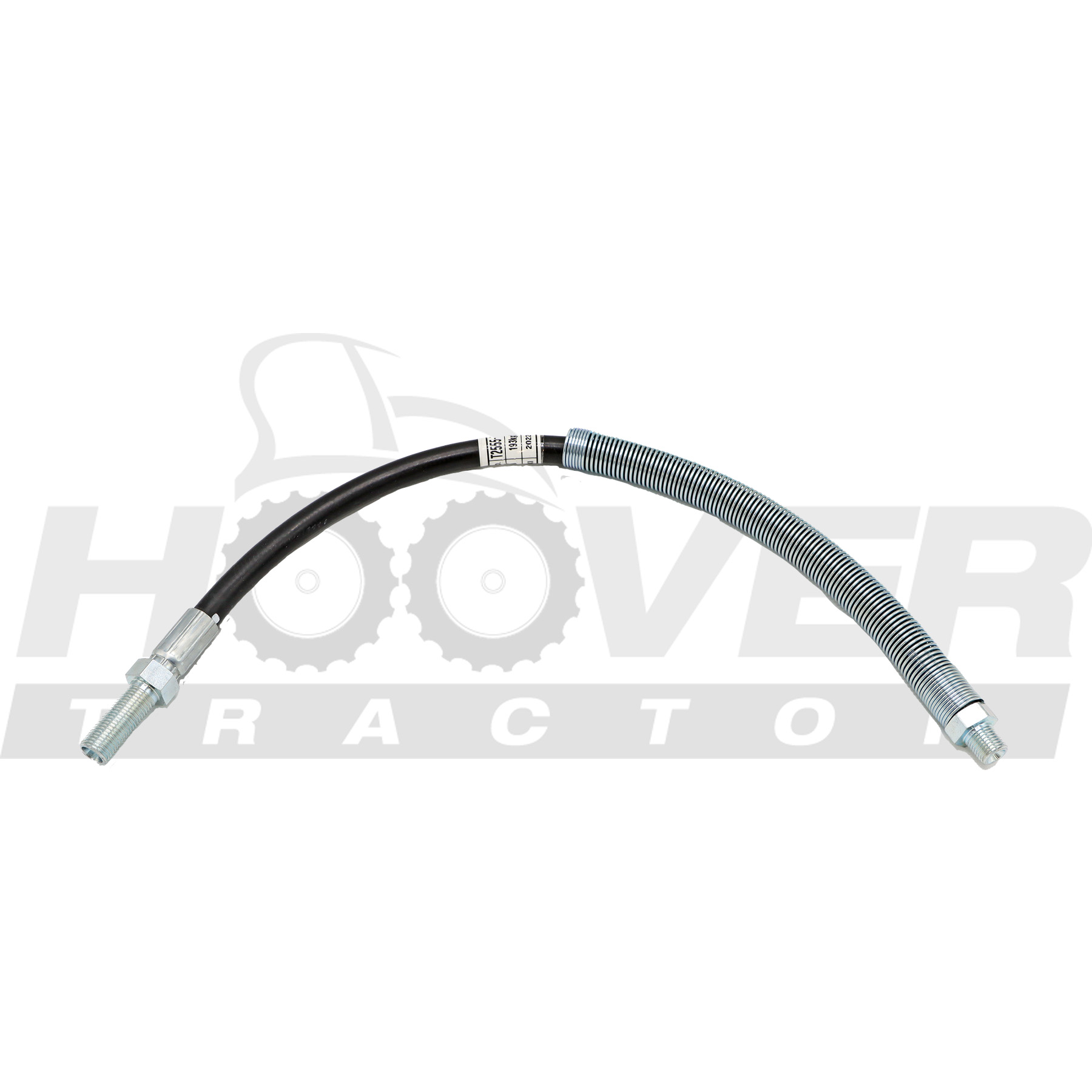

  • 42 HOSE R, STEERING

    HOSE R, STEERING

    • Part No. T2555-36134
    • 1 shown on diagram
    $83.99
  • 43

    BOLT

    • Part No. 01053-50635
    • M6*P1.0
    • 1 shown on diagram
    $1.59
  • 44

    INCERT BOLT

    • Part No. T2555-36141
    • 1 shown on diagram
    $5.99
  • 45

    HOLDER, HOSE

    • Part No. T2555-36151
    • 1 shown on diagram
    $2.49
  • 46

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 2 shown on diagram
    $4.99
  • 47 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 48

    NUT

    • Part No. 02771-50100
    • M10*1.25
    • 2 shown on diagram
    $0.73
  • 49

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 1 shown on diagram
    $0.49
