CRUISE OPTION GROUP - T2555-G741

Kioti TRACTOR | CS Series | CS2210 (WY8200001 and up)

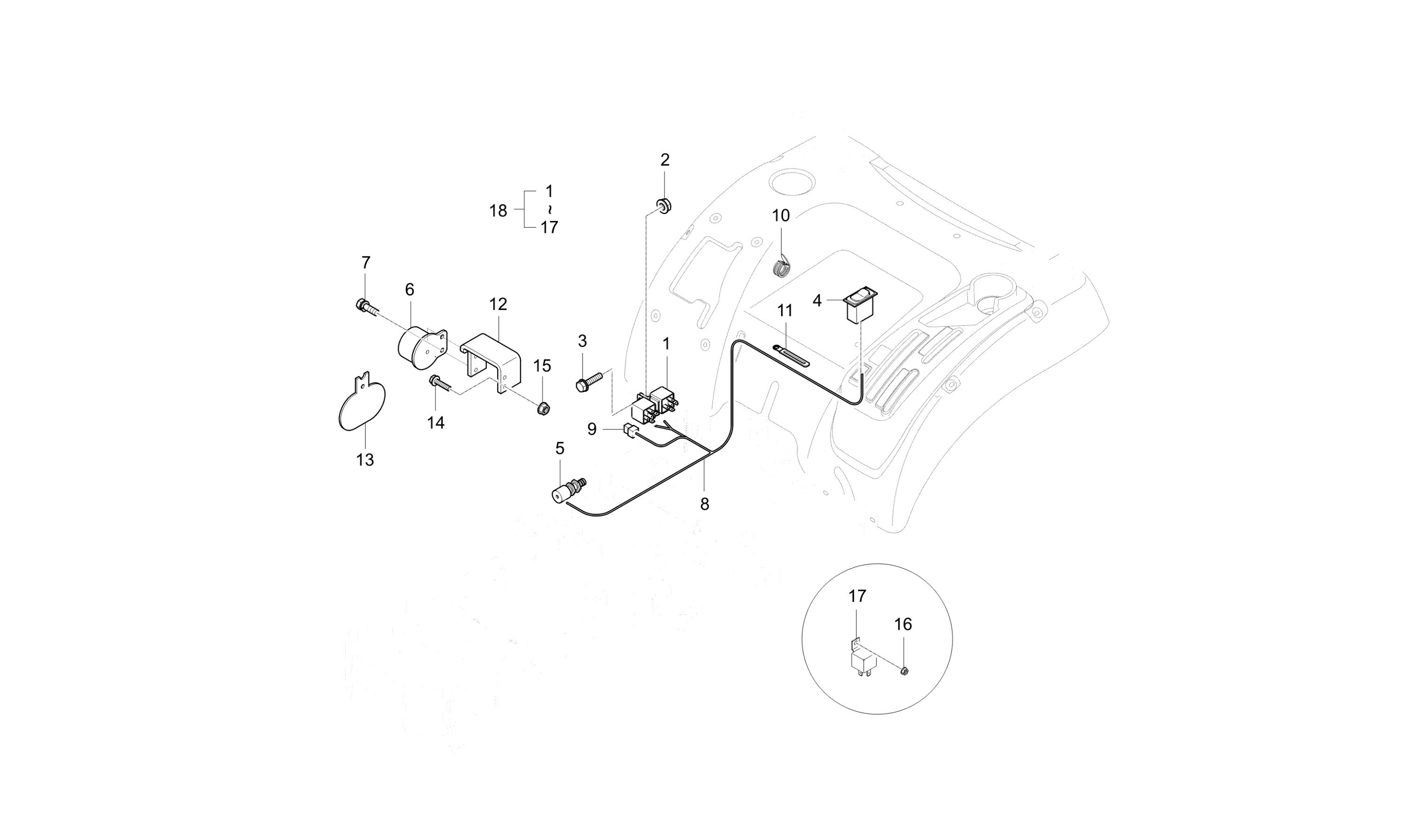

Diagram for CRUISE OPTION GROUP - T2555-G741
  • 1 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Bracket
    • 2 shown on diagram
    $19.99
  • 2 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 4

    ASSY SWITCH, CRUISE

    • Part No. TC25-0058A
    • 1 shown on diagram
    $64.99
  • 5 SWITCH

    SWITCH

    • Part No. C7110-42862
    • 1 shown on diagram
    $63.99
  • 6

    CRUISE MAGNET V

    • Part No. T4158-68701
    • 1 shown on diagram
    $224.99
  • 7 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 8

    HARNESS ASSEMBLY

    • Part No. T2555-69452
    • 1 shown on diagram
    $68.99
  • 9 DIODE 2P

    DIODE 2P

    • Part No. T4620-69331
    • 800V,3.0A
    • 1 shown on diagram
    $11.99
  • 10

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 5 shown on diagram
    $1.29
  • 11

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 12

    BRACKET

    • Part No. T2555-62212
    • 1 shown on diagram
    $19.99
  • 13

    PLATE

    • Part No. T2555-62232
    • 1 shown on diagram
    $25.99
  • 14 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 15

    NUT, FLANGE v

    • Part No. 02761-50080
    • 4 shown on diagram
    $0.56
  • 16 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 17 RELAY 5P, Replaced by T5535-69961

    RELAY 5P, Replaced by T5535-69961

    • Part No. T4180-69961
    • 2 shown on diagram
    $0.00
  • 18

    Cruise Control Kit

    • Part No. T2555-A06061103
    • 1 shown on diagram
    $0.00
