ASSY, LOADER - TB200HC-T2230A

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

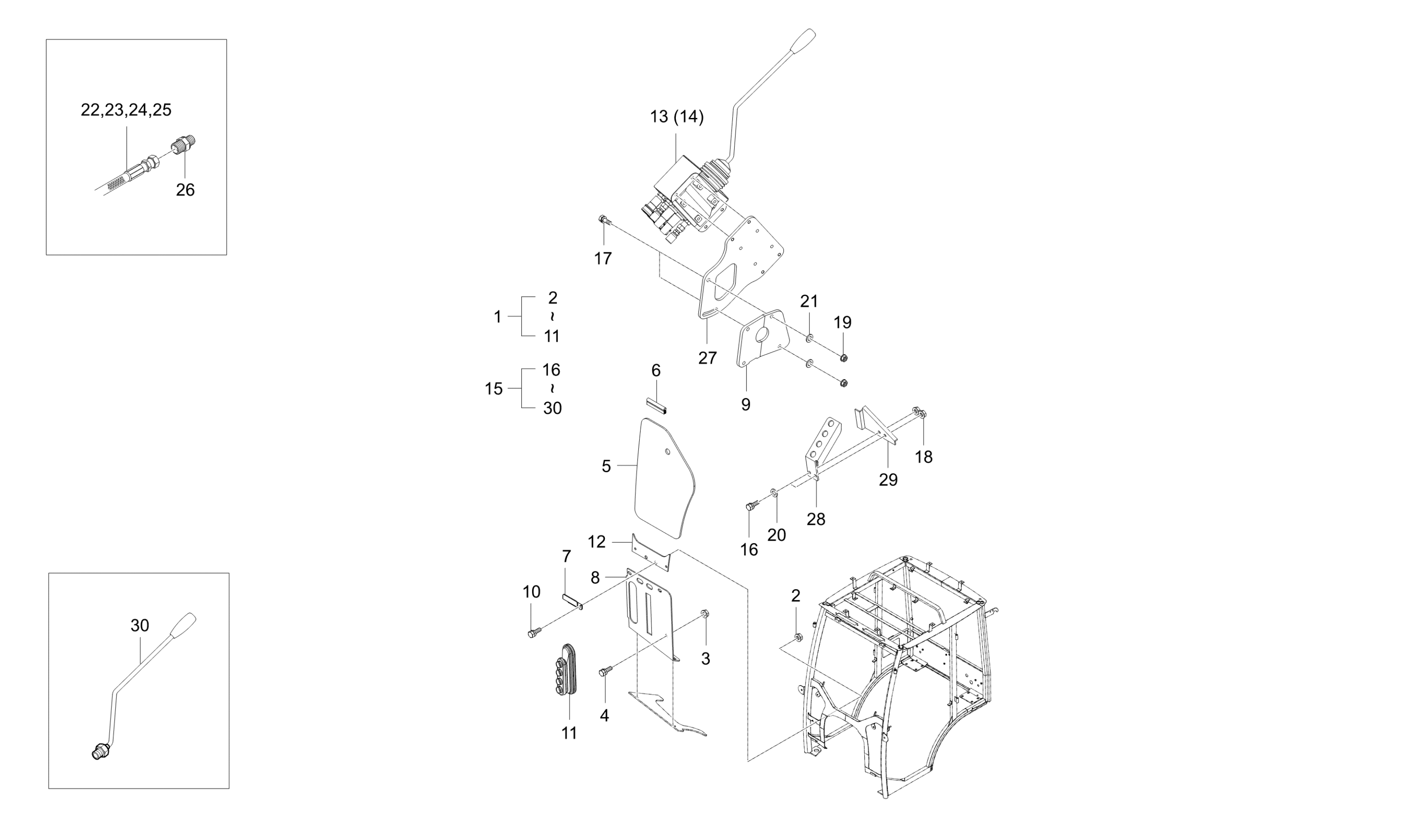

Diagram for ASSY, LOADER - TB200HC-T2230A
  • 1

    LOADER OPTION KIT

    • Part No. T2555-88912
    • 1 shown on diagram
    $0.00
  • 2 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.67
  • 3

    NUT, FLANGE v

    • Part No. 02761-50080
    • 1 shown on diagram
    $0.56
  • 4

    Bolt

    • Part No. T2185-70491
    • 1 shown on diagram
    $1.59
  • 5

    GLASS

    • Part No. T2555-88921
    • 1 shown on diagram
    $95.99
  • 6

    RUBBER

    • Part No. T2555-88931
    • 1 shown on diagram
    $31.99
  • 7

    PLATE

    • Part No. T2555-88951
    • 1 shown on diagram
    $66.99
  • 8

    BRACKET

    • Part No. T2555-88961
    • 1 shown on diagram
    $14.99
  • 9

    BRACKET

    • Part No. T2555-88971
    • 1 shown on diagram
    $0.00
  • 10 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 11

    JOYSTICK JAVARA

    • Part No. T5715-83241
    • 1 shown on diagram
    $41.99
  • 12

    PLATE, BLOCK

    • Part No. TB26-0008A
    • * multiple options for #12
    • 1 shown on diagram
    $0.00
  • 12

    PLATE, BLOCK

    • Part No. TB26-0008B
    • Compatibility New repl old
    • * multiple options for #12
    • 1 shown on diagram
    $18.99
  • 13

    JOYSTICKLOADER KIT ASSY

    • Part No. T2555-A06071101
    • 1 shown on diagram
    $0.00
  • 14

    ASSY LEVER, JOYSTICK

    • Part No. TB26-0015A
    • 1 shown on diagram
    $0.00
  • 15

    JOYSTICK LOADER KIT ASSY FOC CS2410 dnr v

    • Part No. TB26-A0001A
    • * multiple options for #15
    • 1 shown on diagram
    $369.99
  • 15

    JOYSTICK OPTION KIT

    • Part No. TB26-A0001B
    • Compatibility New repl old
    • * multiple options for #15
    • 1 shown on diagram
    $0.00
  • 15

    JOYSTICK OPTION KIT

    • Part No. TB26-A0001C
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $0.00
  • 16 Bolt, Flange M8 P1.25

    Bolt, Flange M8 P1.25

    • Part No. 01754-50830
    • M8XP1.25
    • 2 shown on diagram
    $1.89
  • 17

    BOLT, FLANGE

    • Part No. 01774-51035
    • 2 shown on diagram
    $2.99
  • 18 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 19

    NUT

    • Part No. 02771-50100
    • M10*1.25
    • 2 shown on diagram
    $0.73
  • 20 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 21 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 22

    ASSY HOSE – 1

    • Part No. TB24-0001A
    • 1 shown on diagram
    $164.99
  • 23

    ASSY HOSE – 2

    • Part No. TB24-0007A
    • 1 shown on diagram
    $164.99
  • 24

    ASSY HOSE – 3

    • Part No. TB24-0010A
    • 1 shown on diagram
    $164.99
  • 25

    ASSY HOSE – 4

    • Part No. TB24-0013A
    • 1 shown on diagram
    $164.99
  • 26

    CONNECTOR

    • Part No. TB24-0016A
    • 4 shown on diagram
    $29.99
  • 27

    BRACKET, JOYSTICK VALVE

    • Part No. TB26-0018A
    • T9.0
    • 1 shown on diagram
    $81.99
  • 28

    BRACKET, COUPLER SOCKET

    • Part No. TB26-0019A
    • T4.5
    • 1 shown on diagram
    $44.99
  • 29

    BRACKET

    • Part No. TB26-0020A
    • 1 shown on diagram
    $37.99
  • 30

    ASSY LEVER

    • Part No. TB24-0019A
    • 1 shown on diagram
    $83.99
  • 31

    CONNECTOR

    • Part No. TB26-0357A
    • 1 shown on diagram
    $0.00
  • 32

    WASHER

    • Part No. TB26-0358A
    • 1 shown on diagram
    $0.00
