POWER STEERING UNIT GROUP - TC2-G431022

Kioti TRACTOR | CK Series | CK3520H

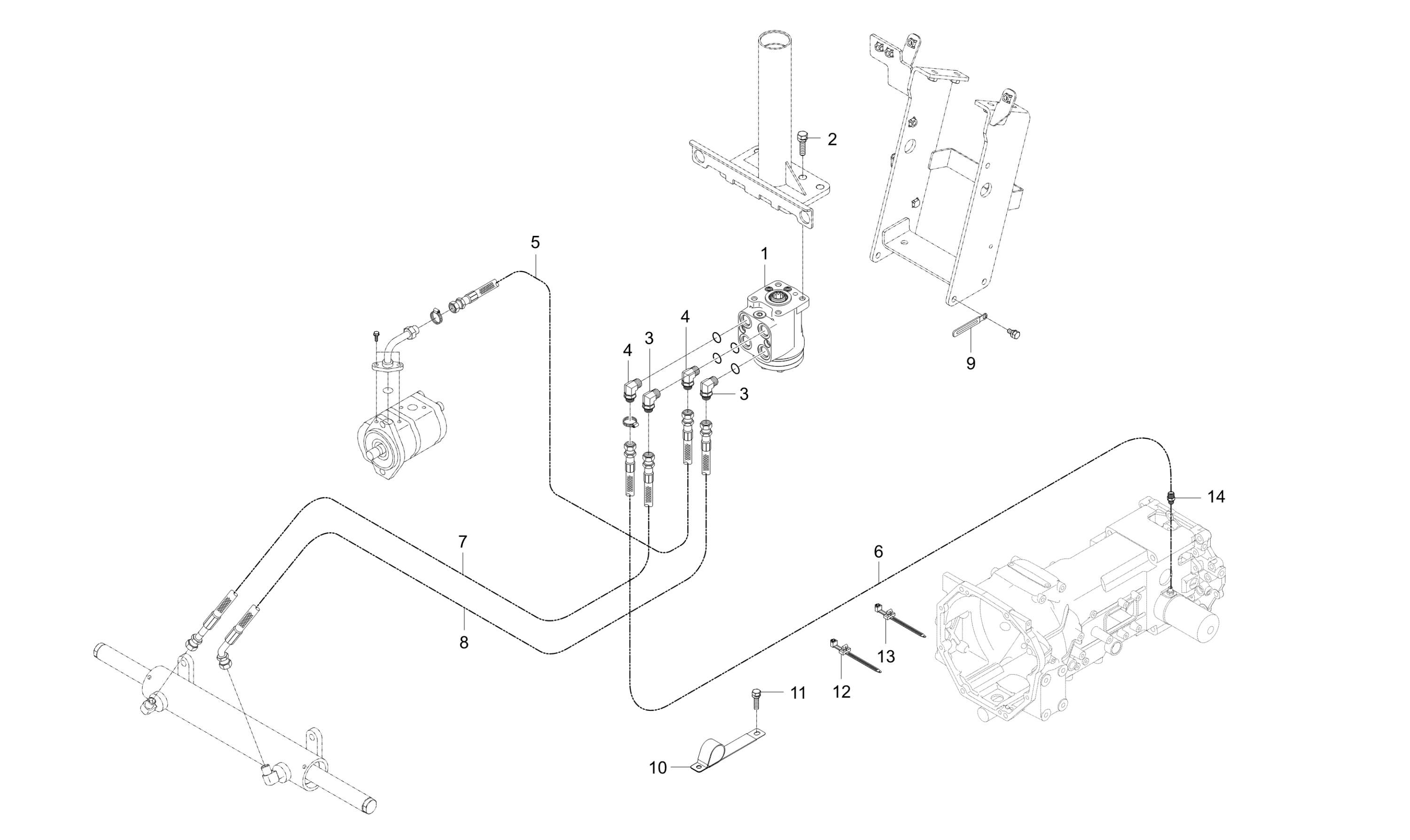

Diagram for POWER STEERING UNIT GROUP - TC2-G431022
  • 1

    UNIT, POWER STEERING

    • Part No. T5855-41501
    • 80cc/rev
    • 1 shown on diagram
    $959.99
  • 2

    Bolt With Washer, M10 P1.50 x 25mm

    • Part No. 01123-51025
    • M10X1.5
    • 4 shown on diagram
    $3.49
  • 3

    ELBOW

    • Part No. T4930-45681
    • PF1/4, 3/4-16UNF
    • 2 shown on diagram
    $29.99
  • 4

    ELBOW

    • Part No. T4930-45671
    • PF3/8, 3/4-16UNF
    • 2 shown on diagram
    $29.99
  • 5

    HOSE P, STEERING

    • Part No. T5855-41512
    • 1 shown on diagram
    $84.99
  • 6
    • Part No. T5855-41522
    • 1 shown on diagram
  • 7
    • Part No. T5855-41531
    • 1 shown on diagram
  • 8

    HOSE R, STEERING

    • Part No. T5855-41541
    • 1 shown on diagram
    $134.99
  • 9

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 10

    CLAMP, HOSE

    • Part No. T4686-50963
    • 1 shown on diagram
    $8.49
  • 11 Bolt With Washers, M8 P1.25 x 14mm

    Bolt With Washers, M8 P1.25 x 14mm

    • Part No. 01125-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 12

    BAND v

    • Part No. T2198-82571
    • 1 shown on diagram
    $1.99
  • 13

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 6 shown on diagram
    $1.29

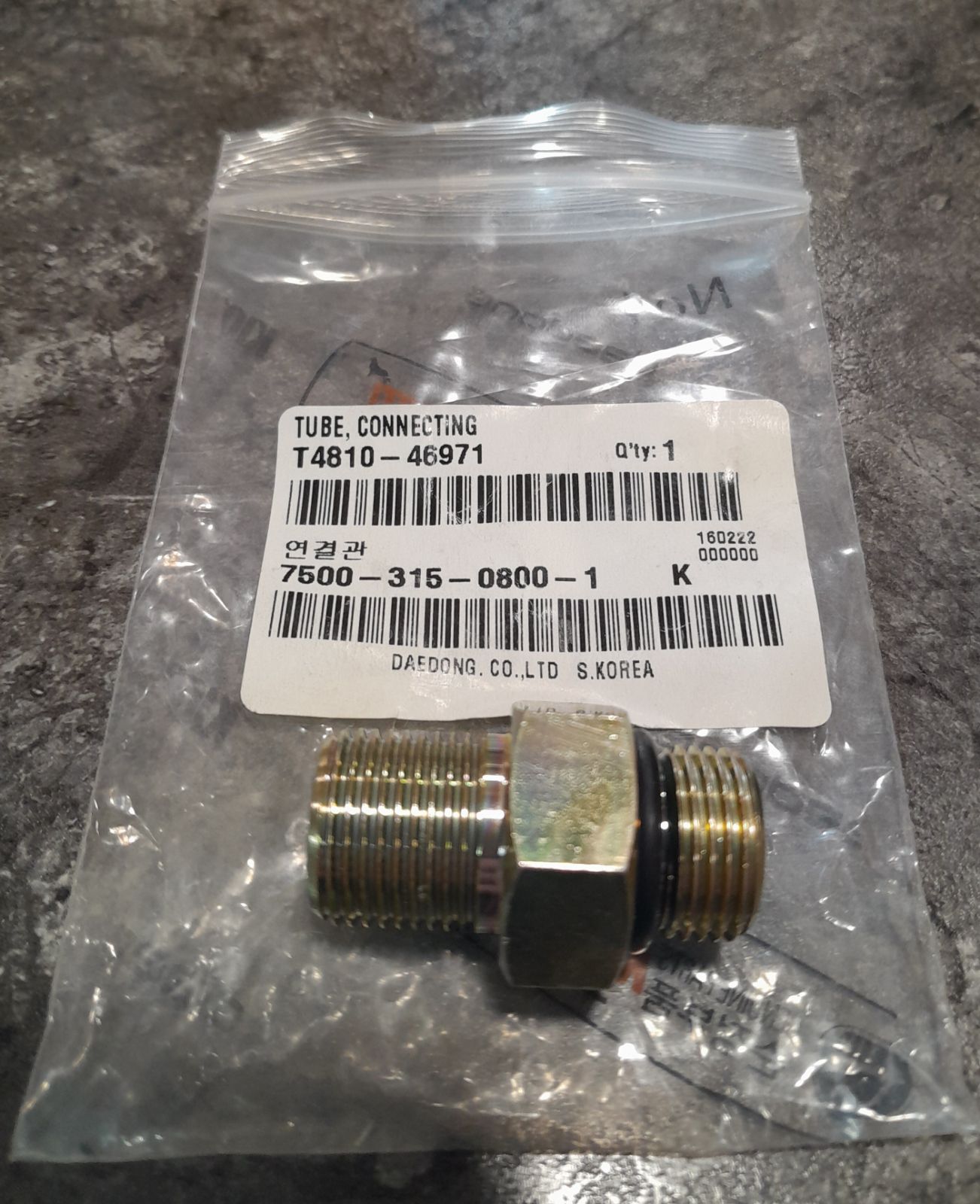

  • 14 CONNECTOR

    CONNECTOR

    • Part No. T4810-46971
    • 1 shown on diagram
    $15.99
