JOYSTICK VALVE GROUP(T4) - TC2-G441004

Kioti TRACTOR | CK Series | CK3520H

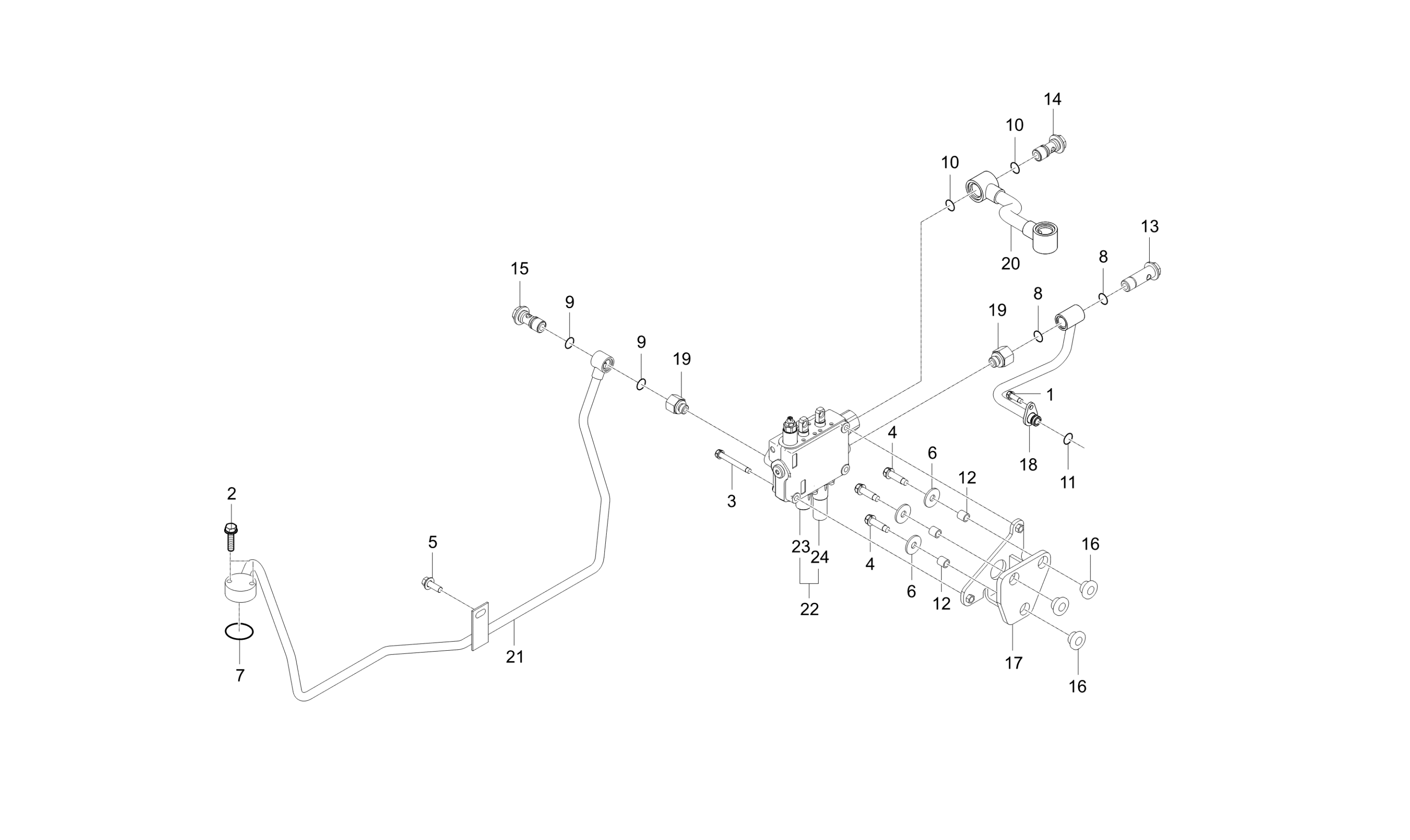

Diagram for JOYSTICK VALVE GROUP(T4) - TC2-G441004

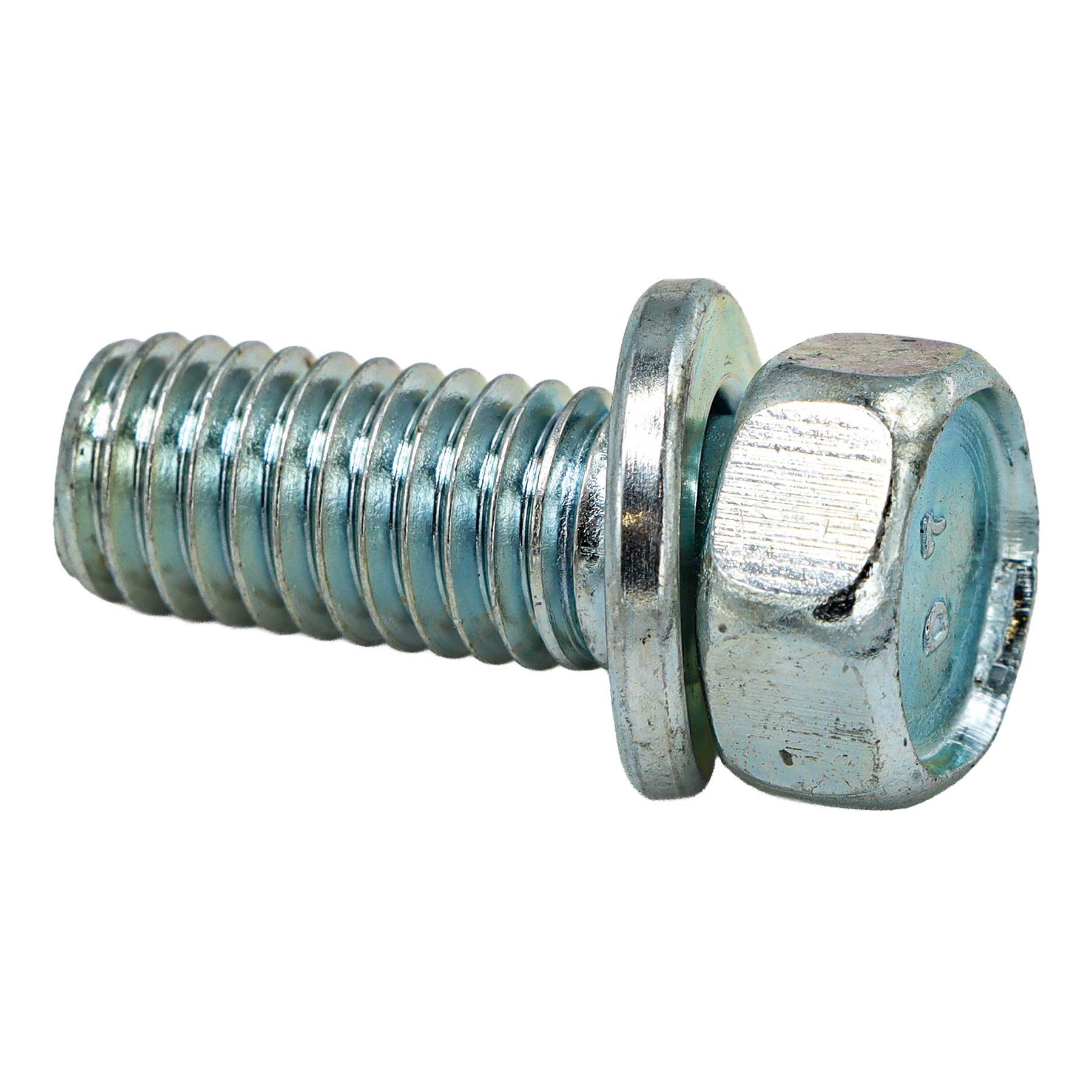

  • 1 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 2
    • Part No. 01123-50840
    • M8XP1.25
    • 2 shown on diagram
  • 3

    Bolt With Washer, M8 P1.25 x 65mm

    • Part No. 01123-50865
    • M8XP1.25
    • 3 shown on diagram
    $3.49
  • 4

    Bolt, Washer

    • Part No. 01135-51020
    • M10*1.25
    • 1 shown on diagram
    $1.99
  • 5 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 3 shown on diagram
    $3.49
  • 6

    Flat Washer M10

    • Part No. 04015-50100
    • M10
    • 3 shown on diagram
    $1.09
  • 7 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 4 shown on diagram
    $3.99
  • 8 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 1 shown on diagram
    $3.99
  • 9 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 2 shown on diagram
    $3.99
  • 10 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 2 shown on diagram
    $3.99
  • 11

    O-RING (Green) Use 04810-00140

    • Part No. 04816-00140
    • DIA13.8
    • 1 shown on diagram
    $1.99
  • 12

    COLLAR

    • Part No. T2185-97171
    • DIA14
    • 3 shown on diagram
    $7.99
  • 13

    BOLT, JOINT

    • Part No. TC24-0239A
    • 1 shown on diagram
    $24.99
  • 14 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • 2 shown on diagram
    $21.99
  • 15 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • 1 shown on diagram
    $21.99
  • 16
    • Part No. T4620-60151
    • 3 shown on diagram
  • 17

    JOYSTICK VALVE SUPPORT

    • Part No. T5855-47014
    • 1 shown on diagram
    $71.99
  • 18

    TUBE, HYDRAULIC

    • Part No. T5855-47042
    • 1 shown on diagram
    $109.99
  • 19 CONNECTION

    CONNECTION

    • Part No. T5855-47091
    • 2 shown on diagram
    $27.99
  • 20

    TUBE J2, HYD

    • Part No. T5857-47032
    • 1 shown on diagram
    $124.99
  • 21
    • Part No. TC24-0016D
    • 1 shown on diagram
  • 22

    VALVE, JOYSTICK v

    • Part No. TC24-0138A
    • 1 shown on diagram
    $929.99
  • 23

    END CAP 3 v

    • Part No. 36001-0098
    • 1 shown on diagram
    $23.99
  • 24

    CAP END ASSY v

    • Part No. 46001-0430
    • 1 shown on diagram
    $57.99
