HYDRAULIC CYLINDER GROUP - TC2-G463005

Kioti TRACTOR | CK Series | CK3520

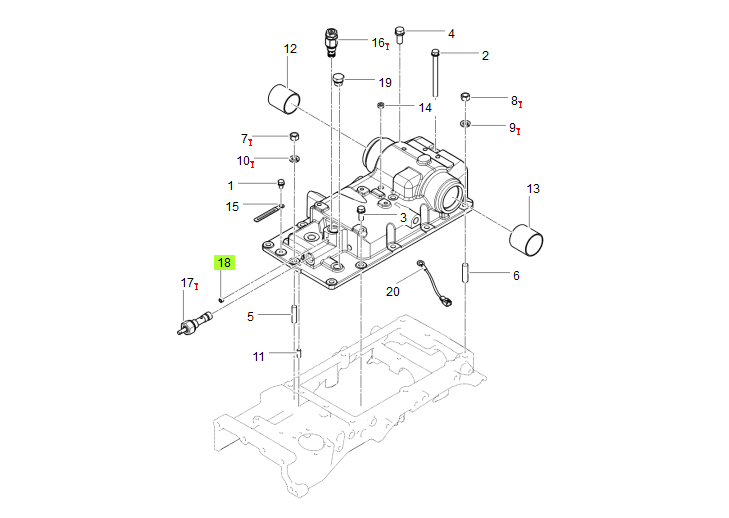

Diagram for HYDRAULIC CYLINDER GROUP - TC2-G463005
  • 1

    Bolt With Washer, M8 P1.25 x 12mm

    • Part No. 01123-50812
    • M8P1.25
    • 1 shown on diagram
    $1.79
  • 2

    OB-BOLT

    • Part No. 01133-51003
    • 1 shown on diagram
    $6.49
  • 3 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 4

    WASHER BOLT

    • Part No. 01133-51230
    • M12XP1.25
    • 2 shown on diagram
    $5.49
  • 5

    STUD

    • Part No. 01517-51030
    • 1 shown on diagram
    $4.99
  • 6

    STUD

    • Part No. 01574-51230
    • M12XP1.25
    • 1 shown on diagram
    $5.99
  • 7 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 8 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 9 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 10 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 11 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 1 shown on diagram
    $1.59
  • 12

    BUSH

    • Part No. 08511-04550
    • 1 shown on diagram
    $38.99
  • 13

    BUSH

    • Part No. 08511-05050
    • 1 shown on diagram
    $42.99
  • 14

    PLUG

    • Part No. 15521-9603-3
    • DIA12*12,PT1/4
    • 1 shown on diagram
    $13.99
  • 15

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 16

    ASSY, RELIEF VALVE

    • Part No. T5210-37311
    • 1 shown on diagram
    $189.99
  • 17

    FLOWCONTROL VALVE

    • Part No. T5710-37441
    • 1 shown on diagram
    $264.99
  • 18

    BODY, POWERLIFT

    • Part No. T5855-43019
    • 1 shown on diagram
    $579.99
  • 19

    PLUG

    • Part No. TG14-0137A
    • 1 shown on diagram
    $13.99
  • 20

    WIRE HARNESS 4

    • Part No. T4620-69521
    • 1 shown on diagram
    $5.49
