HYDRAULIC SYSTEM GROUP(2) - TC2-G466001

Kioti TRACTOR | CK Series | CK3520

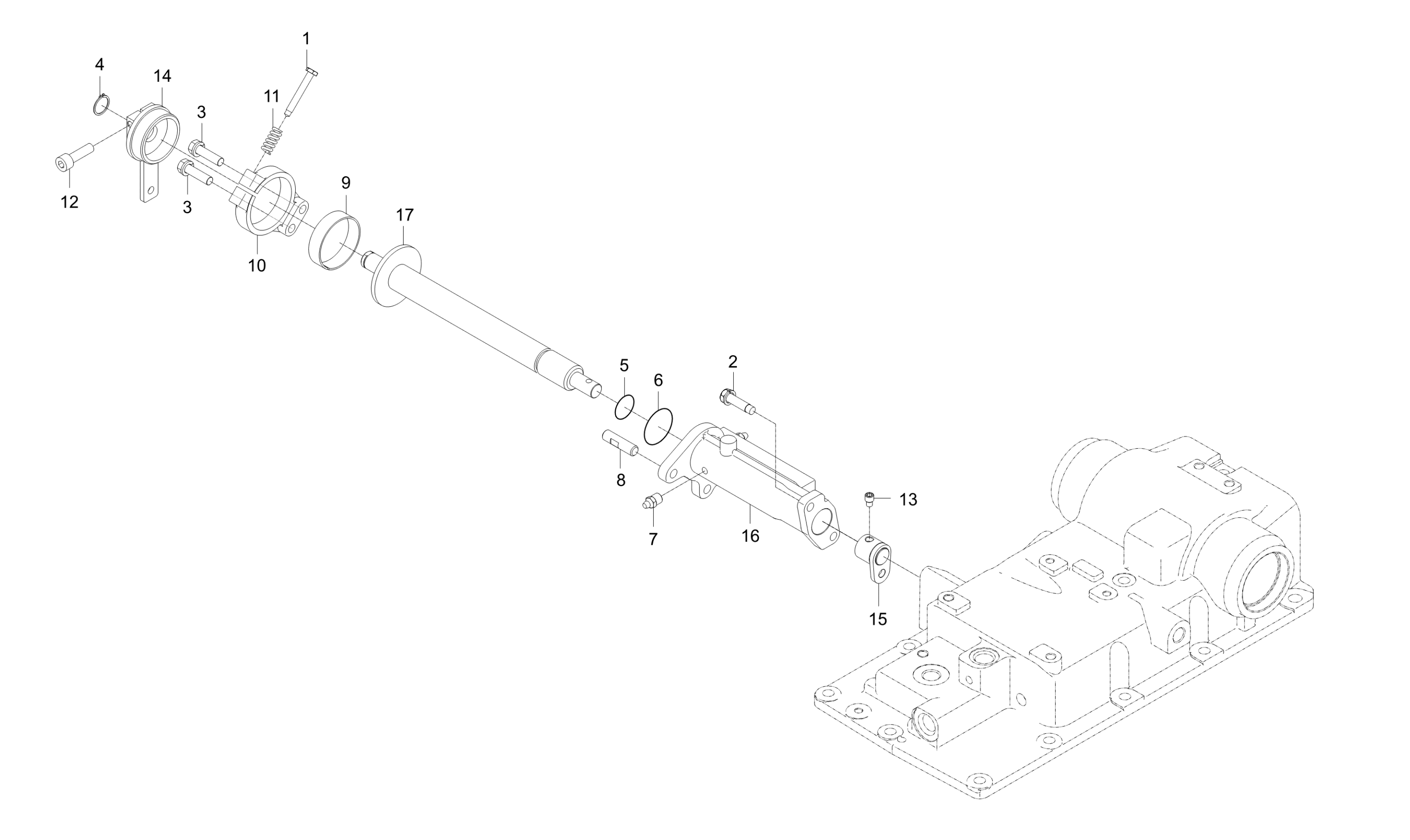

Diagram for HYDRAULIC SYSTEM GROUP(2) - TC2-G466001
  • 1

    BOLT v

    • Part No. 01053-50645
    • 1 shown on diagram
    $0.79
  • 2 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 3 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • 2 shown on diagram
    $2.49
  • 4 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • DIA16
    • 1 shown on diagram
    $.85
  • 5
    • Part No. 04811-00210
    • DIA20.8
    • 1 shown on diagram

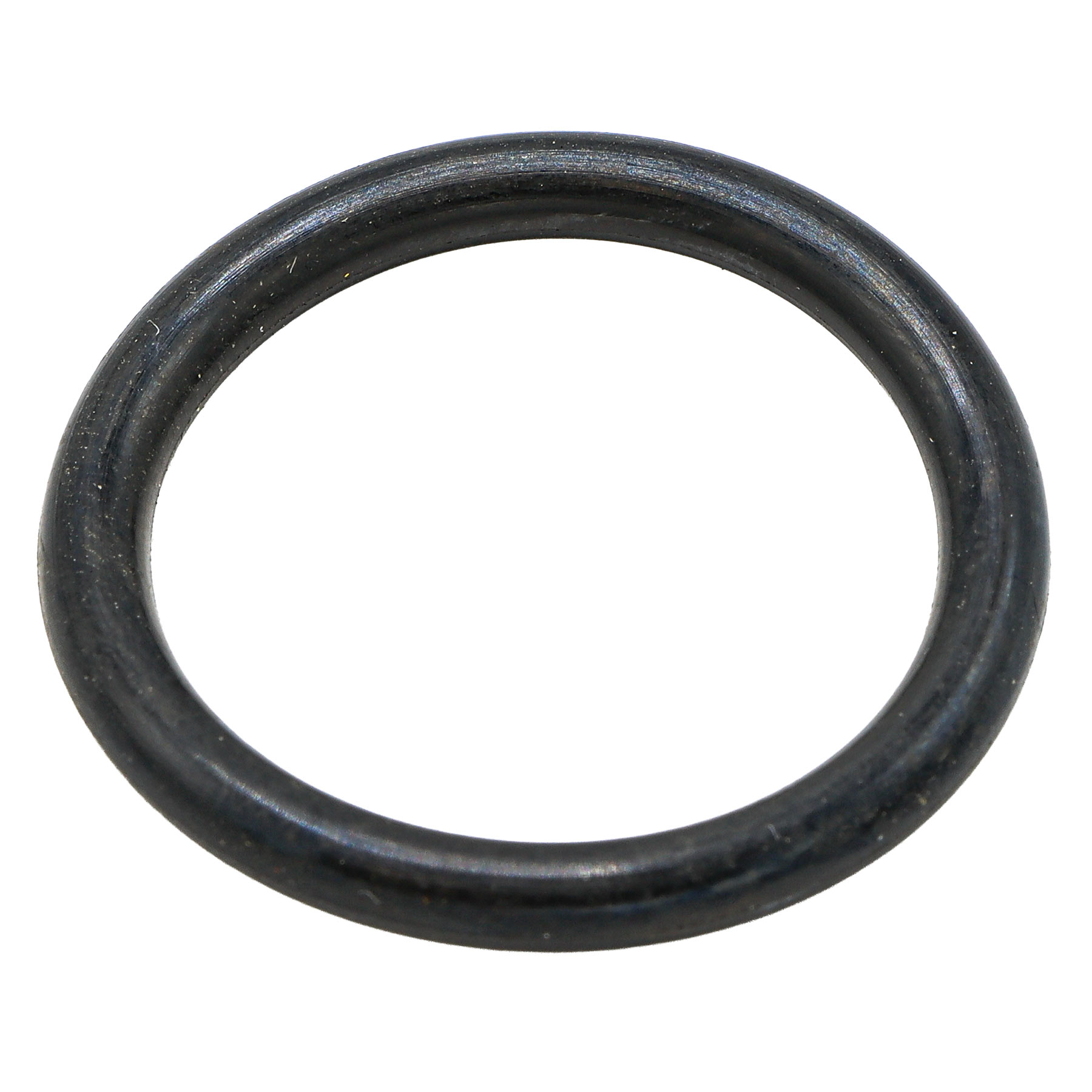

  • 6 O RING

    O RING

    • Part No. 04811-00250
    • DIA24.7
    • 1 shown on diagram
    $1.49
  • 7 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • PT1/8
    • 1 shown on diagram
    $3.49
  • 8

    STOPPER

    • Part No. T2165-39281
    • 2 shown on diagram
    $6.49
  • 9

    CLUTCH, HYD LEVER

    • Part No. T2610-39202
    • 1 shown on diagram
    $7.99
  • 10

    HUB 1, CLUTCH

    • Part No. T2610-39212
    • 1 shown on diagram
    $14.99
  • 11

    SPRING

    • Part No. T2610-39233
    • DIA2.3
    • 1 shown on diagram
    $5.99
  • 12

    BOLT

    • Part No. T2610-39252
    • M8*1.25
    • 1 shown on diagram
    $4.99
  • 13

    SCREW, SET

    • Part No. T2610-39572
    • M8*P1.25
    • 1 shown on diagram
    $2.99
  • 14

    LEVER

    • Part No. T5710-39202
    • 1 shown on diagram
    $69.99
  • 15

    POSITION CONTROL LEVER ARM

    • Part No. T5710-39701
    • 1 shown on diagram
    $83.99
  • 16
    • Part No. T5855-44003
    • 1 shown on diagram
  • 17

    SHAFT

    • Part No. T5855-44012
    • 1 shown on diagram
    $119.99
