FRONT ROPS GROUP(OPTION) - TC2-G632002

Kioti TRACTOR | CK Series | CK3510HSEB

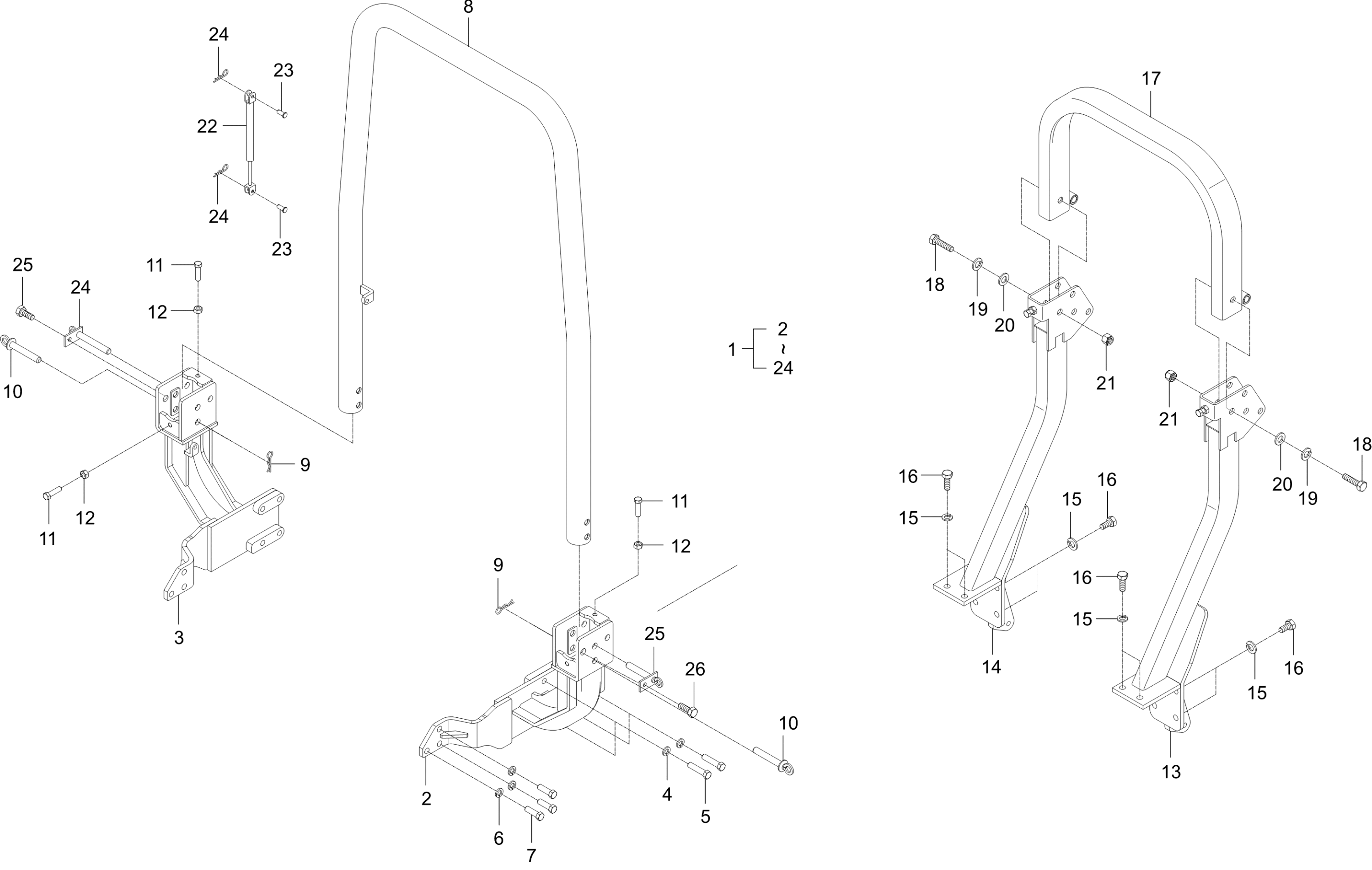

Diagram for FRONT ROPS GROUP(OPTION) - TC2-G632002
  • 1

    FRONT ROPS KIT

    • Part No. TC26-A0060A
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1

    FRONT ROPS KIT

    • Part No. TC26-A0060B
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1

    FRONT ROPS KIT

    • Part No. TC26-A0060C
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 2

    SUPPORT, ROPS-LH

    • Part No. TC26-0943B
    • * multiple options for #2
    • 1 shown on diagram
    $734.99
  • 2

    SUPPORT, ROPS-LH

    • Part No. TC26-0943C
    • Compatibility Call for compat
    • * multiple options for #2
    • 1 shown on diagram
    $734.99
  • 3

    SUPPORT, ROPS-RH

    • Part No. TC26-0947B
    • * multiple options for #3
    • 1 shown on diagram
    $554.99
  • 3

    SUPPORT, ROPS-RH

    • Part No. TC26-0947C
    • Compatibility Call for compat
    • * multiple options for #3
    • 1 shown on diagram
    $754.99
  • 4

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 8 shown on diagram
    $0.9
  • 5

    BOLT

    • Part No. 01173-51455
    • M14P1.5*55
    • 8 shown on diagram
    $4.99
  • 6

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.9
  • 7

    BOLT M14 P1.50 × 35mm

    • Part No. 01173-51435
    • M14XP1.5
    • 6 shown on diagram
    $3.49
  • 8

    ASSY ROPS

    • Part No. TC26-1187B
    • 1 shown on diagram
    $474.99
  • 9 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • * multiple options for #9
    • 4 shown on diagram
    $2.99
  • 9 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • Compatibility Call for compat
    • DIA16
    • * multiple options for #9
    • 2 shown on diagram
    $2.99
  • 10

    PIN

    • Part No. T5738-55291
    • * multiple options for #10
    • 4 shown on diagram
    $21.99
  • 10

    PIN

    • Part No. T5738-55291
    • Compatibility Call for compat
    • * multiple options for #10
    • 2 shown on diagram
    $21.99
  • 11

    BOLT

    • Part No. T5710-55311TP
    • M12XP1.75
    • 4 shown on diagram
    $5.49
  • 12

    NUT

    • Part No. 02114-50120
    • M12*P1.75
    • 4 shown on diagram
    $0.85
  • 13

    SUPPORT, ROPS-LH

    • Part No. TC26-1315A
    • 1 shown on diagram
    $424.99
  • 14

    SUPPORT,RH

    • Part No. T5810-66834
    • 1 shown on diagram
    $329.99
  • 15

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 12 shown on diagram
    $0.9
  • 16

    BOLT

    • Part No. T2230-85242
    • M14*2.0*32
    • 12 shown on diagram
    $4.99
  • 17

    ASSY ROPS dnr v, Replaced by TC26-0948B

    • Part No. TC26-0948A
    • * multiple options for #17
    • 1 shown on diagram
    $.00
  • 17

    ASSY ROPS v

    • Part No. TC26-0948B
    • Compatibility Interchngable
    • * multiple options for #17
    • 1 shown on diagram
    $249.99
  • 18 BOLT

    BOLT

    • Part No. 01173-51690
    • 4 shown on diagram
    $9.99
  • 19 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 4 shown on diagram
    $1.29
  • 20 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 8 shown on diagram
    $1.19
  • 21 NUT

    NUT

    • Part No. T2181-97191
    • 4 shown on diagram
    $7.49
  • 22

    ASS’Y, AIR CYLINDER

    • Part No. T5855-51881
    • 1 shown on diagram
    $83.99
  • 23

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
    $2.99
  • 24

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 25

    FIXED PIN

    • Part No. TB16-0127B
    • 2 shown on diagram
    $28.99
  • 26 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
