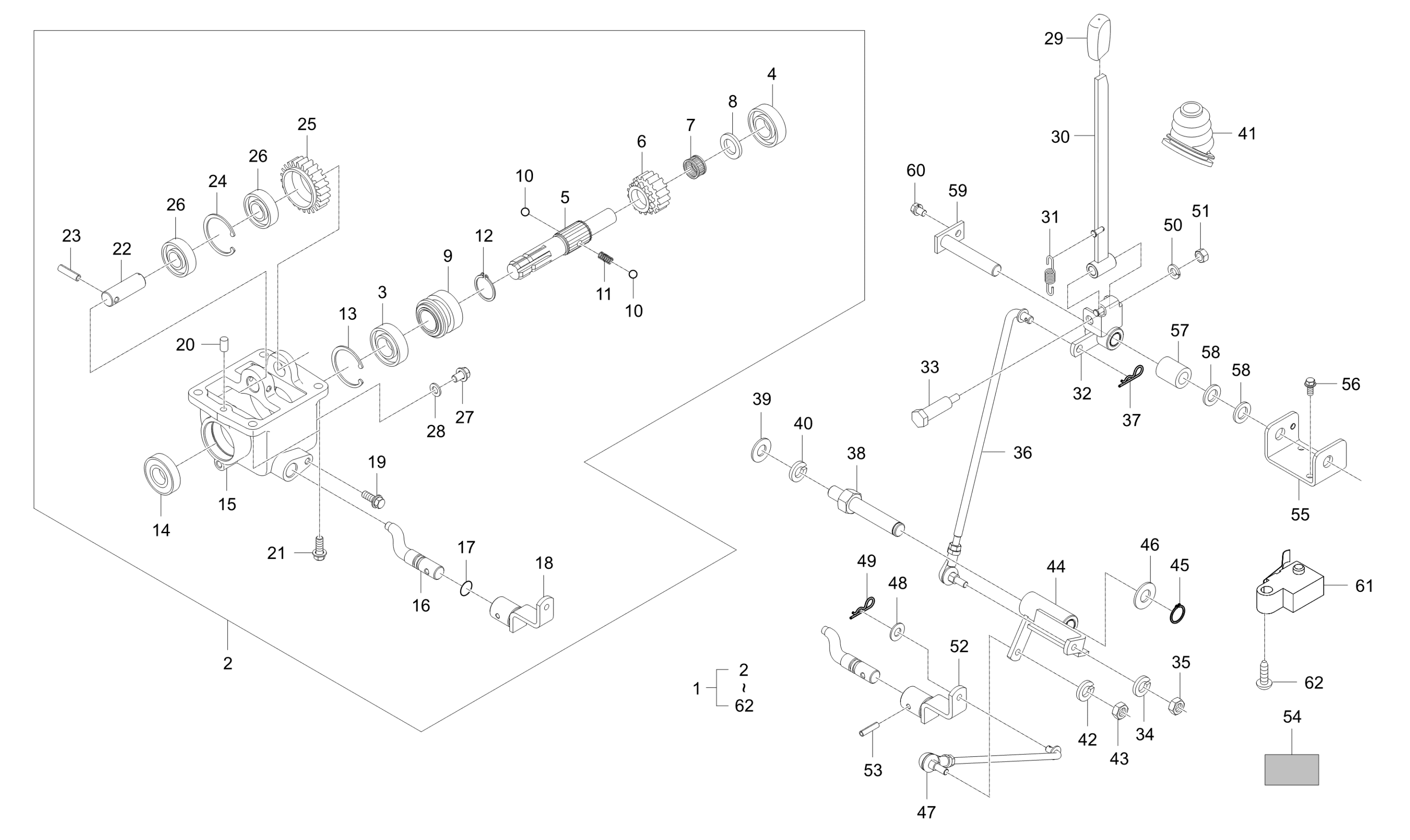

MID PTO LEVER GROUP(IND. PTO) - TC2-G6G0803

Kioti TRACTOR | CK Series | CK3510HSEB

1
KIT, MID PTO
- Part No. TC26-A0082A
- * multiple options for #1
- 1 shown on diagram
$.00

KIT, MID PTO quantity
1
KIT, MID PTO
- Part No. TC26-A0082B
- Compatibility Call for compat
- * multiple options for #1
- 1 shown on diagram
$.00

KIT, MID PTO quantity
1
KIT, MID PTO
- Part No. TC26-A0082C
- Compatibility New repl old
- * multiple options for #1
- 1 shown on diagram
$.00

KIT, MID PTO quantity
1
KIT, MID PTO
- Part No. TC26-A0082D
- Compatibility New repl old
- * multiple options for #1
- 1 shown on diagram
$.00

KIT, MID PTO quantity
1
KIT, MID PTO
- Part No. TC26-A0082E
- Compatibility Interchngable
- * multiple options for #1
- 1 shown on diagram
$.00

KIT, MID PTO quantity
1
KIT, MID PTO
- Part No. TC26-A0082F
- Compatibility Interchngable
- * multiple options for #1
- 1 shown on diagram
$.00

KIT, MID PTO quantity
2
ASSY PTO, MID
- Part No. T5815-24102
- * multiple options for #2
- 1 shown on diagram
$719.99

ASSY PTO, MID quantity
2
MID PTO KIT
- Part No. T5815-24103
- Compatibility Interchngable
- * multiple options for #2
- 1 shown on diagram
$719.99

MID PTO KIT quantity
3
Bearing 25x52x15
- Part No. 08101-06205
- DIA25
- 1 shown on diagram
$17.99

Bearing 25x52x15 quantity
4
BALL BEARING
- Part No. 08101-06304
- #6304
- 1 shown on diagram
$18.99

BALL BEARING quantity
5
SHAFT, MID PTO
- Part No. T5815-24121
- 1 shown on diagram
$96.99

SHAFT, MID PTO quantity
6
GEAR 17
- Part No. T5815-24161
- 1 shown on diagram
$99.99

GEAR 17 quantity
7
NEEDLE BEARING
- Part No. 08822-53017
- Inner diameter 25
- 1 shown on diagram
$19.99

NEEDLE BEARING quantity
8
COLLAR
- Part No. 31365-2278-1
- 1 shown on diagram
$15.99

COLLAR quantity
9
SHIFTER
- Part No. T5815-24142
- 1 shown on diagram
$119.99

SHIFTER quantity
10
BALL,STEEL
- Part No. 07715-01605
- DIA7.9375
- 2 shown on diagram
$0.56

BALL,STEEL quantity
11
SPRING
- Part No. T2440-44251
- DIA1.4
- 1 shown on diagram
$3.49

SPRING quantity
12
RING, SNAP v
- Part No. 38430-2554-1
- 1 shown on diagram
$7.49

RING, SNAP v quantity
13
CIR-CLIP
- Part No. 04611-00520
- DIA52
- 1 shown on diagram
$2.49

CIR-CLIP quantity
14
Oil Seal 25x52x10
- Part No. 09502-55210
- DIA25
- 1 shown on diagram
$3.49

Oil Seal 25x52x10 quantity
15
CASE, MID PTO
- Part No. T5815-24114
- 1 shown on diagram
$299.99

CASE, MID PTO quantity
16
ARM, SHIFT MID PTO
- Part No. T5815-24232
- 1 shown on diagram
$49.99

ARM, SHIFT MID PTO quantity
17
O RING
- Part No. 04811-00140
- 1 shown on diagram
$.90

O RING quantity
18
STOPPER
- Part No. T2555-23331
- 1 shown on diagram
$5.49

STOPPER quantity
19
BOLT, FLANGE
- Part No. 01754-50812
- M8XP1.25
- 1 shown on diagram
$1.79

BOLT, FLANGE quantity
20
PIN, PARALLEL
- Part No. 05012-00818
- DIA8XL18
- 2 shown on diagram
$1.59

PIN, PARALLEL quantity
21
BOLT, WASHER
- Part No. 01133-51030
- M10XP1.25
- 4 shown on diagram
$2.99

BOLT, WASHER quantity
22
SHAFT, COUNTER MID PTO
- Part No. T5815-24131
- 1 shown on diagram
$37.99

SHAFT, COUNTER MID PTO quantity
23
PIN,SPRING
- Part No. 05411-00645
- 1 shown on diagram
$0.96

PIN,SPRING quantity
24
RING,SNAP
- Part No. 04611-00470
- DIA47
- 1 shown on diagram
$2.99

RING,SNAP quantity
25
GEAR 24
- Part No. T5815-24151
- 1 shown on diagram
$86.99

GEAR 24 quantity
26

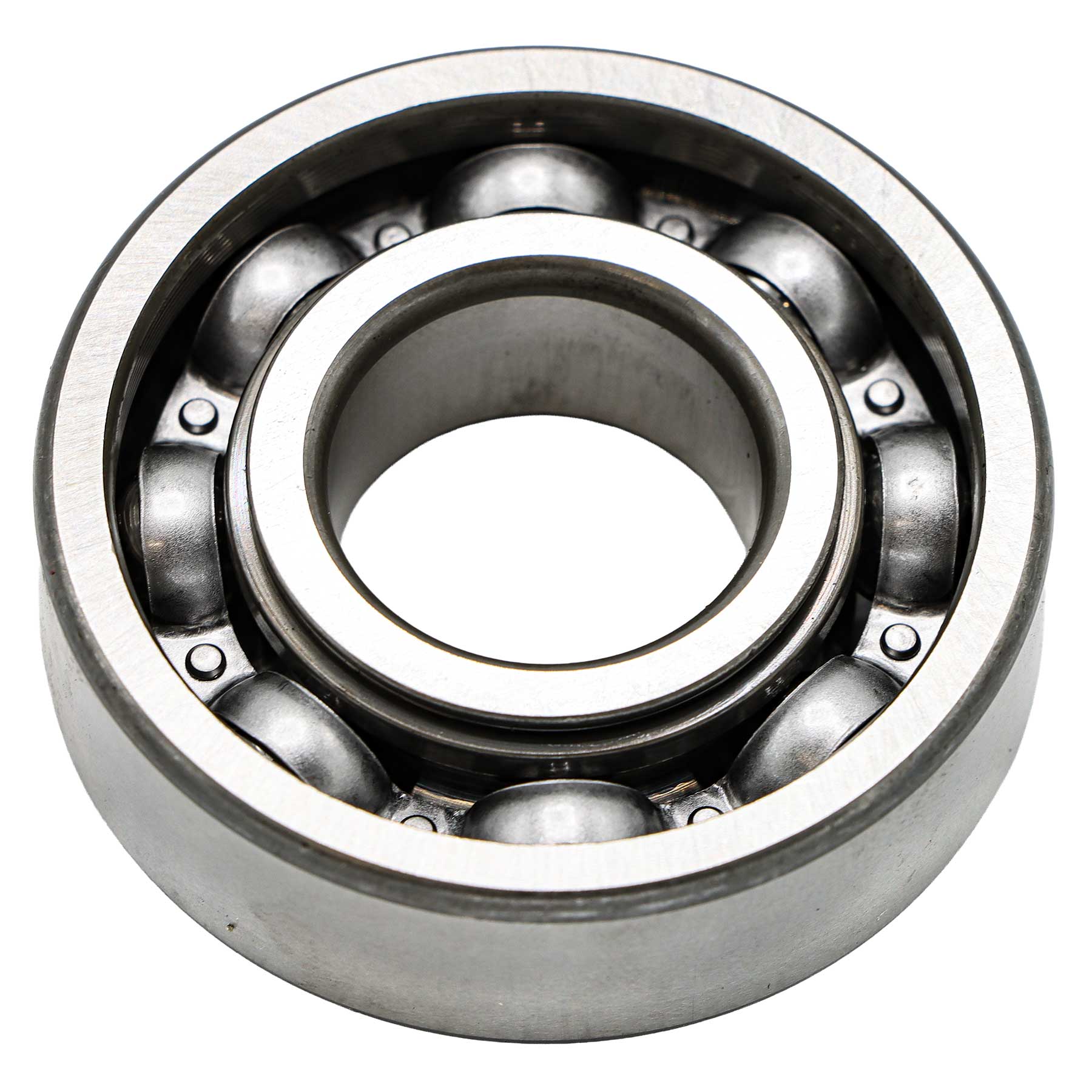

BALL BEARING 20x47x14
- Part No. 08101-06204
- DIA20
- * multiple options for #26
- 2 shown on diagram
$15.99

BALL BEARING 20x47x14 quantity
26
BALL BEARING v
- Part No. U3210-06204
- Compatibility Interchngable
- 6204
- * multiple options for #26
- 2 shown on diagram
$15.99

BALL BEARING v quantity
27
PLUG M10XP1.25
- Part No. 06331-35010
- M10XP1.25
- 1 shown on diagram
$4.49

PLUG M10XP1.25 quantity
28
WASHER, SEAL M10
- Part No. 04717-01000
- M10
- 1 shown on diagram
$1.99

WASHER, SEAL M10 quantity
29
GRIP A
- Part No. T2350-25871
- 1 shown on diagram
$9.49

GRIP A quantity
30
ASSY RADIATOR dnr v
- Part No. TC26-0511A
- Applied Dates Up to 2017-03-17
- * multiple options for #30
- 1 shown on diagram
$35.99

ASSY RADIATOR dnr v quantity
30
LEVER, MID PTO-USB CONSOLE
- Part No. TC26-1704A
- Compatibility Call for compat
- * multiple options for #30
- 1 shown on diagram
$31.99

LEVER, MID PTO-USB CONSOLE quantity
31
SPRING, RETURN
- Part No. T4157-51211
- 1 shown on diagram
$4.99

SPRING, RETURN quantity
32
BRACKET, HINGE BONNET-MID PTO
- Part No. TC26-0513B
- * multiple options for #32
- 1 shown on diagram
$54.99

BRACKET, HINGE BONNET-MID PTO quantity
32
BRACKET, HINGE BONNET-MID PTO
- Part No. TC26-0513C
- Compatibility Interchngable
- * multiple options for #32
- 1 shown on diagram
$54.99

BRACKET, HINGE BONNET-MID PTO quantity
33
SHAFT
- Part No. T4182-60082
- 17mm Hex
- 1 shown on diagram
$13.99

SHAFT quantity
34
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 1 shown on diagram
$.61

Spring Lock Washer M8 quantity
35
Nut M8 P1.25
- Part No. 02156-50080
- M8XP1.25
- 1 shown on diagram
$.85

Nut M8 P1.25 quantity
36
ROD, MID PTO
- Part No. TC26-0512A
- 1 shown on diagram
$69.99

ROD, MID PTO quantity
37
PIN, SNAP
- Part No. 05525-51000
- DIA10
- 1 shown on diagram
$1.29

PIN, SNAP quantity
38
PTO Shaft
- Part No. T2185-24283
- HEX27
- 1 shown on diagram
$29.99

PTO Shaft quantity
39
Flat Washer M16
- Part No. 04011-50160
- M16
- 1 shown on diagram
$1.19

Flat Washer M16 quantity
40
WASHER, SPRING
- Part No. 04512-50160
- M16
- 1 shown on diagram
$1.29

WASHER, SPRING quantity
41
BOOT
- Part No. T4115-65681
- 1 shown on diagram
$11.99

BOOT quantity
42
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 1 shown on diagram
$.61

Spring Lock Washer M8 quantity
43
Nut M8 P1.25
- Part No. 02156-50080
- M8XP1.25
- 1 shown on diagram
$.85

Nut M8 P1.25 quantity
44
ARM, CONNECTING-2 dnr v
- Part No. TC26-0514A
- 1 shown on diagram
$85.99

ARM, CONNECTING-2 dnr v quantity
45
Snap Ring
- Part No. 04612-00180
- DIA18
- 1 shown on diagram
$1.09

Snap Ring quantity
46
Flat Washer M18
- Part No. 04011-50180
- M18
- 1 shown on diagram
$1.59

Flat Washer M18 quantity
47
ROD-MID PTO 2
- Part No. TC26-1081A
- 1 shown on diagram
$68.99

ROD-MID PTO 2 quantity
48
Flat Washer M8
- Part No. 04014-50080
- 1 shown on diagram
$.67

Flat Washer M8 quantity
49
Hair Pin
- Part No. 05525-50800
- DIA8
- 1 shown on diagram
$1.29

Hair Pin quantity
50
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 1 shown on diagram
$.61

Spring Lock Washer M8 quantity
51
Nut M8 P1.25
- Part No. 02156-50080
- M8XP1.25
- 1 shown on diagram
$.85

Nut M8 P1.25 quantity
52
ARM, MID PTO dnr v
- Part No. T5855-58451
- 1 shown on diagram
$54.99

ARM, MID PTO dnr v quantity
53
PIN, SPRING
- Part No. 05411-00630
- DIA6.4XL30
- 1 shown on diagram
$0.9

PIN, SPRING quantity
54
LABEL, MID PTO
- Part No. TC26-1092A
- 1 shown on diagram
$1.59

LABEL, MID PTO quantity
55
BRACKET, PTO
- Part No. TC26-0473A
- T4.5
- 1 shown on diagram
$32.99

BRACKET, PTO quantity
56
BOLT, FLANGE
- Part No. 01754-50816
- M8XP1.25
- 2 shown on diagram
$1.79

BOLT, FLANGE quantity
57
BUSHING
- Part No. T5715-53471
- OD28,ID16.5
- 1 shown on diagram
$4.99

BUSHING quantity
58
WASHER
- Part No. T4810-66721
- 2 shown on diagram
$1.39

WASHER quantity
59
SHAFT v
- Part No. T4835-66532
- 1 shown on diagram
$13.99

SHAFT v quantity
60
Bolt With Washer, M8 P1.25 x 12mm
- Part No. 01123-50812
- M8P1.25
- 1 shown on diagram
$1.79

Bolt With Washer, M8 P1.25 x 12mm quantity
61
SWTICH, MICRO NC obs v
- Part No. C7140-68811
- 1 shown on diagram
$57.99

SWTICH, MICRO NC obs v quantity
62
TAPPING SCREW v
- Part No. 38240-1883-1
- M4X16
- 1 shown on diagram
$0.79

TAPPING SCREW v quantity
