SHUTTLE SHIFT FORK GROUP - TD2-G252001

Kioti TRACTOR | DK Series | DK5020

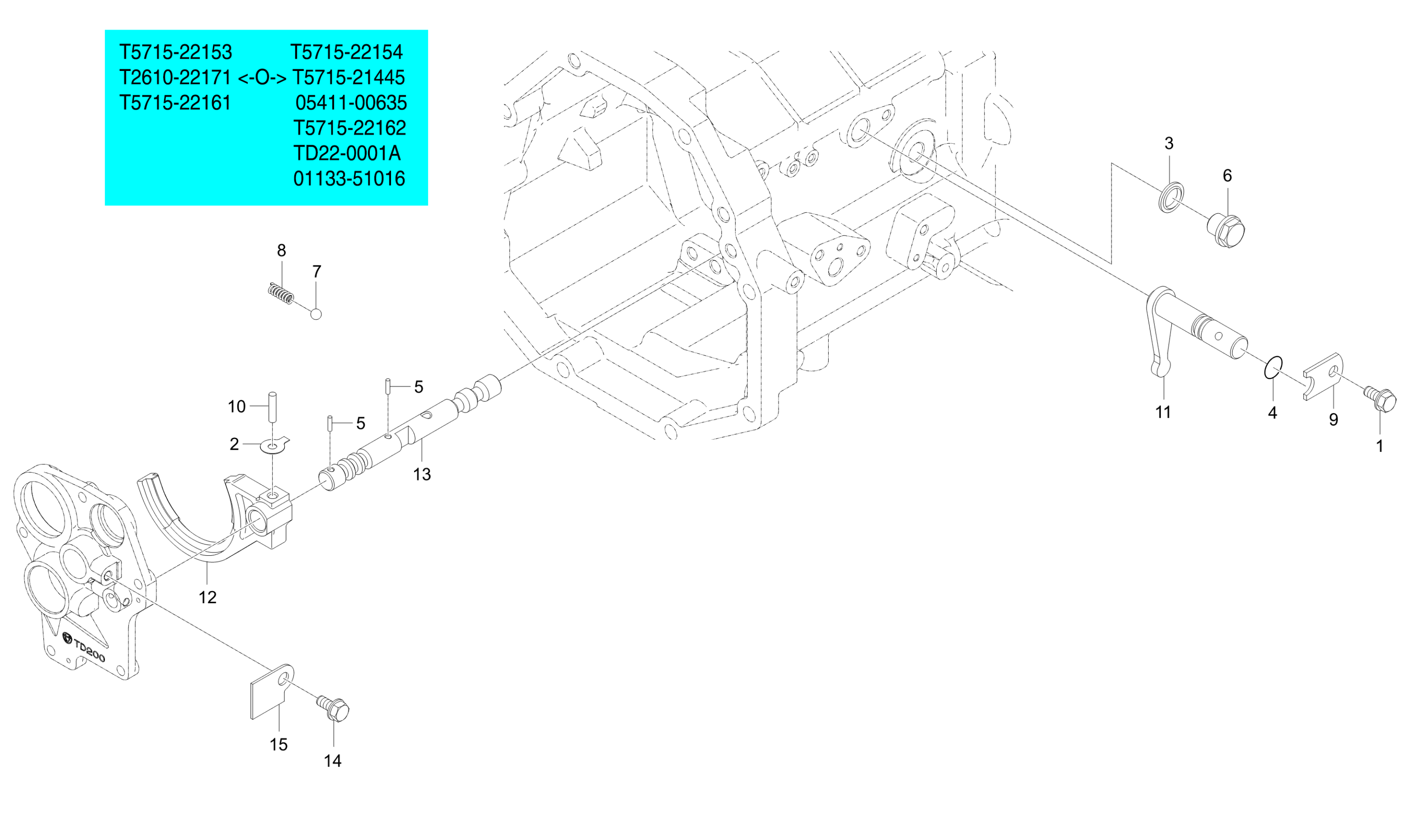

Diagram for SHUTTLE SHIFT FORK GROUP - TD2-G252001
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 2 WASHER v

    WASHER v

    • Part No. 04111-50060
    • M06
    • 1 shown on diagram
    $1.79
  • 3 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-01600
    • M16
    • 1 shown on diagram
    $1.99
  • 4 O RING

    O RING

    • Part No. 04811-00140
    • DIA13.8
    • 1 shown on diagram
    $0.90
  • 5 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00425
    • DIA4.4XL25
    • 2 shown on diagram
    $0.68
  • 6 PLUG M16 P 1.25

    PLUG M16 P 1.25

    • Part No. 06331-45016
    • M16XP1.5
    • 1 shown on diagram
    $3.99
  • 7 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 8 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 9

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 10 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 11

    ARM, SHIFT SHUTTLE

    • Part No. T5715-22121
    • 1 shown on diagram
    $46.99
  • 12

    FORK, SHIFT (SHUTTLE)

    • Part No. T5715-22154
    • 1 shown on diagram
    $109.99
  • 13

    ROD, FORK SHUTTLE v

    • Part No. T5715-22162
    • 1 shown on diagram
    $89.99
  • 14 Bolt M10 P1.25x16mm W/Lock Washer

    Bolt M10 P1.25x16mm W/Lock Washer

    • Part No. 01133-51016
    • M10XP1.25
    • 1 shown on diagram
    $2.49
  • 15

    STOPPER

    • Part No. TD22-0001A
    • 1 shown on diagram
    $6.99
