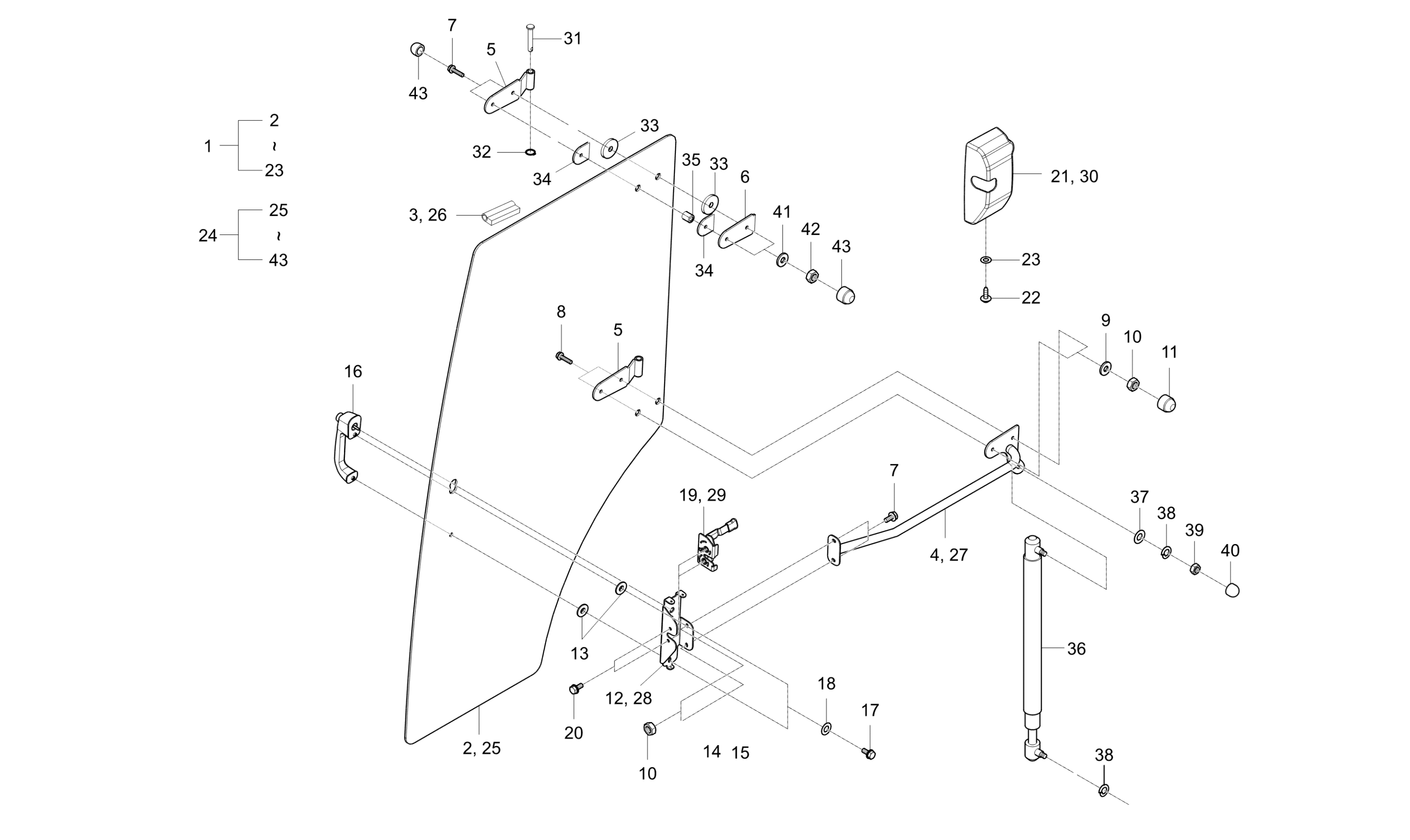

DOOR GROUP - CK20C-T9020A

Kioti TRACTOR | CK Series | CK20H

1
ASSY DOOR LH dnr v
- Part No. T2391-84101
- 1 shown on diagram
$1,334.99

ASSY DOOR LH dnr v quantity
2
TRK – GLASS DOOR LH v
- Part No. T2391-84121
- 1 shown on diagram
$699.99

TRK - GLASS DOOR LH v quantity
3
Rubber Replaced By T4835-82501
- Part No. T2391-84131
- 1 shown on diagram
$0.00

Rubber Replaced By T4835-82501 quantity
4
ASSY FRAME DOOR LH
- Part No. T2391-84211
- 1 shown on diagram
$194.99

ASSY FRAME DOOR LH quantity
5
HINGE DOOR
- Part No. T2131-84251
- 4 shown on diagram
$61.99

HINGE DOOR quantity
6
PLATE DOOR FRAME HOLDING
- Part No. T2391-84241
- 2 shown on diagram
$19.99

PLATE DOOR FRAME HOLDING quantity
7
Bolt With Washer, M8 P1.25 x 30mm
- Part No. 01123-50830
- M8P1.25*30
- 8 shown on diagram
$2.49

Bolt With Washer, M8 P1.25 x 30mm quantity
8
BOLT,CUSHION (interchanges w/ T4620-81841)
- Part No. T4620-81842
- 16 shown on diagram
$6.99

BOLT,CUSHION (interchanges w/ T4620-81841) quantity
9
Flat Washer M8
- Part No. 04013-50080
- 16 shown on diagram
$0.79

Flat Washer M8 quantity
10
NUT
- Part No. 02114-50080
- M8*P1.25
- 8 shown on diagram
$0.67

NUT quantity
11
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 16 shown on diagram
$1.49

Cap Nut, M8 T4815-93211 quantity
12
BRACKET HANDLE LH
- Part No. T2131-83761
- 1 shown on diagram
$61.99

BRACKET HANDLE LH quantity
13
PACKING
- Part No. T4520-88401
- 2 shown on diagram
$3.49

PACKING quantity
14
BOLT, FLANGE
- Part No. 01754-50620
- M6XP1.0
- 4 shown on diagram
$1.29

BOLT, FLANGE quantity
15
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- 4 shown on diagram
$0.73

Nut, Flange, M6 P1.00 02751-50060 quantity
16
HANDLE DOOR
- Part No. T2131-51031
- 2 shown on diagram
$83.99

HANDLE DOOR quantity
17
Bolt With Washer, M8 P1.25 x 25mm
- Part No. 01123-50825
- M8XP1.25
- 4 shown on diagram
$1.99

Bolt With Washer, M8 P1.25 x 25mm quantity
18
Flat Washer M8
- Part No. 04013-50080
- 4 shown on diagram
$0.79

Flat Washer M8 quantity
19
LH Latch Assembly T4930-51351
- Part No. T4930-51351
- 1 shown on diagram
$109.99

LH Latch Assembly T4930-51351 quantity
20
BOLT, FLANGE, M8 P1.25
- Part No. 01754-50825
- M8XP1.25
- 4 shown on diagram
$2.49

BOLT, FLANGE, M8 P1.25 quantity
21
COVER SIDE DOOR LH
- Part No. T4930-81321
- T3.0
- 1 shown on diagram
$19.99

COVER SIDE DOOR LH quantity
22
SCREW
- Part No. 03054-50416
- M4*0.7
- 2 shown on diagram
$0.68

SCREW quantity
23
Flat Washer M4
- Part No. 04013-50040
- M4
- 2 shown on diagram
$0.79

Flat Washer M4 quantity
24
TRK Cabin Door Assembly replaced by T2391-85102
- Part No. T2391-85101
- 1 shown on diagram
$0.00

TRK Cabin Door Assembly replaced by T2391-85102 quantity
25
TRK – GLASS DOOR RH v
- Part No. T2391-85121
- 1 shown on diagram
$719.99

TRK - GLASS DOOR RH v quantity
26
Rubber Replaced By T4835-82501
- Part No. T2391-84131
- 1 shown on diagram
$0.00

Rubber Replaced By T4835-82501 quantity
27
ASSY FRAME DOOR RH
- Part No. T2391-85211
- 1 shown on diagram
$169.99

ASSY FRAME DOOR RH quantity
28
Handle Bracket (RH) T2131-83771
- Part No. T2131-83771
- 1 shown on diagram
$59.99

Handle Bracket (RH) T2131-83771 quantity
29

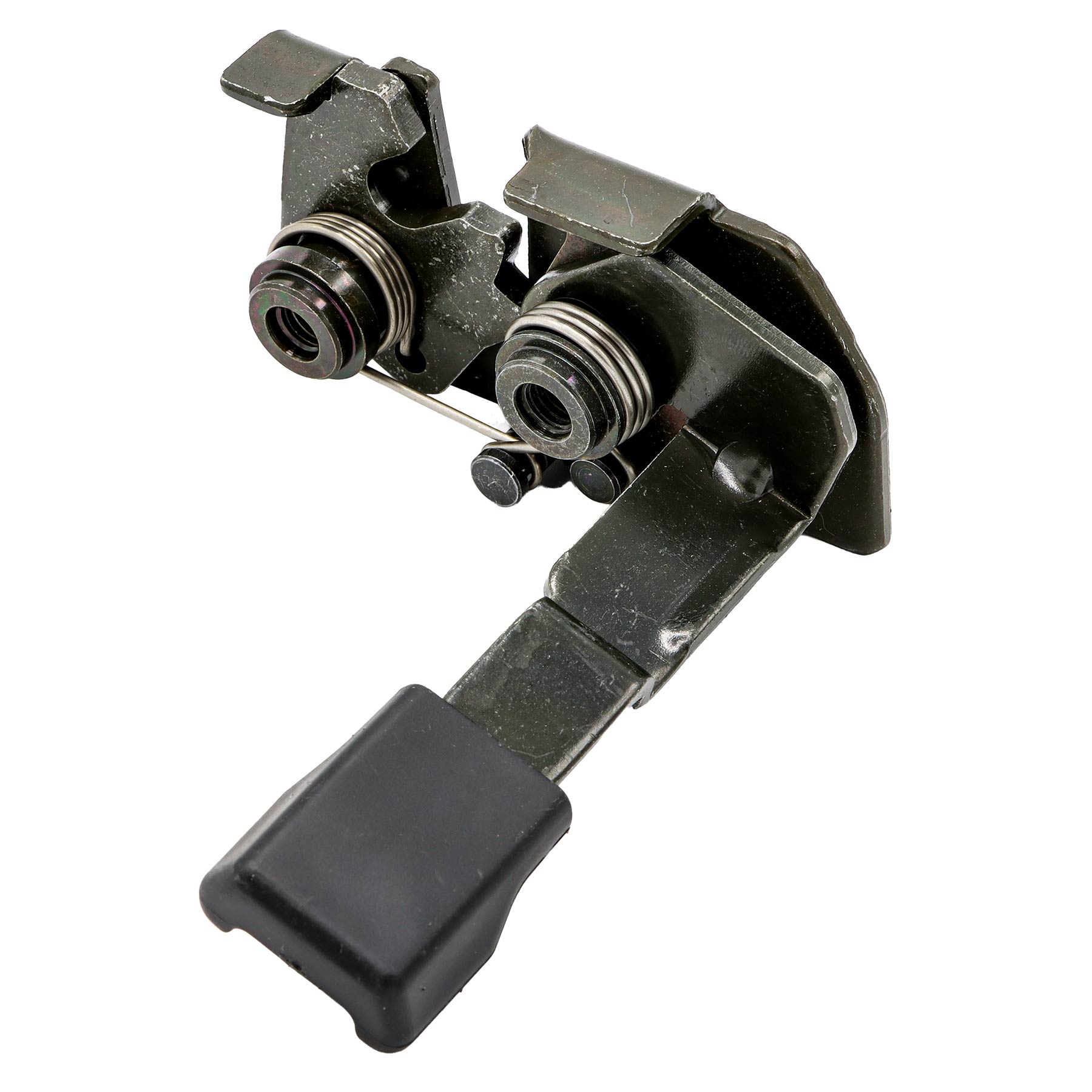

ASSY LATCH RH
- Part No. T4930-51361
- 1 shown on diagram
$114.99

ASSY LATCH RH quantity
30
COVER SIDE DOOR RH
- Part No. T4930-81331
- T3.0
- 1 shown on diagram
$21.99

COVER SIDE DOOR RH quantity
31
PIN HINGE ENTRANCE
- Part No. T4810-82741
- 4 shown on diagram
$7.49

PIN HINGE ENTRANCE quantity
32
RING SNAP
- Part No. 04613-50100
- 4 shown on diagram
$0.49

RING SNAP quantity
33
Packing, 1 T4520-87402
- Part No. T4520-87402
- T3
- 12 shown on diagram
$2.99

Packing, 1 T4520-87402 quantity
34
PACKING
- Part No. T4681-90911
- 8 shown on diagram
$5.49

PACKING quantity
35
COLLAR
- Part No. T4681-83431
- 8 shown on diagram
$3.49

COLLAR quantity
36

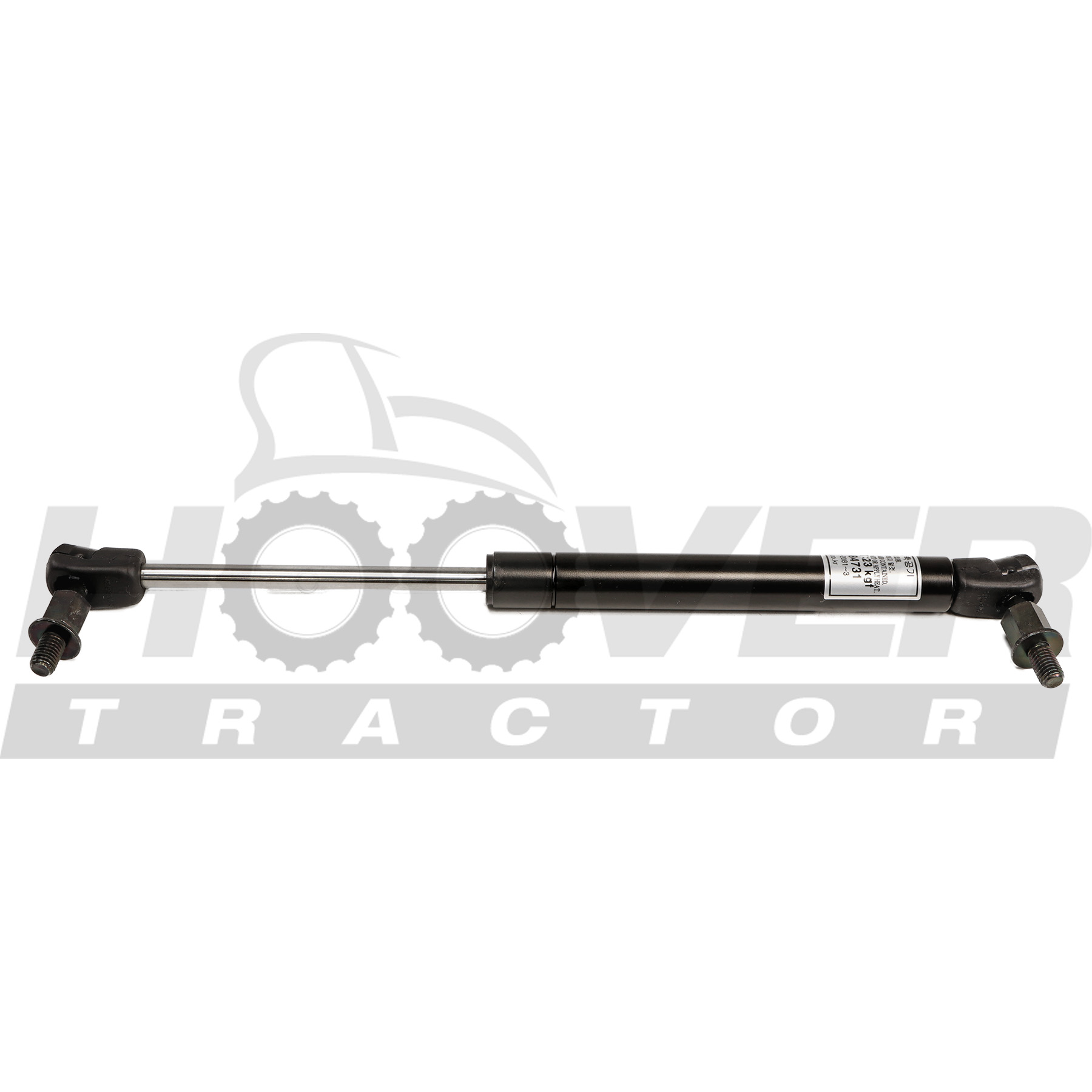

CYLINDER AIR
- Part No. T2191-84731
- 2 shown on diagram
$82.99

CYLINDER AIR quantity
37
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79

Flat Washer M8 quantity
38
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 2 shown on diagram
$0.61

Spring Lock Washer M8 quantity
39
NUT
- Part No. 02114-50080
- M8*P1.25
- 2 shown on diagram
$0.67

NUT quantity
40
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 2 shown on diagram
$1.49

Cap Nut, M8 T4815-93211 quantity
41
Flat Washer M8
- Part No. 04013-50080
- 4 shown on diagram
$0.79

Flat Washer M8 quantity
42
NUT
- Part No. 02114-50080
- M8*P1.25
- 4 shown on diagram
$0.67

NUT quantity
43
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 4 shown on diagram
$1.49

Cap Nut, M8 T4815-93211 quantity
