PROPER SHAFT GROUP - CK20H-T540A

Kioti TRACTOR | CK Series | CK20HS

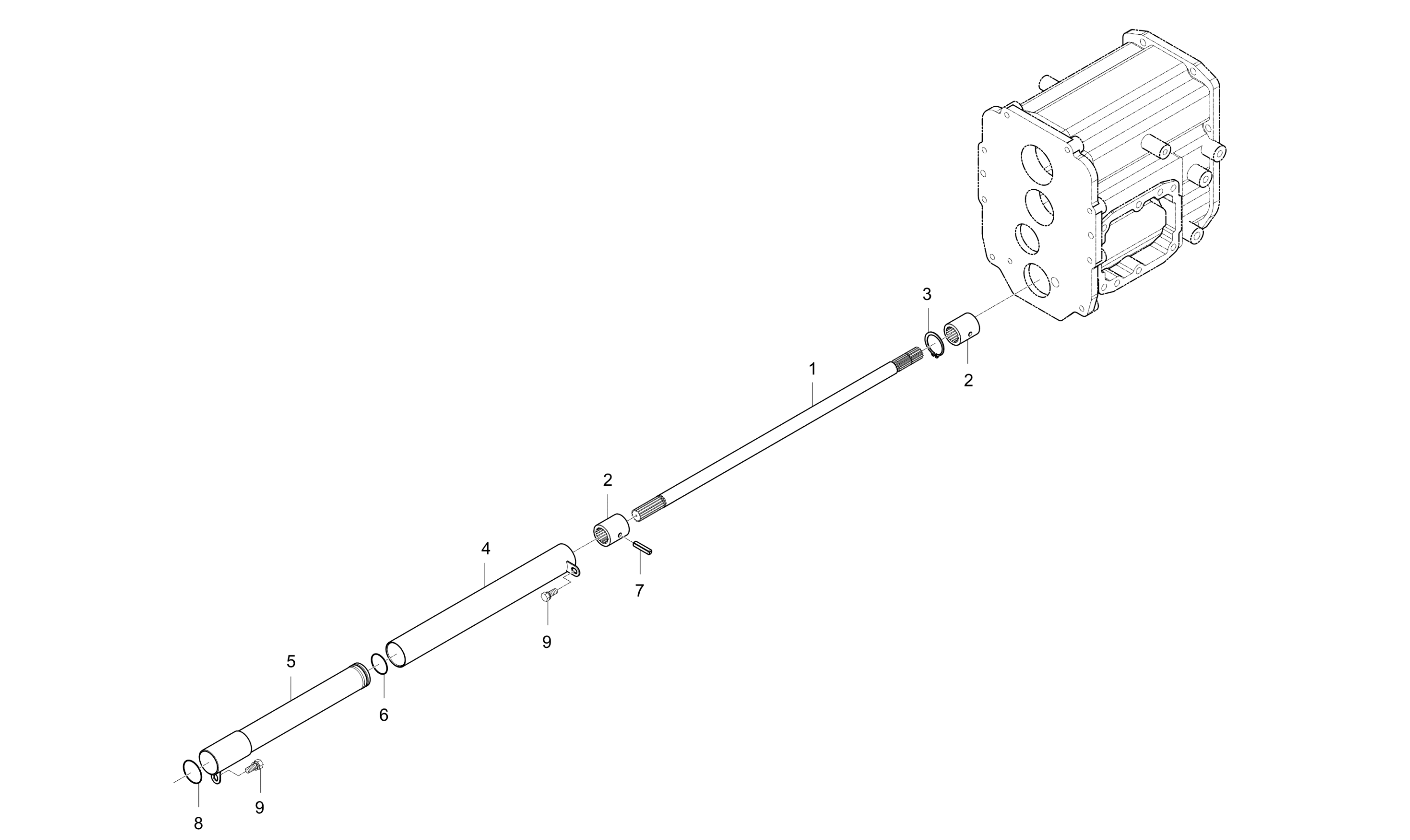

Diagram for PROPER SHAFT GROUP - CK20H-T540A
  • 1

    SHAFT,PROPLER

    • Part No. T2350-44511
    • 1 shown on diagram
    $154.99
  • 2 COUPLING

    COUPLING

    • Part No. 44512-1373-3
    • 2 shown on diagram
    $39.99
  • 3 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 1 shown on diagram
    $1.09
  • 4

    COVER 1, PROPER SHAFT

    • Part No. T2360-44611
    • Applied Dates Up to 2003-09-24
    • Serial No. Up to HS3000350
    • * multiple options for #4
    • 1 shown on diagram
    $49.99
  • 4

    COVER 1, PROPELLER SHAFT

    • Part No. T2360-44611BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #4
    • 1 shown on diagram
    $49.99
  • 5

    COVER 1, PROPELLER dnr v

    • Part No. T2350-44621
    • Serial No. Up to HS3000350
    • * multiple options for #5
    • 1 shown on diagram
    $54.99
  • 5

    COVER 1, PROPELLER v

    • Part No. T2350-44621BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #5
    • 1 shown on diagram
    $54.99
  • 6

    O-Ring

    • Part No. 04811-06350
    • DIA35.2
    • 1 shown on diagram
    $1.09
  • 7 PIN,SPRING (Roll) 5×28 05411-00528

    PIN,SPRING (Roll) 5×28 05411-00528

    • Part No. 05411-00528
    • 1 shown on diagram
    $0.90
  • 8 O RING

    O RING

    • Part No. 04811-00420
    • DIA41.7
    • 1 shown on diagram
    $1.19
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
