FRONT AXLE GROUP - CK20M-T500A

Kioti TRACTOR | CK Series | CK20HS

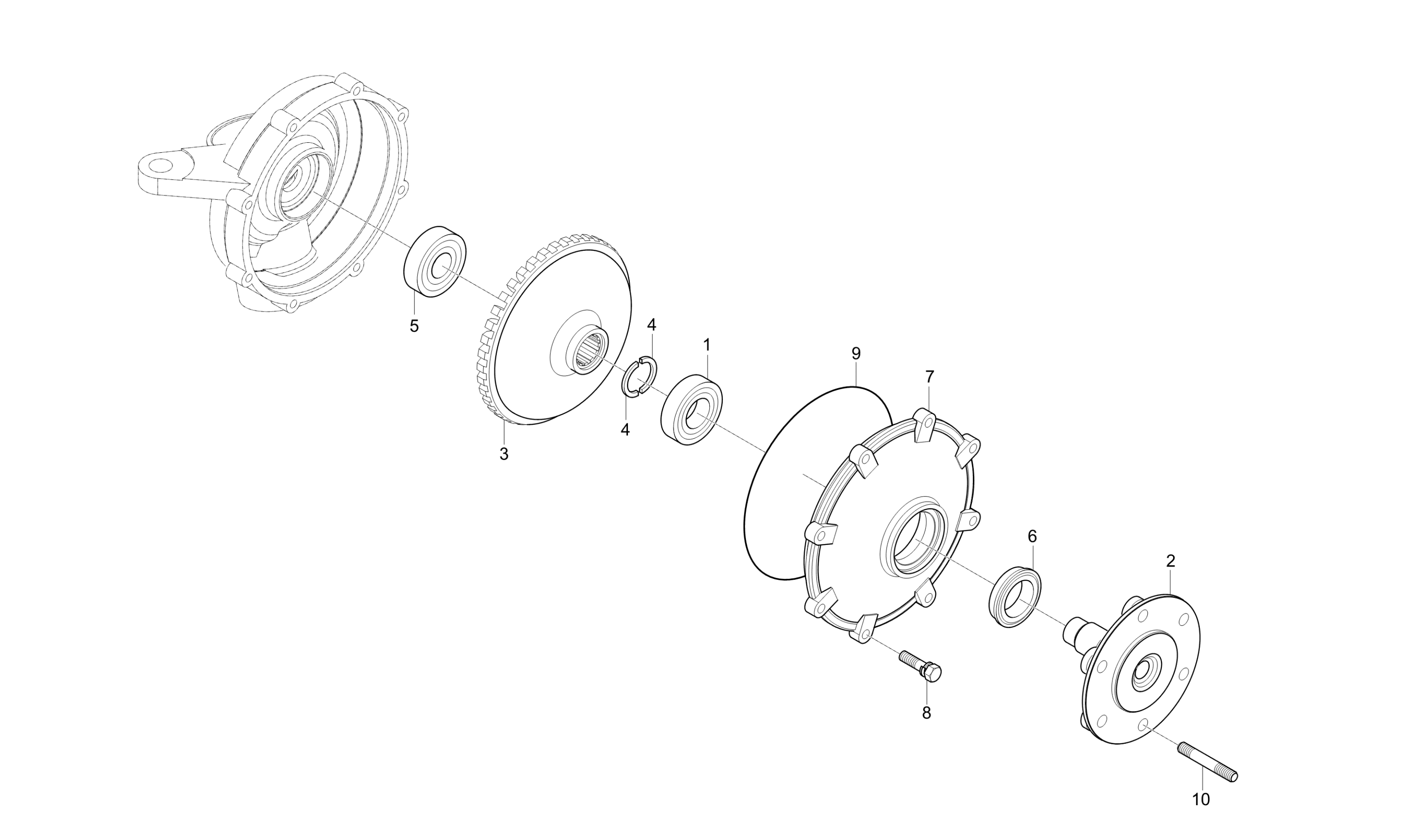

Diagram for FRONT AXLE GROUP - CK20M-T500A
  • 1 Ball Bearing 30x62x16

    Ball Bearing 30x62x16

    • Part No. 08101-06206
    • #6206
    • 2 shown on diagram
    $19.99
  • 2

    SHAFT, FRONT AXLE v

    • Part No. T2350-43611
    • * multiple options for #2
    • 2 shown on diagram
    $234.99
  • 2

    FRONT AXLE v

    • Part No. T2350-43612
    • Compatibility Interchngable
    • Applied Dates 2017-09-26 and up
    • * multiple options for #2
    • 2 shown on diagram
    $219.99
  • 3

    GEAR,BEVEL 40

    • Part No. T2350-43661
    • 2 shown on diagram
    $379.99
  • 4

    PIN, SNAP

    • Part No. 77121-5682-0
    • OD38
    • 4 shown on diagram
    $4.49
  • 5

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 2 shown on diagram
    $24.99
  • 6 SEAL,OIL 35x60x15

    SEAL,OIL 35x60x15

    • Part No. 76802-5691-0
    • 2 shown on diagram
    $12.99
  • 7

    COVER,FRONT AXLE

    • Part No. T2350-43621
    • 2 shown on diagram
    $134.99
  • 8 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 16 shown on diagram
    $1.99

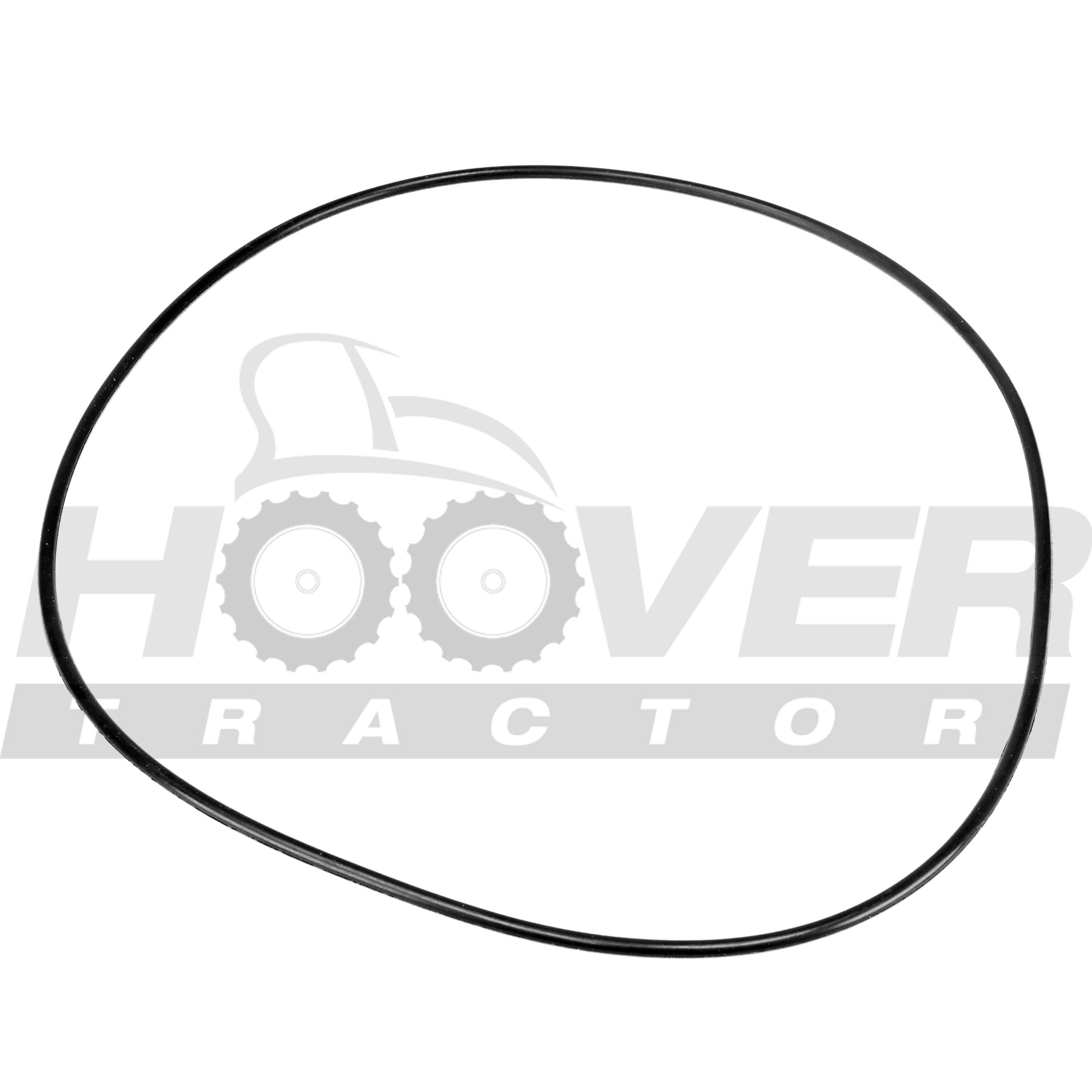

  • 9 O RING

    O RING

    • Part No. T2350-43671
    • 2 shown on diagram
    $8.99

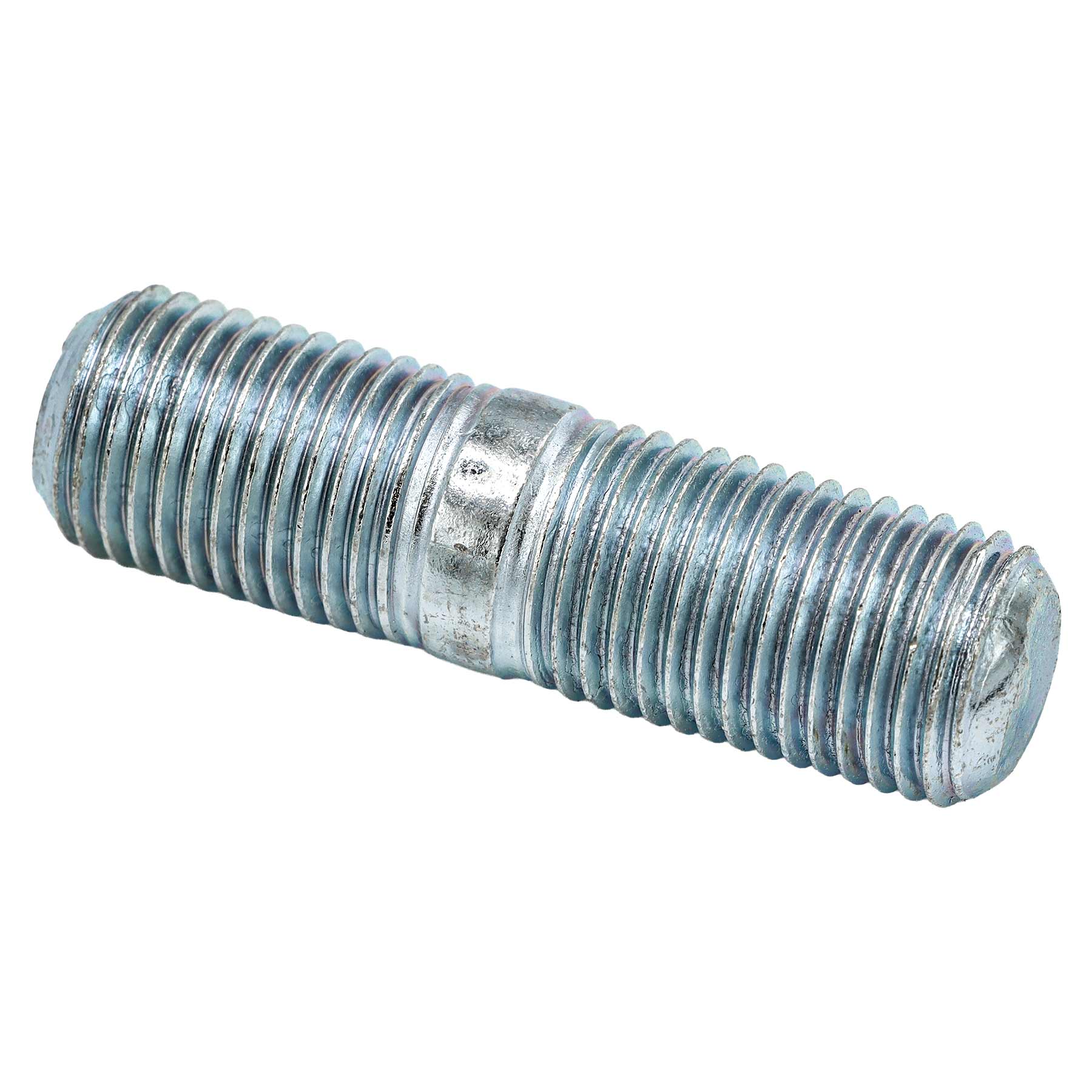

  • 10 STUD

    STUD

    • Part No. 01574-51225
    • M12XP1.25
    • 4 shown on diagram
    $2.99
