INLET TUBE GROUP - CK20M-T650-1A

Kioti TRACTOR | CK Series | CK20J

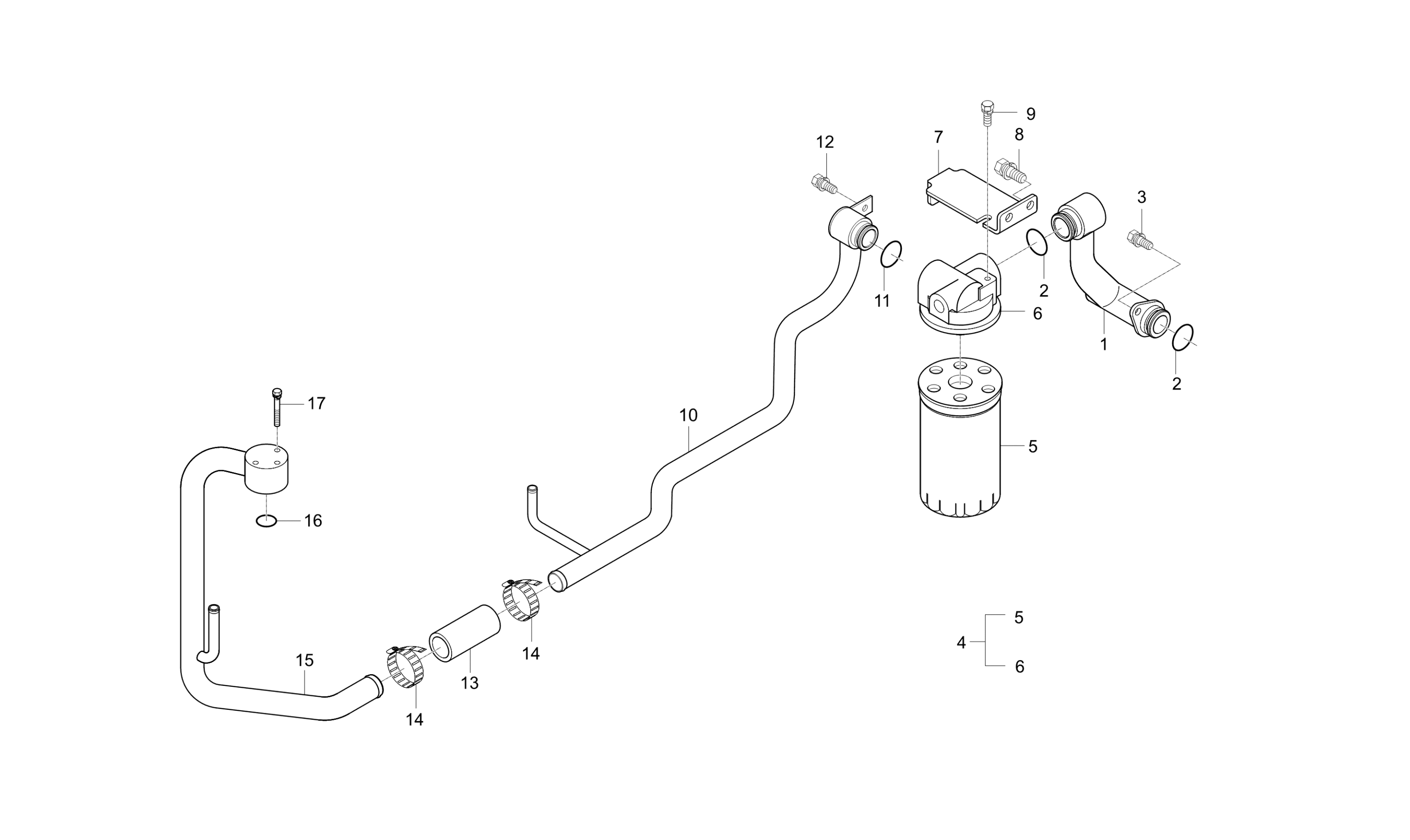

Diagram for INLET TUBE GROUP - CK20M-T650-1A
  • 1

    HOSE 1, INLET dnr v

    • Part No. T2350-38001
    • * multiple options for #1
    • 1 shown on diagram
    $69.99
  • 1

    TUBE INLET 1 dnr v

    • Part No. T2350-38002
    • Compatibility New repl old
    • Applied Dates 2004-12-31 to 2008-11-16
    • Serial No. D19400151 and up
    • * multiple options for #1
    • 1 shown on diagram
    $124.99
  • 2 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 2 shown on diagram
    $0.96
  • 3 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 4

    FILTER ASS’Y-HYD v

    • Part No. T2350-38122
    • Applied Dates 2003-10-16 to 2005-08-30
    • Serial No. 319400321 to E19400130
    • * multiple options for #4
    • 1 shown on diagram
    $77.99
  • 4

    FILTER ASS’Y-HYD.

    • Part No. T2350-38123
    • Compatibility New repl old
    • Applied Dates 2005-08-31 to 2011-01-10
    • Serial No. E19400131 and up
    • * multiple options for #4
    • 1 shown on diagram
    $68.99
  • 5 Hydraulic Filter

    Hydraulic Filter

    • Part No. T4260-38125
    • 1 shown on diagram
    $37.99
  • 6

    BRACKET,FILTER v, Replaced by T2350-38043

    • Part No. T2350-38041
    • * multiple options for #6
    • 1 shown on diagram
    $0.00
  • 6

    FITER BRACKET dnr v

    • Part No. T2350-38042
    • Compatibility Interchngable
    • * multiple options for #6
    • 1 shown on diagram
    $49.99
  • 6

    Filter Base

    • Part No. T2350-38043
    • Compatibility New repl old
    • * multiple options for #6
    • 1 shown on diagram
    $86.99
  • 7

    SUPPORT,FILTER

    • Part No. T2350-38061
    • 1 shown on diagram
    $19.99
  • 8

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 9

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 10

    TUBE 4, INLET

    • Part No. T2350-38113
    • Applied Dates 2004-09-11 to 2006-11-28
    • Serial No. D19400151 and up
    • * multiple options for #10
    • 1 shown on diagram
    $65.99
  • 10

    TUBE 4, SUCTION

    • Part No. T2368-38111
    • Compatibility No interchange
    • Applied Dates 2007-03-30 to 2007-03-30
    • * multiple options for #10
    • 1 shown on diagram
    $66.99
  • 10

    TUBE 4, SUCTION

    • Part No. T2368-38112
    • Compatibility Interchngable
    • Applied Dates 2007-07-01 to 2009-07-25
    • Serial No. G19400001 and up
    • * multiple options for #10
    • 1 shown on diagram
    $82.99
  • 10

    TUBE 4, SUCTION

    • Part No. T2368-38113
    • Compatibility New repl old
    • * multiple options for #10
    • 1 shown on diagram
    $0.00
  • 10

    TUBE 4, SUCTION

    • Part No. T2368-38113BB
    • Compatibility Interchngable
    • Applied Dates 2009-07-26 to 2011-01-10
    • * multiple options for #10
    • 1 shown on diagram
    $109.99
  • 10

    TUBE 4, SUCTION v

    • Part No. T2368-38114
    • Compatibility Interchngable
    • * multiple options for #10
    • 1 shown on diagram
    $71.99
  • 11 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 1 shown on diagram
    $0.96
  • 12 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 13 HOSE,RUBBER 28mm ID

    HOSE,RUBBER 28mm ID

    • Part No. T4125-38151
    • 1 shown on diagram
    $6.49
  • 14

    HOSE BAND v

    • Part No. 31355-3819-1
    • Stan40#
    • 2 shown on diagram
    $4.99
  • 15

    TUBE 3, INLET dnr v

    • Part No. T2350-38022
    • Applied Dates Up to 2007-04-30
    • * multiple options for #15
    • 1 shown on diagram
    $65.99
  • 15

    TUBE INLET 3 dnr v

    • Part No. T2350-38023
    • Compatibility Interchngable
    • Applied Dates 2007-05-01 to 2008-11-16
    • Serial No. G19400001 and up
    • * multiple options for #15
    • 1 shown on diagram
    $97.99
  • 15

    TUBE 3, INLET v

    • Part No. T2350-38023BB
    • Compatibility No interchange
    • * multiple options for #15
    • 1 shown on diagram
    $97.99
  • 16 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 1 shown on diagram
    $1.19
  • 17

    BOLT

    • Part No. 01023-50645
    • M6XP1.0
    • 3 shown on diagram
    $1.19
