FRONT AXLE FRAME GROUP - CK22M-T440A

Kioti TRACTOR | CK Series | CK20

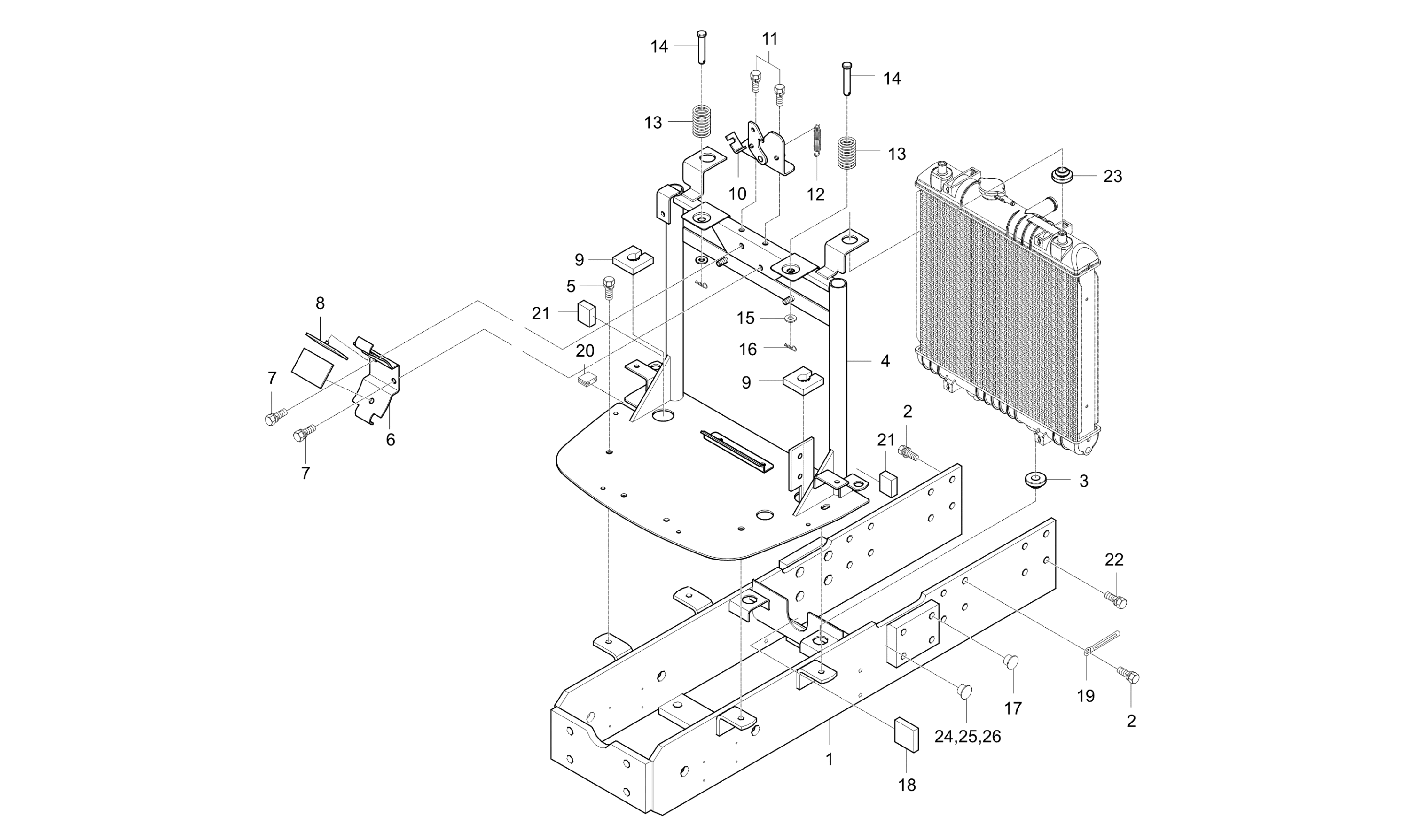

Diagram for FRONT AXLE FRAME GROUP - CK22M-T440A
  • 1
    • Part No. T2380-50012
    • Applied Dates 2007-03-08 to 2007-07-25
    • * multiple options for #1
    • 1 shown on diagram
  • 1
    • Part No. T2380-50013
    • Compatibility New repl old
    • Applied Dates 2007-07-26 to 2011-03-31
    • * multiple options for #1
    • 1 shown on diagram
  • 1
    • Part No. T2380-50014
    • Compatibility Interchngable
    • Applied Dates 2013-01-31 and up
    • * multiple options for #1
    • 1 shown on diagram
  • 2 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 12 shown on diagram
    $3.49
  • 3

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 4

    SUPPORT, RADIATOR

    • Part No. T2370-50211
    • 1 shown on diagram
    $159.99
  • 5 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 4 shown on diagram
    $1.99
  • 6

    SUPPORT,AIRCLEANER

    • Part No. T2350-50311
    • Applied Dates 2013-02-10 to 2008-10-23
    • T2.3
    • * multiple options for #6
    • 1 shown on diagram
    $124.99
  • 6

    SUPPORT, AIRCLEANER

    • Part No. T2350-50311ED
    • Compatibility No interchange
    • * multiple options for #6
    • 1 shown on diagram
    $114.99
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 8

    CUSHION

    • Part No. T2350-50321
    • 2 shown on diagram
    $3.49
  • 9

    SPONGE

    • Part No. T2350-37551
    • 2 shown on diagram
    $2.49
  • 10

    CATCH ASS`Y

    • Part No. T4682-50682
    • 1 shown on diagram
    $27.99
  • 11 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 12

    FRICTION SPRING

    • Part No. 57781-5121-1
    • DIA1.2
    • 1 shown on diagram
    $3.49
  • 13

    CABLE,BONNET OPEN

    • Part No. T2350-50691
    • 1 shown on diagram
    $33.99
  • 14

    Pin, Joint M6x14mm

    • Part No. 05122-50614
    • 1 shown on diagram
    $2.49
  • 15
    • Part No. 04014-50060
    • 1 shown on diagram
  • 16
    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
  • 17

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 8 shown on diagram
    $1.59
  • 18

    CLAMP,CORD obs v

    • Part No. 34260-2938-1
    • 1 shown on diagram
    $1.39
  • 19

    SPONGE

    • Part No. T2350-50021
    • 1 shown on diagram
    $6.49
  • 20

    PLUG

    • Part No. T2350-29291
    • 1 shown on diagram
    $4.99
  • 21

    SPONGE

    • Part No. T2350-50031
    • 2 shown on diagram
    $5.49
  • 22

    BOLT

    • Part No. 01133-51028
    • M10*1.25
    • 4 shown on diagram
    $3.49
  • 23

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 24

    PLUG

    • Part No. T4520-26911
    • 1 shown on diagram
    $4.99
  • 25

    PLUG

    • Part No. 31220-1429-3
    • 16 shown on diagram
    $3.49
  • 26

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 18 shown on diagram
    $1.59
