ELECTRICITY SYSTEM 2 GROUP - CK30H-T940A

Kioti TRACTOR | CK Series | CK25H

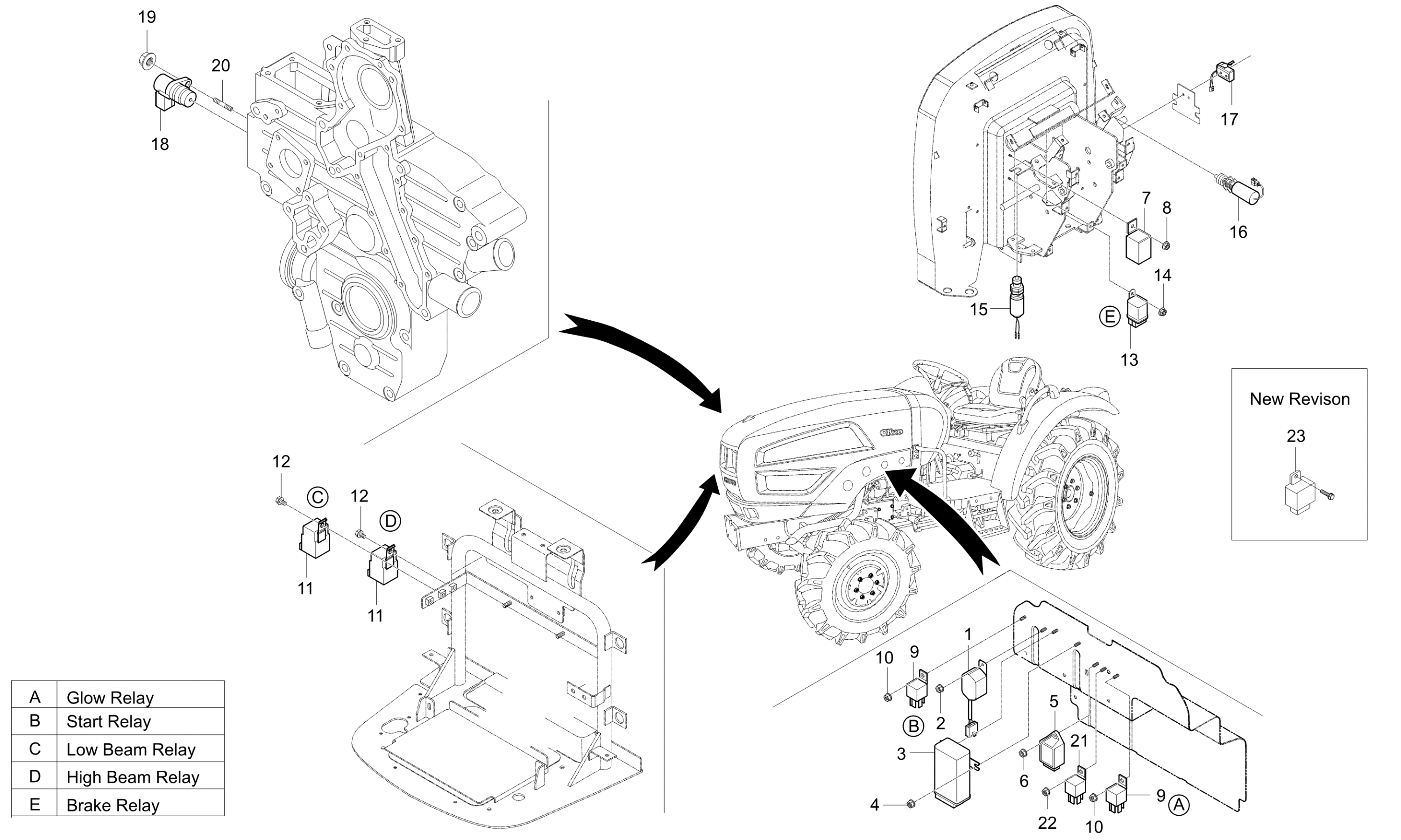

Diagram for ELECTRICITY SYSTEM 2 GROUP - CK30H-T940A
  • 1

    TIMER RELAY

    • Part No. 15475-6024-2
    • Applied Dates Up to 2005-02-20
    • Serial No. Up to E70200080
    • * multiple options for #1
    • 1 shown on diagram
    $78.99
  • 1 RELAY,TIMER V, Replaced by T2185-60242

    RELAY,TIMER V, Replaced by T2185-60242

    • Part No. T2185-60241
    • Compatibility No interchange
    • Applied Dates 2005-02-21 to 2006-12-03
    • Serial No. E70200081 and up
    • * multiple options for #1
    • 1 shown on diagram
    $84.99
  • 2 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 3 PREHEATER CONTROLLER

    PREHEATER CONTROLLER

    • Part No. T4620-69054
    • Applied Dates Up to 2006-12-03
    • Serial No. Up to F70200280
    • * multiple options for #3
    • 1 shown on diagram
    $129.99
  • 3

    ASSY UNIT v

    • Part No. T2185-69871
    • Compatibility No interchange
    • Applied Dates 2007-01-11 to 2007-05-25
    • Serial No. G70200001 to G70200080
    • * multiple options for #3
    • 1 shown on diagram
    $109.99
  • 3

    ASSY UNIT V

    • Part No. T2185-69872
    • Compatibility New repl old
    • Applied Dates 2007-05-26 and up
    • Serial No. G70200081 and up
    • * multiple options for #3
    • 1 shown on diagram
    $164.99
  • 3

    Safety Starter Display Unit, Replaced By TE15-0153A

    • Part No. T2185-69873
    • Compatibility Interchngable
    • Applied Dates 2008-08-11 to 2010-11-21
    • * multiple options for #3
    • 1 shown on diagram
    $0.00
  • 3 DISPLAY UNIT V, Replaced by TE15-0153A

    DISPLAY UNIT V, Replaced by TE15-0153A

    • Part No. T2185-69874
    • Compatibility Interchngable
    • Applied Dates 2010-11-22 to 2011-02-25
    • * multiple options for #3
    • 1 shown on diagram
    $0.00
  • 3

    UNIT DISPLAY, Replaced by TE15-0153A

    • Part No. T2185-69875
    • Compatibility New repl old
    • Applied Dates 2011-02-26 and up
    • * multiple options for #3
    • 1 shown on diagram
    $0.00
  • 3

    Safety Starter Display Unit

    • Part No. TE15-0153A
    • Compatibility New repl old
    • * multiple options for #3
    • 1 shown on diagram
    $159.99
  • 4 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 5 ASS Y FFT-HOUR CONTROL

    ASS Y FFT-HOUR CONTROL

    • Part No. T2185-69252
    • Applied Dates 2004-01-13 to 2006-12-03
    • 1 shown on diagram
    $209.99
  • 6 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 7

    UNIT, FLASHER V

    • Part No. T4240-31052
    • Applied Dates Up to 2006-12-03
    • * multiple options for #7
    • 1 shown on diagram
    $47.99
  • 7

    FLASHER UNIT v

    • Part No. T4121-31051
    • Compatibility Interchngable
    • Applied Dates 2007-01-11 to 2007-09-30
    • Serial No. G70200001 to G70200120
    • * multiple options for #7
    • 1 shown on diagram
    $21.99
  • 7

    UNIT, FLASHER IA, Replaced by T4121-31054

    • Part No. T4121-31052
    • Compatibility New repl old
    • Applied Dates 2007-10-01 to 2010-10-29
    • Serial No. G70200121 and up
    • * multiple options for #7
    • 1 shown on diagram
    $0.00
  • 7 UNIT FLASHER v

    UNIT FLASHER v

    • Part No. T4121-31053
    • Compatibility Interchngable
    • Applied Dates 2010-10-30 to 2015-01-31
    • Serial No. K70200001 and up
    • * multiple options for #7
    • 1 shown on diagram
    $41.99
  • 7 FLASHER UNIT, SENSOR v

    FLASHER UNIT, SENSOR v

    • Part No. T4121-31054
    • Compatibility Interchngable
    • Applied Dates 2015-02-01 to 2016-01-07
    • * multiple options for #7
    • 1 shown on diagram
    $41.99
  • 7 UNIT, FLASHER SENSOR

    UNIT, FLASHER SENSOR

    • Part No. TF15-0101A
    • Compatibility New repl old
    • Applied Dates 2016-01-08 and up
    • * multiple options for #7
    • 1 shown on diagram
    $43.99
  • 8 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 9

    GLOW RELAY V, Replaced by T4180-69951

    • Part No. C5510-43101
    • Applied Dates 2005-05-01 to 2005-07-25
    • Serial No. E70200081 to F70200200
    • * multiple options for #9
    • 2 shown on diagram
    $0.00
  • 9

    GLOW RELAY V, Replaced by T4180-69951

    • Part No. C5510-43102
    • Compatibility Interchngable
    • Applied Dates 2005-07-26 to 2006-12-03
    • Serial No. F70200201 to G70200080
    • * multiple options for #9
    • 2 shown on diagram
    $0.00
  • 9

    Relay 5p V, Replaced By T5535-69961

    • Part No. T2185-69971
    • Compatibility Interchngable
    • Applied Dates 2007-01-11 to 2008-09-29
    • Serial No. G70200001 and up
    • * multiple options for #9
    • 2 shown on diagram
    $0.00
  • 9 RELAY 5P, Replaced by T5535-69961

    RELAY 5P, Replaced by T5535-69961

    • Part No. T4180-69961
    • Compatibility Interchngable
    • Applied Dates 2009-10-27 to 2010-07-18
    • * multiple options for #9
    • 4 shown on diagram
    $0.00
  • 9 RELAY 5P, Replaced by T5535-69961

    RELAY 5P, Replaced by T5535-69961

    • Part No. T4180-69961
    • Compatibility Old repl new
    • * multiple options for #9
    • 2 shown on diagram
    $0.00
  • 9 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Compatibility Interchngable
    • Applied Dates 2014-11-01 and up
    • Bracket
    • * multiple options for #9
    • 4 shown on diagram
    $19.99
  • 10 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 11 (4) Pin Power Relay (T4710-69971)

    (4) Pin Power Relay (T4710-69971)

    • Part No. T4710-69971
    • Applied Dates 2004-01-13 to 2006-12-03
    • 2 shown on diagram
    $24.99
  • 12

    BOLT, FLANGE

    • Part No. 01754-50610
    • M6XP1.0
    • 2 shown on diagram
    $1.09
  • 13

    RELAY-COOLER

    • Part No. T4520-75031
    • Applied Dates Up to 2006-06-07
    • 1 shown on diagram
    $25.99
  • 14 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 15 SWITCH, SAFETY STARTE

    SWITCH, SAFETY STARTE

    • Part No. T4520-75481
    • 1 shown on diagram
    $53.99
  • 16 ASSY STOP SWITCH

    ASSY STOP SWITCH

    • Part No. T4520-41821
    • 1 shown on diagram
    $58.99
  • 17

    MICRO SWITCH, Replaced by T2198-68811

    • Part No. 44512-6881-3
    • Applied Dates Up to 2007-05-30
    • * multiple options for #17
    • 1 shown on diagram
    $0.00
  • 17

    MICRO SWITCH v

    • Part No. T4930-68811
    • Compatibility Interchngable
    • Applied Dates 2007-05-31 to 2007-10-24
    • * multiple options for #17
    • 1 shown on diagram
    $56.99
  • 18

    PICK UP SENSOR

    • Part No. E6302-04931
    • 1 shown on diagram
    $119.99
  • 19 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • Applied Dates 2010-01-26 to 2005-04-29
    • Serial No. Up to E70200080
    • M6XP1.0
    • * multiple options for #19
    • 1 shown on diagram
    $1.39
  • 19 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • Compatibility New repl old
    • Applied Dates 2004-02-22 to 2011-12-31
    • Serial No. D70200001 and up
    • M6XP1.0
    • * multiple options for #19
    • 1 shown on diagram
    $0.67
  • 20

    STUD

    • Part No. 01513-50616
    • DIA6*28
    • 1 shown on diagram
    $2.99
  • 21

    RELAY V, Replaced by T4180-69951

    • Part No. T2198-69951
    • Applied Dates 2007-07-31 to 2008-09-21
    • Serial No. G70200081 and up
    • 70A (epoxy)
    • * multiple options for #21
    • 1 shown on diagram
    $0.00
  • 21 RELAY 4P 70A, Replaced by T5535-69951

    RELAY 4P 70A, Replaced by T5535-69951

    • Part No. T4180-69951
    • Compatibility Interchngable
    • Applied Dates 2009-12-01 to 2015-01-31
    • 12V 70A
    • * multiple options for #21
    • 1 shown on diagram
    $0.00
  • 21 70 Amp (4) Pin Relay (T5535-69951)

    70 Amp (4) Pin Relay (T5535-69951)

    • Part No. T5535-69951
    • Compatibility Interchngable
    • Applied Dates 2015-02-01 and up
    • * multiple options for #21
    • 1 shown on diagram
    $29.99
  • 22 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 23 ACCESSORY RELAY ASSY 8 PIN, Replaced by T4351-43102

    ACCESSORY RELAY ASSY 8 PIN, Replaced by T4351-43102

    • Part No. T4351-43101
    • Applied Dates 2010-07-19 to 2015-12-31
    • * multiple options for #23
    • 1 shown on diagram
    $0.00
  • 23 TWIN RELAY, 8 PIN v

    TWIN RELAY, 8 PIN v

    • Part No. T4351-43102
    • Compatibility Interchngable
    • Applied Dates 2016-01-01 and up
    • * multiple options for #23
    • 1 shown on diagram
    $44.99
