LIGHT GROUP - CK30H-T960A

Kioti TRACTOR | CK Series | CK25H

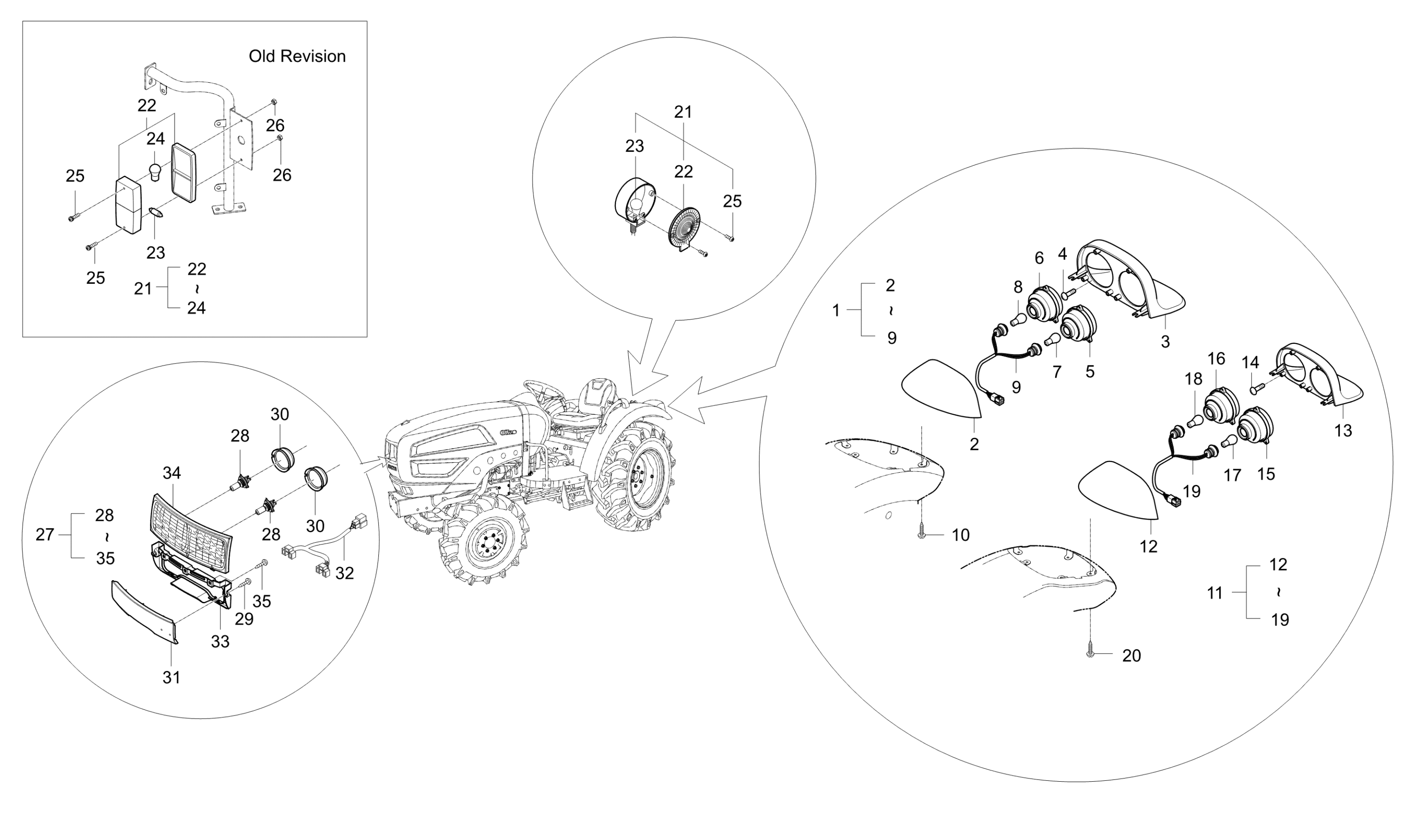

Diagram for LIGHT GROUP - CK30H-T960A
  • 1

    ASS’Y REAR COMBI LAMP(LH) dnr v

    • Part No. T2185-69713
    • Applied Dates 2004-02-17 to 2006-06-07
    • Serial No. Up to F70200280
    • * multiple options for #1
    • 1 shown on diagram
    $99.99
  • 1

    ASS’Y TAIL LAMP(LEFT) dnr v

    • Part No. T2185-69731
    • Compatibility New repl old
    • Applied Dates 2006-06-08 to 2006-07-16
    • * multiple options for #1
    • 1 shown on diagram
    $86.99
  • 1

    ASS’Y TAIL LAMP(LEFT) v

    • Part No. T2185-69732
    • Compatibility New repl old
    • Applied Dates 2006-09-17 and up
    • Serial No. F70200281 and up
    • * multiple options for #1
    • 1 shown on diagram
    $159.99
  • 1

    ASSY REAR LAMP LH v

    • Part No. T2185-69732BB
    • Compatibility No interchange
    • Applied Dates 2008-10-27 and up
    • * multiple options for #1
    • 1 shown on diagram
    $179.99
  • 2

    COVER- REAR LAMP LH dnr v

    • Part No. T2185-95111
    • * multiple options for #2
    • 1 shown on diagram
    $18.99
  • 2

    COVER REAR LAMP LH

    • Part No. T2185-95111BB
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $37.99
  • 3

    REAR LAMP Cover LH, Replaced by T2185-95131BB

    • Part No. T2185-95131
    • * multiple options for #3
    • 1 shown on diagram
    $32.99
  • 3

    COVER REAR LAMP LH

    • Part No. T2185-95131BB
    • Compatibility No interchange
    • * multiple options for #3
    • 1 shown on diagram
    $37.99
  • 4 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 9 shown on diagram
    $0.79
  • 5 LAMP, HAZARD REAR (AMBER)

    LAMP, HAZARD REAR (AMBER)

    • Part No. T2185-69651
    • 1 shown on diagram
    $65.99
  • 6 TAIL&STOP LAMP

    TAIL&STOP LAMP

    • Part No. T2185-69661
    • Applied Dates Up to 2006-09-16
    • Serial No. Up to F70200280
    • * multiple options for #6
    • 1 shown on diagram
    $69.99
  • 6

    TAIL&STOP LAMP

    • Part No. T2185-68661
    • Compatibility No interchange
    • Applied Dates 2006-09-17 and up
    • Serial No. G70200001 and up
    • * multiple options for #6
    • 1 shown on diagram
    $76.99
  • 7 Bulb 12v 27w, 1156

    Bulb 12v 27w, 1156

    • Part No. T2185-79011
    • Applied Dates 2004-02-17 and up
    • 1 shown on diagram
    $7.49
  • 8

    BULB V 1157

    • Part No. T2185-79051
    • Applied Dates 2004-02-17 and up
    • S25D
    • 1 shown on diagram
    $8.49
  • 9 Rear Combination Lamp Wire Harness

    Rear Combination Lamp Wire Harness

    • Part No. T2185-69692
    • Applied Dates Up to 2004-01-12
    • 1 shown on diagram
    $32.99
  • 10 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 5 shown on diagram
    $0.79
  • 11 ASS Y REAR COMBI LAMP

    ASS Y REAR COMBI LAMP

    • Part No. T2185-69723
    • Applied Dates 2004-02-17 to 2006-06-07
    • Serial No. Up to F70200280
    • * multiple options for #11
    • 1 shown on diagram
    $109.99
  • 11

    ASS’Y TAIL LAMP(RIGHT) v

    • Part No. T2185-69741
    • Compatibility New repl old
    • Applied Dates 2006-06-08 to 2006-09-16
    • * multiple options for #11
    • 1 shown on diagram
    $86.99
  • 11

    ASS’Y TAIL LAMP RH dnr v

    • Part No. T2185-69742
    • Compatibility New repl old
    • Applied Dates 2006-09-17 and up
    • Serial No. F70200281 and up
    • * multiple options for #11
    • 1 shown on diagram
    $169.99
  • 11

    ASSY REAR LAMP RH

    • Part No. T2185-69742BB
    • Compatibility No interchange
    • Applied Dates 2008-10-27 and up
    • * multiple options for #11
    • 1 shown on diagram
    $179.99
  • 12

    COVER- REAR LAMP RH v

    • Part No. T2185-95121
    • * multiple options for #12
    • 1 shown on diagram
    $18.99
  • 12 COVER REAR LAMP RH

    COVER REAR LAMP RH

    • Part No. T2185-95121BB
    • Compatibility No interchange
    • * multiple options for #12
    • 1 shown on diagram
    $37.99
  • 13

    COVER REAR LAMP RH V, Replaced by T2185-95141BB

    • Part No. T2185-95141
    • * multiple options for #13
    • 1 shown on diagram
    $0.00
  • 13 COVER REAR RH

    COVER REAR RH

    • Part No. T2185-95141BB
    • Compatibility No interchange
    • * multiple options for #13
    • 1 shown on diagram
    $37.99
  • 14 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 9 shown on diagram
    $0.79
  • 15 LAMP, HAZARD REAR (AMBER)

    LAMP, HAZARD REAR (AMBER)

    • Part No. T2185-69651
    • 1 shown on diagram
    $65.99
  • 16 TAIL&STOP LAMP

    TAIL&STOP LAMP

    • Part No. T2185-69661
    • Applied Dates Up to 2006-09-16
    • Serial No. Up to F70200280
    • * multiple options for #16
    • 1 shown on diagram
    $69.99
  • 16

    TAIL&STOP LAMP

    • Part No. T2185-68661
    • Compatibility No interchange
    • Applied Dates 2006-09-17 and up
    • Serial No. G70200001 and up
    • * multiple options for #16
    • 1 shown on diagram
    $76.99
  • 17 Bulb 12v 27w, 1156

    Bulb 12v 27w, 1156

    • Part No. T2185-79011
    • Applied Dates 2004-02-17 and up
    • 1 shown on diagram
    $7.49
  • 18

    BULB V 1157

    • Part No. T2185-79051
    • Applied Dates 2004-02-17 and up
    • S25D
    • 1 shown on diagram
    $8.49
  • 19 Rear Combination Lamp Wire Harness

    Rear Combination Lamp Wire Harness

    • Part No. T2185-69692
    • Applied Dates 2004-01-13 and up
    • 1 shown on diagram
    $32.99
  • 20 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 5 shown on diagram
    $0.79

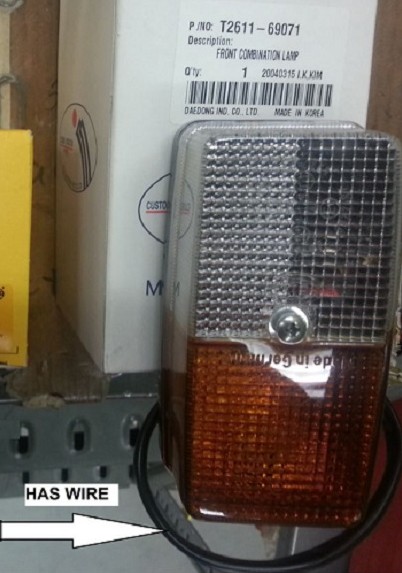

  • 21 FRONT COMBINATION LAMP

    FRONT COMBINATION LAMP

    • Part No. T2611-69071
    • Applied Dates Up to 2004-02-16
    • * multiple options for #21
    • 2 shown on diagram
    $139.99
  • 21

    ASSY COMBINATION LIGHT FRONT

    • Part No. T2185-69071
    • Compatibility No interchange
    • Applied Dates 2004-02-17 to 2006-06-07
    • Serial No. Up to F70200280
    • * multiple options for #21
    • 2 shown on diagram
    $184.99
  • 21 LAMP, HAZARD (ROPS LIGHT)

    LAMP, HAZARD (ROPS LIGHT)

    • Part No. T2185-69061
    • Compatibility No interchange
    • Applied Dates 2006-06-08 and up
    • Serial No. G70200001 and up
    • * multiple options for #21
    • 2 shown on diagram
    $49.99
  • 22

    LAMP, HAZARD (BODY & LENS ONLY), Replaced by T2131-69071

    • Part No. T2611-69061
    • Applied Dates Up to 2006-06-07
    • Serial No. Up to F70200280
    • * multiple options for #22
    • 2 shown on diagram
    $82.42
  • 22

    Lens (Not available separately)

    • Part No. T2185-69061002
    • Compatibility No interchange
    • Applied Dates 2006-06-08 and up
    • Serial No. G70200001 and up
    • * multiple options for #22
    • 1 shown on diagram
    $0.00
  • 23 BULB 12V C5W

    BULB 12V C5W

    • Part No. T2611-79041
    • Applied Dates Up to 2006-06-07
    • Serial No. Up to F70200280
    • * multiple options for #23
    • 2 shown on diagram
    $7.99
  • 23

    Bulb (27W), Replaced by T2185-79011

    • Part No. T2185-69061003
    • Compatibility No interchange
    • Applied Dates 2006-06-08 and up
    • Serial No. G70200001 and up
    • 12V21W
    • * multiple options for #23
    • 1 shown on diagram
    $0.00
  • 24

    BULB 12V P21W 1156

    • Part No. T2611-79011
    • Applied Dates Up to 2006-06-07
    • 2 shown on diagram
    $6.49
  • 25

    SCREW v

    • Part No. 03024-50412
    • Applied Dates 2003-12-14 to 2006-06-07
    • Serial No. 370200001 to F70200280
    • * multiple options for #25
    • 4 shown on diagram
    $0.62
  • 25

    SCREW (Not available separately)

    • Part No. T2185-69061001
    • Compatibility No interchange
    • Applied Dates 2006-06-08 and up
    • Serial No. G70200001 and up
    • * multiple options for #25
    • 2 shown on diagram
    $0.00
  • 26

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • Applied Dates Up to 2006-06-07
    • M4XP0.7
    • 4 shown on diagram
    $0.61
  • 27

    ASSY HEADLIGHT dnr v

    • Part No. T2185-69514
    • Applied Dates 2004-12-16 to 2006-12-03
    • Serial No. E70200001 to G70200040
    • * multiple options for #27
    • 1 shown on diagram
    $344.99
  • 27

    ASSY HEAD LAMP USA, Replaced by T2185-69517BB

    • Part No. T2185-69515
    • Compatibility Interchngable
    • Applied Dates 2006-12-04 and up
    • Serial No. G70200041 and up
    • * multiple options for #27
    • 1 shown on diagram
    $0.00
  • 27

    ASSY HEAD LIGHT V

    • Part No. T2185-69515BB
    • Compatibility No interchange
    • * multiple options for #27
    • 1 shown on diagram
    $324.99
  • 27

    ASSY LAMP,HEAD

    • Part No. T2185-69516BB
    • Compatibility New repl old
    • * multiple options for #27
    • 1 shown on diagram
    $0.00
  • 27

    ASSY LAMP,HEAD v

    • Part No. T2185-69517BB
    • Compatibility New repl old
    • * multiple options for #27
    • 1 shown on diagram
    $484.99
  • 28 BULB 12V35-35W

    BULB 12V35-35W

    • Part No. T4620-69241
    • 12V35W/35W(H4)
    • 2 shown on diagram
    $46.99
  • 29 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 6 shown on diagram
    $0.79
  • 30

    DUST COVER

    • Part No. T2185-69541
    • 2 shown on diagram
    $12.99
  • 31

    PUNCHING METAL 3

    • Part No. T2185-51194
    • Applied Dates 2004-12-16 and up
    • T0.8
    • * multiple options for #31
    • 1 shown on diagram
    $98.99
  • 31

    Net, 3, Replaced by T2185-51195BB

    • Part No. T2185-51194BB
    • Compatibility No interchange
    • * multiple options for #31
    • 1 shown on diagram
    $81.99
  • 32 Head Light Wire Harness

    Head Light Wire Harness

    • Part No. T2185-69532
    • Applied Dates 2004-01-13 and up
    • 1 shown on diagram
    $38.99
  • 33

    GRILL V, Replaced by T2185-69701BB

    • Part No. T2185-69701
    • * multiple options for #33
    • 1 shown on diagram
    $0.00
  • 33

    GRILL

    • Part No. T2185-69701BB
    • Compatibility No interchange
    • * multiple options for #33
    • 1 shown on diagram
    $56.99
  • 34

    Head Lamp Housing

    • Part No. T2185-69811
    • * multiple options for #34
    • 1 shown on diagram
    $159.99
  • 34

    HOUSING, HEADLIGHT v

    • Part No. T2185-69801BB
    • Compatibility New repl old
    • * multiple options for #34
    • 1 shown on diagram
    $43.99
  • 34

    Head Lamp Housing, Replaced By T2185-69811

    • Part No. T2185-69802BB
    • Compatibility New repl old
    • * multiple options for #34
    • 1 shown on diagram
    $0.00
  • 35 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • Applied Dates 2005-10-25 to 2006-06-06
    • Serial No. D70200051 to F70200280
    • M4X16
    • * multiple options for #35
    • 4 shown on diagram
    $0.79
  • 35

    SCREW

    • Part No. 38430-1827-1
    • Compatibility No interchange
    • Applied Dates 2006-06-07 to 2004-03-31
    • Serial No. G70200001 to D70200050
    • * multiple options for #35
    • 8 shown on diagram
    $0.46
  • 35 Screw

    Screw

    • Part No. T2185-64301
    • Compatibility New repl old
    • Applied Dates 2011-05-15 and up
    • * multiple options for #35
    • 8 shown on diagram
    $0.46
